Triton Spray Package, Xp 85KV

GG 289641

TRITON SPRAYER, AL PUMP CART MNT, ELECTRO

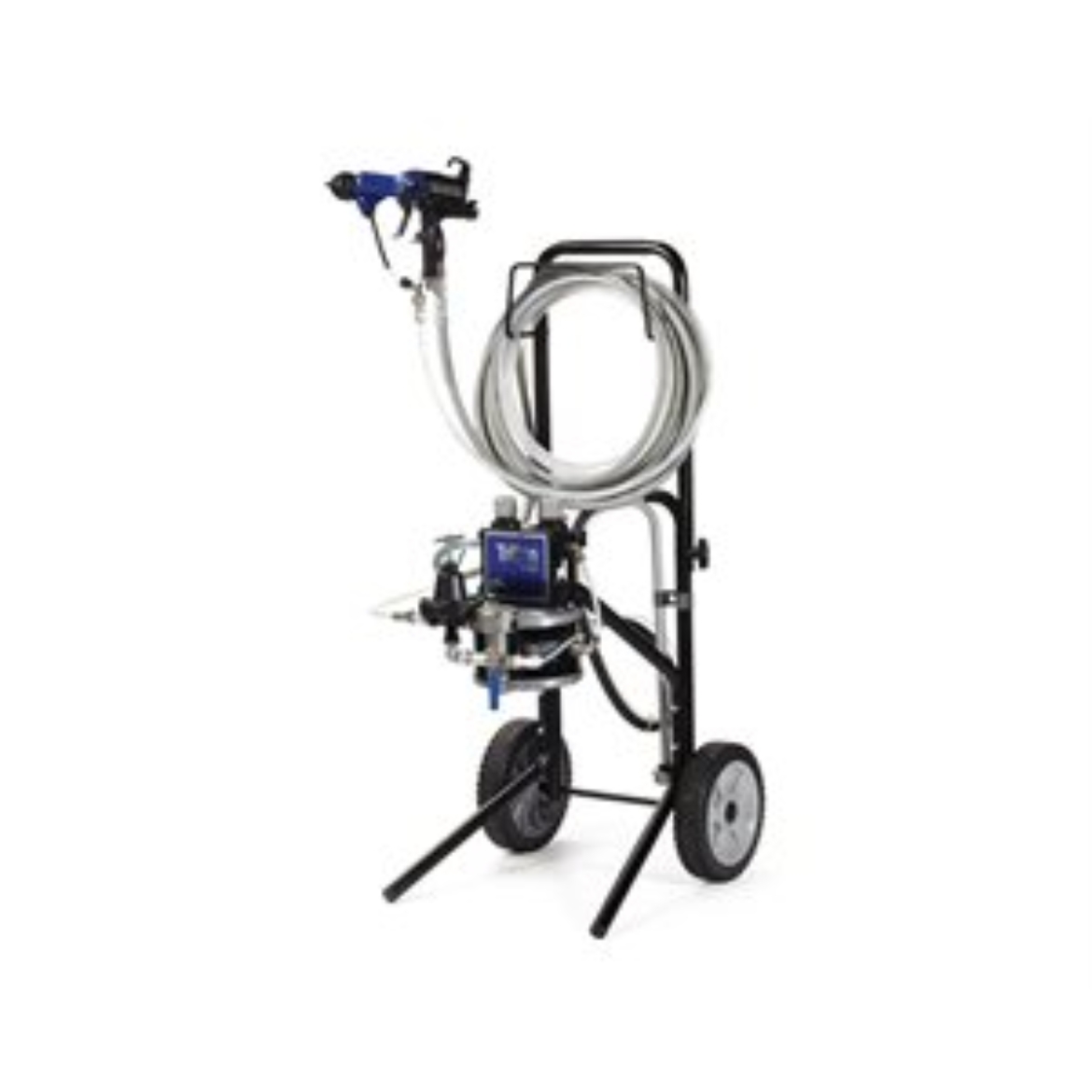

Graco 289641 Triton Alum Spray Package, Cart, 60 psi Fluid Regulator, Pro Xp85 Electrostatic Gun, Suction, Air & Fluid Hoses

Air-operated diaphragm spray package designed for the finishing market. It is a more effective alternative to traditional pressure pots and standard diaphragm pumps.

• Superior finish quality for conventional, HVLP and compliant or electrostatic applications
• Supplies up to 35% extra air flow to gun for superior atomization
• Saves material and time during flushing, priming and color changes
• Rugged, stainless steel or aluminum construction pump handles a wide variety of fluids

• Model: Triton
• Series: 308

• Application: Metal

• Compatible Material: Varnish Primers, Latex, Solvent borne Paints, Solvent borne, High Solids, Single Components, CARC, Metallics, Stains, Lacquer, Enamel, Epoxies

• Feed Type: Suction Hose

• Fluid Inlet Size (cm): 1.905
• Fluid Inlet Size (in): 3/4
• Fluid Inlet Size (mm): 19.05
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 0.9525
• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 9.525
• Fluid Outlet Thread Type: NPT

• Gun Included: 1
• Gun Model: Pro Xp 85 kV Standard
• Gun Technology: Electrostatic
• Gun Type: Electrostatic

• Includes: 25 ft Air Hose, 25 ft Fluid Hose, Regulator, Applicator

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (psi): 100

• Maximum Working Pressure (bar): 7
• Maximum Working Pressure (kg/cm²): 7.03
• Maximum Working Pressure (kPa): 700
• Maximum Working Pressure (psi): 100

• Mount Location: Cart Mount
• Mount Type: Cart Mount

• Power Source: Air

• Pressure Type: Low Pressure
• Product Type: Spray Package

• Pump Ratio: 1:1
• Pump Type: Pneumatic Diaphragm Pump
