GG 246376
KIT, COMPL., H1050 (AIR/FLUID)

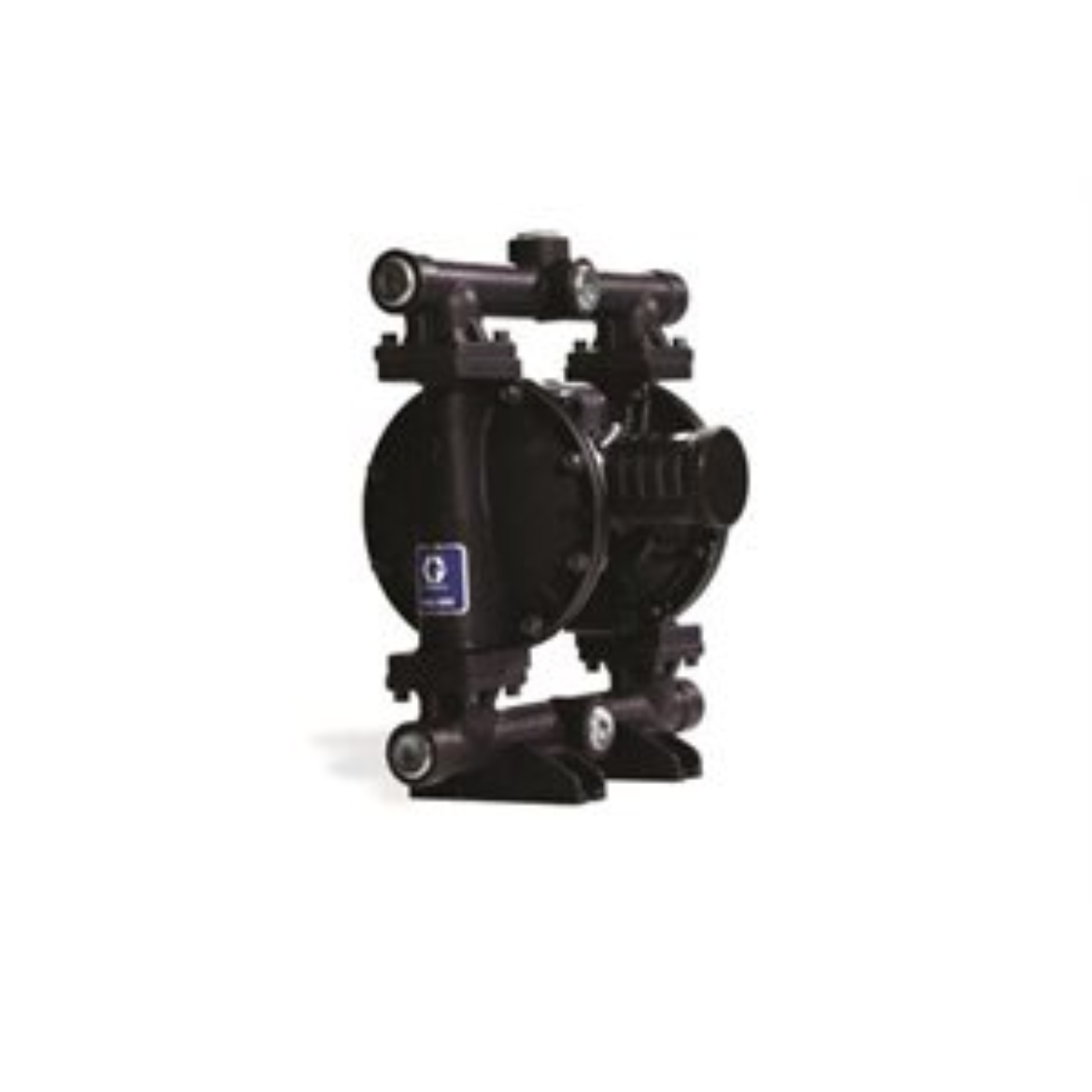

Graco 246376 Complete Husky 1050 Supply Pump System
The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.
- Benefits of the Husky 1050 Double Diaphragm Pump
Up to 5 times longer diaphragm life compared to other air-operated diaphragm pumps in its class
Expanded material offering to handle endless applications
Spring loaded, externally serviceable pilot valves for faster change over and reduced pulsation.
Offered in ATEX configuration.
- 30% more efficient than the market leader
- 20% increase in fluid flow compared to the Husky 1050
- Expanded material offering to handle endless applications
- Air Exhaust Port Size (in): 3/4
- Air Exhaust Port Thread Gender: Female
- Air Exhaust Port Thread Type: NPT
- Air Inlet Size (in): 1/2
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Compatible Material: Antifreeze, Detergent, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer
- Fluid Inlet Size (cm): 2.54
- Fluid Inlet Size (in): 1
- Fluid Inlet Size (mm): 25.4
- Fluid Outlet Size (cm): 2.54
- Fluid Outlet Size (in): 1
- Fluid Outlet Size (mm): 25.4
- Maximum Air Pressure (bar): 8.62
- Maximum Air Pressure (kPa): 862
- Maximum Air Pressure (MPa): 0.862
- Maximum Air Pressure (psi): 125
- Maximum Cycle Rate (CPM): 280
- Maximum Flow Rate (GPM): 50
- Maximum Flow Rate (L/min): 189
- Maximum Fluid Pressure (bar): 8
- Maximum Fluid Pressure (kPa): 80
- Maximum Fluid Pressure (MPa): 0.8
- Maximum Fluid Pressure (psi): 115
- Maximum Fluid Pressure (bar): 8
- Maximum Fluid Pressure (kPa): 80
- Maximum Fluid Pressure (MPa): 0.8
- Maximum Fluid Pressure (psi): 115
- Maximum Solid Size (cm): 0.3175
- Maximum Solid Size (in): 0.125
- Maximum Solid Size (mm): 3.175
