GG 17M367
ULTRAMAX DCHH SPRAYER, 120V

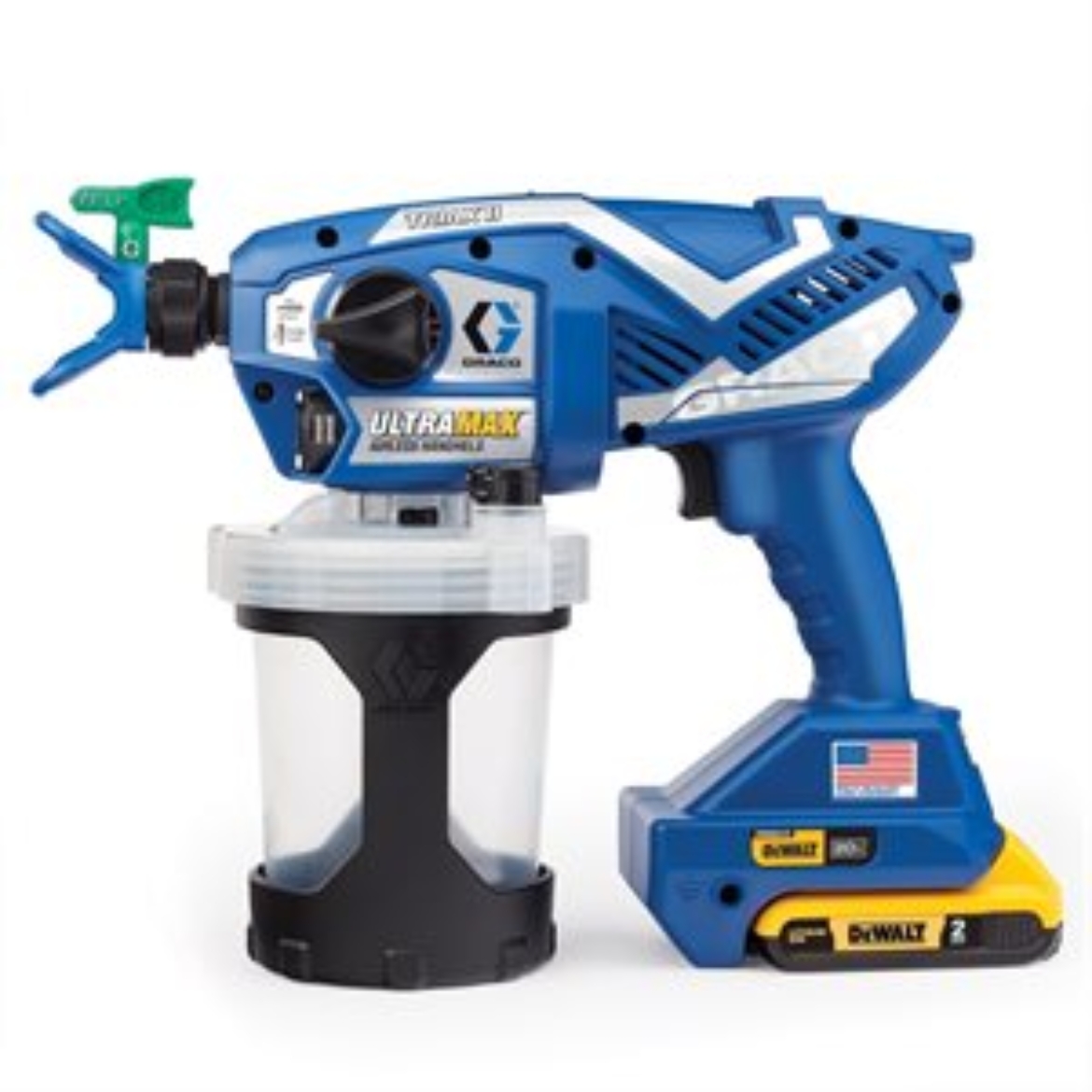

Graco 17M367 UltraMAX Cordless Handheld Airless Sprayer
Tested by Pros, the UltraMAX Cordless is the ONLY Handheld sprayer capable of spraying water-based, solvent and flammable architectural coatings. SmartControl technology delivers a flawless finish with no thinning required.
- Triax II Triple Piston Pump
Pump 3X more gallons before service
Clean up in minutes
No inlet check valve to get stuck - prime and spray in seconds
Fast, on-the-job pump replacement with ProConnect
- DEWALT® 20V MAX Lithium Ion Battery System
Spray up to 1 gallon with each charge
Compatible with any DEWALT 20V MAX Lithium Ion battery
Comes standard with 2 batteries
Lightweight design and 30% faster charge time (35 minutes)
- ProConnect
On-The-Job Pump Replacement System
One Tool Replacement - Replace the pump in 3 steps using only a screwdriver
- ProControl II
Adjust motor speed to spray at any speed the job demands
More control to deliver a professional finish – every job, every time
- Hot Solvent Compatible
Sprays hot solvents such as solvent-based lacquer
Sprays water, solvent and flammable based materials
- RAC X FF LP Tips
Provides superior finish at low pressure
Reverse-A-Clean (RAC) SwitchTips make cleaning tip clogs simple
Large range of sizes available to meet the job requirements
Works on all Graco Airless Sprayers – handhelds to large airless
- 32 oz FlexLiner Paint Bags
Fast cleanup with disposable liners and no suction tube to clean
Easy Setup
- FlexLiner QuickFill Funnel
Click and fill design for faster refills
Automatically strains paint while pouring
- Model: UltraMAX
- Series: Cordless
- Battery Chemistry: Lithium-ion
- Battery Voltage (V): 20
- Compatible Replacement Pump: 17P187
- Frame Configuration: Handheld
- Includes: RAC X FF LP 210 Spray Tip, RAC X FF LP 514 Spray Tip, RAC X Guard, 6 - 32 oz FlexLiner Bags, 2 - DEWALT 20V MAX 2.0 Ah Lithium Ion Batteries, DEWALT 20V MAX Battery Charger, 60 Mesh Filter, 100 Mesh Filter, Storage Bag, Pump Armor 4 oz, QuickFill Funnel
- Maximum Tip Size (in): 0.016
- Maximum Working Pressure (bar): 138
- Maximum Working Pressure (kPa): 13800
- Maximum Working Pressure (MPa): 14
- Maximum Working Pressure (psi): 2000
- Minimum Working Pressure (bar): 35
- Minimum Working Pressure (kPa): 3500
- Minimum Working Pressure (psi): 500
- Overall Height (cm): 26.7
- Overall Height (in): 10.5
- Overall Height (mm): 266.7
- Overall Length (cm): 36
- Overall Length (in): 14
- Overall Length (mm): 356
- Overall Width (cm): 12.7
- Overall Width (in): 5
- Overall Width (mm): 127
- Power Source: Battery Powered
- Pressure Control Type: ProControl II
- Pump Type: Triax Triple Piston
