Merkur System Pump 30:01 75Cc Wa Std

GG G30W55

MERKUR SYSTEM PUMP 30:01 75CC WA STD

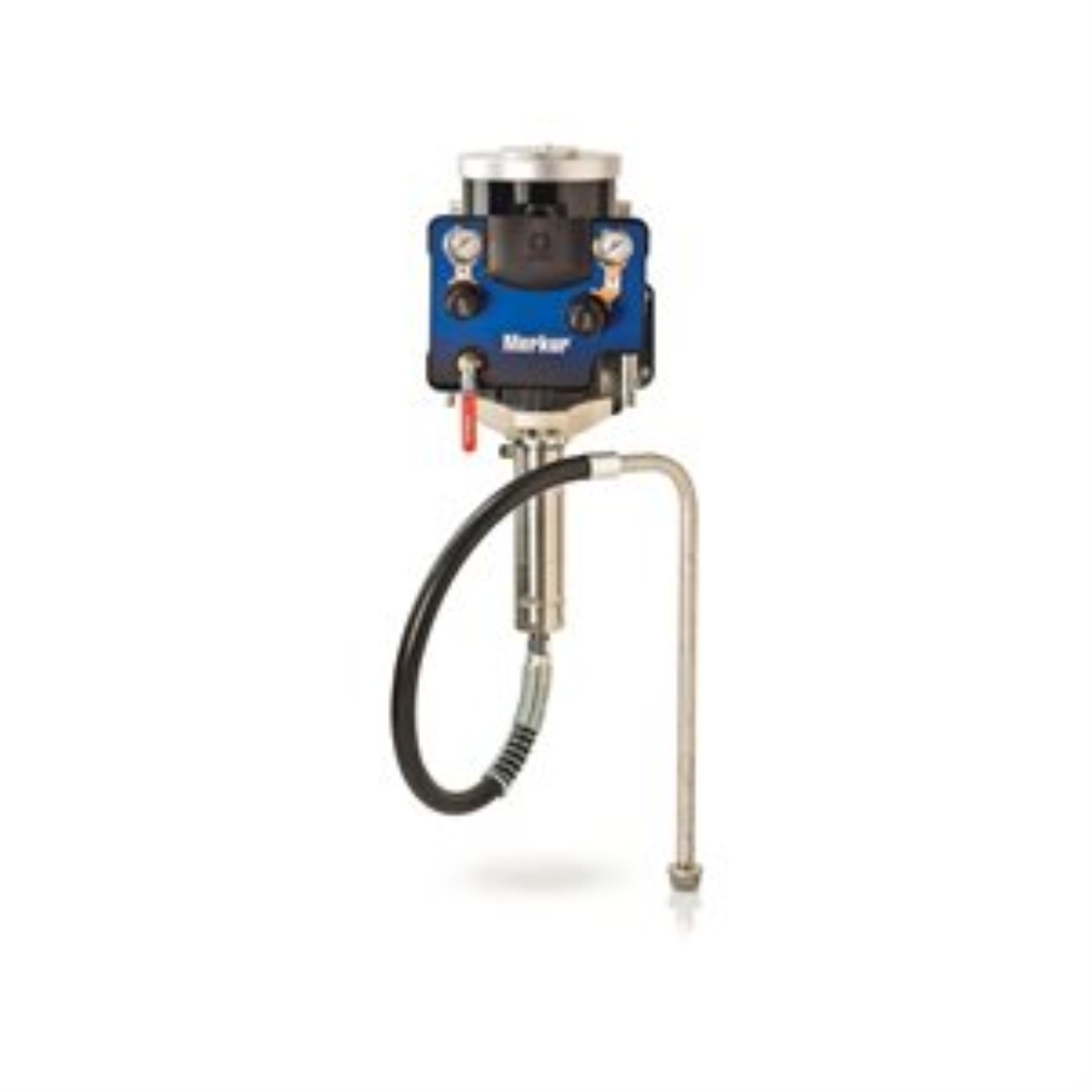

Graco G30W55 30:1 Merkur Pump, 1.2 gpm (4.5 lpm) fluid flow, Wall Mount, Pump Air Controls, Suction Hose, Fluid Filter

Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

• Proven to outperform and outlast other pumps in their class
• Highest technology air motor on the market
• Low air consumption for increased efficiency

• Model: Merkur
• Series: Merkur 30:1

• Convertible: Non-Convertible

• Fluid Inlet Size (in): 3/4
• Fluid Inlet Size (mm): 19.05
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 9.525
• Fluid Outlet Thread Type: NPT

• Frame Configuration: Cart

• Gun Included: 0
• Gun Model: No Applicator
• Gun Technology: Bare Package
• Gun Type: No Applicator

• Hose Inlet Diameter (cm): 0.47625
• Hose Inlet Diameter (in): 3/16
• Hose Inlet Diameter (mm): 4.7625

• Includes: Pump Only Air Controls, Suction Hose, Fluid Filter

• Maximum Flow Rate (GPM): 1.2
• Maximum Flow Rate (L/min): 4.5

• Maximum Hose Length (ft): 25
• Maximum Hose Length (m): 7.5

• Maximum Working Pressure (bar): 207
• Maximum Working Pressure (kg/cm²): 210.9
• Maximum Working Pressure (kPa): 20700
• Maximum Working Pressure (MPa): 20.7
• Maximum Working Pressure (psi): 3000

• Motor Type: Pneumatic

• Mount Type: Wall Mount

• Number of Guns: 0

• Power Source: Air

• Pressure Type: High Pressure
• Product Type: Bare Package

• Pump Ratio: 30:1
• Pump Type: Pneumatic Piston Pump
