Finishing Packages

GG G10C09

MERKUR SYSTEM, PUMP, 10:1, 75CC, CART, STD

Graco G10C09 10:1 Merkur AA Package, 1.2 gpm (4.5 lpm) fluid flow, Cart Mount, PerformAA 15 Gun, Pump Air Controls, Gun Air/Fluid Hose, Fluid Filter

Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

• Proven to outperform and outlast other pumps in their class
• Highest technology air motor on the market
• Low air consumption for increased efficiency

• Model: Merkur

• Convertible: Non-Convertible

• Fluid Inlet Size (cm): 1.905
• Fluid Inlet Size (in): 3/4
• Fluid Inlet Size (mm): 19.05
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 0.9525
• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 9.525
• Fluid Outlet Thread Type: NPT

• Gun Included: 1
• Gun Model: PerformAA 15 Air Assist
• Gun Technology: Air-Assisted
• Gun Type: Air-Assisted

• Hose Inlet Diameter (cm): 0.4763
• Hose Inlet Diameter (in): 0.1875
• Hose Inlet Diameter (mm): 5

• Includes: Pump and Gun Air Controls, Gun Hose, Suction Hose, Fluid Filter

• Maximum Flow Rate (GPM): 1.2

• Maximum Hose Length (ft): 25
• Maximum Hose Length (m): 7.6

• Maximum Working Pressure (bar): 69
• Maximum Working Pressure (kPa): 6900
• Maximum Working Pressure (MPa): 6.9
• Maximum Working Pressure (psi): 1000

• Motor Type: Pneumatic

• Mount Type: Cart Mount

• Number of Guns: 1

• Power Source: Air

• Pressure Type: High Pressure
• Product Type: Spray Package

• Pump Ratio: 10:1
• Pump Type: Pneumatic Piston Pump

GG G15C09

MERKUR SYSTEM, PUMP, 15:1, 25CC, CART, STD

Graco G15C09 15:1 Merkur AA Package, 0.4 gpm (1.5 lpm) fluid flow, Cart Mount, PerformAA 15 Gun, Pump/Gun Air Controls, Gun Air/Fluid Hose, Fluid Filter

Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

• Proven to outperform and outlast other pumps in their class
• Highest technology air motor on the market
• Low air consumption for increased efficiency

• Model: Merkur

• Convertible: Non-Convertible

• Fluid Inlet Size (cm): 1.27
• Fluid Inlet Size (in): 1/2
• Fluid Inlet Size (mm): 12.7
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 0.9525
• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 9.525
• Fluid Outlet Thread Type: NPT

• Gun Included: 1
• Gun Model: PerformAA 15 Air Assist
• Gun Technology: Air-Assisted
• Gun Type: Air-Assisted

• Hose Inlet Diameter (cm): 0.4763
• Hose Inlet Diameter (in): 0.1875
• Hose Inlet Diameter (mm): 5

• Includes: Pump and Gun Air Controls, Gun Hose, Suction Hose, Fluid Filter

• Maximum Flow Rate (GPM): 0.4

• Maximum Hose Length (ft): 25
• Maximum Hose Length (m): 7.6

• Maximum Working Pressure (bar): 103
• Maximum Working Pressure (kPa): 10300
• Maximum Working Pressure (MPa): 10.3
• Maximum Working Pressure (psi): 1500

• Motor Type: Pneumatic

• Mount Type: Cart Mount

• Number of Guns: 1

• Power Source: Air

• Pressure Type: High Pressure
• Product Type: Spray Package

• Pump Ratio: 15:1
• Pump Type: Pneumatic Piston Pump

GG G15W07

MERKUR SYSTEM, PUMP, 15:1, 25CC, WALL, STD

Graco G15W07 15:1 Merkur AA Package, 0.4 gpm (1.5 lpm) fluid flow, Wall Mount, PerformAA 15 Gun, Pump Air Controls, Gun Air/Fluid Hose, Fluid Filter

Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

• Proven to outperform and outlast other pumps in their class
• Highest technology air motor on the market
• Low air consumption for increased efficiency

• Model: Merkur

• Convertible: Non-Convertible

• Fluid Inlet Size (cm): 1.27
• Fluid Inlet Size (in): 1/2
• Fluid Inlet Size (mm): 12.7
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 0.9525
• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 9.525
• Fluid Outlet Thread Type: NPT

• Gun Included: 1
• Gun Model: PerformAA 15 Air Assist
• Gun Technology: Air-Assisted
• Gun Type: Air-Assisted

• Hose Inlet Diameter (cm): 0.4763
• Hose Inlet Diameter (in): 0.1875
• Hose Inlet Diameter (mm): 5

• Includes: Pump and Gun Air Controls, Gun Hose, Suction Hose, Fluid Filter

• Maximum Flow Rate (GPM): 0.4

• Maximum Hose Length (ft): 25
• Maximum Hose Length (m): 7.6

• Maximum Working Pressure (bar): 103
• Maximum Working Pressure (kPa): 10300
• Maximum Working Pressure (MPa): 10.3
• Maximum Working Pressure (psi): 1500

• Motor Type: Pneumatic

• Mount Type: Wall Mount

• Number of Guns: 1

• Power Source: Air

• Pressure Type: High Pressure
• Product Type: Spray Package

• Pump Ratio: 15:1
• Pump Type: Pneumatic Piston Pump

GG G24B10

GG G30C55

MERKUR SYSTEM, PUMP, 30:1, 75CC CT, STD

Graco G30C55 30:1 Merkur Airless Package, 1.2 gpm (4.5 lpm) fluid flow, Cart Mount, XTR5+ Gun, Pump Air Controls, Gun Fluid Hose, Fluid Filter

Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

• Proven to outperform and outlast other pumps in their class
• Highest technology air motor on the market
• Low air consumption for increased efficiency

• Model: Merkur

• Convertible: Non-Convertible

• Fluid Inlet Size (in): 3/4
• Fluid Inlet Size (mm): 19.05
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 9.525
• Fluid Outlet Thread Type: NPT

• Gun Included: 1
• Gun Model: XTR5+
• Gun Technology: Airless
• Gun Type: Airless

• Hose Inlet Diameter (cm): 0.47625
• Hose Inlet Diameter (in): 3/16
• Hose Inlet Diameter (mm): 4.7625

• Includes: Pump Only Air Controls, Gun Hose, Suction Hose, Fluid Filter

• Maximum Flow Rate (GPM): 1.2
• Maximum Flow Rate (L/min): 4.5

• Maximum Hose Length (ft): 25
• Maximum Hose Length (m): 7.5

• Maximum Working Pressure (bar): 207
• Maximum Working Pressure (kg/cm 2): 210.9
• Maximum Working Pressure (kPa): 20700
• Maximum Working Pressure (MPa): 20.7
• Maximum Working Pressure (psi): 3000

• Motor Type: Pneumatic

• Mount Type: Cart Mount

• Number of Guns: 1

• Power Source: Air

• Pressure Type: High Pressure
• Product Type: Spray Package

• Pump Ratio: 30:1
• Pump Type: Pneumatic Piston Pump

GG G30C73

MERKUR SYSTEM PUMP 30:1 75CC CART STD

Graco G30C73 30:1 Merkur AA Package, 1.2 gpm (4.5 lpm) fluid flow, Cart Mount, PerformAA 50 RAC Gun, Pump Air Controls, Gun Air/Fluid Hose, Fluid Filter

Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

• Proven to outperform and outlast other pumps in their class
• Highest technology air motor on the market
• Low air consumption for increased efficiency

• Model: Merkur

• Convertible: Non-Convertible

• Fluid Inlet Size (cm): 1.905
• Fluid Inlet Size (in): 3/4
• Fluid Inlet Size (mm): 19.05
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 0.9525
• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 9.525
• Fluid Outlet Thread Type: NPT

• Gun Included: 1
• Gun Model: PerformAA 50 RAC Air Assist
• Gun Technology: Air-Assisted
• Gun Type: Air-Assisted

• Hose Inlet Diameter (cm): 0.5
• Hose Inlet Diameter (in): 0.1968
• Hose Inlet Diameter (mm): 5

• Includes: Pump and Gun Air Controls, Gun Hose, Suction Hose, Fluid Filter

• Maximum Flow Rate (GPM): 1.2
• Maximum Flow Rate (L/min): 4.54

• Maximum Hose Length (cm): 762
• Maximum Hose Length (ft): 25
• Maximum Hose Length (m): 7.6
• Maximum Hose Length (mm): 7620

• Maximum Working Pressure (bar): 207
• Maximum Working Pressure (kg/cm 2): 210.92
• Maximum Working Pressure (kPa): 20700
• Maximum Working Pressure (MPa): 20.7
• Maximum Working Pressure (psi): 3000

• Motor Type: Pneumatic

• Mount Type: Cart Mount

• Number of Guns: 1

• Power Source: Air

• Pressure Type: High Pressure
• Product Type: Spray Package

• Pump Ratio: 30:1
• Pump Type: Pneumatic Piston Pump

IW 7178-H

BB DX200-3SN

BB MX412UC-QLC0S25

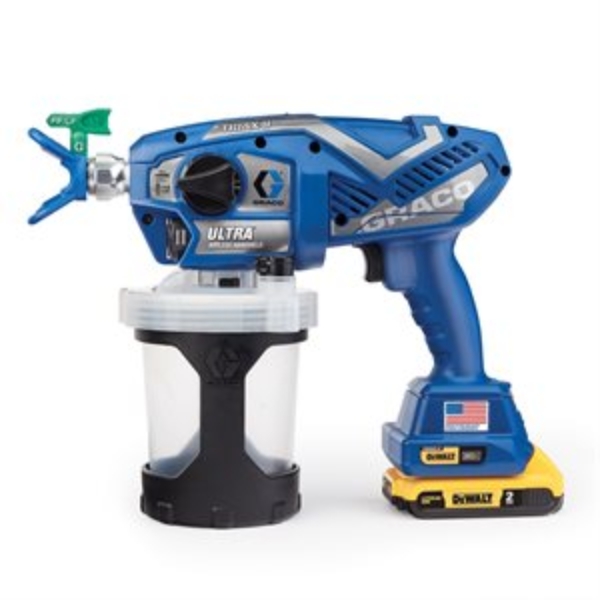

GG 17M363

ULTRA SPRAYER, DC, HH, 120V

Graco 17M363 Ultra Cordless Handheld Airless Sprayer

Proven By Pros, Ultra Cordless sprayers provide the fastest way to finish small jobs. Deliver a perfect airless finish in seconds with fast, easy setup and the easy-to-clean design reduces cleanup to just a few minutes so you get to the next job quicker.

• Triax II Triple Piston Pump


  Pump 3X more gallons before service

  Clean up in minutes

  No inlet check valve to get stuck - prime and spray in seconds

  Fast, on-the-job pump replacement with ProConnect

• DEWALT 20V MAX Lithium Ion Battery System

  Spray up to 1 gallon with each charge

  Compatible with any DEWALT 20V MAX Lithium Ion battery

  Comes standard with 2 batteries and charger

  3-LED fuel gauge system allows immediate feedback on state of charge

  Lightweight design and 30% faster charge time (35 minutes)

• ProConnect

  On-The-Job Pump Replacement System

  One Tool Replacement - Replace the pump in 3 steps using only a screwdriver

• ProControl II

  Adjust motor speed to spray at any speed the job demands

  More control to deliver a professional finish - every job, every time

• RAC X FF LP Tips

  Provides superior finish at low pressure

  Reverse-A-Clean (RAC) SwitchTips make cleaning tip clogs simple

  Large range of sizes available to meet the job requirements

  Works on all Graco Airless Sprayers - handhelds to large airless

• 32 oz FlexLiner Paint Bags

  Fast cleanup with disposable liners and no suction tube to clean

  Easy Setup

• FlexLiner QuickFill Funnel

  Click and fill design for faster refills

  Automatically strains paint while pouring

• Model: Ultra
• Series: Cordless

• Battery Capacity (Ah): 2

• Battery Chemistry: Lithium-ion
• Battery Voltage (V): 20

• Charging Time (min): 35

• Compatible Replacement Pump: 17P186

• Filter Mesh Size: 60

• Frame Configuration: Handheld

• Includes: RAC X FF LP 514 Spray Tip, RAC X Guard, 4 - 32 oz FlexLiner Bags, 2 - DEWALT 20V MAX 2.0 Ah Lithium Ion Batteries, DEWALT 20V MAX Battery Charger, 60 Mesh Filter, Storage Bag, Pump Armor 4 oz, QuickFill Funnel

• Maximum Tip Size (in): 0.016

• Maximum Working Pressure (bar): 138
• Maximum Working Pressure (kPa): 13800
• Maximum Working Pressure (MPa): 14
• Maximum Working Pressure (psi): 2000

• Minimum Working Pressure (bar): 35
• Minimum Working Pressure (kPa): 3500

• Minimum Working Pressure (psi): 500

• Overall Height (cm): 26.7
• Overall Height (in): 10.5
• Overall Height (mm): 266.7
• Overall Length (cm): 36
• Overall Length (in): 14
• Overall Length (mm): 356
• Overall Width (cm): 12.7
• Overall Width (in): 5
• Overall Width (mm): 127

• Power Source: Battery Powered
• Pressure Control Type: ProControl II

• Pump Type: Triax Triple Piston

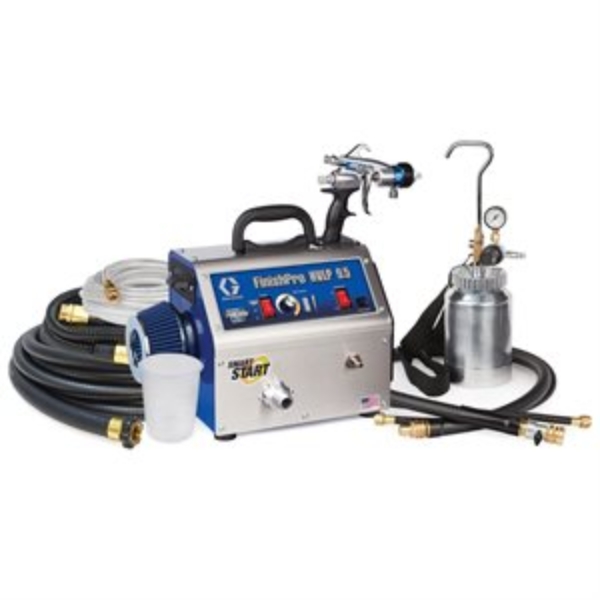

GG 17N269

FINISHPRO HVLP SPRAYER, 9.5, PRO COMP SERIES

Graco 17N269 FinishPro HVLP 9.5 ProComp Series Sprayer

The FinishPro HVLP 9.5 ProComp Series sprayer provides unmatched long-life with SmartStart, double the fluid capacity and an integrated compressor for the ultimate in power and performance to spray thicker materials on medium to large fine finish jobs.

• Integrated Compressor

  Pressurize remote cup up to 25 psi

  Allows spraying of thicker materials

  Quick connect hose connections


• 2-Quart Remote Cup

  Fewer refills

  Increase productivity and ease-of-use without cup mounted on the gun

  Fine-tune pressure with pressure regulator and gauge

  Includes belt hook and convenient shoulder strap


• TurboForce Technology

  Exclusive, proprietary turbine design builds more pressure through each stage, resulting in more performance at the gun

  More air flow and air pressure means higher production with less thinning of material

  Generates less heat and provides longer turbine life

• TurboControl System with LED Display

  Adjust the TurboForce turbine speed to match the performance you require

  Reduces heat build up

  Runs quieter

  Extends turbine system life

  50% longer hoses

• Industry Leading Dual Filtration System

  Automotive-grade filter has high performance filtration

  Outperforms foam and traditional paper filters used on most HVLP systems

• EDGE II Plus Gun

  Ultimate control with independent user controls for material volume, air flow, and spray fan size

  4X more productivity

  FlexLiner Bag System

  Learn more: EDGE II Plus Gun

• 1-Quart FlexLiner Cup

  FlexLiner Paint Bag System replaces traditional material cups

  Includes conversion kit use gun-mounted 1-quart FlexLiner cup

  Spray at any angle with no adjustment - even upside down!

• Super-Flex Air Hose

  15% lighter weight than other leading brands for more control at the gun

  30 ft length included

  No tools needed to connect

• Stainless Steel Tough BoxDesign

  Rugged, all steel enclosure protects the turbine on the job and during transport

  Utility toolbox for separate tool and needle and nozzle storage

  On-Board Gun and Cup Holder stores gun when not in use

• Model: FinishPro
• Series: 9.5
• Product Series: ProComp

• Gun Included: 1

• Includes: EDGE II Plus Gun, 2 qt Remote Cup, 5 ft Material and Air Hose, Shoulder Strap, 32 oz FlexLiner System, #3 Quick-Release Fluid Set, #4 Quick-Release Fluid Set, #5 Quick-Release Fluid Set, 30 ft Super-Flex Air Hose, 4 ft Whip Hose, Automotive Main Filter

• Maximum Air Inlet Pressure (bar): 1
• Maximum Air Inlet Pressure (kPa): 10
• Maximum Air Inlet Pressure (psi): 9.5

• Maximum Hose Length (ft): 60
• Maximum Hose Length (m): 18.0

• Maximum Working Pressure (bar): 0.7
• Maximum Working Pressure (kPa): 70
• Maximum Working Pressure (psi): 10

• Product Type: Spray Package

• Recommended Annual Usage: Up to 50

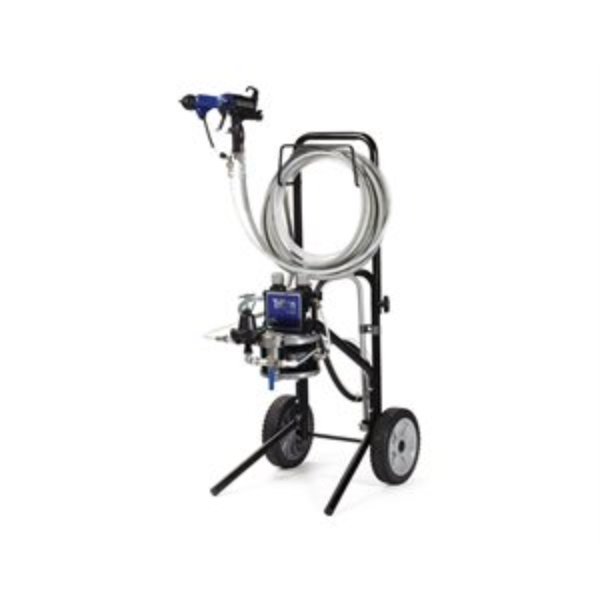

GG 233747

TRITON SPRAYER,AL PUMP,CART MNT,ELECTRO

Graco 233747 Triton Alum Spray Package, Cart, 60 psi Fluid Regulator, Pro Xp60 Electrostatic Gun, Suction, Air & Fluid Hoses

Air-operated diaphragm spray package designed for the finishing market. It is a more effective alternative to traditional pressure pots and standard diaphragm pumps.

• Superior finish quality for conventional, HVLP and compliant or electrostatic applications
• Supplies up to 35% extra air flow to gun for superior atomization
• Saves material and time during flushing, priming and color changes
• Rugged, stainless steel or aluminum construction pump handles a wide variety of fluids

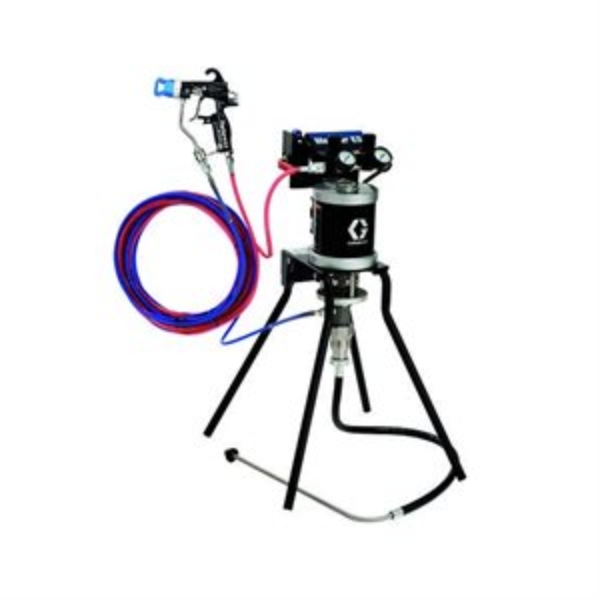

GG 24F153

MERKUR SPRAYER, ES, AA, 30:1, SST, STAND

Graco 24F153 30:1 Merkur ES Air Assisted Package, 0.4 gpm (1.5 lpm) fluid flow, standard mount, with PerformAA 50 gun, suction hose, and stainless steel

The Merkur ES is one of the most efficient sprayers designed to use less material than the competition and to reduce air usage and pulsation.

• Quick flush system requires less than 1 minute to flush
• 45% less material to fill the system than the leading competitors
• Delivers a superior, consistent spray finish
• Easily set and monitor air control, plus an integrated carrying handle for transport
• Air motor provides consistent finishes with smooth, rapid changeover
• Suction hose and strainer leaves less material in the supply container
• Lightweight, flexible 1/8 in fluid hose reduces material and solvent usage

• Model: Merkur
• Series: ES

• Convertible: Non-Convertible

• Fluid Outlet Size (cm): 0.635
• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35
• Fluid Outlet Thread Type: NPSM

• Gun Included: 1
• Gun Model: G40
• Gun Technology: Air-Assisted
• Gun Type: Air-Assisted

• Hose Inlet Diameter (cm): 0.3175
• Hose Inlet Diameter (in): 0.125
• Hose Inlet Diameter (mm): 3

• Includes: G40 Gun, Suction Hose, Stand Mount

• Maximum Flow Rate (GPM): 0.4

• Maximum Hose Length (ft): 25
• Maximum Hose Length (m): 7.6

• Maximum Sound Pressure Level (dB(A)): 77.9

• Maximum Tip Size (cm): 0.0483
• Maximum Tip Size (in): 0.019
• Maximum Tip Size (mm): 0.4826

• Maximum Working Pressure (bar): 207
• Maximum Working Pressure (kPa): 20700
• Maximum Working Pressure (MPa): 20.7
• Maximum Working Pressure (psi): 3000

• Motor Type: Pneumatic

• Mount Type: Stand Mount

• Number of Guns: 1

• Power Source: Air

• Pressure Type: High Pressure
• Product Type: Spray Package

• Pump Ratio: 30:1
• Pump Sleeve Material: Stainless Steel
• Pump Type: Pneumatic Piston Pump

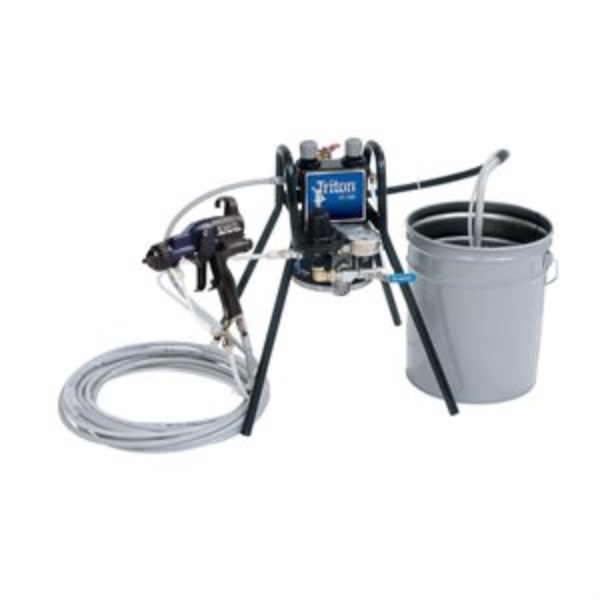

GG 289648

TRITON SPRAYER, AL, PUMP PAIL MNT, ELECTRO

Graco 289648 Triton Alum Spray Package, Pail, 60 psi Fluid Regulator, Pro Xp85 Electrostatic Gun, Suction, Air & Fluid Hoses

Air-operated diaphragm spray package designed for the finishing market. It is a more effective alternative to traditional pressure pots and standard diaphragm pumps.

• Superior finish quality for conventional, HVLP and compliant or electrostatic applications
• Supplies up to 35% extra air flow to gun for superior atomization
• Saves material and time during flushing, priming and color changes
• Rugged, stainless steel or aluminum construction pump handles a wide variety of fluids

• Model: Triton
• Series: 308

• Application: Metal

• Compatible Material: CARC, Enamel, Epoxies, High Solids, Latex, Lacquer, Metallics, Stains, Single Components, Solvent borne Paints, Solvent borne, Varnish Primers

• Feed Type: Suction Hose

• Fluid Inlet Size (cm): 1.905
• Fluid Inlet Size (in): 3/4
• Fluid Inlet Size (mm): 19.05

• Fluid Outlet Size (cm): 0.9525
• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 9.525
• Fluid Outlet Thread Type: NPT

• Gun Included: 1
• Gun Model: Pro Xp 85 kV Standard
• Gun Technology: Electrostatic
• Gun Type: Electrostatic

• Includes: 25 ft Air Hose, 25 ft Fluid Hose, Regulator, Applicator

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (psi): 100

• Maximum Flow Rate (GPM): 8.5
• Maximum Flow Rate (L/min): 32

• Maximum Working Pressure (bar): 7
• Maximum Working Pressure (kPa): 700
• Maximum Working Pressure (psi): 100

• Mount Location: Pail Mount
• Mount Type: Pail Mount

• Power Source: Air

• Pressure Type: Low Pressure
• Product Type: Spray Package

• Pump Ratio: 1:1
• Pump Type: Pneumatic Diaphragm Pump

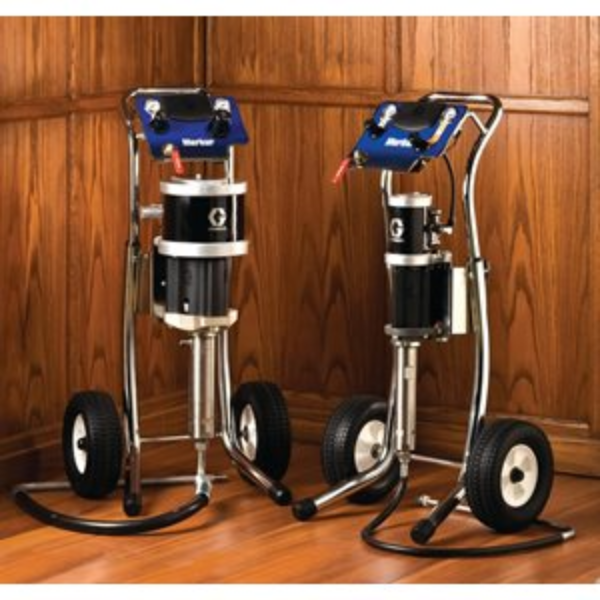

GG G15T03

MERKUR SYSTEM, PUMP, 15:1, 25CC, 1LEG, STD

Graco G15T03 15:1 Merkur AA Package, 0.4 gpm (1.5 lpm) fluid flow, Stand Mount, PerformAA 15 Gun, Pump Air Controls, Gun Air/Fluid Hose, Suction Hose

Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

• Proven to outperform and outlast other pumps in their class
• Highest technology air motor on the market
• Low air consumption for increased efficiency

• Model: Merkur

• Convertible: Non-Convertible

• Fluid Inlet Size (cm): 1.27
• Fluid Inlet Size (in): 1/2
• Fluid Inlet Size (mm): 12.7
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 0.9525
• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 9.525
• Fluid Outlet Thread Type: NPT

• Gun Included: 1
• Gun Model: PerformAA 15 Air Assist
• Gun Technology: Air-Assisted
• Gun Type: Air-Assisted

• Hose Inlet Diameter (cm): 0.4763
• Hose Inlet Diameter (in): 0.1875
• Hose Inlet Diameter (mm): 5

• Includes: Pump and Gun Air Controls, Gun Hose, Suction Hose

• Maximum Flow Rate (GPM): 0.4

• Maximum Hose Length (ft): 25
• Maximum Hose Length (m): 7.6

• Maximum Working Pressure (bar): 103
• Maximum Working Pressure (kPa): 10300
• Maximum Working Pressure (MPa): 10.3
• Maximum Working Pressure (psi): 1500

• Motor Type: Pneumatic

• Mount Type: Stand Mount

• Number of Guns: 1

• Power Source: Air

• Pressure Type: High Pressure
• Product Type: Spray Package

• Pump Ratio: 15:1
• Pump Type: Pneumatic Piston Pump

GG G15W05

MERKUR SYSTEM PUMP 15:01 25CC WALL STD

Graco G15W05 15:1 Merkur AA Package, 0.4 gpm (1.5 lpm) fluid flow, Wall Mount, PerformAA 15 Gun, Pump Air Controls, Gun Air/Fluid Hose, Suction Hose

Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

• Proven to outperform and outlast other pumps in their class
• Highest technology air motor on the market
• Low air consumption for increased efficiency

• Model: Merkur

• Convertible: Non-Convertible

• Fluid Inlet Size (cm): 1.27
• Fluid Inlet Size (in): 1/2
• Fluid Inlet Size (mm): 12.7
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 0.9525
• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 9.525
• Fluid Outlet Thread Type: NPT

• Gun Included: 1
• Gun Model: PerformAA 15 Air Assist
• Gun Technology: Air-Assisted
• Gun Type: Air-Assisted

• Hose Inlet Diameter (cm): 0.4763
• Hose Inlet Diameter (in): 0.1875
• Hose Inlet Diameter (mm): 5

• Includes: Pump and Gun Air Controls, Gun Hose, Suction Hose

• Maximum Flow Rate (GPM): 0.4

• Maximum Hose Length (ft): 25
• Maximum Hose Length (m): 7.6

• Maximum Working Pressure (bar): 103
• Maximum Working Pressure (kPa): 10300
• Maximum Working Pressure (MPa): 10.3
• Maximum Working Pressure (psi): 1500

• Motor Type: Pneumatic

• Mount Type: Wall Mount

• Number of Guns: 1

• Power Source: Air

• Pressure Type: High Pressure
• Product Type: Spray Package

• Pump Ratio: 15:1
• Pump Type: Pneumatic Piston Pump

GG G15W21

MERKUR SYSTEM PUMP 15:01 50CC WA STD

Graco G15W21 15:1 Merkur Pump, 0.8 gpm (3 lpm) fluid flow, Wall Mount, Pump/Gun Air Controls

Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

• Proven to outperform and outlast other pumps in their class
• Highest technology air motor on the market
• Low air consumption for increased efficiency

• Model: Merkur

• Compatible Material: Waterborne, Solvent borne, High Solids, Single Components, Topcoats, Varnish, Lacquer, Acid Catalysts, Enamel, UV Coating

• Fluid Inlet Size (cm): 1.905
• Fluid Inlet Size (in): 3/4
• Fluid Inlet Size (mm): 19.05
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 0.9525
• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 9.525
• Fluid Outlet Thread Type: NPT

• Gun Included: 0
• Gun Model: No Applicator
• Gun Technology: Bare Package
• Gun Type: No Applicator

• Hose Inlet Diameter (cm): 0.476
• Hose Inlet Diameter (in): 3/16
• Hose Inlet Diameter (mm): 4.76

• Includes: Pump and Gun Air Controls

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (psi): 100

• Maximum Flow Rate (GPM): 0.8
• Maximum Flow Rate (L/min): 3.0

• Maximum Working Pressure (bar): 103
• Maximum Working Pressure (kPa): 10300
• Maximum Working Pressure (psi): 1500

• Mount Type: Wall Mount

• Power Source: Air

• Pressure Type: High Pressure
• Product Type: Bare Package

• Pump Ratio: 15:1
• Pump Type: Pneumatic Piston Pump

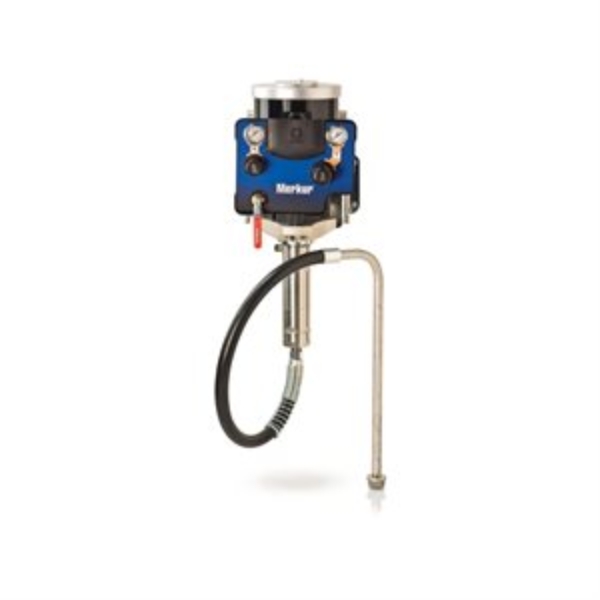

GG G15W52

MERKUR SYSTEM PUMP 15:01 150CC WA SMT

Graco G15W52 15:1 Merkur Pump, 2.4 gpm (9 lpm) fluid flow, Wall Mount, DataTrak

Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

• Proven to outperform and outlast other pumps in their class
• Highest technology air motor on the market
• Low air consumption for increased efficiency

• Model: Merkur

• Compatible Material: Waterborne, Solvent borne, High Solids, Single Components, Topcoats, Varnish, Lacquer, Acid Catalysts, Enamel, UV Coating

• Fluid Inlet Size (cm): 2.54
• Fluid Inlet Size (in): 1
• Fluid Inlet Size (mm): 25.4
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 1.905
• Fluid Outlet Size (in): 3/4
• Fluid Outlet Size (mm): 19.05
• Fluid Outlet Thread Type: NPT

• Gun Included: 0
• Gun Model: No Applicator
• Gun Technology: Bare Package
• Gun Type: No Applicator

• Hose Inlet Diameter (cm): 0.476
• Hose Inlet Diameter (in): 3/16
• Hose Inlet Diameter (mm): 4.76

• Includes: DataTrak Monitor

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (psi): 100

• Maximum Flow Rate (GPM): 2.4
• Maximum Flow Rate (L/min): 9.0

• Maximum Working Pressure (bar): 103
• Maximum Working Pressure (kPa): 10300
• Maximum Working Pressure (psi): 1500

• Mount Type: Wall Mount

• Power Source: Air

• Pressure Type: High Pressure
• Product Type: Bare Package

• Pump Ratio: 15:1
• Pump Type: Pneumatic Piston Pump

GG G15W53

MERKUR SYSTEM PUMP 15:01 150CC WA STD

Graco G15W53 15:1 Merkur Pump, 2.4 gpm (9 lpm) fluid flow, Wall Mount, Pump Air Controls, Suction Hose, Fluid Filter

Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

• Proven to outperform and outlast other pumps in their class
• Highest technology air motor on the market
• Low air consumption for increased efficiency

• Model: Merkur

• Compatible Material: Waterborne, Solvent borne, High Solids, Single Components, Topcoats, Varnish, Lacquer, Acid Catalysts, Enamel, UV Coating

• Fluid Inlet Size (cm): 2.54
• Fluid Inlet Size (in): 1
• Fluid Inlet Size (mm): 25.4
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 1.905
• Fluid Outlet Size (in): 3/4
• Fluid Outlet Size (mm): 19.05
• Fluid Outlet Thread Type: NPT

• Gun Included: 0
• Gun Model: No Applicator
• Gun Technology: Bare Package
• Gun Type: No Applicator

• Hose Inlet Diameter (cm): 0.476
• Hose Inlet Diameter (in): 3/16
• Hose Inlet Diameter (mm): 4.76

• Includes: Pump Only Air Controls, Suction Hose, Fluid Filter

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (psi): 100

• Maximum Flow Rate (GPM): 2.4
• Maximum Flow Rate (L/min): 9.0

• Maximum Working Pressure (bar): 103
• Maximum Working Pressure (kPa): 10300
• Maximum Working Pressure (psi): 1500

• Mount Type: Wall Mount

• Power Source: Air

• Pressure Type: High Pressure
• Product Type: Bare Package

• Pump Ratio: 15:1
• Pump Type: Pneumatic Piston Pump

GG G23W07

MERKUR SYSTEM PUMP 23:01 100CC WA STD

Graco G23W07 23:1 Merkur Airless Package, 1.6 gpm (6 lpm) fluid flow, Wall Mount, XTR5+ Gun, Pump Air Controls, Gun Fluid Hose, Fluid Filter

Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

• Proven to outperform and outlast other pumps in their class
• Highest technology air motor on the market
• Low air consumption for increased efficiency

• Model: Merkur

• Convertible: Non-Convertible

• Fluid Inlet Size (in): 3/4
• Fluid Inlet Size (mm): 19.05
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 9.525
• Fluid Outlet Thread Type: NPT

• Gun Included: 1
• Gun Model: XTR5+
• Gun Technology: Airless
• Gun Type: Airless

• Hose Inlet Diameter (cm): 0.5
• Hose Inlet Diameter (in): 3/16
• Hose Inlet Diameter (mm): 5

• Includes: Pump Only Air Controls, Gun Hose, Suction Hose, Fluid Filter

• Maximum Flow Rate (GPM): 1.6
• Maximum Flow Rate (L/min): 6.0

• Maximum Hose Length (ft): 25
• Maximum Hose Length (m): 7.5

• Maximum Working Pressure (bar): 159
• Maximum Working Pressure (kPa): 15900
• Maximum Working Pressure (MPa): 15.9
• Maximum Working Pressure (psi): 2300

• Motor Type: Pneumatic

• Mount Type: Wall Mount

• Number of Guns: 1

• Power Source: Air

• Pressure Type: High Pressure
• Product Type: Spray Package

• Pump Ratio: 23:1
• Pump Type: Pneumatic Piston Pump

GG G23W09

MERKUR SYSTEM PUMP 23:1 100CC WALL STD

Graco G23W09 23:1 Merkur AA Package, 1.6 gpm (6 lpm) fluid flow, Wall Mount, PerformAA 50 Gun, Pump Air Controls, Gun Air/Fluid Hose, Fluid Filter

Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

• Proven to outperform and outlast other pumps in their class
• Highest technology air motor on the market
• Low air consumption for increased efficiency

• Model: Merkur

• Convertible: Non-Convertible

• Fluid Inlet Size (cm): 1.905
• Fluid Inlet Size (in): 3/4
• Fluid Inlet Size (mm): 19.05
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 0.9525
• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 9.525
• Fluid Outlet Thread Type: NPT

• Gun Included: 1
• Gun Model: PerformAA 50 Air Assist
• Gun Technology: Air-Assisted
• Gun Type: Air-Assisted

• Hose Inlet Diameter (cm): 0.4763
• Hose Inlet Diameter (in): 0.1875
• Hose Inlet Diameter (mm): 5

• Includes: Pump and Gun Air Controls, Gun Hose, Suction Hose, Fluid Filter

• Maximum Flow Rate (GPM): 1.6

• Maximum Hose Length (ft): 25
• Maximum Hose Length (m): 7.6

• Maximum Working Pressure (bar): 159
• Maximum Working Pressure (kPa): 15900
• Maximum Working Pressure (MPa): 15.9
• Maximum Working Pressure (psi): 2300

• Motor Type: Pneumatic

• Mount Type: Wall Mount

• Number of Guns: 1

• Power Source: Air

• Pressure Type: High Pressure
• Product Type: Spray Package

• Pump Ratio: 23:1
• Pump Type: Pneumatic Piston Pump

GG G30C53

MERKUR SYSTEM PUMP 30:01 75CC CT STD

Graco G30C53 30:1 Merkur Pump, 1.2 gpm (4.5 lpm) fluid flow, Cart Mount, Pump Air Controls, Suction Hose, Fluid Filter

Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

• Proven to outperform and outlast other pumps in their class
• Highest technology air motor on the market
• Low air consumption for increased efficiency

• Model: Merkur
• Series: Merkur 30:1

• Convertible: Non-Convertible

• Fluid Inlet Size (in): 3/4
• Fluid Inlet Size (mm): 19.05
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 9.525
• Fluid Outlet Thread Type: NPT

• Frame Configuration: Cart

• Gun Included: 0
• Gun Model: No Applicator
• Gun Technology: Bare Package
• Gun Type: No Applicator

• Hose Inlet Diameter (cm): 0.47625
• Hose Inlet Diameter (in): 3/16
• Hose Inlet Diameter (mm): 4.7625

• Includes: Pump Only Air Controls, Suction Hose, Fluid Filter

• Maximum Flow Rate (GPM): 1.2
• Maximum Flow Rate (L/min): 4.5

• Maximum Hose Length (ft): 25
• Maximum Hose Length (m): 7.5

• Maximum Working Pressure (bar): 207
• Maximum Working Pressure (kg/cm 2): 210.9
• Maximum Working Pressure (kPa): 20700
• Maximum Working Pressure (MPa): 20.7
• Maximum Working Pressure (psi): 3000

• Motor Type: Pneumatic

• Mount Type: Cart Mount

• Number of Guns: 0

• Power Source: Air

• Pressure Type: High Pressure
• Product Type: Bare Package

• Pump Ratio: 30:1
• Pump Type: Pneumatic Piston Pump

GG G30C89

MERKUR SYSTEM, PUMP, 30:1, 75CC CART, STD

Graco G30C89 30:1 Merkur Electrostatic Package, 1.2 gpm (4.5 lpm) fluid flow, Cart Mount, Pro Xp85 kV Standard Gun, Suction Hose, Fluid Filter

Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

• Proven to outperform and outlast other pumps in their class
• Highest technology air motor on the market
• Low air consumption for increased efficiency

• Model: Merkur

• Convertible: Non-Convertible

• Fluid Inlet Size (cm): 1.905
• Fluid Inlet Size (in): 3/4
• Fluid Inlet Size (mm): 19.05
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 0.9525
• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 9.525
• Fluid Outlet Thread Type: NPT

• Gun Included: 1
• Gun Model: Pro Xp 85 kV Standard
• Gun Technology: Electrostatic
• Gun Type: Electrostatic

• Includes: Pump and Gun Air Controls, Gun Hose, Suction Hose, Fluid Filter

• Maximum Flow Rate (GPM): 1.2
• Maximum Flow Rate (L/min): 4.54

• Maximum Hose Length (cm): 762
• Maximum Hose Length (ft): 25
• Maximum Hose Length (m): 7.6
• Maximum Hose Length (mm): 7620

• Maximum Working Pressure (bar): 207
• Maximum Working Pressure (kg/cm 2): 210.92
• Maximum Working Pressure (kPa): 20700
• Maximum Working Pressure (MPa): 20.7
• Maximum Working Pressure (psi): 3000

• Motor Type: Pneumatic

• Mount Type: Cart Mount

• Number of Guns: 1

• Power Source: Air

• Pressure Type: High Pressure
• Product Type: Spray Package

• Pump Ratio: 30:1
• Pump Type: Pneumatic Piston Pump

GG G30W55

MERKUR SYSTEM PUMP 30:01 75CC WA STD

Graco G30W55 30:1 Merkur Pump, 1.2 gpm (4.5 lpm) fluid flow, Wall Mount, Pump Air Controls, Suction Hose, Fluid Filter

Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

• Proven to outperform and outlast other pumps in their class
• Highest technology air motor on the market
• Low air consumption for increased efficiency

• Model: Merkur
• Series: Merkur 30:1

• Convertible: Non-Convertible

• Fluid Inlet Size (in): 3/4
• Fluid Inlet Size (mm): 19.05
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 9.525
• Fluid Outlet Thread Type: NPT

• Frame Configuration: Cart

• Gun Included: 0
• Gun Model: No Applicator
• Gun Technology: Bare Package
• Gun Type: No Applicator

• Hose Inlet Diameter (cm): 0.47625
• Hose Inlet Diameter (in): 3/16
• Hose Inlet Diameter (mm): 4.7625

• Includes: Pump Only Air Controls, Suction Hose, Fluid Filter

• Maximum Flow Rate (GPM): 1.2
• Maximum Flow Rate (L/min): 4.5

• Maximum Hose Length (ft): 25
• Maximum Hose Length (m): 7.5

• Maximum Working Pressure (bar): 207
• Maximum Working Pressure (kg/cm 2): 210.9
• Maximum Working Pressure (kPa): 20700
• Maximum Working Pressure (MPa): 20.7
• Maximum Working Pressure (psi): 3000

• Motor Type: Pneumatic

• Mount Type: Wall Mount

• Number of Guns: 0

• Power Source: Air

• Pressure Type: High Pressure
• Product Type: Bare Package

• Pump Ratio: 30:1
• Pump Type: Pneumatic Piston Pump

GG G30W59

MERKUR SYSTEM PUMP 30:01 75CC WA STD

Graco G30W59 30:1 Merkur Airless Package, 1.2 gpm (4.5 lpm) fluid flow, Wall Mount, XTR5+ Gun, Pump Air Controls, Gun Fluid Hose, Fluid Filter

Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

• Proven to outperform and outlast other pumps in their class
• Highest technology air motor on the market
• Low air consumption for increased efficiency

• Model: Merkur

• Convertible: Non-Convertible

• Fluid Inlet Size (in): 3/4
• Fluid Inlet Size (mm): 19.05
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 9.525
• Fluid Outlet Thread Type: NPT

• Gun Included: 1
• Gun Model: XTR5+
• Gun Technology: Airless
• Gun Type: Airless

• Hose Inlet Diameter (cm): 0.5
• Hose Inlet Diameter (in): 3/16
• Hose Inlet Diameter (mm): 5

• Includes: Pump Only Air Controls, Gun Hose, Suction Hose, Fluid Filter

• Maximum Flow Rate (GPM): 1.2
• Maximum Flow Rate (L/min): 4.5

• Maximum Hose Length (ft): 25
• Maximum Hose Length (m): 7.5

• Maximum Working Pressure (bar): 207
• Maximum Working Pressure (kPa): 20700
• Maximum Working Pressure (MPa): 20.7
• Maximum Working Pressure (psi): 3000

• Motor Type: Pneumatic

• Mount Type: Wall Mount

• Number of Guns: 1

• Power Source: Air

• Pressure Type: High Pressure
• Product Type: Spray Package

• Pump Ratio: 30:1
• Pump Type: Pneumatic Piston Pump
