AIRPRO GUN, WB, COMPLIANT, .042

GG 288971

AIRPRO GUN, WB, COMPLIANT, .042

Graco 288971 AirPro Air Spray Pressure Feed Gun, Compliant, 0.042 inch (1.1 mm) Nozzle, for Waterborne Applications

The AirPro air spray gun delivers exceptional spray performance while addressing your environmental and operator concerns - whether you’re a custom shop or a high volume manufacturing facility.

Even material distribution through the spray pattern for optimum coverage
Improved transfer efficiency through reduced air consumption
Enhanced atomization through material-specific aircaps
Ultra-light trigger pull reduces operator muscle stress
Ergonomic gun handle provides a comfortable grip
Rounded control knobs for operator comfort
Optimize spray performance with our cutting edge aircap and nozzle design
Choose from a wide range of gun models to meet the needs of your specific application

Model: AirPro

Air Inlet Size (cm): 0.635
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Air Inlet Thread Type: NPSM
Application: Waterborne
Applicator Type: Manual
Bleed Type: Non-Bleeder
Compatible Material: Enamel, Epoxies, High Solids, Latex, Lacquer, Plural Component Materials, Sealants, Urethane, UV Coating, Waterborne
Feed Type: Pressure Feed
Fluid Inlet Size (cm): 0.9525
Fluid Inlet Size (in): 3/8
Fluid Inlet Size (mm): 9.525
Fluid Inlet Thread Type: NPSM
Fluid Orifice Size (cm): 0.11
Fluid Orifice Size (in): 0.042
Fluid Orifice Size (mm): 1.1
Gun Activation: Manual
Gun Included: 1
Gun Type: Compliant Gun
Gun Weight (g): 410
Includes: Air Cap, Needle Assembly, Nozzle, Tool Kit
Maximum Air Inlet Pressure (bar): 7
Maximum Air Inlet Pressure (kPa): 700
Maximum Air Inlet Pressure (MPa): 0.7
Maximum Air Inlet Pressure (psi): 100
Maximum Air Pressure (bar): 7
Maximum Air Pressure (kPa): 700
Maximum Air Pressure (MPa): 0.7
Maximum Air Pressure (psi): 100
Maximum Fluid Pressure (bar): 21
Maximum Fluid Pressure (kPa): 2100
Maximum Fluid Pressure (MPa): 2.1
Maximum Fluid Pressure (psi): 300
Maximum Fluid Temperature (°C): 43
Maximum Fluid Temperature (°F): 109
Maximum Fluid Pressure (bar): 21
Maximum Fluid Pressure (kPa): 2100
Maximum Fluid Pressure (MPa): 2.1
Maximum Fluid Pressure (psi): 300
Maximum Fluid Temperature (°C): 43
Maximum Fluid Temperature (°F): 109
Product Type: Spray Gun

Call for pricing

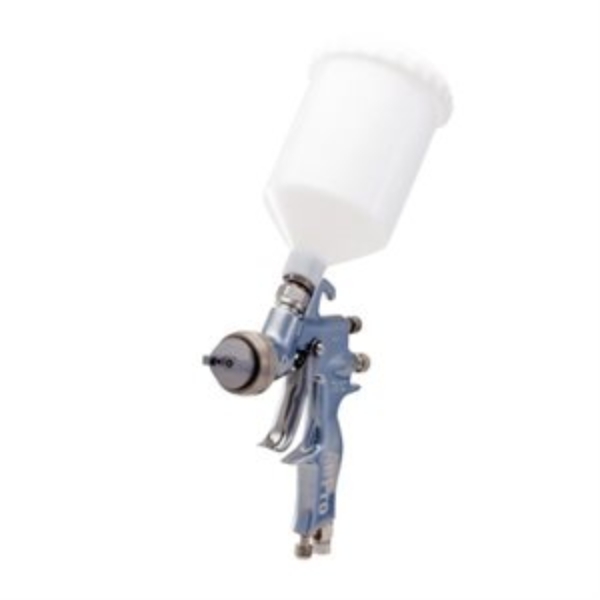

AIRPRO GUN, COMP, .070

GG 289009

AIRPRO GUN, COMP, .070

Graco 289009 AirPro Air Spray Gravity Feed Gun, Compliant, 0.070 inch (1.8 mm) Nozzle, without Cup

The AirPro air spray gun delivers exceptional spray performance while addressing your environmental and operator concerns - whether you’re a custom shop or a high volume manufacturing facility.

Even material distribution through the spray pattern for optimum coverage
Improved transfer efficiency through reduced air consumption
Enhanced atomization through material-specific aircaps
Ultra-light trigger pull reduces operator muscle stress
Ergonomic gun handle provides a comfortable grip
Rounded control knobs for operator comfort
Optimize spray performance with our cutting edge aircap and nozzle design
Choose from a wide range of gun models to meet the needs of your specific application

Model: AirPro

Air Inlet Size (cm): 0.635
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Air Inlet Thread Type: NPSM
Application: Specialty
Applicator Type: Manual
Bleed Type: Non-Bleeder
Compatible Material: CARC, Enamel, Epoxies, Fast-Set, High Solids, Latex, Plural Component Materials, Sealants, Solvent borne, Urethane, Waterborne
Feed Type: Gravity Feed
Fluid Inlet Size (cm): 0.9525
Fluid Inlet Size (in): 3/8
Fluid Inlet Size (mm): 9.525
Fluid Inlet Thread Type: NPSM
Fluid Orifice Size (cm): 0.18
Fluid Orifice Size (in): 0.070
Fluid Orifice Size (mm): 1.8
Gun Activation: Manual
Gun Included: 1
Gun Type: Compliant Gun
Gun Weight (g): 410
Includes: Air Cap, Needle Assembly, Nozzle, Tool Kit
Maximum Air Inlet Pressure (bar): 7
Maximum Air Inlet Pressure (kPa): 700
Maximum Air Inlet Pressure (MPa): 0.7
Maximum Air Inlet Pressure (psi): 100
Maximum Air Pressure (bar): 7
Maximum Air Pressure (kPa): 700
Maximum Air Pressure (MPa): 0.7
Maximum Air Pressure (psi): 100
Maximum Fluid Pressure (bar): 21
Maximum Fluid Pressure (kPa): 2100
Maximum Fluid Pressure (MPa): 2.1
Maximum Fluid Pressure (psi): 300
Maximum Fluid Temperature (°C): 43
Maximum Fluid Temperature (°F): 109
Maximum Fluid Pressure (bar): 21
Maximum Fluid Pressure (kPa): 2100
Maximum Fluid Pressure (MPa): 2.1
Maximum Fluid Pressure (psi): 300
Maximum Fluid Temperature (°C): 43
Maximum Fluid Temperature (°F): 109
Product Type: Spray Gun

Call for pricing

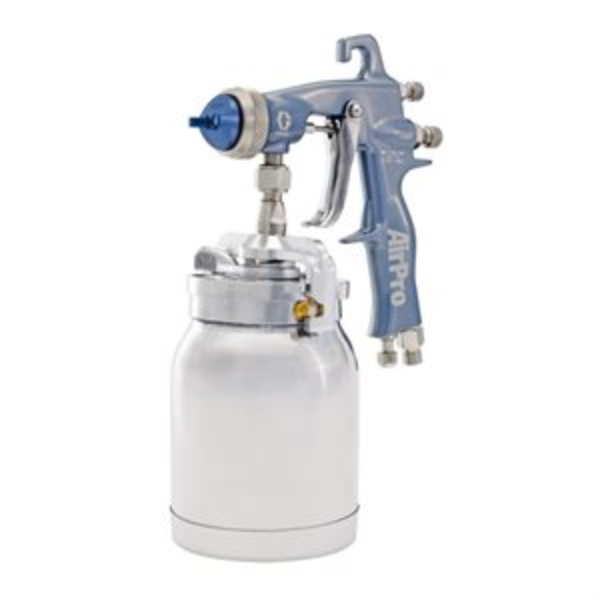

AIRPRO GUN, SIPHON, COMP, .070

GG 289033

AIRPRO GUN, SIPHON, COMP, .070

Graco 289033 AirPro Air Spray Siphon Feed Gun, Compliant, 0.070 inch (1.8 mm) Nozzle, Metal Siphon Cup

The AirPro air spray gun delivers exceptional spray performance while addressing your environmental and operator concerns - whether you’re a custom shop or a high volume manufacturing facility.

Even material distribution through the spray pattern for optimum coverage
Improved transfer efficiency through reduced air consumption
Enhanced atomization through material-specific aircaps
Ultra-light trigger pull reduces operator muscle stress
Ergonomic gun handle provides a comfortable grip
Rounded control knobs for operator comfort
Optimize spray performance with our cutting edge aircap and nozzle design
Choose from a wide range of gun models to meet the needs of your specific application

Model: AirPro

Air Inlet Size (cm): 0.635
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Air Inlet Thread Type: NPSM
Application: Specialty
Applicator Type: Manual
Bleed Type: Non-Bleeder
Compatible Material: CARC, Enamel, Epoxies, Fast-Set, High Solids, Latex, Plural Component Materials, Sealants, Solvent borne, Urethane, Waterborne
Feed Type: Siphon Feed
Fluid Inlet Size (cm): 0.9525
Fluid Inlet Size (in): 3/8
Fluid Inlet Size (mm): 9.525
Fluid Inlet Thread Type: NPSM
Fluid Orifice Size (cm): 0.18
Fluid Orifice Size (in): 0.070
Fluid Orifice Size (mm): 1.8
Gun Activation: Manual
Gun Included: 1
Gun Type: Compliant Gun
Gun Weight (g): 410
Includes: Air Cap, Needle Assembly, Nozzle, Tool Kit, Cup
Maximum Air Inlet Pressure (bar): 7
Maximum Air Inlet Pressure (kPa): 700
Maximum Air Inlet Pressure (MPa): 0.7
Maximum Air Inlet Pressure (psi): 100
Maximum Air Pressure (bar): 7
Maximum Air Pressure (kPa): 700
Maximum Air Pressure (MPa): 0.7
Maximum Air Pressure (psi): 100
Maximum Fluid Pressure (bar): 21
Maximum Fluid Pressure (kPa): 2100
Maximum Fluid Pressure (MPa): 2.1
Maximum Fluid Pressure (psi): 300
Maximum Fluid Temperature (°C): 43
Maximum Fluid Temperature (°F): 109
Maximum Fluid Pressure (bar): 21
Maximum Fluid Pressure (kPa): 2100
Maximum Fluid Pressure (MPa): 2.1
Maximum Fluid Pressure (psi): 300
Maximum Fluid Temperature (°C): 43
Maximum Fluid Temperature (°F): 109
Product Type: Spray Gun

$966.00

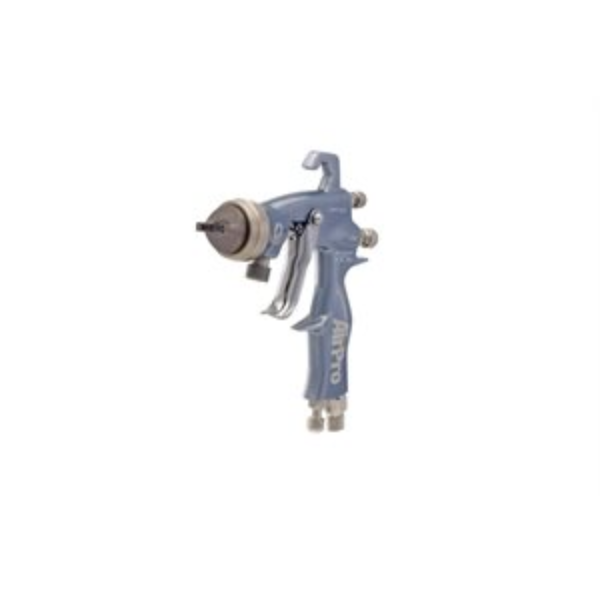

AIRPRO GUN, STAIN, COMPLIANT, .040

GG 289111

AIRPRO GUN, STAIN, COMPLIANT, .040

Graco 289111 AirPro Air Spray Pressure Feed Gun, Compliant, 0.040 inch (1.0 mm) Nozzle, for Wood Applications

The AirPro air spray gun delivers exceptional spray performance while addressing your environmental and operator concerns - whether you’re a custom shop or a high volume manufacturing facility.

Even material distribution through the spray pattern for optimum coverage
Improved transfer efficiency through reduced air consumption
Enhanced atomization through material-specific aircaps
Ultra-light trigger pull reduces operator muscle stress
Ergonomic gun handle provides a comfortable grip
Rounded control knobs for operator comfort
Optimize spray performance with our cutting edge aircap and nozzle design
Choose from a wide range of gun models to meet the needs of your specific application

Model: AirPro

Air Inlet Size (cm): 0.635
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Air Inlet Thread Type: NPSM
Application: Wood
Applicator Type: Manual
Bleed Type: Non-Bleeder
Compatible Material: NGR, Solvent borne, Stains, Toner, UV Coating, Waterborne
Feed Type: Pressure Feed
Fluid Inlet Size (cm): 0.9525
Fluid Inlet Size (in): 3/8
Fluid Inlet Size (mm): 9.525
Fluid Inlet Thread Type: NPSM
Fluid Orifice Size (cm): 0.10
Fluid Orifice Size (in): 0.040
Fluid Orifice Size (mm): 1.0
Gun Activation: Manual
Gun Included: 1
Gun Type: Compliant Gun
Gun Weight (g): 410
Includes: Air Cap, Needle Assembly, Nozzle, Tool Kit
Maximum Air Inlet Pressure (bar): 7
Maximum Air Inlet Pressure (kPa): 700
Maximum Air Inlet Pressure (MPa): 0.7
Maximum Air Inlet Pressure (psi): 100
Maximum Air Pressure (bar): 7
Maximum Air Pressure (kPa): 700
Maximum Air Pressure (MPa): 0.7
Maximum Air Pressure (psi): 100
Maximum Fluid Pressure (bar): 21
Maximum Fluid Pressure (kPa): 2100
Maximum Fluid Pressure (MPa): 2.1
Maximum Fluid Pressure (psi): 300
Maximum Fluid Temperature (°C): 43
Maximum Fluid Temperature (°F): 109
Maximum Fluid Pressure (bar): 21
Maximum Fluid Pressure (kPa): 2100
Maximum Fluid Pressure (MPa): 2.1
Maximum Fluid Pressure (psi): 300
Maximum Fluid Temperature (°C): 43
Maximum Fluid Temperature (°F): 109
Product Type: Spray Gun

Call for pricing

GUN, D-55

GG 295530

GUN, D-55

Graco 295530 D-Gun D-55 Standard Spray Gun

A variety of mixing chamber sizes allows the operator to fine-tune the round spray pattern for virtually any application. Lightweight, easy to operate and maintain. Mechanically self-cleaning so you eliminate costly solvent-flushing.

Application: The Graco D-Gun is ideal for small to midrange output foam applications such as interior stud-wall spraying.

Air cap allows for easy cleaning of the purge rod
Lightweight design reduces operator fatigue
Pattern control knob allows for fine tune adjustments

Model: D-Gun
Series: Standard

Air Inlet Size (cm): 0.3175
Air Inlet Size (in): 1/8
Air Inlet Size (mm): 3.175
Air Inlet Thread Type: NPT
Compatible Material: Spray Polyurethane Foam
Component A Inlet Size (cm): 1.27
Component A Inlet Size (in): 1/2-20
Component A Inlet Size (mm): 12.7
Component A Inlet Thread Type: UNF
Component B Inlet Size (cm): 1.42875
Component B Inlet Size (in): 9/16
Component B Inlet Size (mm): 14.2875
Component B Inlet Thread Type: UNF
Gun Activation: Manual
Gun Type: Mechanical-Purge
Gun Weight (g): 1406
Gun Weight (kg): 1.4
Gun Weight (lb): 3.1
Gun Weight (oz): 49.6
Maximum Air Inlet Pressure (bar): 7.6
Maximum Air Inlet Pressure (kPa): 760
Maximum Air Inlet Pressure (MPa): 0.76
Maximum Air Inlet Pressure (psi): 110
Maximum Air Pressure (bar): 6.9
Maximum Air Pressure (kPa): 690
Maximum Air Pressure (MPa): 0.69
Maximum Air Pressure (psi): 100
Maximum Flow Rate (kg/min): 7.2
Maximum Flow Rate (lb/min): 16
Maximum Fluid Pressure (bar): 70
Maximum Fluid Pressure (kPa): 7000
Maximum Fluid Pressure (MPa): 7
Maximum Fluid Pressure (psi): 1000
Maximum Fluid Pressure (bar): 70
Maximum Fluid Pressure (kPa): 7000
Maximum Fluid Pressure (MPa): 7
Maximum Fluid Pressure (psi): 1000
Maximum Fluid Working Pressure (bar): 69
Maximum Fluid Working Pressure (MPa): 6.9
Maximum Fluid Working Pressure (psi): 1000
Minimum Air Inlet Pressure (bar): 6.2
Minimum Air Inlet Pressure (kPa): 620
Minimum Air Inlet Pressure (MPa): 0.62
Minimum Air Inlet Pressure (psi): 90
Minimum Flow Rate (kg/min): 0.9
Minimum Flow Rate (lb/min): 2
Overall Height (cm): 24
Overall Height (in): 9.25
Overall Height (mm): 240
Overall Length (cm): 20
Overall Length (in): 8
Overall Length (mm): 200
Overall Width (cm): 6
Overall Width (in): 2.4
Overall Width (mm): 60
Pattern Size (in): 8 in @ 18-20 in from target
Pattern Size (mm): 203.2
Pressure Type: Low Pressure
Purge Method: Mechanical

$4,770.00

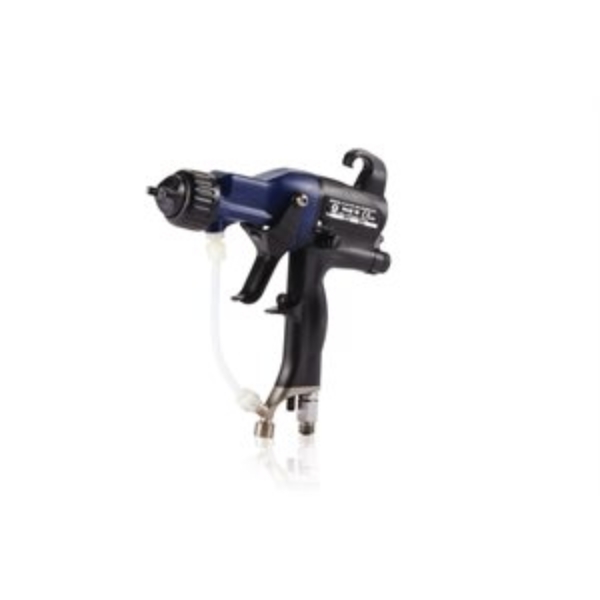

PRO XP GUN, ES, 40KV, 1.2

GG L40T12

PRO XP GUN, ES, 40KV, 1.2

Pro Xp40 Air Spray Manual Electrostatic General Gun Model, 40 kV, 0.047 in (1.2 mm) nozzle, standard display, standard coatings Available in 40 kV, this general model is the smallest profile gun with an internal power supply on the market. The 1.2 mm nozzle is for lower fluid flow. For applying Class A or decorative finishes with standard and specialty coatings Painters experience less muscle strain and fatigue when spraying with the ergonomic, lightweight electrostatic gun model. Electrostatic air spray gun meets strict requirements for spray pattern, mechanical and electrical performance. Durable, easy-to-repair components are backed by a three-year warranty and A+ Service.

$4,800.00

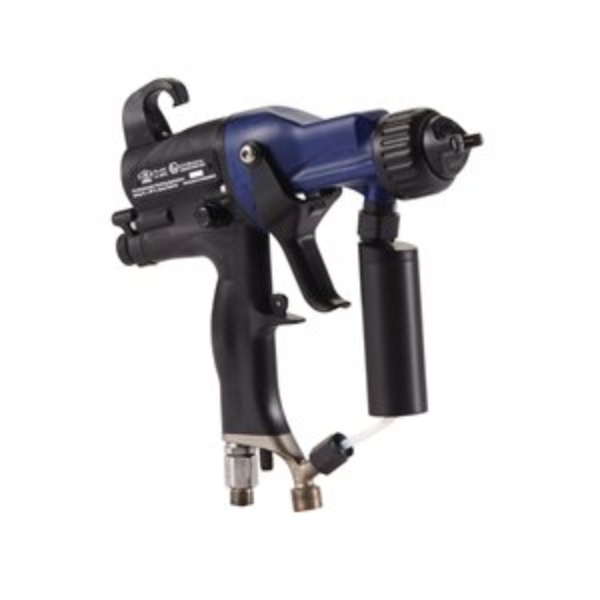

PRO XP GUN, ES, 40KV, HC

GG L40T16

PRO XP GUN, ES, 40KV, HC

Graco L40T16 Pro Xp40 Air Spray Manual Electrostatic High Conductivity Gun, 40 kV, 0.055 in (1.5 mm) precision high wear nozzle, standard display

This 40 kV electrostatic air spray gun comes in a compact, lightweight package. The longer fluid tube on the high conductivity gun lets you spray lower resistivity material.

Application: For spraying low resistivity materials, such as abrasives and metallic coatings

Metal tip precision high-wear nozzle, high-wear electrode, and more durable fluid tube improve longevity when spraying low resistivity materials, such as abrasives and metallic coatings.
Removable black fluid tube cover allows operator to see fluid movement.
Made in the USA
Rugged, dependable design supported by a three year warranty
Every gun is tested and delivered with a certificate indicating the spray pattern, mechanical performance and electrical performance meets Graco&prime, s requirements

Model: Pro Xp
Series: 40

Air Inlet Size (cm): 0.635
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM
Application: Electrostatic, High Conductivity, High Wear
Applicator Type: Manual
Coating Type: Abrasive, Metallic, High Conductivity, High Wear
Compatible Paint Type: Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Solvent borne, Urethanes
Display Type: Standard
Fluid Inlet Size (in): 3/8
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPSM
Gun Activation: Manual
Gun Type: Electrostatic
Gun Weight (g): 560
Gun Weight (kg): 0.56
Gun Weight (lb): 1.23
Gun Weight (oz): 19.75
Includes: Air Cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube
Maximum Fluid Pressure (bar): 7.0
Maximum Fluid Pressure (kg/cm²): 7.14
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Temperature (°C): 48
Maximum Fluid Temperature (°F): 120
Maximum Fluid Pressure (bar): 7.0
Maximum Fluid Pressure (kg/cm²): 7.14
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Temperature (°C): 48
Maximum Fluid Temperature (°F): 120
Maximum Paint Resistivity (megohm/cm): 25
Minimum Paint Resistivity (megohm/cm): 1
Nozzle Size (cm): 0.15
Nozzle Size (in): 0.055
Nozzle Size (mm): 1.5
Overall Length (cm): 22.1
Overall Length (in): 8.7
Overall Length (mm): 221

$5,220.00

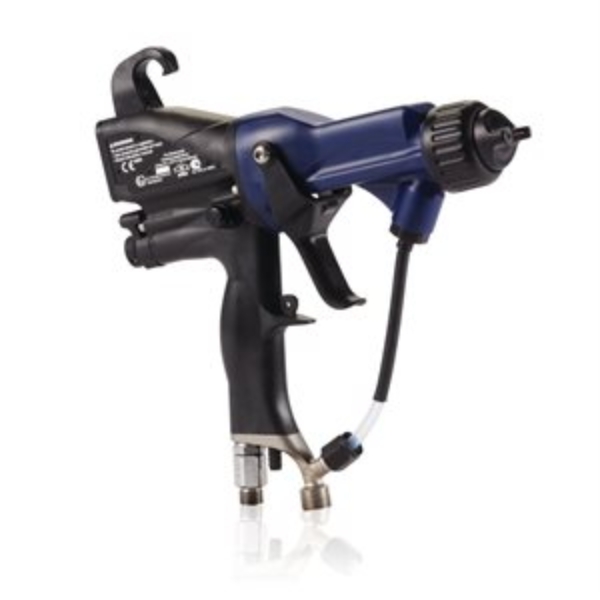

PRO XP GUN, ES, 60KV, SMART

GG L60M10

PRO XP GUN, ES, 60KV, SMART

Pro Xp60 Air Spray Manual Electrostatic General Gun Model, 60 kV, 0.055 in (1.5 mm) nozzle, smart display, standard coatings This 60 kV electrostatic paint spray gun comes in a compact, lightweight package with smart technology. Smart controls help you analyze performance, adapt voltage, and troubleshoot easily. Built-in durability means each gun is designed to last – and made in the USA. High transfer efficiency equals less waste, saving you money on material. Every gun is tested and delivered with a certificate indicating the spray pattern, mechanical performance and electrical performance meets Graco's requirements

$9,160.00

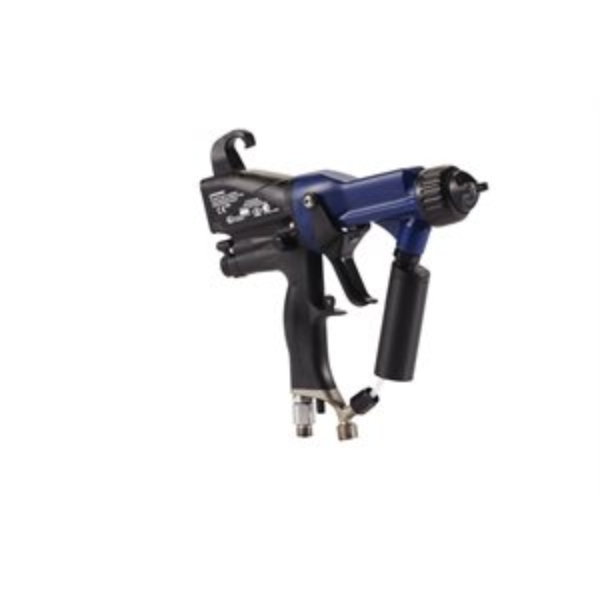

PRO XP GUN, ES, 60KV, SMART, HC

GG L60M16

PRO XP GUN, ES, 60KV, SMART, HC

Graco L60M16 Pro Xp60 Air Spray Manual Electrostatic High Conductivity Gun, 60 kV, 0.055 in (1.5 mm) precision high wear nozzle, smart display

This 60 kV high conductivity model combines material savings and excellent finish quality into a small, light gun body, making it easy to spray.

Application: For spraying low resistivity materials, such as abrasives and metallic coatings

Smart controls help you analyze performance, adapt to your voltage needs and troubleshoot easily.
Metal tip precision high-wear nozzle, high-wear electrode, and more durable fluid tube improve longevity.
Removable black fluid tube cover allows operator to see fluid movement.
Made in the USA

Model: Pro Xp
Series: 60

Air Inlet Size (cm): 0.635
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM
Application: Electrostatic, High Conductivity, High Wear
Applicator Type: Manual
Coating Type: Abrasive, Metallic, High Conductivity, High Wear
Compatible Paint Type: Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Solvent borne, Urethanes
Display Type: Smart
Fluid Inlet Size (in): 3/8
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPSM
Gun Activation: Manual
Gun Type: Electrostatic
Gun Weight (g): 670
Gun Weight (kg): 0.67
Gun Weight (lb): 1.48
Gun Weight (oz): 23.63
Includes: Smart Display, Air Cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube
Maximum Fluid Pressure (bar): 7.0
Maximum Fluid Pressure (kg/cm²): 7.14
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Temperature (°C): 48
Maximum Fluid Temperature (°F): 120
Maximum Fluid Pressure (bar): 7.0
Maximum Fluid Pressure (kg/cm²): 7.14
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Temperature (°C): 48
Maximum Fluid Temperature (°F): 120
Maximum Paint Resistivity (megohm/cm): 25
Minimum Paint Resistivity (megohm/cm): 1
Nozzle Size (cm): 0.15
Nozzle Size (in): 0.055
Nozzle Size (mm): 1.5
Overall Length (cm): 24.13
Overall Length (in): 9.5
Overall Length (mm): 241.3

$9,490.00

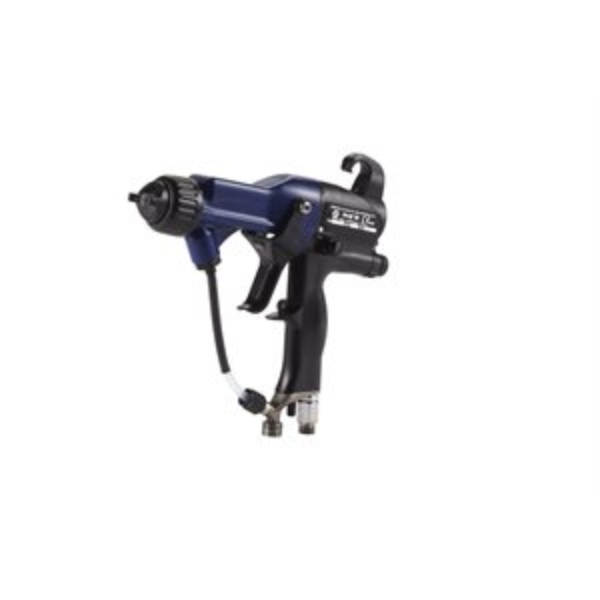

PRO XP GUN, ES, 60KV, 1.2 NOZZLE

GG L60T12

PRO XP GUN, ES, 60KV, 1.2 NOZZLE

Graco L60T12 Pro Xp60 Air Spray Manual Electrostatic General Gun Model, 60 kV, 0.047 in (1.2 mm) nozzle, standard display, standard coatings

The 60 kV electrostatic air spray gun is the smallest profile gun with an internal power supply on the market. The 1.2 mm nozzle is for lower fluid flow.

Internal power supply reduces operator fatigue with no heavy cords to slow painters down.
Each electrostatic gun meets strict requirements for spray pattern, mechanical and electrical performance.
Built-in durability means the paint spray gun is designed to last – and made in the USA.

Model: Pro Xp
Series: 60

Air Inlet Size (cm): 0.635
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM
Application: Electrostatic, Standard
Applicator Type: Manual
Coating Type: Standard, Specialty
Compatible Paint Type: Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Solvent borne, Urethanes
Display Type: Standard
Fluid Inlet Size (in): 3/8
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPSM
Gun Activation: Manual
Gun Type: Electrostatic
Gun Weight (g): 600
Gun Weight (kg): 0.6
Gun Weight (lb): 1.32
Gun Weight (oz): 21.16
Includes: Air Cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube
Maximum Fluid Pressure (bar): 7.0
Maximum Fluid Pressure (kg/cm²): 7.14
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Temperature (°C): 48
Maximum Fluid Temperature (°F): 120
Maximum Fluid Pressure (bar): 7.0
Maximum Fluid Pressure (kg/cm²): 7.14
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Temperature (°C): 48
Maximum Fluid Temperature (°F): 120
Maximum Paint Resistivity (megohm/cm): Infinity
Minimum Paint Resistivity (megohm/cm): 25
Nozzle Size (cm): 0.12
Nozzle Size (in): 0.047
Nozzle Size (mm): 1.2
Overall Length (cm): 24.13
Overall Length (in): 9.5
Overall Length (mm): 241.3

$8,130.00

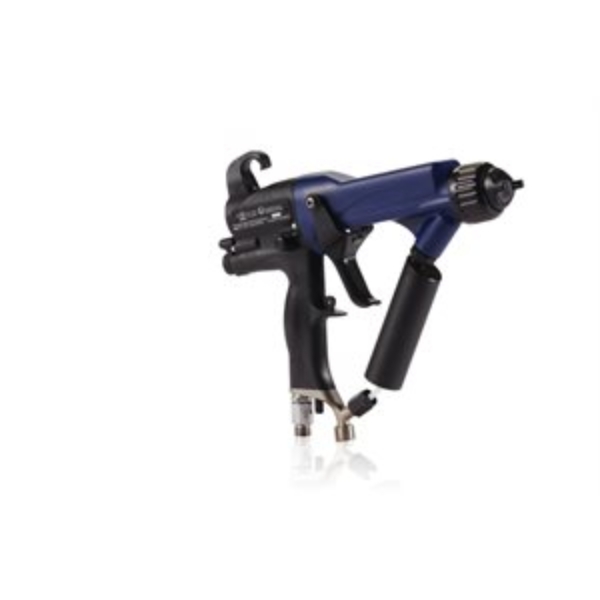

PRO XP GUN, ES, 85KV, HC

GG L85T16

PRO XP GUN, ES, 85KV, HC

Graco L85T16 Pro Xp85 Air Spray Manual Electrostatic High Conductivity Gun, 85 kV, 0.055 in (1.5 mm) precision high wear nozzle, standard display

The ergonomic design and efficiency of this 85 kV high conductivity model can help your paint line save money and improve quality.

Application: For spraying low resistivity materials, such as abrasives and metallic coatings

Internal power supply reduces operator fatigue with no heavy cords to slow painters down.
Metal tip precision high-wear nozzle, high-wear electrode, and more durable fluid tube improve longevity.
Made in the USA
Every gun is tested and delivered with a certificate indicating the spray pattern, mechanical performance and electrical performance meets Graco&prime, s requirements

Model: Pro Xp
Series: 85

Air Inlet Size (cm): 0.635
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM
Application: Electrostatic, High Conductivity, High Wear
Applicator Type: Manual
Coating Type: Abrasive, Metallic, High Conductivity, High Wear
Compatible Paint Type: Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Solvent borne, Urethanes
Display Type: Standard
Fluid Inlet Size (in): 3/8
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPSM
Gun Activation: Manual
Gun Type: Electrostatic
Gun Weight (g): 676
Gun Weight (kg): 0.675
Gun Weight (lb): 1.49
Gun Weight (oz): 23.81
Includes: Air Cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube
Maximum Fluid Pressure (bar): 7.0
Maximum Fluid Pressure (kg/cm²): 7.14
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Temperature (°C): 48
Maximum Fluid Temperature (°F): 120
Maximum Fluid Pressure (bar): 7.0
Maximum Fluid Pressure (kg/cm²): 7.14
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Temperature (°C): 48
Maximum Fluid Temperature (°F): 120
Maximum Paint Resistivity (megohm/cm): 25
Minimum Paint Resistivity (megohm/cm): 1
Nozzle Size (cm): 0.15
Nozzle Size (in): 0.055
Nozzle Size (mm): 1.5
Overall Length (cm): 26.67
Overall Length (in): 10.5
Overall Length (mm): 266.7

$9,630.00

PRO XP GUN, ES, 85KV, ROUND MEDIUM

GG L85T32

PRO XP GUN, ES, 85KV, ROUND MEDIUM

Pro Xp85 Air Spray Manual Electrostatic Gun, 85 kV, standard display, round spray nozzle/air cap medium pattern This 85 kV electrostatic spray gun improves transfer efficiency with an efficient round spray nozzle and air cap combination. For round spray applications that require a medium pattern Bell-like round spray and electrostatics maximize wrap around cylindrical objects. Round spray components form small to medium patterns at lower fluid flow rates with less airflow. This improves finish quality on small, light objects.

$9,820.00

PRO XP GUN, ES, 85KV, 1.2, AERO

GG L85T73

PRO XP GUN, ES, 85KV, 1.2, AERO

Pro Xp85 Air Spray Manual Electrostatic Gun, 85 kV, 0.047 in (1.2 mm) precision high wear nozzle, standard display, aerospace aircap The aerospace electrostatic spray gun model isn’t just for painting airplanes. It’s for whenever you need to quickly cover large areas with the finest finish. Aerospace air cap, high wear electrode and precision high wear nozzle consistently create an even spray with particles that are the same size. Durable components are made for spraying high solid materials and somewhat abrasive coatings at high paint flow rates.

$9,400.00

PRO XP GUN, ES, 85KV, 1.5, AERO

GG L85T75

PRO XP GUN, ES, 85KV, 1.5, AERO

Pro Xp85 Air Spray Manual Electrostatic Gun, 85 kV, 0.055 in (1.5 mm) precision high wear nozzle, standard display, aerospace aircap The aerospace electrostatic spray gun model isn’t just for painting airplanes. It’s for whenever you need to quickly cover large areas with the finest finish. Aerospace air cap, high wear electrode and precision high wear nozzle consistently create an even spray with particles that are the same size. Durable components are made for spraying high solid materials and somewhat abrasive coatings at high paint flow rates.

$9,300.00

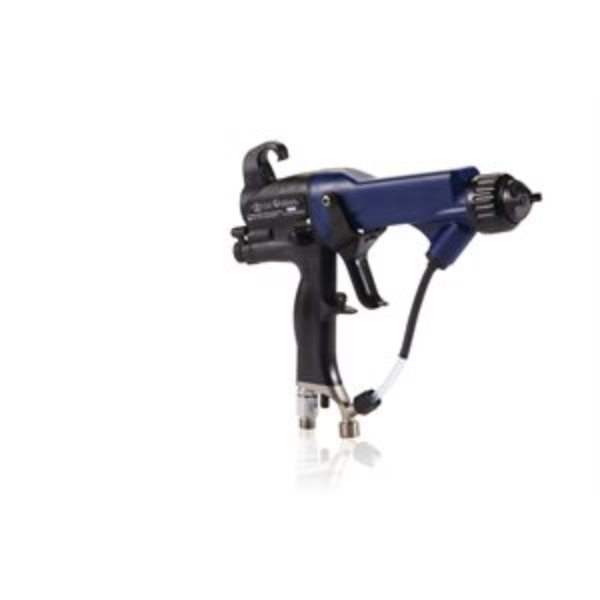

PRO XP GUN, ES, 85KV, FIXED FLUID

GG L85T90

PRO XP GUN, ES, 85KV, FIXED FLUID

Graco L85T90 Pro Xp85 Air Spray Manual Electrostatic 85kV, standard display, HW electrode, 0.055 in (1.5 mm) PHW nozzle, fixed fluid flow, standard tube

High air flow 85 kV electrostatic spray gun models give painters the feel and reach they need to paint from a distance and around large, complex areas.

Application: For applications that require abrasive, metallic, and extremely abrasive materials – often used to coat extruded aluminum and automotive components

An electrostatic (ES) on/off with a fixed fluid valve extends electrode and nozzle life.
More durable electrodes and nozzles extend applicator life.
No fluid adjustment knob eliminates reducing fluid flow at the gun, requiring a regulator to change fluid flow.

Model: Pro Xp
Series: 85
Product Series: A

Air Inlet Size (cm): 0.635
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM
Application: Electrostatic, Abrasive, Metallic
Applicator Type: Manual
Coating Type: Abrasive, Metallic
Compatible Paint Type: Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Solvent borne, Urethanes
Display Type: Standard
Fluid Inlet Size (in): 3/8
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPSM
Gun Activation: Manual
Gun Type: Electrostatic
Gun Weight (g): 676
Gun Weight (kg): 0.675
Gun Weight (lb): 1.49
Gun Weight (oz): 23.81
Includes: Air Cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube
Maximum Fluid Pressure (bar): 7.0
Maximum Fluid Pressure (kg/cm²): 7.14
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Temperature (°C): 48
Maximum Fluid Temperature (°F): 120
Maximum Fluid Pressure (bar): 7.0
Maximum Fluid Pressure (kg/cm²): 7.14
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Temperature (°C): 48
Maximum Fluid Temperature (°F): 120
Maximum Paint Resistivity (megohm/cm): Infinity
Minimum Paint Resistivity (megohm/cm): 25
Nozzle Size (cm): 0.15
Nozzle Size (in): 0.055
Nozzle Size (mm): 1.5
Overall Length (cm): 26.67
Overall Length (in): 10.5
Overall Length (mm): 266.7

$9,400.00

XTR+ GUN, XTR7+, 1" HND, 4FNG, FLT TIP

GG XTR721

XTR+ GUN, XTR7+, 1" HND, 4FNG, FLT TIP

Graco XTR721 XTR7+ Airless Spray Gun, Round Handle, 4-Finger Trigger, Flat Tip

New look. New features. A self-locking needle design offers unmatched ease of breaking down for cleaning or rebuilds. Paired with a new look, you&prime, ll never think twice about grabbing the correctly pressure rated XTR+ gun for your Graco sprayer.

Application: Designed to conquer the toughest protective coatings.
