GG L85T73
PRO XP GUN, ES, 85KV, 1.2, AERO

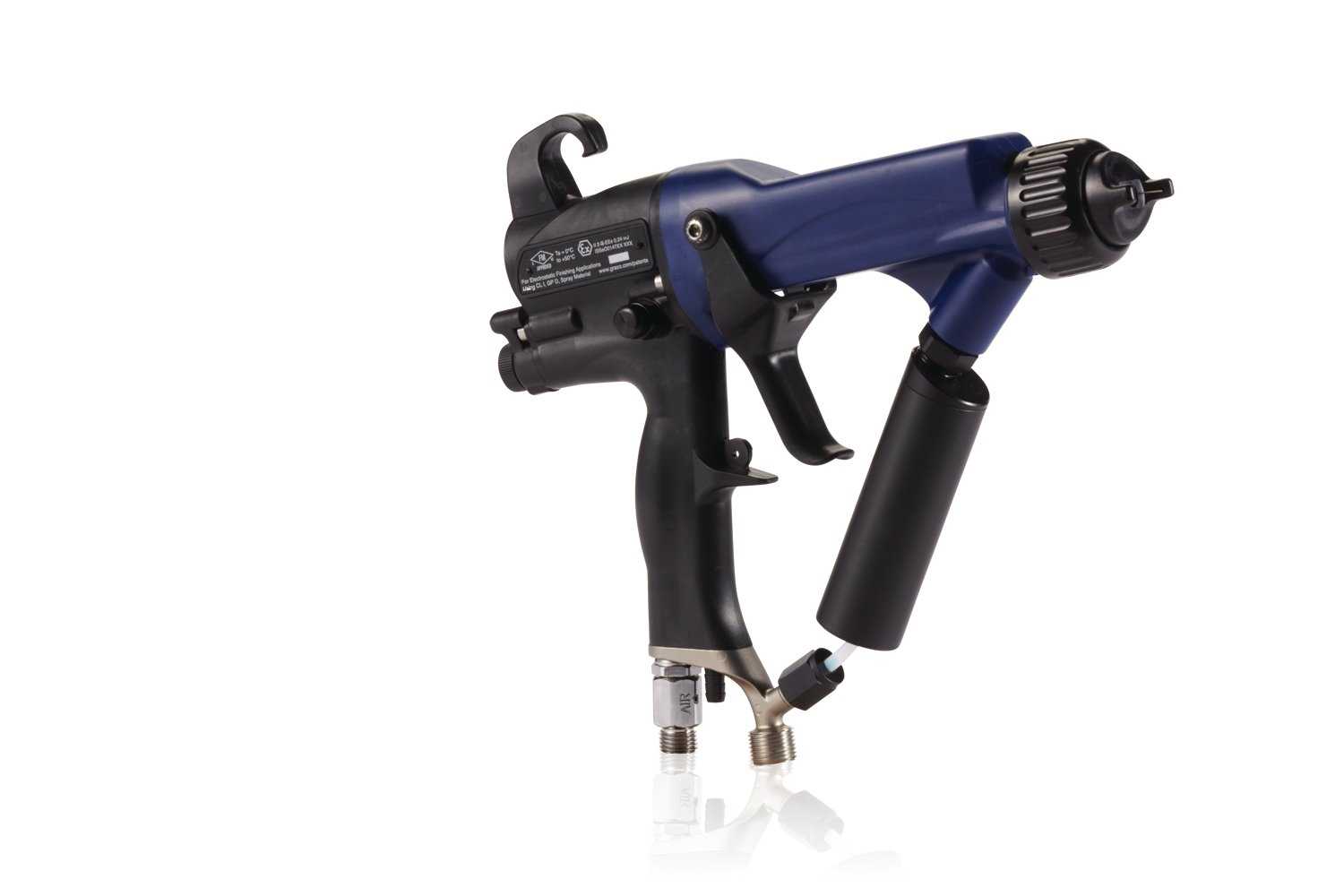

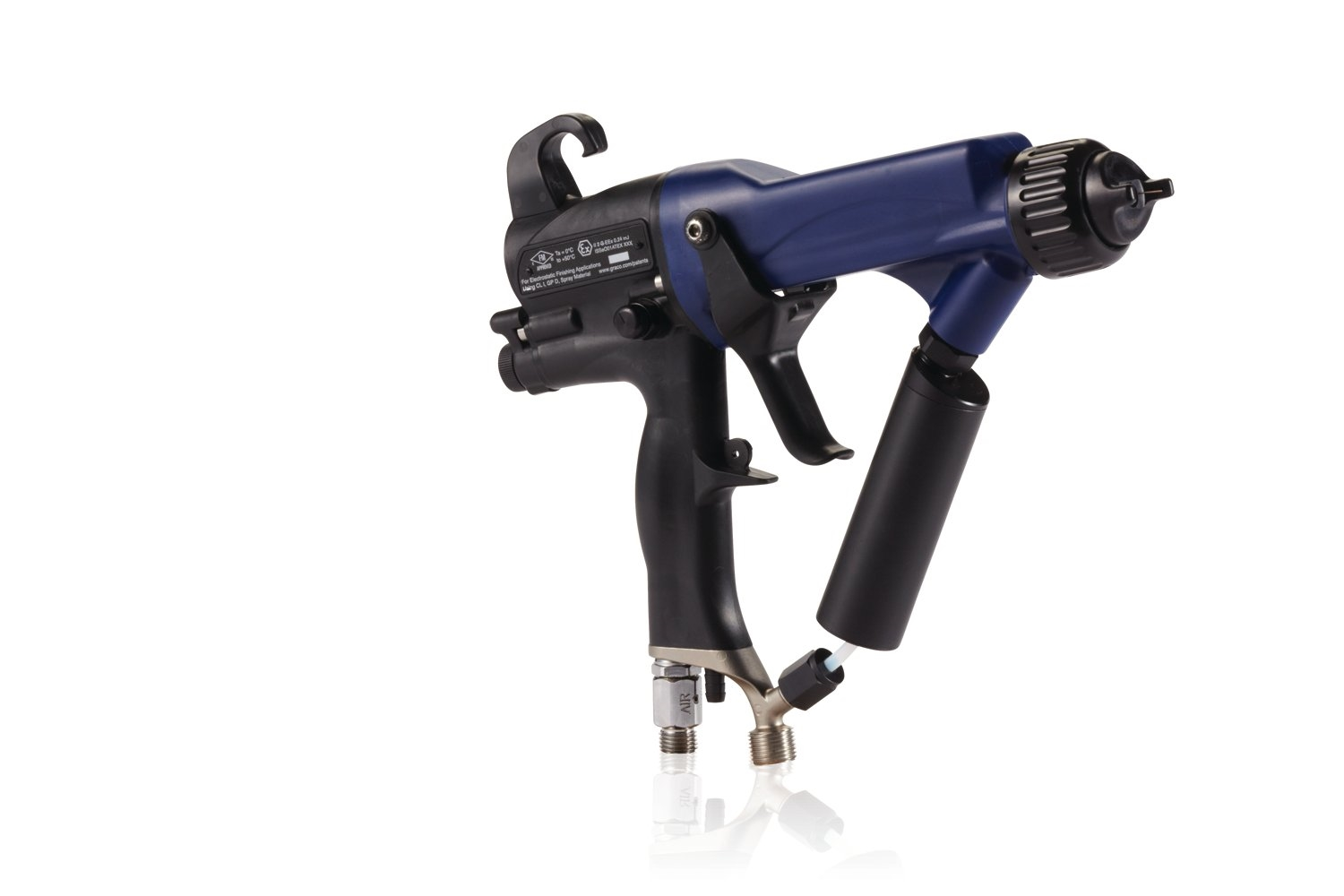

Graco L85T73 Pro Xp85 Air Spray Manual Electrostatic Gun, 85 kV, 0.047 in (1.2 mm) precision high wear nozzle, standard display, aerospace aircap
The aerospace electrostatic spray gun model isn't just for painting airplanes. It's for whenever you need to quickly cover large areas with the finest finish.
- Aerospace air cap, high wear electrode and precision high wear nozzle consistently create an even spray with particles that are the same size.
- Durable components are made for spraying high solid materials and somewhat abrasive coatings at high paint flow rates.
- Model: Pro Xp
- Series: 85
- Product Series: A
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Application: Electrostatic, Standard
- Applicator Type: Manual
- Coating Type: High Solids, Aerospace
- Compatible Paint Type: Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Solventborne, Urethanes
- Fluid Inlet Size (in): 3/8
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Gun Activation: Manual
- Gun Type: Electrostatic
- Gun Weight (g): 676
- Gun Weight (kg): 0.675
- Gun Weight (lb): 1.49
- Gun Weight (oz): 23.81
- Includes: Air Cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube
- Maximum Fluid Pressure (bar): 7.0
- Maximum Fluid Pressure (kg/cm²): 7.14
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Fluid Temperature (°C): 48
- Maximum Fluid Temperature (°F): 120
- Maximum Fluid Pressure (bar): 7.0
- Maximum Fluid Pressure (kg/cm²): 7.14
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Fluid Temperature (°C): 48
- Maximum Fluid Temperature (°F): 120
- Maximum Paint Resistivity (megohm/cm): Infinity
- Minimum Paint Resistivity (megohm/cm): 25
- Nozzle Size (cm): 0.12
- Nozzle Size (in): 0.047
- Nozzle Size (mm): 1.2
- Overall Length (cm): 26.67
- Overall Length (in): 10.5
- Overall Length (mm): 266.7
