GG L85T32
PRO XP GUN, ES, 85KV, ROUND MEDIUM

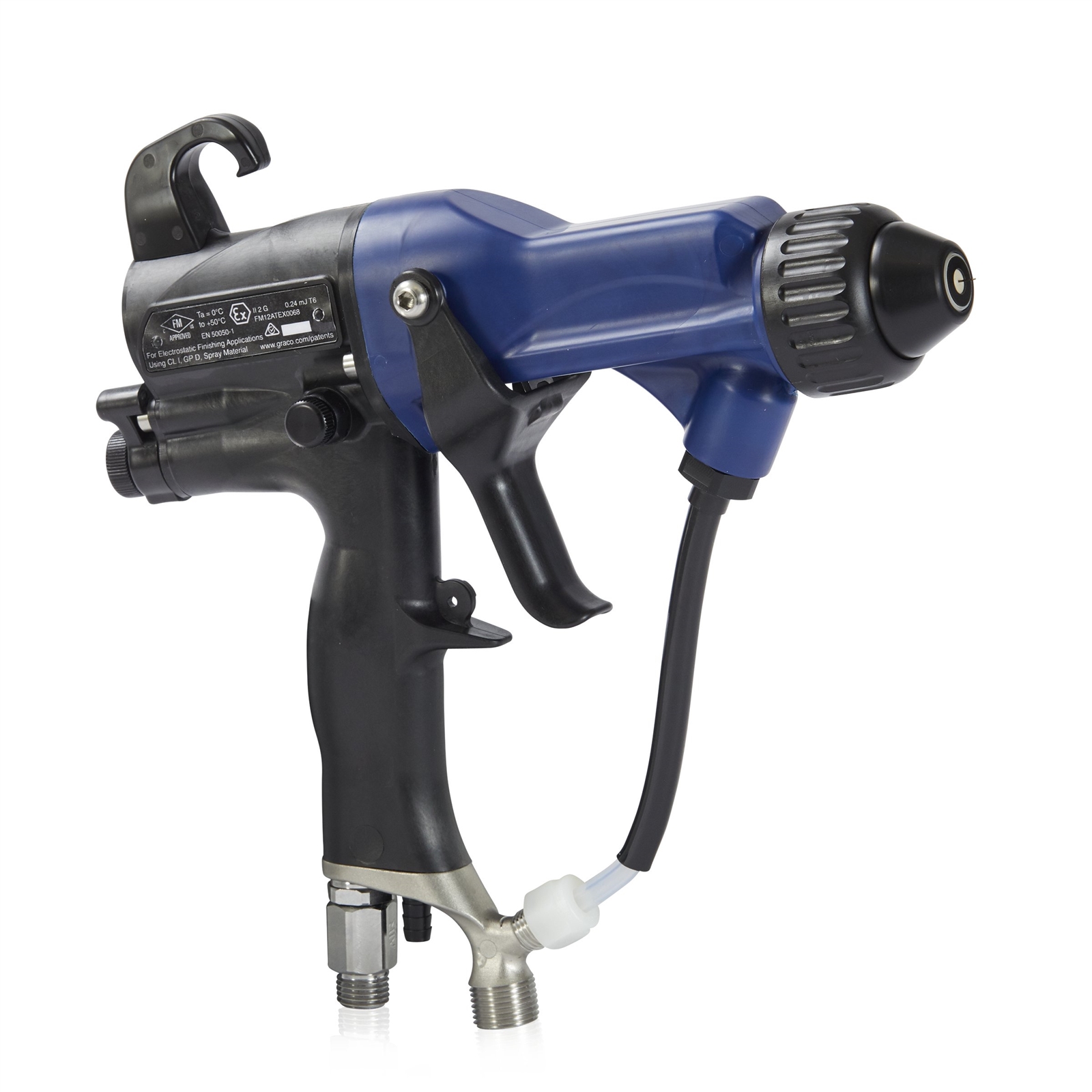

Graco L85T32 Pro Xp85 Air Spray Manual Electrostatic Gun, 85 kV, standard display, round spray nozzle/air cap medium pattern
This 85 kV electrostatic spray gun improves transfer efficiency with an efficient round spray nozzle and air cap combination.
Application: For round spray applications that require a medium pattern
- Bell-like round spray and electrostatics maximize wrap around cylindrical objects.
- Round spray components form small to medium patterns at lower fluid flow rates with less airflow. This improves finish quality on small, light objects.
- Model: Pro Xp
- Series: 85
- Product Series: A
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Application: Electrostatic, Standard
- Applicator Type: Manual
- Compatible Paint Type: Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Solventborne, Urethanes
- Fluid Inlet Size (in): 3/8
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Gun Activation: Manual
- Gun Type: Electrostatic
- Gun Weight (g): 676
- Gun Weight (kg): 0.675
- Gun Weight (lb): 1.49
- Gun Weight (oz): 23.81
- Includes: Round Spray air cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube
- Maximum Fluid Pressure (bar): 7.0
- Maximum Fluid Pressure (kg/cm²): 7.14
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Fluid Temperature (°C): 48
- Maximum Fluid Temperature (°F): 120
- Maximum Fluid Pressure (bar): 7.0
- Maximum Fluid Pressure (kg/cm²): 7.14
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Fluid Temperature (°C): 48
- Maximum Fluid Temperature (°F): 120
- Maximum Paint Resistivity (megohm/cm): Infinity
- Minimum Paint Resistivity (megohm/cm): 25
- Overall Length (cm): 26.67
- Overall Length (in): 10.5
- Overall Length (mm): 266.7
