Gun, D-55

GG 295530

GUN, D-55

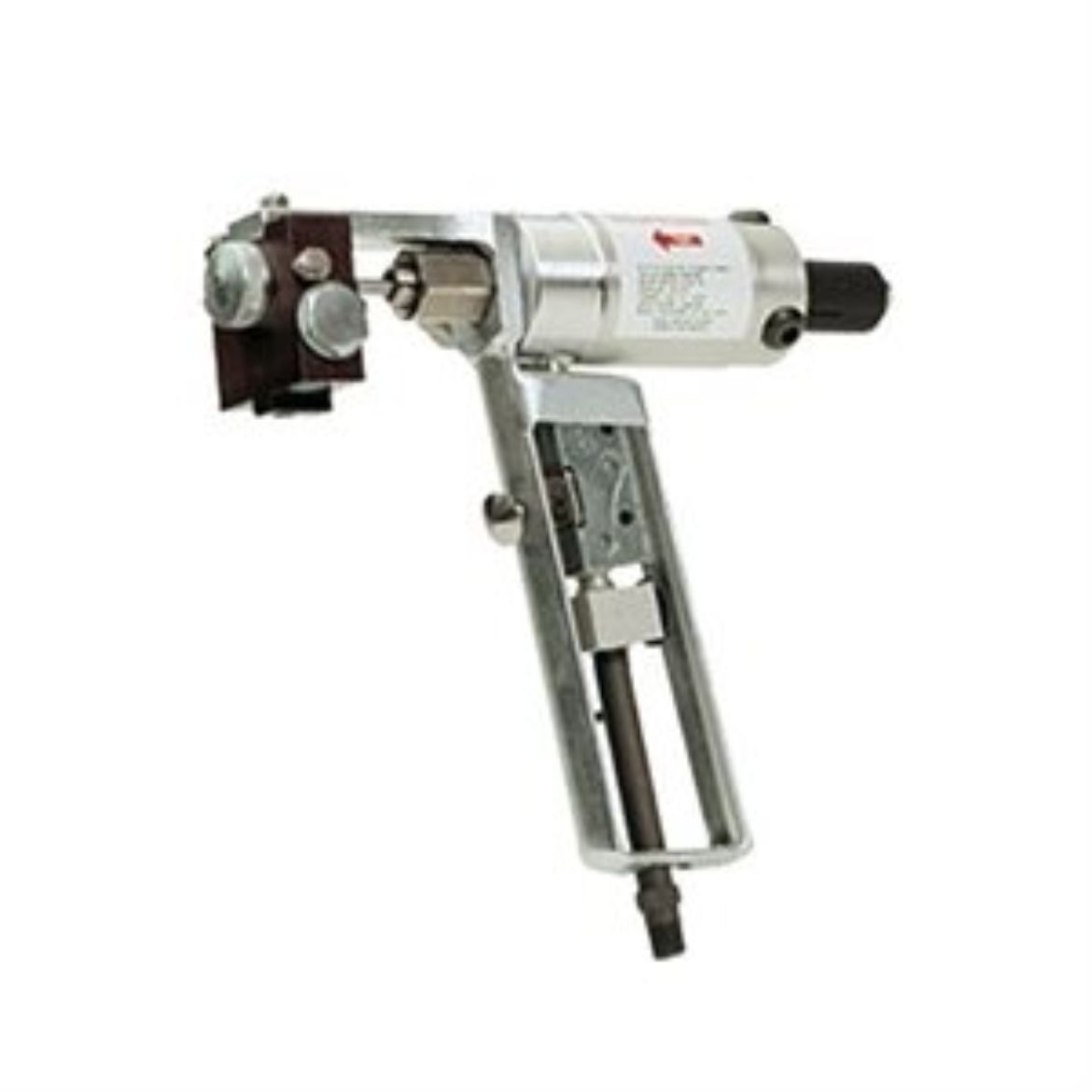

Graco 295530 D-Gun D-55 Standard Spray Gun

A variety of mixing chamber sizes allows the operator to fine-tune the round spray pattern for virtually any application. Lightweight, easy to operate and maintain. Mechanically self-cleaning so you eliminate costly solvent-flushing.

• Air cap allows for easy cleaning of the purge rod
• Lightweight design reduces operator fatigue
• Pattern control knob allows for fine tune adjustments

• Model: D-Gun
• Series: Standard

• Air Inlet Size (cm): 0.3175
• Air Inlet Size (in): 1/8
• Air Inlet Size (mm): 3.175
• Air Inlet Thread Type: NPT

• Compatible Material: Spray Polyurethane Foam
• Component A Inlet Size (cm): 1.27

• Component A Inlet Size (in): 1/2-20
• Component A Inlet Size (mm): 12.7
• Component A Inlet Thread Type: UNF
• Component B Inlet Size (cm): 1.42875
• Component B Inlet Size (in): 9/16
• Component B Inlet Size (mm): 14.2875
• Component B Inlet Thread Type: UNF

• Gun Activation: Manual
• Gun Type: Mechanical-Purge
• Gun Weight (g): 1406
• Gun Weight (kg): 1.4
• Gun Weight (lb): 3.1
• Gun Weight (oz): 49.6

• Maximum Air Inlet Pressure (bar): 7.6
• Maximum Air Inlet Pressure (kPa): 760
• Maximum Air Inlet Pressure (MPa): 0.76
• Maximum Air Inlet Pressure (psi): 110
• Maximum Air Pressure (bar): 6.9

• Maximum Air Pressure (kPa): 690
• Maximum Air Pressure (MPa): 0.69
• Maximum Air Pressure (psi): 100

• Maximum Flow Rate (kg/min): 7.2
• Maximum Flow Rate (lb/min): 16

• Maximum Fluid Pressure (bar): 70
• Maximum Fluid Pressure (kPa): 7000
• Maximum Fluid Pressure (MPa): 7
• Maximum Fluid Pressure (psi): 1000

• Maximum Fluid Pressure (bar): 70
• Maximum Fluid Pressure (kPa): 7000
• Maximum Fluid Pressure (MPa): 7
• Maximum Fluid Pressure (psi): 1000

• Maximum Fluid Working Pressure (bar): 69
• Maximum Fluid Working Pressure (MPa): 6.9
• Maximum Fluid Working Pressure (psi): 1000

• Minimum Air Inlet Pressure (bar): 6.2
• Minimum Air Inlet Pressure (kPa): 620
• Minimum Air Inlet Pressure (MPa): 0.62
• Minimum Air Inlet Pressure (psi): 90

• Minimum Flow Rate (kg/min): 0.9
• Minimum Flow Rate (lb/min): 2

• Overall Height (cm): 24
• Overall Height (in): 9.25
• Overall Height (mm): 240
• Overall Length (cm): 20
• Overall Length (in): 8
• Overall Length (mm): 200
• Overall Width (cm): 6
• Overall Width (in): 2.4
• Overall Width (mm): 60

• Pattern Size (in): 8 in @ 18-20 in from target
• Pattern Size (mm): 203.2

• Pressure Type: Low Pressure

• Purge Method: Mechanical
