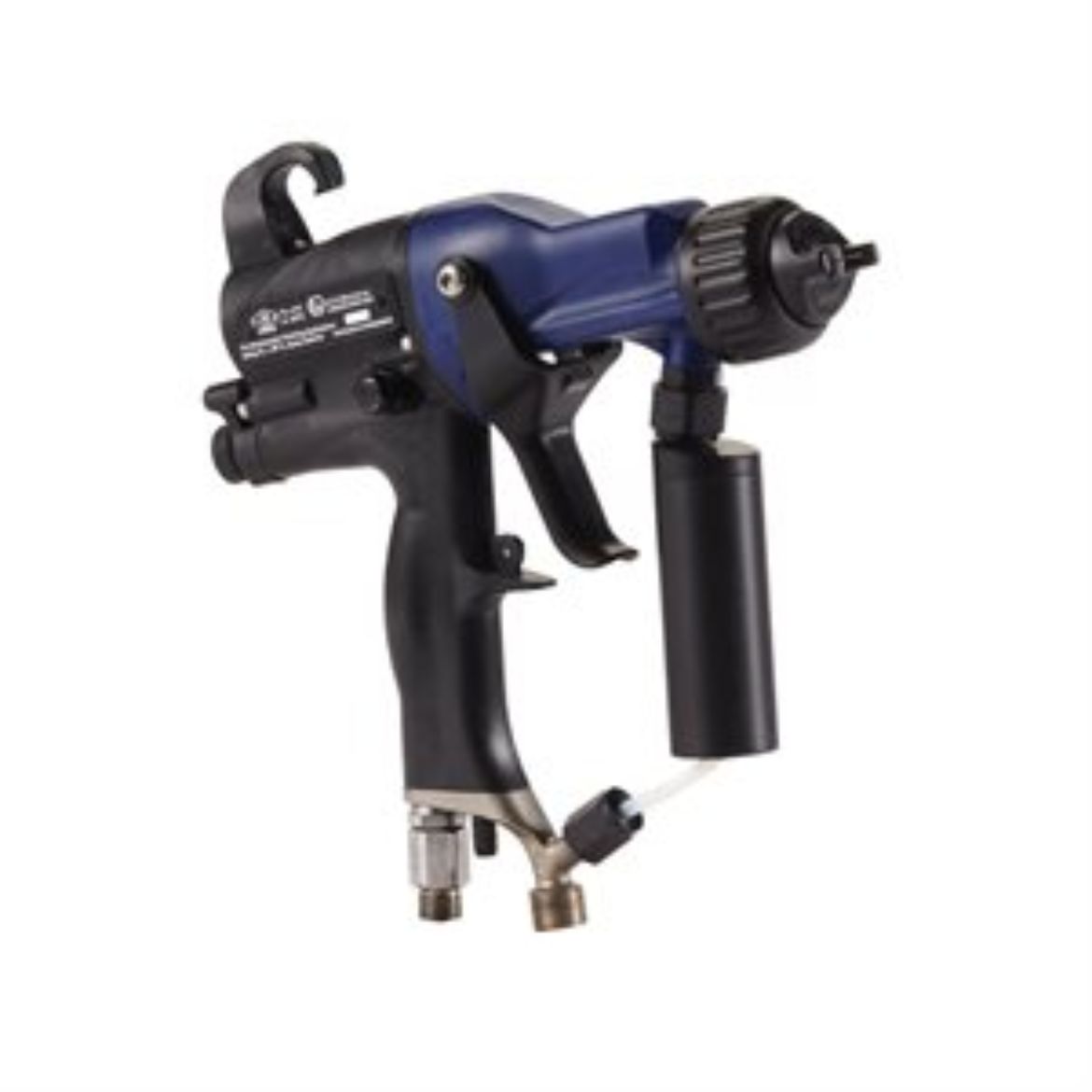

Gun, Pro Xp Electrostatic, 40kv, HC

GG L40T16

PRO XP GUN, ES, 40KV, HC

Graco L40T16 Pro Xp40 Air Spray Manual Electrostatic High Conductivity Gun, 40 kV, 0.055 in (1.5 mm) precision high wear nozzle, standard display

This 40 kV electrostatic air spray gun comes in a compact, lightweight package. The longer fluid tube on the high conductivity gun lets you spray lower resistivity material.

• Metal tip precision high-wear nozzle, high-wear electrode, and more durable fluid tube improve longevity when spraying low resistivity materials, such as abrasives and metallic coatings.
• Removable black fluid tube cover allows operator to see fluid movement.
• Made in the USA
• Rugged, dependable design supported by a three year warranty
• Every gun is tested and delivered with a certificate indicating the spray pattern, mechanical performance and electrical performance meets Gracos requirements

• Model: Pro Xp
• Series: 40

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPSM

• Application: Electrostatic, High Conductivity, High Wear
• Applicator Type: Manual

• Coating Type: Abrasive, Metallic, High Conductivity, High Wear

• Compatible Paint Type: Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Solvent borne, Urethanes

• Display Type: Standard

• Fluid Inlet Size (in): 3/8
• Fluid Inlet Thread Gender: Male
• Fluid Inlet Thread Type: NPSM

• Gun Activation: Manual
• Gun Type: Electrostatic
• Gun Weight (g): 560
• Gun Weight (kg): 0.56
• Gun Weight (lb): 1.23
• Gun Weight (oz): 19.75

• Includes: Air Cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube

• Maximum Fluid Pressure (bar): 7.0
• Maximum Fluid Pressure (kg/cm²): 7.14
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature (°C): 48
• Maximum Fluid Temperature (°F): 120

• Maximum Fluid Pressure (bar): 7.0
• Maximum Fluid Pressure (kg/cm²): 7.14
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature (°C): 48
• Maximum Fluid Temperature (°F): 120

• Maximum Paint Resistivity (megohm/cm): 25

• Minimum Paint Resistivity (megohm/cm): 1

• Nozzle Size (cm): 0.15
• Nozzle Size (in): 0.055
• Nozzle Size (mm): 1.5

• Overall Length (cm): 22.1
• Overall Length (in): 8.7
• Overall Length (mm): 221
