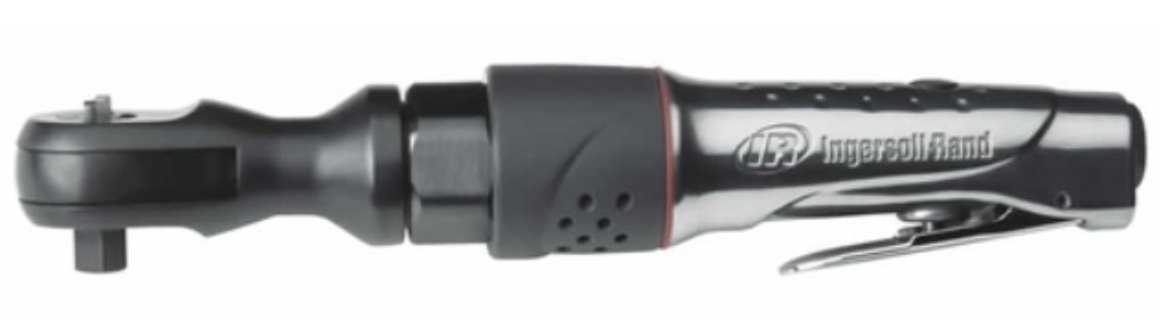

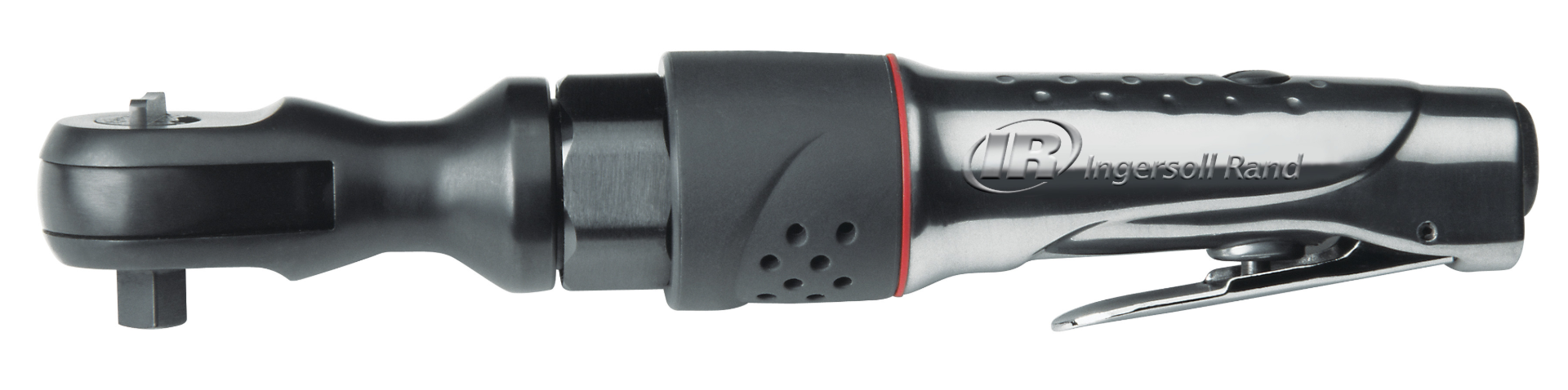

IR 1077XPA
1/2" Air Ratchet Wrench, 54 ft-lb Torque, 160 RPM
The advanced head design of the 1077XPA ½” ratchet wrench provides increased durability to one of the industry’s most popular ratchets.
Features And Benefits
- 360-Degree Exhaust: Adjustable 360-degree exhaust capabilities of the 1077XPA standard ratchet wrenches direct exhaust away from the operator, ensuring a better workspace.
- Increased Control: The power regulator you’ll find on this ratchet wrench provides increased control on every job.
- Access Hard to Reach Spaces: With greater access and reach, you can more easily work in deep, hard to reach areas.
- Ideal Choice: Ideal choice for work in close quarters. Provides 54 ft.-lbs. of max torque and 160 rpms. Variable speed lever style throttle.
Includes: Bare Tool
Product Application and Uses: To remove and install threaded fasteners.
Actuation/Throttle Type/Switch Type: Lever
Air Consumption (cfm): 19
Air Consumption (l/min): 530
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Average Air Consumption (cfm): 4
Average Air Consumption (l/min): 113
Color: Silver
Configuration/Handle Type: Straight
Drive Size (in): 1/2
Duty Rating: Industrial Duty
Exhaust Location: Side - Adjustable
Handle Material: Aluminum
Housing Material: Aluminum
Max Bolt Capacity Sae Grade 5 Bolt Diameter (in): 7/16
Max Free Speed (rpm): 160
Max Pressure (bar): 6.2
Max Torque (ft-lb): 54
Max Torque (in-lb): 646
Max Torque (nm): 73
Min Hose Size (in): 3/8
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 11
Product Width (in): 1.91
Product Height (in): 1.9
Product Weight (lb): 2.75
Recommended Forward Torque Range (ft-lb): 10-45
Recommended Forward Torque Range (in-lb): 124-540
Recommended Forward Torque Range (nm): 14-61
Retainer Type: Ball
Reversible: Reversible
Side to Center Distance (in): 0.96
Side to Center Distance (mm): 24
Sound Pressure/Power Db(A): 94.4 / 105.4
Speed Setting: Variable Speed
Standards/Certifications: All Gov Regulations And Fda Certified
Vibration Level (m/s2): 2.4
Warranty: 1-year
