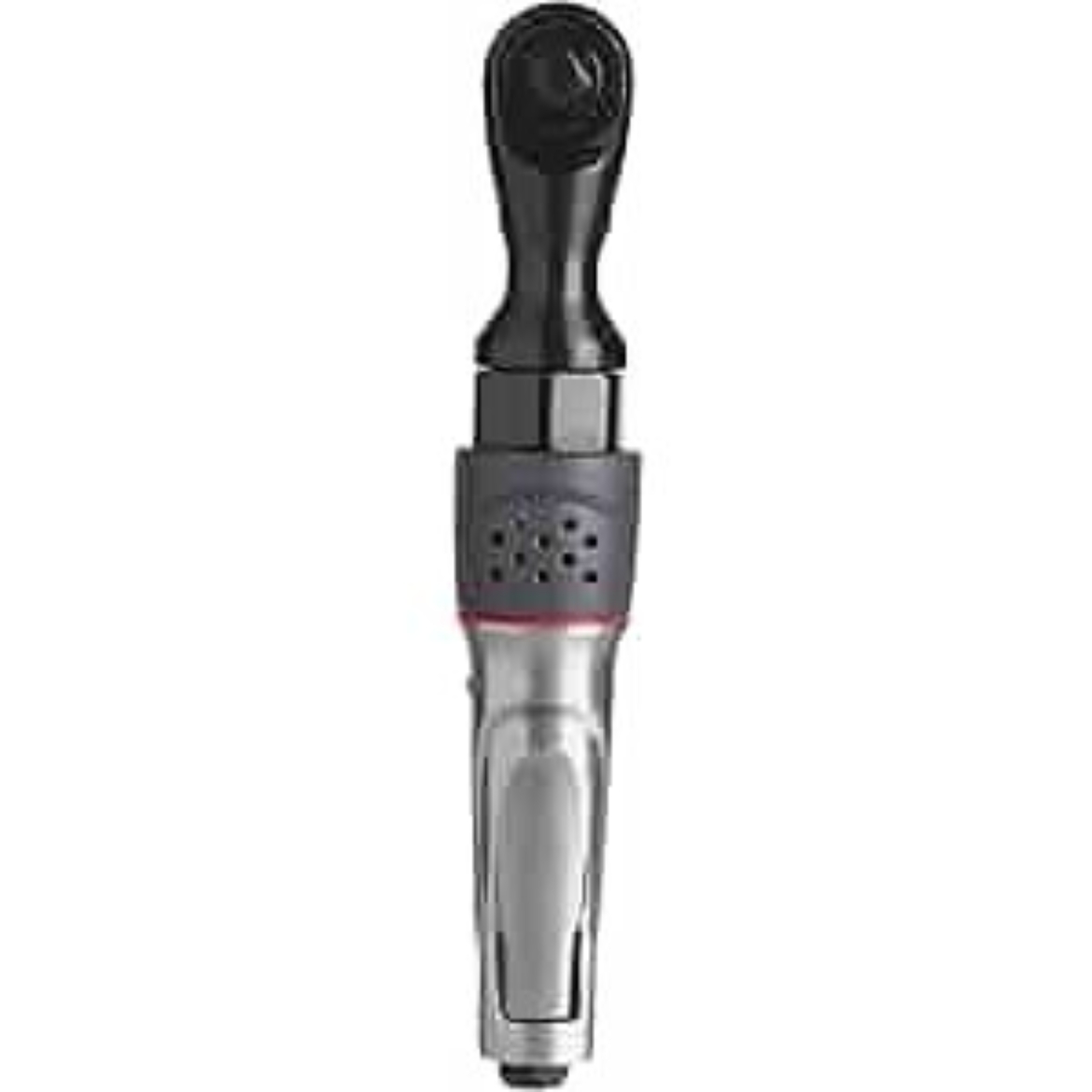

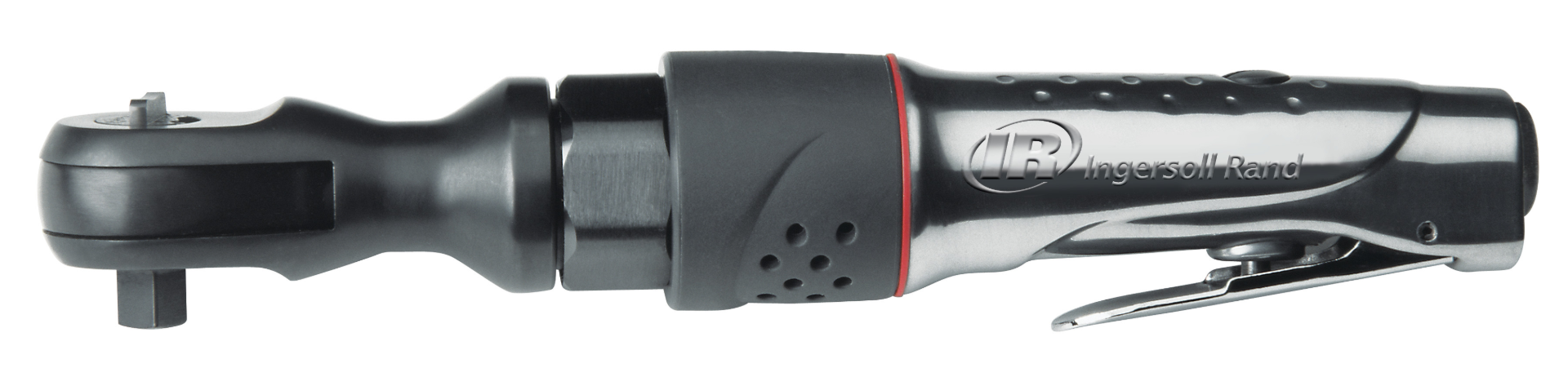

3/8in Ratchet Heavy Duty

IR 107XPA

3/8" Air Ratchet Wrench, 54 ft-lb Torque, 160 RPM

Description: The advanced head design of the 107XPA ⅜" ratchet wrench provides increased durability to one of the industry's most popular ratchets.

Features And Benefits:

• 360-Degree Exhaust: The 360-degree exhaust capabilities of the 107XPA standard ratchet wrenches direct exhaust away from the operator, ensuring a better workspace.
• Increased Control: The power regulator you'll find on this ratchet wrench provides increased control on every job.
• Access Hard to Reach Spaces: With greater access and reach, you can more easily work in deep, hard to reach areas.
• Ideal choice: Ideal choice for work in close quarters. Provides 54 ft.-lbs. of max torque and 160 rpms. Variable speed lever style throttle.

Product Application and Uses:

To remove and install threaded fasteners.

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Lever
• Air Consumption (cfm): 19
• Air Consumption (l/min): 530
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Average Air Consumption (cfm): 4
• Average Air Consumption (l/min): 113

• Color: Silver
• Configuration/Handle Type: Straight
• Drive Size (in): 3/8
• Duty Rating: Industrial Duty

• Exhaust Location: Side - Adjustable

• Handle Material: Aluminum
• Housing Material: Aluminum

• Max Bolt Capacity Sae Grade 5 Bolt Diameter (in): 7/16
• Max Free Speed (rpm): 160
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 54
• Max Torque (in-lb): 646
• Max Torque (nm): 73
• Min Hose Size (in): 3/8

• Number of Power Settings: Continuous
• Power Source: Air Powered
• Product Length (in): 11

• Product Width (in): 1.91
• Product Height (in): 1.72
• Product Weight (lb): 2.75
• Recommended Forward Torque Range (ft-lb): 10-45
• Recommended Forward Torque Range (in-lb): 124-540
• Recommended Forward Torque Range (nm): 14-61
• Retainer Type: Ball
• Reversible: Reversible

• Side to Center Distance (in): 0.96
• Side to Center Distance (mm): 24

• Sound Pressure/Power Db(A): 94.4 / 105.4
• Speed Setting: Variable Speed
• Standards/Certifications: All Gov Regulations And Fda Certified

• Vibration Level (m/s2): 2.4
• Warranty: 1-year

• Accessories: 107-BOOT

• Lubrication: 10G
• Lubrication: 10P
• Parts: 107XPA-TK1
• Parts: 107XPA-TRK1
