Ratchets

NTT 181451

GW 86193

GW 86629

GW 86660

GW 9902D

IR 107XPA-38

IR 107XPA-A123

IR 109XPA-427

IR 109XPA-A565

IR 1105-D3-TRK1

Ratchet Head Repair Kit for Ingersoll Rand 1105-D3 and 105-D3 3/8" Drive Ratchet Wrench

Product Application and Uses:

For use with 1105-D3, 105-D3 3/8" Air Ratchet Wrench

• For Use With: 105-D3
• For Use With: 1105MAX-D3

IR 1207-A322

NTT 16013

NTT 181450

SCA 197 17 0206

SUM ST-55599-5/8

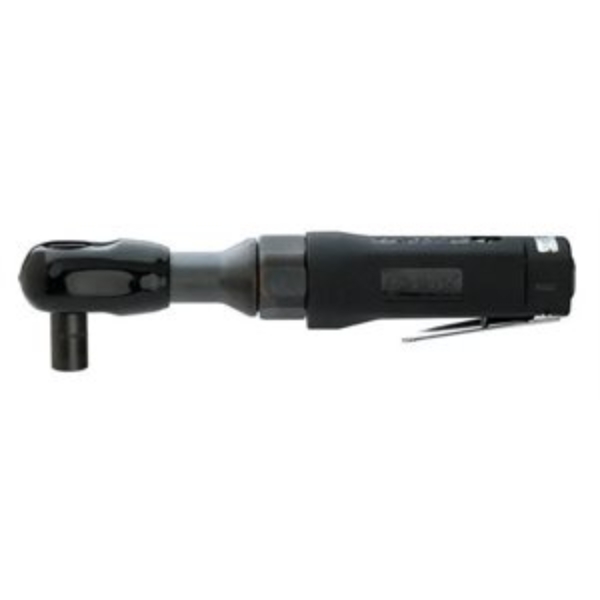

SX 5013

SX SRW07-50

GW 81841

GW 82812

GW 85510

GW 86537

IR 105-A322

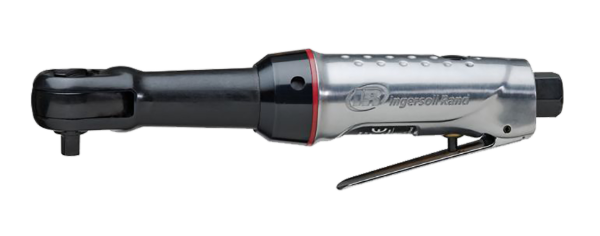

IR 105-L2

1/4" Air Mini Ratchet Wrench, 25 ft-lb Torque, 250 RPM

Description: The 105 Series of air ratchet wrenches are small, durable, and easy to handle for vehicle repair technicians. The low profile forward/reverse control has a wide diameter for easy gripping and increased control in confined spaces.

Features And Benefits:

• Power & Speed: With 25 ft-lb max torque and 250 rpm free speed, you can count on the 105 Series to deliver impressive power.
• Greater Access & Reach: The 105 Series mini ratchet wrenches are small and nimble enough to tackle jobs in both tight and hard to reach places.
• Durable: With an aluminum housing and steel head construction, the 105 Series has improved durability and consistent performance.
• Increased Safety: The ball dent anvil found on each member of the 105 Series provides a more secure link to the socket, increasing operator safety.

Product Application and Uses:

To remove and install threaded fasteners.

• Actuation/Throttle Type/Switch Type: Lever
• Air Consumption @ Load (cfm): 18
• Air Consumption @ Load (l/min): 510
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90

• Color: Silver
• Configuration/Handle Type: Right Angle
• Drive Size (in): 1/4
• Drive Type: Square
• Duty Rating: Industrial Duty

• Exhaust Location: Rear

• Housing Material: Aluminum

• Max Bolt Capacity Sae Grade 5 Bolt Diameter (in): 3/8
• Max Free Speed (rpm): 250
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 25
• Max Torque (in-lb): 301
• Max Torque (nm): 34
• Min Hose Size (in): 3/8

• Number of Power Settings: Continuous
• Power Source: Air Powered
• Product Length (in): 8.41

• Product Weight (lb): 1.56
• Recommended Forward Torque Range (ft-lb): 5.2-20
• Recommended Forward Torque Range (in-lb): 62-239
• Recommended Forward Torque Range (nm): 7-27
• Retainer Type: Ball
• Reversible: Reversible

• Side to Center Distance (in): 0.77
• Side to Center Distance (mm): 20

• Sound Pressure/Power Db(A): 81.6 / 92.6
• Speed Setting: Variable Speed
• Standards/Certifications: All Government Regulations and FDA Certified

• Vibration Level (m/s2): 3.7
• Warranty: 1-year

• Accessories: 103-BOOT

• Lubrication: 10G
• Lubrication: 10P
• Parts: 1105-D2-TRK1
• Parts: JQ2-201

IR 107XPA-367

IR 107XPA-A40
