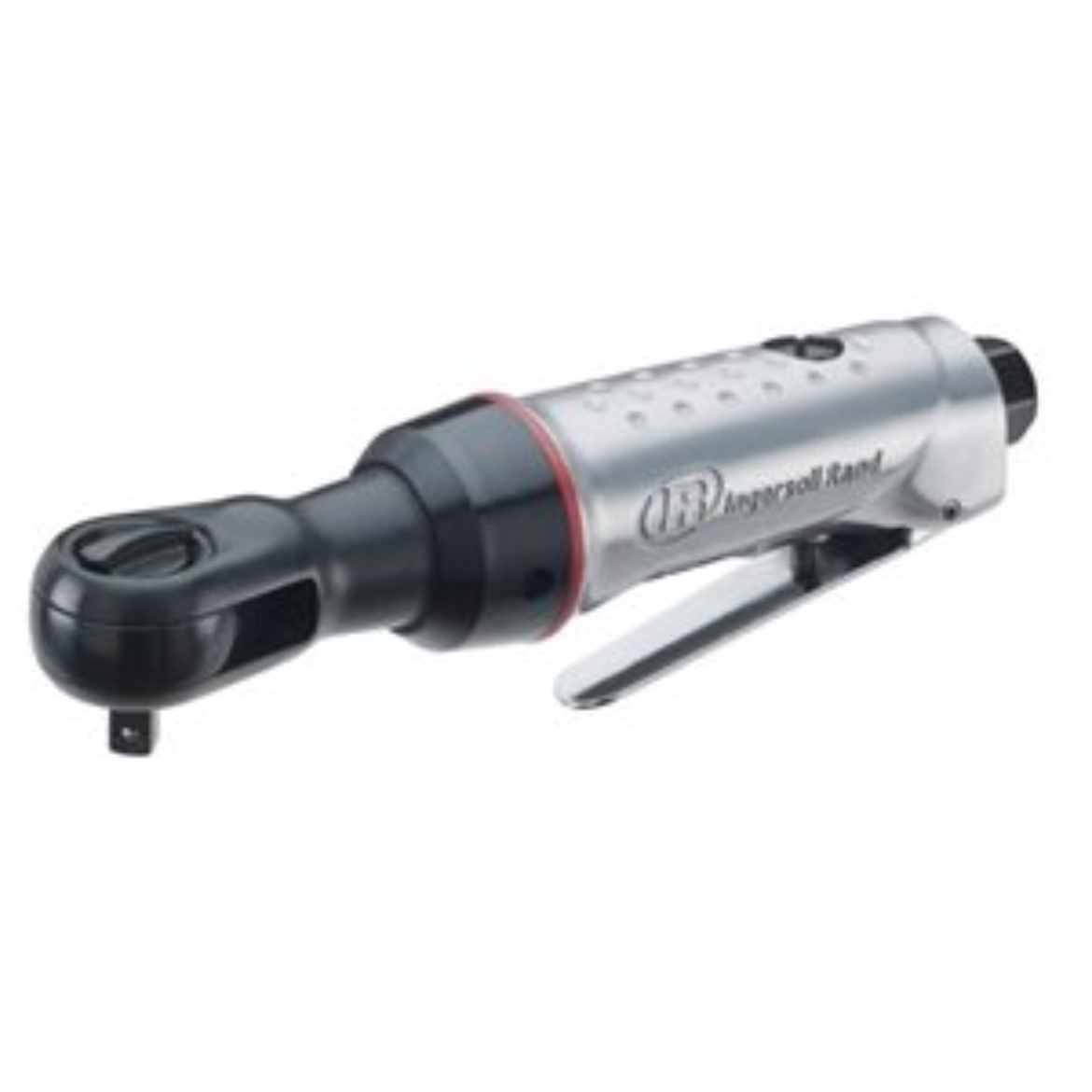

Ratchet, 1/4" Drive

IR 105-D2

1/4" Air Ratchet Wrench, 25 ft-lb Torque, 250 RPM

Description: The 105 Series of air ratchet wrenches are small, durable, and easy to handle for vehicle repair technicians. The low profile forward/reverse control has a wide diameter for easy gripping and increased control in confined spaces.

Features And Benefits:

• Power & Speed: With 25 ft-lb max torque and 250 rpm free speed, you can count on the 105 Series to deliver impressive power.
• Greater Access & Reach: The 105 Series mini ratchet wrenches are small and nimble enough to tackle jobs in both tight and hard to reach places.
• Durable: With an aluminum housing and steel head construction, the 105 Series has improved durability and consistent performance.
• Increased Safety: The ball dent anvil found on each member of the 105 Series provides a more secure link to the socket, increasing operator safety.

Product Application and Uses:

To remove and install threaded fasteners.

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Lever
• Air Consumption (cfm): 18
• Air Consumption (l/min): 510
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Average Air Consumption (cfm): 3
• Average Air Consumption (l/min): 85

• Color: Silver
• Configuration/Handle Type: Straight
• Drive Size (in): 1/4
• Duty Rating: Industrial Duty

• Exhaust Location: Rear

• Handle Material: Aluminum
• Housing Material: Aluminum

• Max Bolt Capacity Sae Grade 5 Bolt Diameter (in): 3/8
• Max Free Speed (rpm): 280
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 25
• Max Torque (in-lb): 301
• Max Torque (nm): 34
• Min Hose Size (in): 3/8

• Number of Power Settings: Continuous
• Power Source: Air Powered
• Product Length (in): 7.29

• Product Width (in): 1.54
• Product Height (in): 1.35
• Product Weight (lb): 1.4
• Recommended Forward Torque Range (ft-lb): 5.2-20
• Recommended Forward Torque Range (in-lb): 62-239
• Recommended Forward Torque Range (nm): 7-27
• Retainer Type: Ball
• Reversible: Reversible

• Side to Center Distance (in): 0.77
• Side to Center Distance (mm): 20

• Sound Pressure/Power Db(A): 81.8 / 92.8
• Speed Setting: Variable Speed
• Standards/Certifications: All Gov Regulations And Fda Certified

• Vibration Level (m/s2): 5.1
• Warranty: 1-year

• Accessories: 103-BOOT

• Lubrication: 10G
• Lubrication: 10P
• Parts: 1105-D2-TRK1
• Parts: JQ2-201
