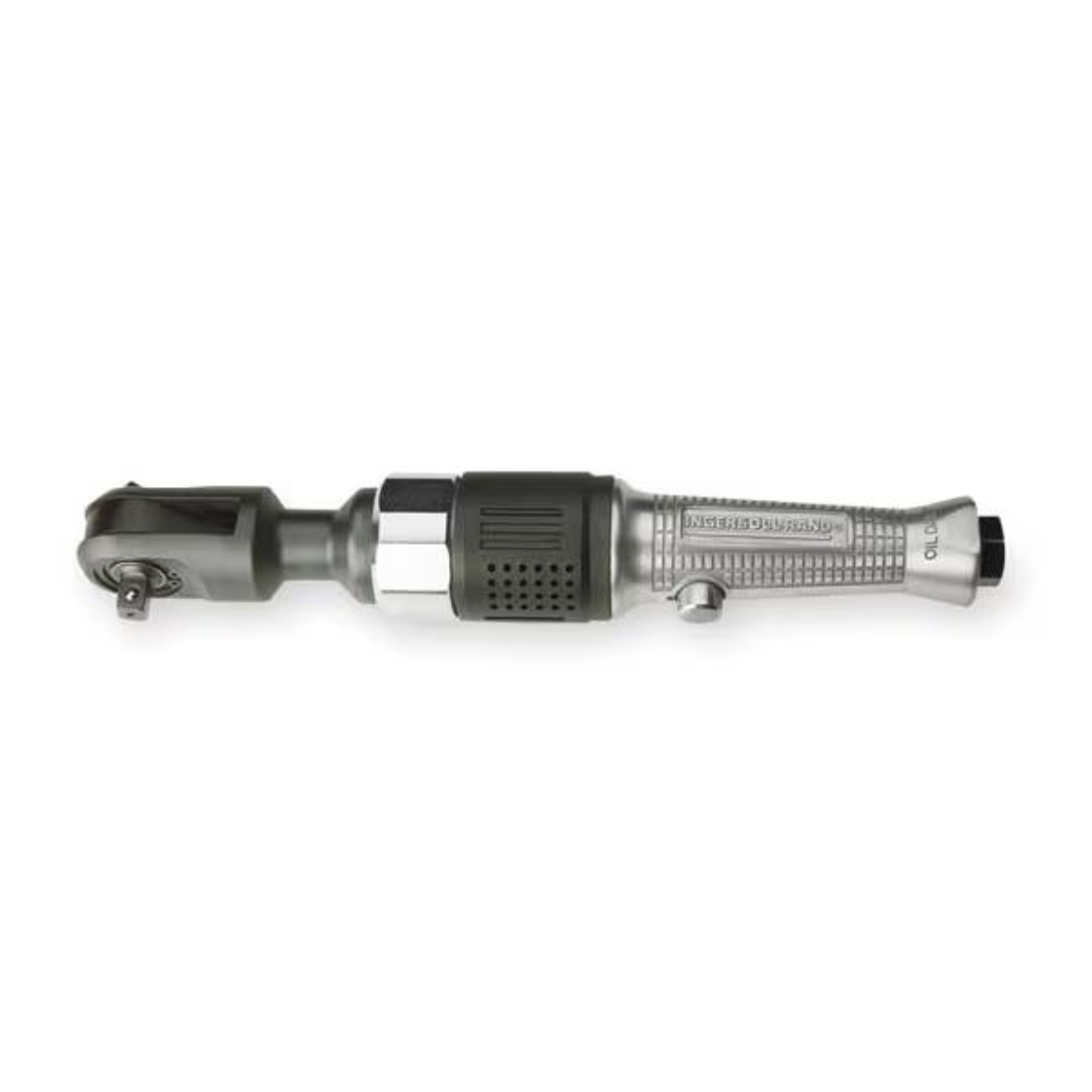

3/8in Club Style Ratchet

IR 109XPA

3/8" Air Ratchet Wrench, 76 ft-lb Torque, 220 RPM

Description: The 109XPA ratchet wrenches provide an optimized gear ratio and airflow for exceptional performance and durability with 76 ft-lb maximum torque. The 109 model offers a ½" drive, while the 1099 model sports a ⅜" version.

Features And Benefits:

• Maximum Torque: 76 ft.-lbs. maximum torque at 300 rpm free speed.
• 360-Degree Exhaust: The adjustable exhaust on the 109XPA high torque ratchet wrenches directs air flow away from you and your workspace.
• Low Profile Forward/Reverse Control: The 109XPA forward/reverse control has a wide diameter for increased ease of use in confined spaces.
• Increased Reach: Enjoy easier access to deep, hard to reach spaces with these high torque ratchet wrenches.
• Exceptional Durability: Exclusive IR Twin Pawl Plus head design for exceptional durability.

Product Application and Uses:

To remove and install threaded fasteners.

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Button
• Air Consumption (cfm): 24
• Air Consumption (l/min): 680
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Average Air Consumption (cfm): 4
• Average Air Consumption (l/min): 113

• Color: Silver
• Configuration/Handle Type: Right Angle
• Drive Size (in): 3/8
• Duty Rating: Industrial Duty

• Exhaust Location: Side - Adjustable

• Handle Material: Aluminum
• Housing Material: Aluminum

• Max Bolt Capacity Sae Grade 5 Bolt Diameter (in): 1/2
• Max Free Speed (rpm): 220
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 76
• Max Torque (in-lb): 912
• Max Torque (nm): 103
• Min Hose Size (in): 3/8

• Number of Power Settings: Continuous
• Power Source: Air Powered
• Product Length (in): 12

• Product Width (in): 2.16
• Product Height (in): 1.84
• Product Weight (lb): 3.3
• Recommended Forward Torque Range (ft-lb): 10-60
• Recommended Forward Torque Range (in-lb): 124-717
• Recommended Forward Torque Range (nm): 14-81
• Retainer Type: Ball
• Reversible: Reversible

• Side to Center Distance (in): 1.08
• Side to Center Distance (mm): 27

• Sound Pressure/Power Db(A): 92.4 / 103.4
• Speed Setting: Variable Speed
• Standards/Certifications: All Gov Regulations And Fda Certified

• Vibration Level (m/s2): 2.5
• Warranty: 1-year

• Accessories: 109-BOOT

• Lubrication: 10G
• Lubrication: 10P
• Parts: 109XPA-TK
• Parts: 109XPA-TK1

• Parts: 109XPA-TRK1
