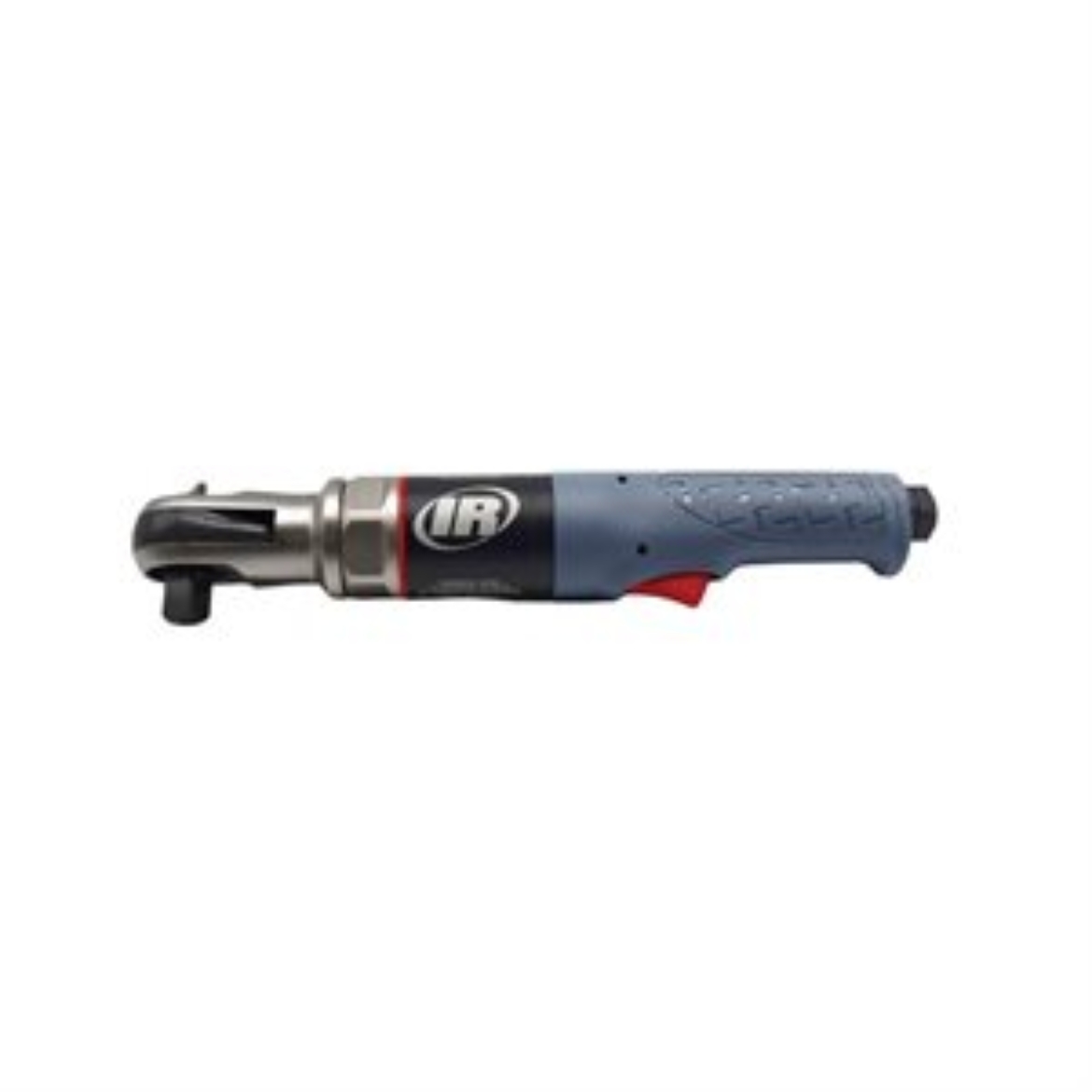

IR 1211MAX-D4
1/2" Air Ratchet Wrench, 80 ft-lb Torque, 625 RPM
Description: The Ingersoll Rand MAX line- including the 1211MAX Series of air ratchet wrenches- delivers best-in-class performance with a number of premium features. You can choose between a 1/2" or 3/8" drive, but you'll never have to sacrifice comfort or power with this line.
Features And Benefits:
- Our MAX line of tools is known for having a high torque output you can rely on. The 1211MAX Series features 80 ft-lb of nut busting torque from a reactionless impact mechanism.
- High Speed 625 RPM Free Speed lets you get more done, faster.
- Nickel-plated housing provides enhanced corrosion resistance.
- True ratchet mechanism delivers powerful manual break loose ability and final tighten capabilities.
Product Application and Uses:
To remove and install threaded fasteners.
- Includes: Bare Tool
- Actuation/Throttle Type/Switch Type: Lever
- Air Consumption (cfm): 13.7
- Air Consumption (l/min): 388
- Air Inlet: 1/4" NPT
- Air Pressure (psi): 90
- Average Air Consumption (cfm): 4
- Average Air Consumption (l/min): 113
- Color: Grey
- Configuration/Handle Type: Straight
- Drive Size (in): 1/2
- Duty Rating: Industrial Duty
- Exhaust Location: Front
- Free Speed Sound Pressure/Power Db(A): 92.1 / 103.1
- Handle Material: Composite
- Housing Material: Aluminum core with composite sleeve
- Impacting Sound Pressure/Power Db(A): 90.3
- Max Bolt Capacity Sae Grade 5 Bolt Diameter (in): 1/2
- Max Free Speed (rpm): 625
- Max Pressure (bar): 6.2
- Max Torque (ft-lb): 66
- Max Torque (in-lb): 788
- Max Torque (nm): 89
- Min Hose Size (in): 3/8
- Number of Power Settings: Continuous
- Nut-busting/Breakaway Torque (ft-lb): 80
- Nut-busting/Breakaway Torque (in-lb): 956
- Nut-busting/Breakaway Torque (nm): 108
- Power Source: Air Powered
- Product Length (in): 11.89
- Product Width (in): 1.38
- Product Height (in): 2.2
- Product Weight (lb): 3.03
- Recommended Forward Torque Range (ft-lb): 10-60
- Recommended Forward Torque Range (in-lb): 124-717
- Recommended Forward Torque Range (nm): 14-81
- Retainer Type: Ball
- Reversible: Reversible
- Side to Center Distance (in): 0.92
- Side to Center Distance (mm): 23
- Speed Setting: Variable Speed
- Standards/Certifications: All Gov Regulations And Fda Certified
- Vibration Level (m/s2): 12.7
- Warranty: 1-year
- Lubrication: 10G
- Lubrication: 10P
- Parts: 1211-303
- Parts: 1211-37
- Parts: 1211-D4-TRK1
- Parts: 1211-THK1
- Parts: 1211-TK
