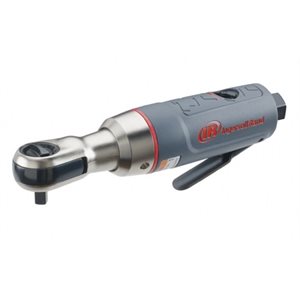

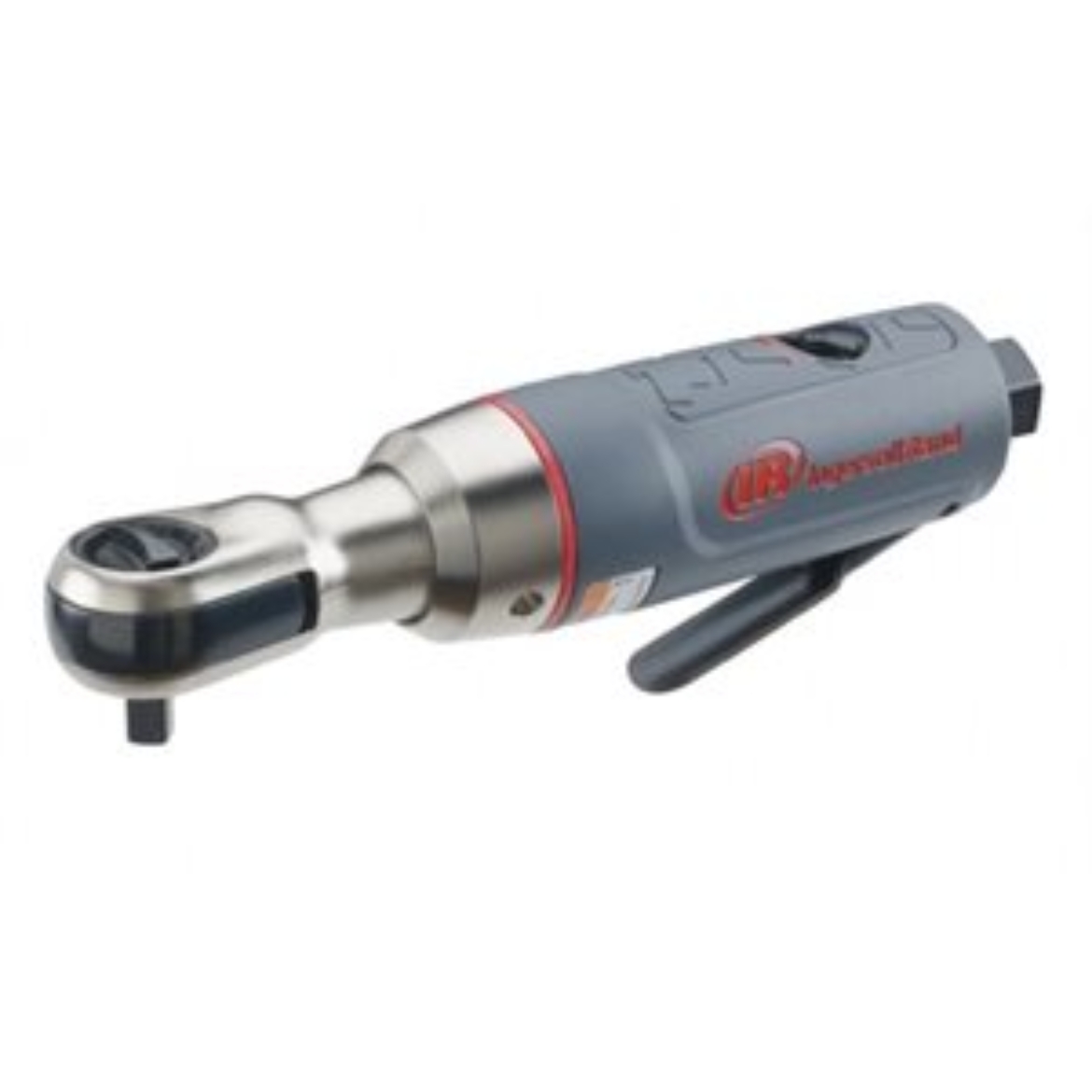

Ratchet, 3/8" Drive

IR 1105MAX-D3

3/8" Air Ratchet Wrench, 30 ft-lb Torque, 300 RPM

Description: The 1105MAX Series is our top-of-the-line, premium mini impact wrenches. These air ratchets offer best-in-class power and speed with features like enhanced corrosion resistance and an ultra-comfortable housing.

Features And Benefits:

• Increased Access & Reach: These mini ratchet wrenches let you get into deep, tight, and hard-to-reach places.
• Long-Lasting Comfort: The composite housing and handle insulates from the cold and ensures operator comfort even during extended use.
• Trusted Durability: The 1105MAX Series can withstand harsh environments and repeated drops.

Product Application and Uses:

To remove and install threaded fasteners.

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Lever
• Air Consumption (cfm): 20
• Air Consumption (l/min): 566
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Average Air Consumption (cfm): 3.5
• Average Air Consumption (l/min): 99

• Color: Black
• Configuration/Handle Type: Straight
• Drive Size (in): 3/8
• Duty Rating: Industrial Duty

• Exhaust Location: Rear

• Housing Material: Aluminum core with composite sleeve

• Max Bolt Capacity Sae Grade 5 Bolt Diameter (in): 3/8
• Max Free Speed (rpm): 300
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 30
• Max Torque (in-lb): 363
• Max Torque (nm): 41
• Min Hose Size (in): 3/8

• Number of Power Settings: Continuous
• Power Source: Air Powered
• Product Length (in): 7.36

• Product Width (in): 1.6
• Product Height (in): 1.46
• Product Weight (lb): 1.43
• Recommended Forward Torque Range (ft-lb): 5.2-25
• Recommended Forward Torque Range (in-lb): 62-301
• Recommended Forward Torque Range (nm): 7-34
• Retainer Type: Ball
• Reversible: Reversible

• Side to Center Distance (in): 0.8
• Side to Center Distance (mm): 20

• Sound Pressure/Power Db(A): 88.9 / 99.9
• Speed Setting: Variable Speed
• Standards/Certifications: All Gov Regulations And Fda Certified

• Vibration Level (m/s2): 5.7
• Warranty: 1-year

• Accessories: 103-BOOT

• Lubrication: 10G
• Lubrication: 10P
• Parts: 1105-D3-TRK1
• Parts: JQ2-201
