Ratchets

IR 107XPA-A40

IR 109XPA-A12

IR 109XPA-A123

IR 109XPA-MK

IR 1105-35

IR 1105-D2-A44

Ratchet Anvil Assembly for Ingersoll Rand 105 and 1105MAX Series Ratchet Wrench

IR 1207-80

IR 1207-D3-TRK1

Ratchet Head Kit for Ingersoll Rand 1207MAX-D3 3/8" Drive Air Ratchet

Product Application and Uses:

For use with 1207MAX-D3 air ratchet

• For Use With: 1207MAX-D3

IR 1207-D4-TRK1

Ratchet Head Kit Replacement Kit For Ingersoll Rand 1207MAX-D4 1/2" Drive Ratchet

Product Application/Uses:

IR 1207-GK

IR 1207-K127

IR 1207MAX-D3

3/8" Air Ratchet Wrench, 65 ft-lb Torque, 220 RPM

Description: The Ingersoll Rand MAX line — including the 1207MAX Series of air ratchet wrenches — delivers best-in-class performance with a number of premium features. You can choose between a ½" or ⅜" drive, but you'll never have to sacrifice comfort or power with this line.

Features And Benefits:

• Patent-pending forward/reverse collar provides unrestricted access to easily change the direction of the tool, which is critical in tight spaces where traditional tools get jammed.
• Nickel-plated housing provides enhanced corrosion resistance.
• 65 ft-lbs. of maximum torque ensures enough power for tough applications
• Innovative variable-speed power regulator and adjustable exhaust offers unprecedented control.

Product Application and Uses:

To remove and install threaded fasteners.

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Lever
• Air Consumption (cfm): 23
• Air Consumption (l/min): 651
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Average Air Consumption (cfm): 4
• Average Air Consumption (l/min): 113

• Color: Black
• Configuration/Handle Type: Straight
• Drive Size (in): 3/8
• Duty Rating: Industrial Duty

• Exhaust Location: Side - Adjustable

• Housing Material: Aluminum core with composite sleeve

• Max Bolt Capacity Sae Grade 5 Bolt Diameter (in): 7/16
• Max Free Speed (rpm): 220
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 65
• Max Torque (in-lb): 779
• Max Torque (nm): 88
• Min Hose Size (in): 3/8

• Number of Power Settings: Continuous
• Power Source: Air Powered
• Product Length (in): 10.85

• Product Width (in): 1.89
• Product Height (in): 1.91
• Product Weight (lb): 3.14
• Recommended Forward Torque Range (ft-lb): 10-60
• Recommended Forward Torque Range (in-lb): 124-717
• Recommended Forward Torque Range (nm): 14-81
• Retainer Type: Ball
• Reversible: Reversible

• Side to Center Distance (in): 0.95
• Side to Center Distance (mm): 24

• Sound Pressure/Power Db(A): 85.0 / 96.0
• Speed Setting: Variable Speed
• Standards/Certifications: All Gov Regulations And Fda Certified

• Vibration Level (m/s2): 3.2
• Warranty: 1-year

• Lubrication: 10G
• Lubrication: 10P
• Parts: 1207-D3-TRK1
• Parts: 131-303

IR 1211-D3-TRK1

Ratchet Head Kit for Ingersoll Rand 1211MAX-D3 3/8" Drive Ratchet Wrench

Product Application and Uses:

For use with Ingersoll Rand 1211MAX-D3 Series ratchet wrenches

• Includes: Pawl kit (pawl, retaining pin, lock-spring, lock pin), Reverse button kit (reverse button bushing, spring, pin), Spring kit (2-thrust washer springs, thrust washer, 2-balls, retaining ring), Drive Assembly

• Drive Size (in): 3/8

• For Use With: 1211MAX-D3

• Parts: 1211-37

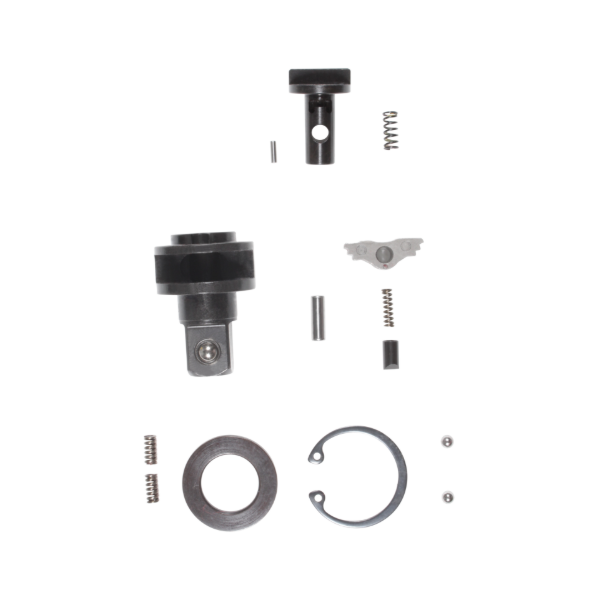

IR 1211-D4-TRK1

Ratchet Head Kit for Ingersoll Rand 1211MAX-D4 1/2" Drive Ratchet Wrench

Product Application and Uses:

For use with Ingersoll Rand 1211MAX-D4 Series ratchet wrenches

• Includes: Pawl kit (pawl, retaining pin, lock-spring, lock pin), Reverse button kit (reverse button bushing, spring, pin), Spring kit (2-thrust washer springs, thrust washer, 2-balls, retaining ring), Drive Assembly

• Drive Size (in): 1/2

• For Use With: 1211MAX-D4

IR 1211MAX-D3

3/8" High Speed Air Ratchet Wrench, 80 ft-lb Torque, 625 RPM

Description: The Ingersoll Rand MAX line- including the 1211MAX Series of air ratchet wrenches- delivers best-in-class performance with a number of premium features. You can choose between a 1/2" or 3/8" drive, but you'll never have to sacrifice comfort or power with this line.

Features And Benefits:

• Our MAX line of tools is known for having a high torque output you can rely on. The 1211MAX Series features 80 ft-lb of nut busting torque from a reactionless impact mechanism.
• High Speed 625 RPM Free Speed lets you get more done, faster.
• Nickel-plated housing provides enhanced corrosion resistance.
• True ratchet mechanism delivers powerful manual break loose ability and final tighten capabilities.

Product Application and Uses:

To remove and install threaded fasteners.

• Actuation/Throttle Type/Switch Type: Lever
• Air Consumption (cfm): 13.7
• Air Consumption (l/min): 388
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Average Air Consumption (cfm): 4
• Average Air Consumption (l/min): 113

• Color: Grey
• Configuration/Handle Type: Straight
• Drive Size (in): 3/8
• Duty Rating: Industrial Duty

• Exhaust Location: Front
• Free Speed Sound Pressure/Power Db(A): 91.1 / 102.1

• Handle Material: Composite
• Housing Material: Aluminum core with composite sleeve
• Impacting Sound Pressure/Power Db(A): 90.6

• Max Bolt Capacity Sae Grade 5 Bolt Diameter (in): 7/16
• Max Free Speed (rpm): 625
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 66
• Max Torque (in-lb): 788
• Max Torque (nm): 89
• Min Hose Size (in): 3/8

• Number of Power Settings: Continuous
• Nut-busting/Breakaway Torque (ft-lb): 80
• Nut-busting/Breakaway Torque (in-lb): 956
• Nut-busting/Breakaway Torque (nm): 108
• Power Source: Air Powered
• Product Length (in): 11.89

• Product Width (in): 1.38
• Product Height (in): 1.9
• Product Weight (lb): 3.03
• Recommended Forward Torque Range (ft-lb): 10-60
• Recommended Forward Torque Range (in-lb): 124-717
• Recommended Forward Torque Range (nm): 14-81
• Retainer Type: Ball
• Reversible: Reversible

• Side to Center Distance (in): 0.92
• Side to Center Distance (mm): 23

• Speed Setting: Variable Speed
• Standards/Certifications: All Gov Regulations And Fda Certified

• Vibration Level (m/s2): 12.7
• Warranty: 1-year

• Lubrication: 10G
• Lubrication: 10P
• Parts: 1211-303
• Parts: 1211-D3-TRK1

• Parts: 1211-THK1
• Parts: 1211-TK

NTT 12297

NTT 14002

NTT 15014

NTT 15015

NTT 15220

SCA 113 38 0015

SUM ST-55592A-9/16

SUM ST-RW710-21

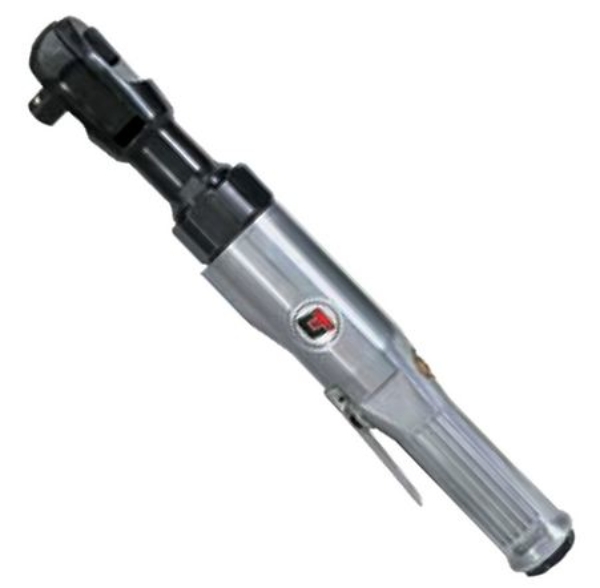

U UT2010

U UT8010-5
