Plural Component

GG 247101

FUSION AP GUN, AF2020, FT0424

Graco 247101 Flat Pattern Fusion Air-Purge Gun with 0.024 in (0.61 mm) Orifice Size, 0.020 in (0.51 mm) Impingement Port and 8-10 in (203-254 mm) Pattern Size

With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.

• Easy air-blast tip cleaning reduces build-up and tip clogging.
• Long-lasting side seals means less downtime for maintenance
• Quick-release fluid housing - lets you easily change the mix chambers without tools
• Ergonomic handle

• Model: Fusion AP
• Series: Flat

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35

• Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam

• Fluid Orifice Size (cm): 0.061
• Fluid Orifice Size (in): 0.024
• Fluid Orifice Size (mm): 0.61

• Gun Type: Air Purge Gun
• Gun Weight (g): 1130
• Gun Weight (kg): 1.1
• Gun Weight (lb): 2.5
• Gun Weight (oz): 40

• Impingement Port Size (in): 0.020
• Impingement Port Size (mm): 0.50

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate @ PSI (lb/min): 50

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature ( degree C): 93
• Maximum Fluid Temperature ( degree F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature ( degree C): 93
• Maximum Fluid Temperature ( degree F): 200

• Minimum Air Inlet Pressure (bar): 5.5
• Minimum Air Inlet Pressure (kPa): 550
• Minimum Air Inlet Pressure (MPa): 0.55
• Minimum Air Inlet Pressure (psi): 80

• Mix Chamber: 000 (.020)

• Overall Height (cm): 20.6
• Overall Height (in): 8.1
• Overall Height (mm): 206
• Overall Length (cm): 19.1
• Overall Length (in): 7.5
• Overall Length (mm): 191
• Overall Width (cm): 8.4
• Overall Width (in): 3.3
• Overall Width (mm): 84

• Pattern Size (in): 10 in @ 24 in from target

GG 247117

FUSION AP GUN, AF2929, FT0838

Graco 247117 Flat Pattern Fusion Air-Purge Gun with 0.038 in (0.96 mm) Orifice Size, 0.029 in (0.74 mm) Impingement Port and 16-18 in (406-457 mm) Pattern Size

With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.

• Easy air-blast tip cleaning reduces build-up and tip clogging.
• Long-lasting side seals means less downtime for maintenance
• Quick-release fluid housing - lets you easily change the mix chambers without tools
• Ergonomic handle

• Model: Fusion AP
• Series: Flat

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35

• Compatible Material: Polyurea, Non-Flammable Polyurethane Foam

• Fluid Orifice Size (cm): 0.097
• Fluid Orifice Size (in): 0.038
• Fluid Orifice Size (mm): 0.97

• Gun Type: Air Purge Gun
• Gun Weight (g): 1130
• Gun Weight (kg): 1.1
• Gun Weight (lb): 2.5
• Gun Weight (oz): 40

• Impingement Port Size (in): 0.029
• Impingement Port Size (mm): 0.70
• Includes: AF2929 Mix Chamber, FT0838 Flat Tip

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature ( degree C): 93
• Maximum Fluid Temperature ( degree F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature ( degree C): 93
• Maximum Fluid Temperature ( degree F): 200

• Minimum Air Inlet Pressure (bar): 5.5
• Minimum Air Inlet Pressure (kPa): 550
• Minimum Air Inlet Pressure (MPa): 0.55
• Minimum Air Inlet Pressure (psi): 80

• Mix Chamber: 00 (.029)

• Overall Height (cm): 20.6
• Overall Height (in): 8.1
• Overall Height (mm): 206
• Overall Length (cm): 19.1
• Overall Length (in): 7.5
• Overall Length (mm): 191
• Overall Width (cm): 8.4
• Overall Width (in): 3.3
• Overall Width (mm): 84

• Pattern Size (in): 16-18 in @ 24 in from target

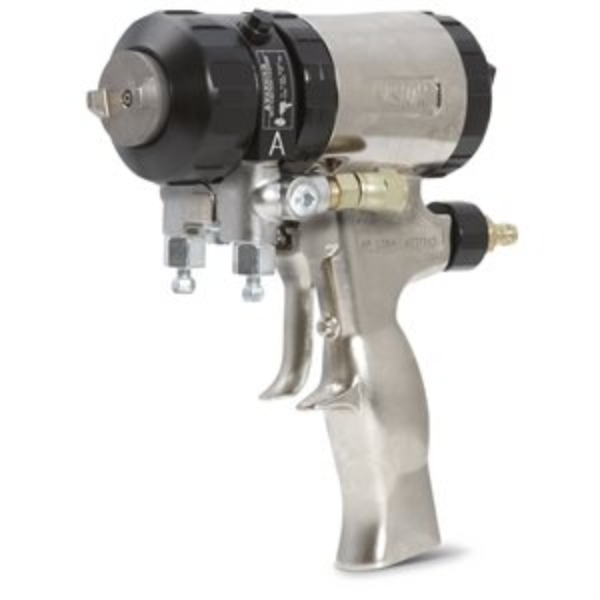

GG 248378

FUSION AP GUN, AR5252, AUTO

Graco 248378 Round Fusion Air-Purge Gun with 02 Mix Chamber

With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.

• Easy air-blast tip cleaning reduces build-up and tip clogging.
• Long-lasting side seals means less downtime for maintenance
• Quick-release fluid housing - lets you easily change the mix chambers without tools
• Ergonomic handle

• Model: Fusion AP
• Series: Auto

• Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam

• Fluid Orifice Size (cm): 0.132
• Fluid Orifice Size (in): 0.052
• Fluid Orifice Size (mm): 1.32

• Gun Type: Air Purge Gun

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate @ PSI (lb/min): 50

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature ( degree C): 93
• Maximum Fluid Temperature ( degree F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature ( degree C): 93
• Maximum Fluid Temperature ( degree F): 200

• Minimum Air Inlet Pressure (bar): 5.5
• Minimum Air Inlet Pressure (kPa): 550
• Minimum Air Inlet Pressure (MPa): 0.55
• Minimum Air Inlet Pressure (psi): 80

• Mix Chamber: 02 (.052)

• Overall Height (cm): 9.5
• Overall Height (in): 3.75
• Overall Height (mm): 95
• Overall Length (cm): 19.3
• Overall Length (in): 7.6
• Overall Length (mm): 193
• Overall Width (cm): 7.9
• Overall Width (in): 3.1
• Overall Width (mm): 79

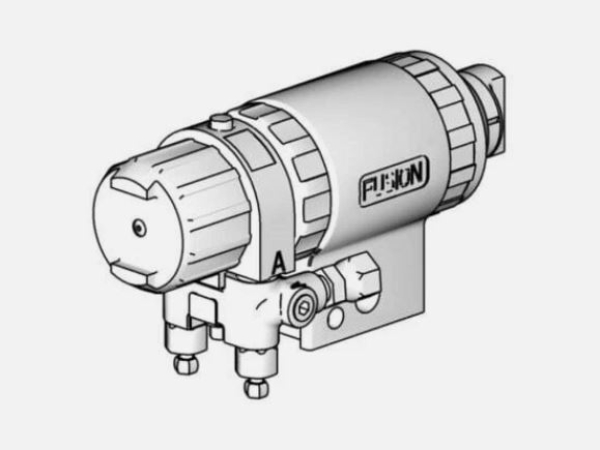

GG 248383

FUSION MP GUN, XR3535 RTM040, AUTO

Graco 248383 Round Pattern Automatic Fusion Mechanical Purge Direct Impingement Gun with 0.040 in (1.0 mm) Ceramic Tip and 0.035 in (0.9 mm) Impingement Port

Whether you're spraying polyurea coatings or spray foam insulation, the Fusion MP Gun handles it all. Its rugged design provides excellent mix and material properties - giving you great results at the jobsite.

• Easy mechanical cleaning - mix modules and tips are cleaned with a drill bit
• Long-lasting PolyCarballoy mix module
• Advanced mix module and tip provides superior mixing capabilities

• Model: Fusion MP
• Series: Auto

• Compatible Material: Polyurethane, Roof Coating, Polyurea, Spray Polyurethane Foam, No-Heat Foam

• Fluid Orifice Size (cm): 0.102
• Fluid Orifice Size (in): 0.040
• Fluid Orifice Size (mm): 1.02

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate @ PSI (lb/min): 50

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature ( degree C): 93
• Maximum Fluid Temperature ( degree F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature ( degree C): 93
• Maximum Fluid Temperature ( degree F): 200

• Minimum Air Inlet Pressure (bar): 5.5
• Minimum Air Inlet Pressure (kPa): 550
• Minimum Air Inlet Pressure (MPa): 0.55
• Minimum Air Inlet Pressure (psi): 80

• Overall Height (cm): 9.5
• Overall Height (in): 3.75
• Overall Height (mm): 95
• Overall Length (cm): 19.3
• Overall Length (in): 7.6
• Overall Length (mm): 193
• Overall Width (cm): 7.9
• Overall Width (in): 3.1
• Overall Width (mm): 79

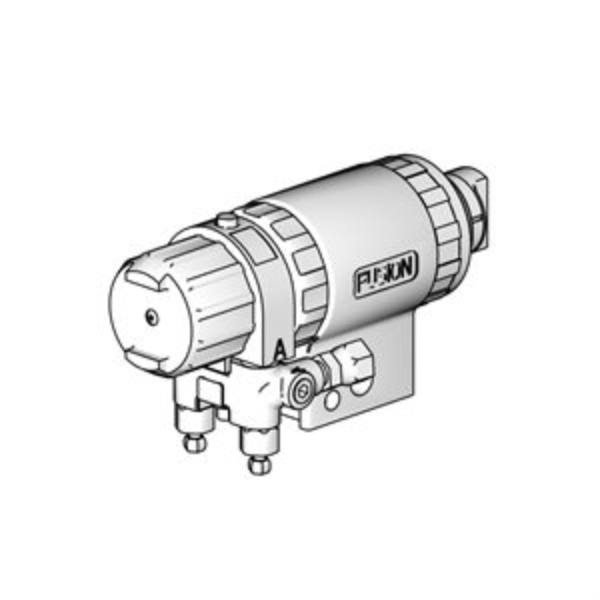

GG 248385

FUSION MP GUN, XF1818 FTM424, AUTO

Graco 248385 Flat Pattern Automatic Fusion Mechanical Purge Direct Impingement Gun with 0.024 in (0.61 mm) Ceramic Tip and 0.018 in (0.46 mm) Impingement Port

Whether youre spraying polyurea coatings or spray foam insulation, the Fusion MP Gun handles it all. Its rugged design provides excellent mix and material properties - giving you great results at the jobsite.

• Easy mechanical cleaning - mix modules and tips are cleaned with a drill bit
• Long-lasting PolyCarballoy mix module
• Advanced mix module and tip provides superior mixing capabilities

• Model: Fusion MP
• Series: Auto

• Air Inlet Size (cm): 0.3175
• Air Inlet Size (in): 1/8-27
• Air Inlet Size (mm): 3.175
• Air Inlet Thread Type: NPT

• Compatible Material: Polyurethane, Roof Coating, Polyurea, Spray Polyurethane Foam, No-Heat Foam
• Component A Inlet Size (cm): 1.27

• Component A Inlet Size (in): 1/2-20
• Component A Inlet Size (mm): 12.7
• Component A Inlet Thread Type: UNF
• Component B Inlet Size (cm): 1.42875
• Component B Inlet Size (in): 9/16-18
• Component B Inlet Size (mm): 14.2875
• Component B Inlet Thread Type: UNF
• Component Type: Plural-Component

• Fluid Orifice Size (cm): 0.061
• Fluid Orifice Size (in): 0.024
• Fluid Orifice Size (mm): 0.61

• Gun Type: Impingement Mix Air Purge Spray Gun
• Gun Weight (g): 1247
• Gun Weight (kg): 1.24
• Gun Weight (lb): 2.75
• Gun Weight (oz): 44

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate @ PSI (lb/min): 50

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature ( degree C): 93
• Maximum Fluid Temperature ( degree F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature ( degree C): 93
• Maximum Fluid Temperature ( degree F): 200

• Maximum Fluid Working Pressure (bar): 242
• Maximum Fluid Working Pressure (MPa): 24.2
• Maximum Fluid Working Pressure (psi): 3500

• Minimum Air Inlet Pressure (bar): 5.5
• Minimum Air Inlet Pressure (kPa): 550
• Minimum Air Inlet Pressure (MPa): 0.55
• Minimum Air Inlet Pressure (psi): 80

• Overall Height (cm): 9.5
• Overall Height (in): 3.75
• Overall Height (mm): 95
• Overall Length (cm): 19.3
• Overall Length (in): 7.6
• Overall Length (mm): 193
• Overall Width (cm): 7.9
• Overall Width (in): 3.1
• Overall Width (mm): 79

• Pattern Size (in): 8
• Pattern Size (mm): 203.2

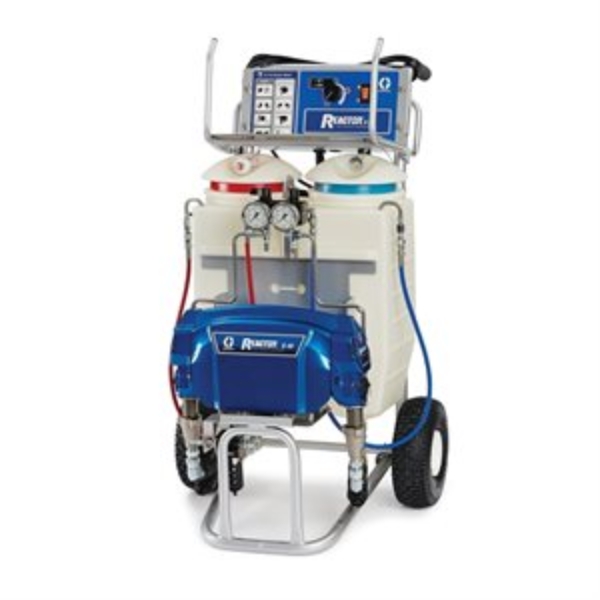

GG AP9570

REACTOR E-10 SYSTEM, CMPLT, 120V, 2X15A, HTD

Graco AP9570 Reactor E-10 Proportioner Package, Fusion AP Gun, 120 V, 1PH

Gracos Reactor E-10 is a small, ready-to-use system that helps you get in and get smaller jobs done fast without sacrificing performance. The Reactor E-10 sprayers are ideal for plural-component spray, joint-fill jobs and touch-ups. With smart controls that are easy to setup and simple to operate, the E-10 is a natural complement to any proportioning equipment line-up.

• Small size


  Ideal for on-site portability and hard-to-reach areas

• Cost Savings


  One-person operation saves time and money

• Extent your spray business


  Use as an add-on to your existing spray business

• Material savings


  Saves 30% on material costs compared to disposable foam systems

• Electric power


  Low draw and plugs into standard outlets

• Single Knob Operation


  Intuitive start, stop and digital temperature display with single knob operation

• Easily balancing


  Pressure balance valves give you quick and easy balancing of system pressures

  Balanced proportioning eliminates pressure fluctuations to give you a consistent spray pattern

• Easy-to-service fluid section


  Reduces maintenance and increases productivity

• Electric motor


  Improves performance and reduces operating costs

• Spray on-ratio


  Self-contained translucent material tanks show you that you are spraying on-ratio

• Pre-heat material


  Heaters and hose give you up to 2000 watts to pre-heat circulating material

• Model: Reactor
• Series: E-10

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: Quick-Disconnect Pin

• Air Outlet Size (cm): 0.635
• Air Outlet Size (in): 1/4
• Air Outlet Size (mm): 6.35
• Air Outlet Thread Type: NPSM

• Amperage (A): 15
• Application: Spray Foam
• Applicator Type: Manual

• Compatible Material: Plural Components

• Component Type: Two Component

• Flush Type: Solvent

• Frequency (Hz): 50/60

• Gun Type: Fusion AP

• Hose Length (ft): 35
• Hose Length (m): 10.7

• Hose Package: Includes Hose
• Includes: Proportioner, Fusion AP Gun, Unheated Hose

• Material Application: Polyurethane Foam

• Maximum Flow Rate (kg/min): 5.44
• Maximum Flow Rate (lb/min): 12

• Maximum Fluid Temperature ( degree C): 71
• Maximum Fluid Temperature ( degree F): 160

• Maximum Fluid Temperature ( degree C): 71
• Maximum Fluid Temperature ( degree F): 160

• Maximum Mix Ratio: 1:1

• Maximum Working Pressure (bar): 140
• Maximum Working Pressure (kPa): 1400
• Maximum Working Pressure (psi): 2000

• Overall Depth (cm): 76.2
• Overall Depth (in): 30
• Overall Depth (mm): 762

• Overall Height (cm): 111.8
• Overall Height (in): 44
• Overall Height (mm): 1118
• Overall Wi

GG ES2572

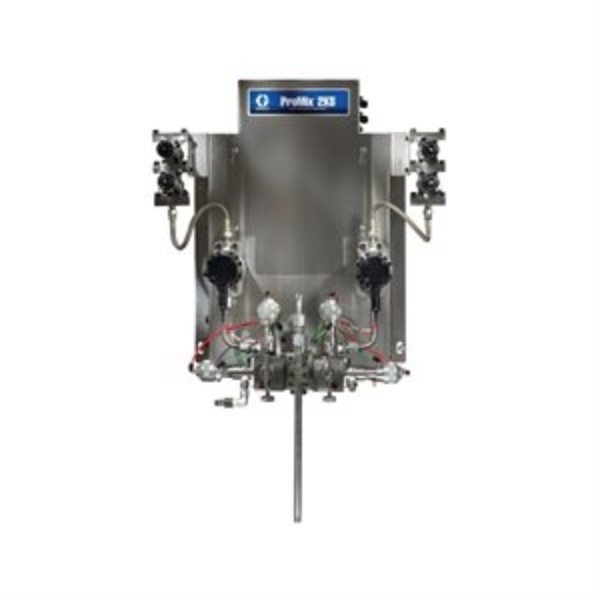

GG MD1102

PROMIX 2KS PROPORTIONER MANUAL

Graco MD1102 ProMix 2KS Manual Wall Panel, EasyKey with LCD display, G3000 A & B Meter, 2 colors LP, 1 catalyst, and 2 Air Flow Switches

Easy to use electronic proportioner for a broad range of Solvent borne, waterborne, and acid catalyzed materials. The ProMix 2KS offers the highest degree of ratio assurance for superior quality on both manual and automatic applications. Efficient tracking and reporting along with effective color changes reduces wasted material.

• Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth.
• Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
• Intrinsically safe fluid panels easily integrate into hazardous areas
• Advanced web interface provides consolidated system management and reporting

• Model: ProMix
• Series: 2KS

• Air Inlet Size (cm): 0.9525
• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Amperage (A): 2
• Applicator Type: Manual

• Component Type: Two Component

• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Size (mm): 6.35
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 0.635
• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Flush Type: Air/Solvent

• Frequency (Hz): 50/60

• Gun Activation: Manual

• Material Type: Two Component

• Maximum Flow Rate (cc/min): 3790

• Maximum Flow Rate (GPM): 1
• Maximum Flow Rate (L/min): 3.79

• Maximum Fluid Viscosity (cP): 3000

• Maximum Fluid Viscosity (cP): 3000

• Maximum Mix Ratio: 50:1
• Maximum Number of Colors: Up to 3

• Maximum Working Pressure (bar): 275.8
• Maximum Working Pressure (kPa): 27580
• Maximum Working Pressure (MPa): 27.6
• Maximum Working Pressure (psi): 4000
• Measuring Type: Meter
• Meter Type: G3000

• Minimum Flow Rate (cc/min): 75
• Minimum Flow Rate (GPM): 0.02
• Minimum Flow Rate (L/min): 0.075

• Minimum Fluid Viscosity (cP): 20
• Minimum Mix Ratio: 0.1:1

• Mix Accuracy (%): 1

• Number of Catalysts: 1
• Number of Color Valves: 2 Valves
• Number of Colors: 2

• Number of Resin Colors: 2

• Power Source: Electric

• Proportioner Type: Manual
• Proportioning Type: Manual Electronic

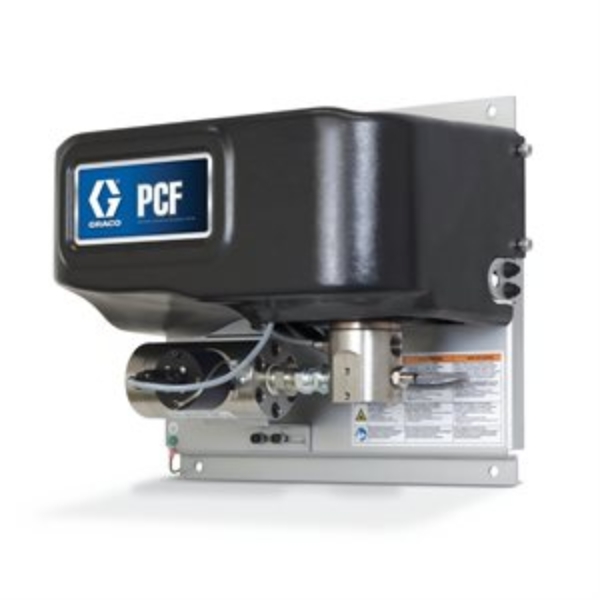

GG PF2340

PCF SYSTEM, 016, CART, HR METER, PN

Graco PF2340 16 Styles 100-240 VAC Precision Flow System with Cartridge Regulator, High Resolution Meter and PROFINET User Interface

Reduces material waste with superior flow control. Used in conjunction with a material supply system and robotics platform, the Graco PCF Metering System assures a precise, continuous flow of material. Closed-loop technology provides real-time adjustments for changes in material temperatures, viscosities, dispense rates or robot speeds - providing your operation with a highly precise, continuous dispense.

• The next generation of precision metering

  Closed-loop real-timecontrol ensures a precise, continuous dispense - improves part quality and reduces material waste

  Intuitive user interface simplifies setup, reduces training time

  Integrated USB interface for easy data downloads - allows for further analysis of process data

  Multiple gun capabilities for additional productivity - lets you program up to four guns

  Compact modular design - easy to install, integrate and maintain

  Low cost of ownership - fewer wear parts compared to shot meters




  • Model: PCF
  • Air Inlet Size (in): 1/4
  • Air Inlet Thread Gender: Female
  • Air Inlet Thread Type: NPT
  • Air Outlet Size (in): 5/32
  • Ambient/Warm Melt/Hot Melt: Ambient
  • Amperage (A): 1.4
  • Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Spray, Metering, Regulating
  • Applicator Type: Automatic
  • Compatible Material: Sealants, Adhesives
  • Component Type: Single Component
  • Flow Control Type: Regulation, Control
  • Fluid Inlet Size (in): 3/4
  • Fluid Inlet Thread Gender: Female
  • Fluid Inlet Thread Type: NPT
  • Fluid Outlet Size (cm): 17256.6929133858
  • Fluid Outlet Size (in): 1/2
  • Fluid Outlet Size (mm): 1725.6692913386
  • Fluid Outlet Thread Gender: Female
  • Fluid Outlet Thread Type: NPT
  • Frequency (Hz): 50/60
  • Gateway: PROFINET User Interface
  • Gun Activation: Automatic
  • Includes: Regulator, Flow Meter, FCM Key Token
  • Maximum Air Inlet Pressure (bar): 8.27
  • Maximum Air Inlet Pressure (kPa): 827
  • Maximum Air Inlet Pressure (MPa): 0.83
  • Maximum Air Inlet Pressure (psi): 120
  • Maximum Ambient Temperature ( degree C): 49
  • Maximum Ambient Temperature ( degree F): 120
  • Maximum Flow Rate (cc/min): 7500
  • Maximum Flow Rate (GPM): 1.98
  • Maximum Flow Rate (L/min): 7.5
  • Maximum Fluid Temperature ( degree C): 49
  • Maximum Fluid Temperature ( degree F): 120
  • Maximum Fluid Viscosity (cP): 1000000
  • Maximum Fluid Temperature ( degree C): 49
  • Maximum Fluid Temperature ( degree F): 120
  • Maximum Fluid Viscosity (cP): 1000000
  • Maximum Fluid Working Pressure (bar): 241
  • Maximum Fluid Working Pressure (MPa): 24
  • Maximum Fluid Working Pressure (psi): 3500
  • Maximum Operating Temperature ( degree C): 49
  • Maximum Operating Temperature ( degree F): 120
  • Maximum Working Pressure (bar): 414
  • Maximum Working Pressure (kPa): 41400

GG U82161

GG XM5N00

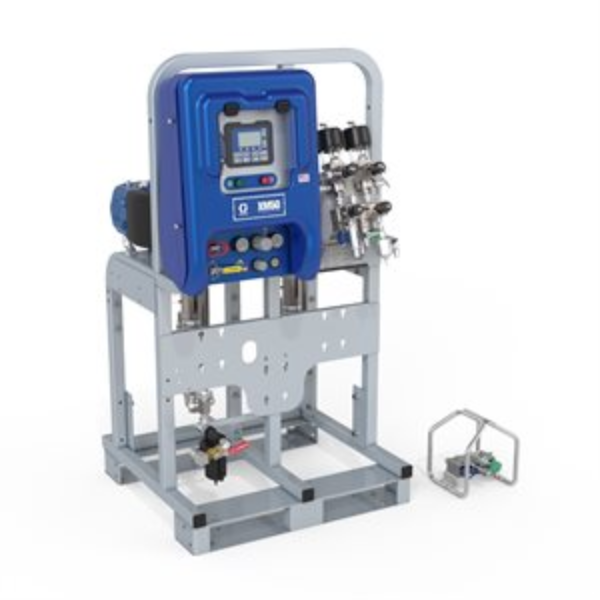

XM SPRAYER SYSTEM, XM50, R, IS

Graco XM5N00 XM50 System, Hazardous Location, 240V, Alternator Power, No Heaters, No Junction Box, No Feed System, Remote Manifold

Engineered to handle the toughest protective coatings, the Graco XM plural-component sprayer provides precise ratio control, allows users to download historical spraying data, and handles a wide range of two-component materials.

• Variable ratio system - handles material ratios from 1:1 to 10:1
• Dosing technology assures accurate, on-ratio mixing for better yield and less waste
• Advanced, intuitive user controls provide real-time display and adjustment of ratio
• Supports multiple spray guns for added productivity

• Model: XM
• Series: 50

• Air Inlet Size (in): 3/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Fluid Inlet Size (in): 1-1/4
• Fluid Inlet Thread Gender: Male
• Fluid Inlet Thread Type: NPT

• Maximum Air Consumption (m3/min): 1.96 m3/min per lpm at 100psi
• Maximum Air Consumption (SCFM): 70 scfm/gpm at 100psi
• Maximum Air Inlet Pressure (bar): 10.3
• Maximum Air Inlet Pressure (psi): 150

• Maximum Flow Rate (GPM): 3
• Maximum Flow Rate (L/min): 11.4

• Maximum Fluid Temperature ( degree C): 71
• Maximum Fluid Temperature ( degree F): 160
• Maximum Fluid Viscosity (cP): 20000

• Maximum Fluid Temperature ( degree C): 71
• Maximum Fluid Temperature ( degree F): 160
• Maximum Fluid Viscosity (cP): 20000

• Maximum Mix Ratio: 10:1

• Maximum Operating Temperature ( degree C): 54
• Maximum Operating Temperature ( degree F): 130

• Maximum Working Pressure (bar): 358
• Maximum Working Pressure (MPa): 35.8
• Maximum Working Pressure (psi): 5200

• Minimum Flow Rate (GPM): 0.25
• Minimum Flow Rate (L/min): 0.95

• Minimum Mix Ratio: 1:1

• Mix Accuracy (%): 5%

• Power Source: Alternator

• Primary Fluid Heater Included: No

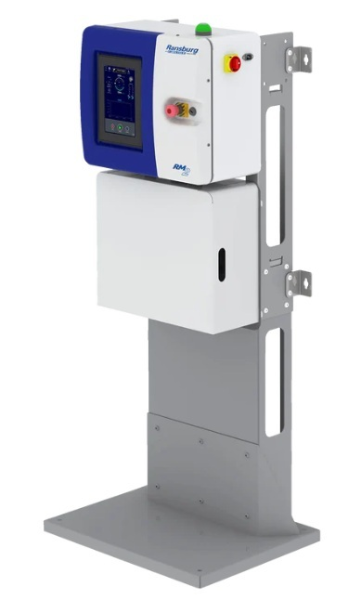

BB RM2

BB RM2-21153

BB RM2-21157

GG 01/0025/87

GG 01/0671/97

GG 01/0675/98

GG 01/0677/98

GG 01/0677/99N

GG 01/0678/98

GG 01/0678-B/87

GG 01/0681/99N

GG 01/0926/98

GG 01/0959/97

GG 01/1005/99
