GG AP9570
REACTOR E-10 SYSTEM, CMPLT, 120V, 2X15A, HTD

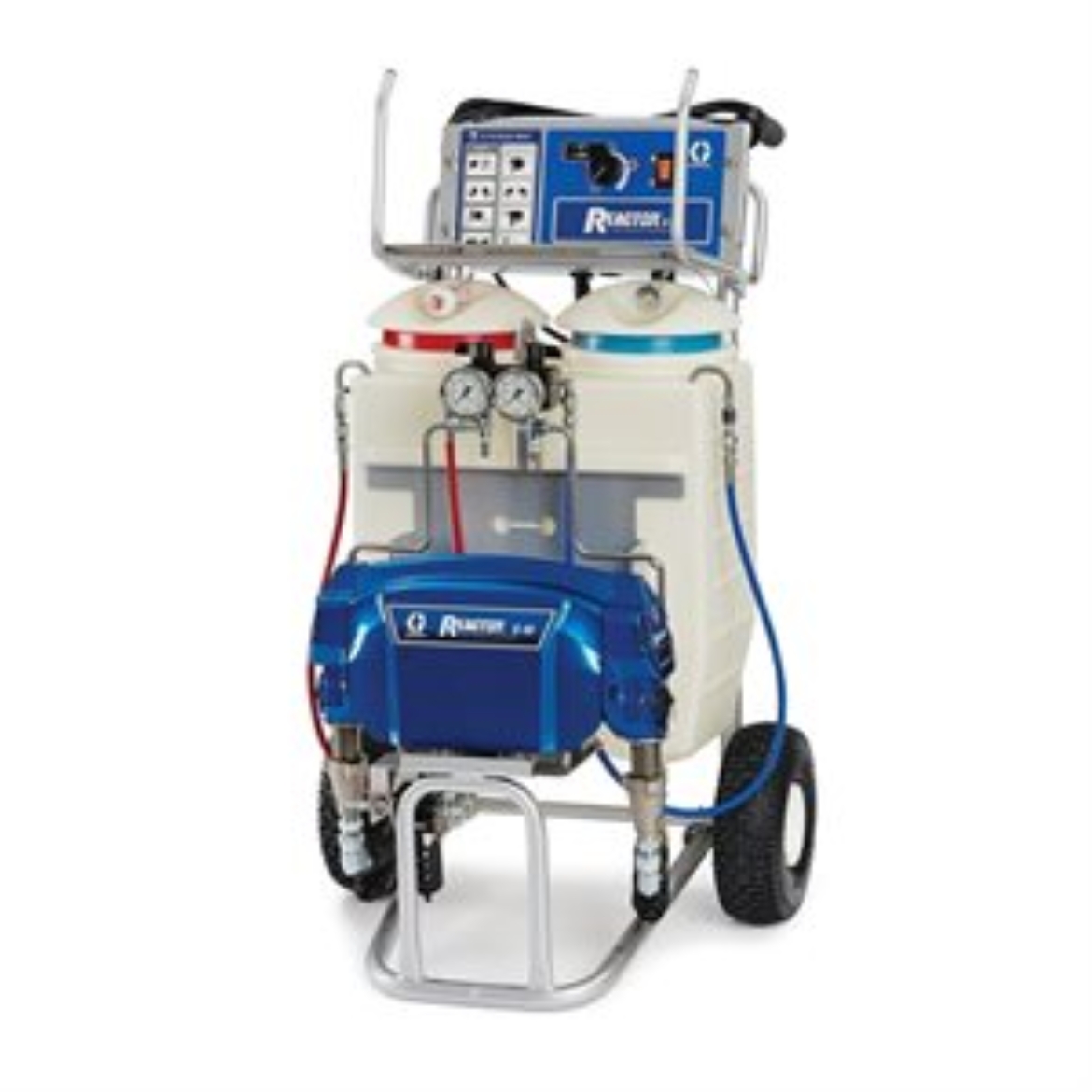

Graco AP9570 Reactor E-10 Proportioner Package, Fusion AP Gun, 120 V, 1PH
Gracos Reactor E-10 is a small, ready-to-use system that helps you get in and get smaller jobs done fast without sacrificing performance. The Reactor E-10 sprayers are ideal for plural-component spray, joint-fill jobs and touch-ups. With smart controls that are easy to setup and simple to operate, the E-10 is a natural complement to any proportioning equipment line-up.
Application: For smaller polyurethane foam or polyurea projects or touch-ups.
- Small size
Ideal for on-site portability and hard-to-reach areas
- Cost Savings
One-person operation saves time and money
- Extent your spray business
Use as an add-on to your existing spray business
- Material savings
Saves 30% on material costs compared to disposable foam systems
- Electric power
Low draw and plugs into standard outlets
- Single Knob Operation
Intuitive start, stop and digital temperature display with single knob operation
- Easily balancing
Pressure balance valves give you quick and easy balancing of system pressures
Balanced proportioning eliminates pressure fluctuations to give you a consistent spray pattern
- Easy-to-service fluid section
Reduces maintenance and increases productivity
- Electric motor
Improves performance and reduces operating costs
- Spray on-ratio
Self-contained translucent material tanks show you that you are spraying on-ratio
- Pre-heat material
Heaters and hose give you up to 2000 watts to pre-heat circulating material
- Model: Reactor
- Series: E-10
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: Quick-Disconnect Pin
- Air Outlet Size (cm): 0.635
- Air Outlet Size (in): 1/4
- Air Outlet Size (mm): 6.35
- Air Outlet Thread Type: NPSM
- Amperage (A): 15
- Application: Spray Foam
- Applicator Type: Manual
- Compatible Material: Plural Components
- Component Type: Two Component
- Hose Length (ft): 35
- Hose Length (m): 10.7
- Hose Package: Includes Hose
- Includes: Proportioner, Fusion AP Gun, Unheated Hose
- Material Application: Polyurethane Foam
- Maximum Flow Rate (kg/min): 5.44
- Maximum Flow Rate (lb/min): 12
- Maximum Fluid Temperature ( degree C): 71
- Maximum Fluid Temperature ( degree F): 160
- Maximum Fluid Temperature ( degree C): 71
- Maximum Fluid Temperature ( degree F): 160
- Maximum Working Pressure (bar): 140
- Maximum Working Pressure (kPa): 1400
- Maximum Working Pressure (psi): 2000
- Overall Depth (cm): 76.2
- Overall Depth (in): 30
- Overall Depth (mm): 762
- Overall Height (cm): 111.8
- Overall Height (in): 44
- Overall Height (mm): 1118
- Overall Wi
