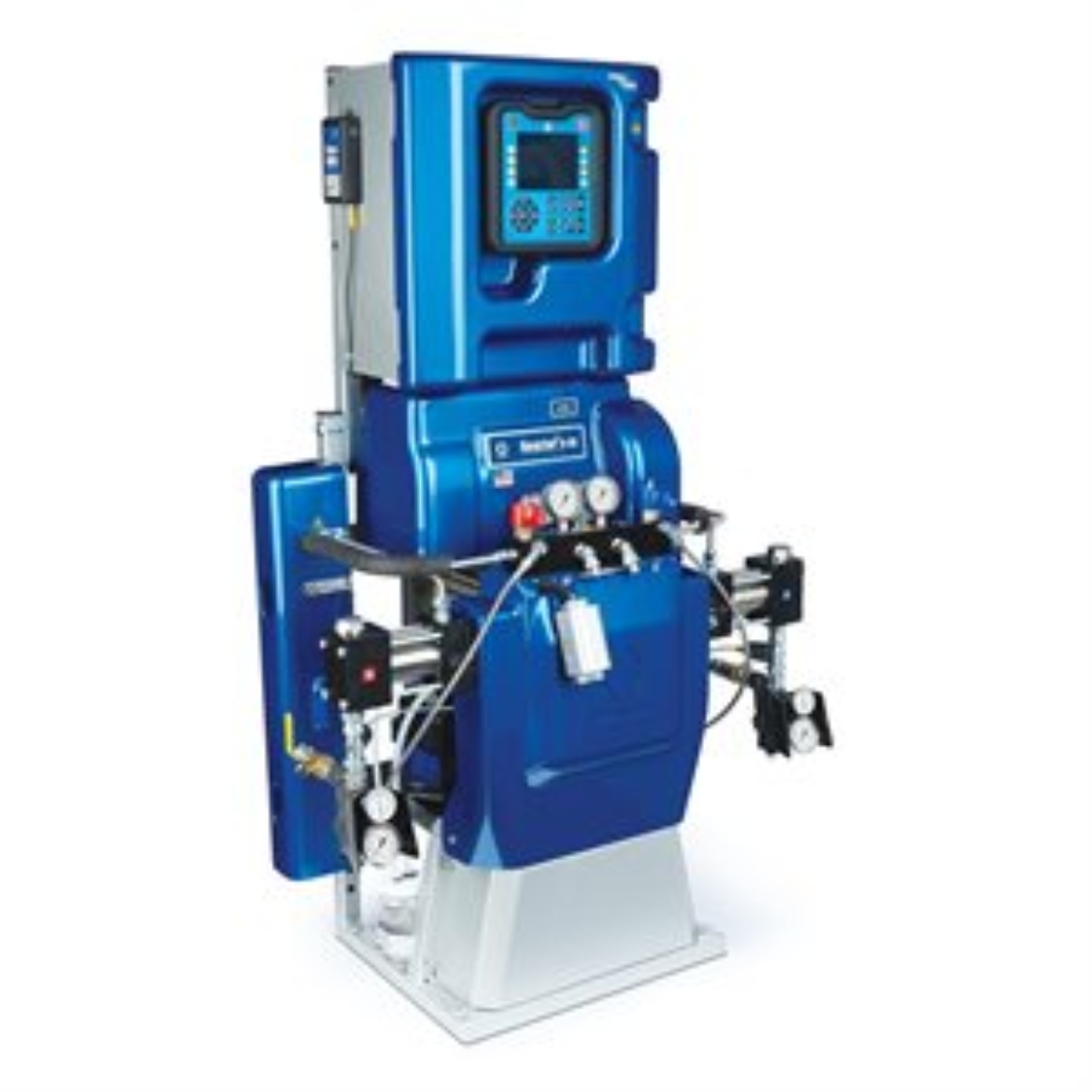

REACTOR 2 H-XP3 PROPORTIONER, 230V, 20KW

GG 17H074

REACTOR 2 H-XP3 PROPORTIONER, 230V, 20KW

Graco 17H074 Reactor 2 H-XP3 Proportioner, 20 kW, 230 V

Graco&prime, s hydraulic Reactor H-XP3 brings increased yield and high output spraying. Ideal for in-plant OEM&prime, s or applicators that spray at high volumes.

• What a hydraulic system can do for you:

  Dependability - robust, durable, longest life spray system

  Reduce downtime - allows for longer time in between required maintenance

  Increase daily productivity - capable of extremely high duty cycle

• Reactor Connect : Communication and Control at your Fingertips

  Control your Reactor using your phone

  Improve productivity and yield by optimizing spray parameters and never having to go back to your rig

  Monitor your rigs/crews using the multi-system dashboard

  Troubleshoot an issue quickly using real-time data

  Provide documentation to a customer

  Use reports to better manage your business

  Saves all your spray data to the cloud

  Utilize account management to better manage your equipment and crews

  Reactor Connect comes standard with all Reactor 2 models

• Advanced control technology

  Tracks, monitors and saves project data

  Data can be saved and downloaded onto a USB drive

  Stores up to 24 chemical recipes





  Drum level indicators

  • Sacrificial surge protector

    Protects your electronics against excessive power spikes

  • Three-year warranty

    Covers user display and control modules

    One of the best in the industry

  • Elite Models

    Graco InSite included

    Inlet pressure and temperature sensors (interfaces with Graco InSite)

    Xtreme-Wrap Scuff Guard on heated hoses when ordered as a package




  • Model: Reactor 2
  • Series: H-XP3
  • Product Series: Non-Elite
  • Amperage (A): 95 @ 200 to 240 V ac (3-Phase Delta)
  • Application: Protective Coatings
  • Applicator Type: Manual
  • Compatible Material: Plural Components
  • Component Type: Two Component
  • Flush Type: Solvent
  • Frequency (Hz): 50/60
  • Gun Type: No Gun
  • Hose Package: No Hose
  • Material Application: Polyurea
  • Maximum Flow Rate (cc/min): 10600
  • Maximum Flow Rate (GPM): 2.8
  • Maximum Flow Rate (L/min): 10.6
  • Maximum Fluid Temperature (°C): 88
  • Maximum Fluid Temperature (°F): 190
  • Maximum Fluid Temperature (°C): 88
  • Maximum Fluid Temperature (°F): 190
  • Maximum Hose Length (ft): 410
  • Maximum Hose Length (m): 125
  • Maximum Mix Ratio: 1:1
  • Maximum Working Pressure (bar): 241
  • Maximum Working Pressure (kPa): 24100
  • Maximum Working Pressure (MPa): 24.1
  • M
