GG 248378
FUSION AP GUN, AR5252, AUTO

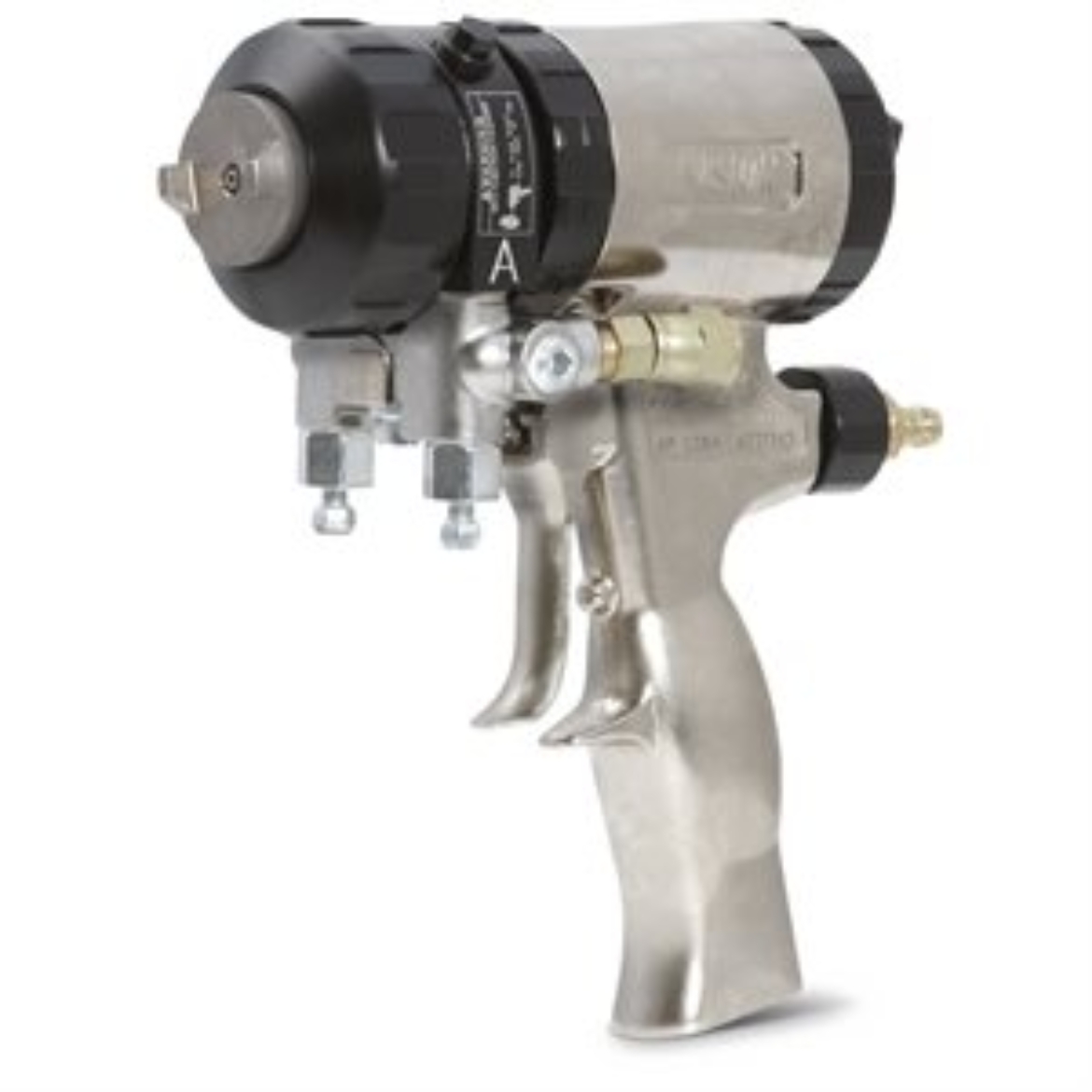

Graco 248378 Round Fusion Air-Purge Gun with 02 Mix Chamber
With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.
Application: For high output spray polyurethane foam and polyurea applications.
- Easy air-blast tip cleaning reduces build-up and tip clogging.
- Long-lasting side seals means less downtime for maintenance
- Quick-release fluid housing - lets you easily change the mix chambers without tools
- Ergonomic handle
- Model: Fusion AP
- Series: Auto
- Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam
- Fluid Orifice Size (cm): 0.132
- Fluid Orifice Size (in): 0.052
- Fluid Orifice Size (mm): 1.32
- Maximum Air Inlet Pressure (bar): 9
- Maximum Air Inlet Pressure (kPa): 900
- Maximum Air Inlet Pressure (MPa): 0.9
- Maximum Air Inlet Pressure (psi): 130
- Maximum Air Pressure (bar): 9
- Maximum Air Pressure (kPa): 900
- Maximum Air Pressure (MPa): 0.9
- Maximum Air Pressure (psi): 130
- Maximum Flow Rate @ PSI (lb/min): 50
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature ( degree C): 93
- Maximum Fluid Temperature ( degree F): 200
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature ( degree C): 93
- Maximum Fluid Temperature ( degree F): 200
- Minimum Air Inlet Pressure (bar): 5.5
- Minimum Air Inlet Pressure (kPa): 550
- Minimum Air Inlet Pressure (MPa): 0.55
- Minimum Air Inlet Pressure (psi): 80
- Overall Height (cm): 9.5
- Overall Height (in): 3.75
- Overall Height (mm): 95
- Overall Length (cm): 19.3
- Overall Length (in): 7.6
- Overall Length (mm): 193
- Overall Width (cm): 7.9
- Overall Width (in): 3.1
- Overall Width (mm): 79
