GG 248385

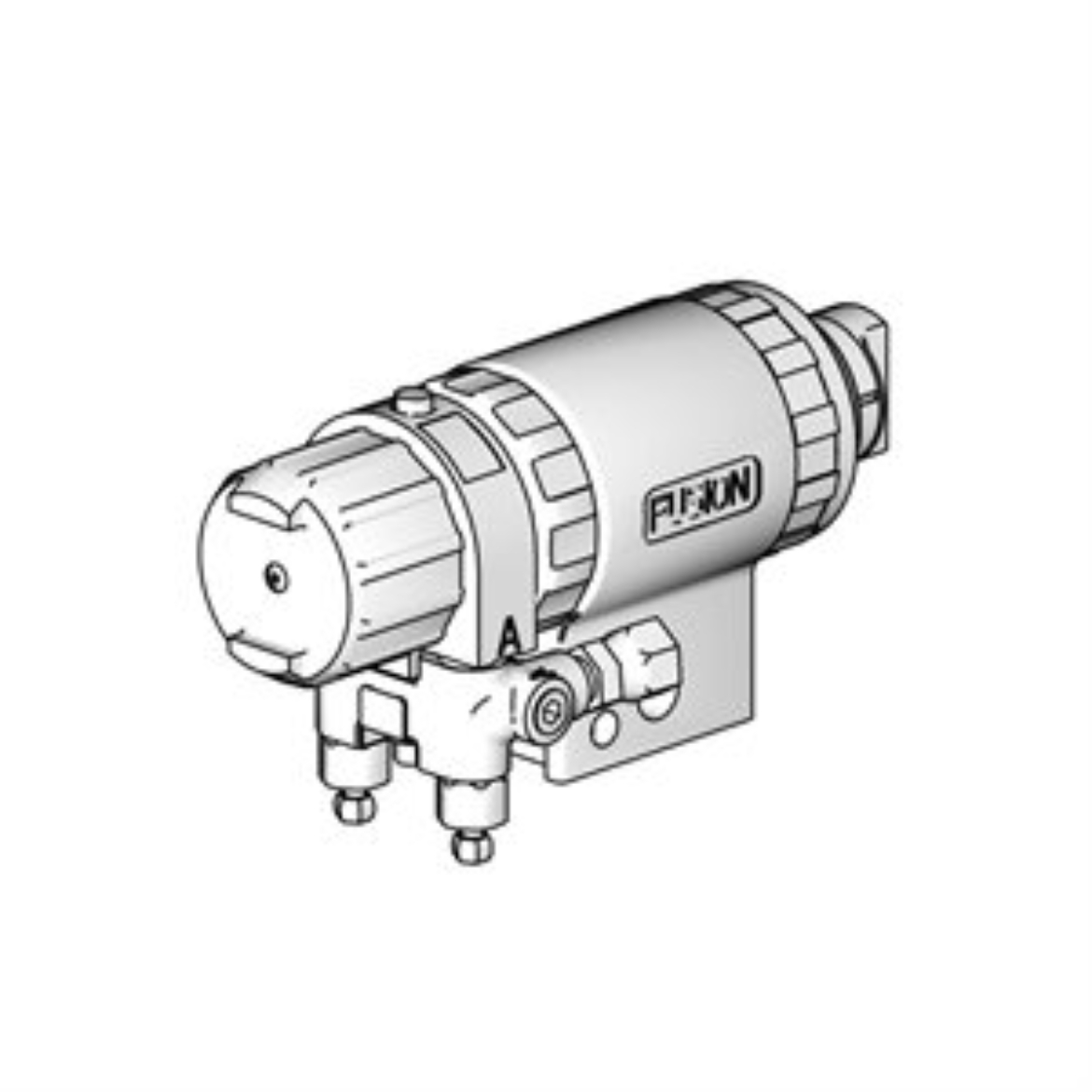

FUSION MP GUN, XF1818 FTM424, AUTO
Graco 248385 Flat Pattern Automatic Fusion Mechanical Purge Direct Impingement Gun with 0.024 in (0.61 mm) Ceramic Tip and 0.018 in (0.46 mm) Impingement Port
Whether youre spraying polyurea coatings or spray foam insulation, the Fusion MP Gun handles it all. Its rugged design provides excellent mix and material properties - giving you great results at the jobsite.
Application: For high output spray polyurethane foam and polyurea applications.
- Easy mechanical cleaning - mix modules and tips are cleaned with a drill bit
- Long-lasting PolyCarballoy mix module
- Advanced mix module and tip provides superior mixing capabilities
- Model: Fusion MP
- Series: Auto
- Air Inlet Size (cm): 0.3175
- Air Inlet Size (in): 1/8-27
- Air Inlet Size (mm): 3.175
- Air Inlet Thread Type: NPT
- Compatible Material: Polyurethane, Roof Coating, Polyurea, Spray Polyurethane Foam, No-Heat Foam
- Component A Inlet Size (cm): 1.27
- Component A Inlet Size (in): 1/2-20
- Component A Inlet Size (mm): 12.7
- Component A Inlet Thread Type: UNF
- Component B Inlet Size (cm): 1.42875
- Component B Inlet Size (in): 9/16-18
- Component B Inlet Size (mm): 14.2875
- Component B Inlet Thread Type: UNF
- Component Type: Plural-Component
- Fluid Orifice Size (cm): 0.061
- Fluid Orifice Size (in): 0.024
- Fluid Orifice Size (mm): 0.61
- Gun Type: Impingement Mix Air Purge Spray Gun
- Gun Weight (g): 1247
- Gun Weight (kg): 1.24
- Gun Weight (lb): 2.75
- Gun Weight (oz): 44
- Maximum Air Inlet Pressure (bar): 9
- Maximum Air Inlet Pressure (kPa): 900
- Maximum Air Inlet Pressure (MPa): 0.9
- Maximum Air Inlet Pressure (psi): 130
- Maximum Air Pressure (bar): 9
- Maximum Air Pressure (kPa): 900
- Maximum Air Pressure (MPa): 0.9
- Maximum Air Pressure (psi): 130
- Maximum Flow Rate @ PSI (lb/min): 50
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature ( degree C): 93
- Maximum Fluid Temperature ( degree F): 200
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature ( degree C): 93
- Maximum Fluid Temperature ( degree F): 200
- Maximum Fluid Working Pressure (bar): 242
- Maximum Fluid Working Pressure (MPa): 24.2
- Maximum Fluid Working Pressure (psi): 3500
- Minimum Air Inlet Pressure (bar): 5.5
- Minimum Air Inlet Pressure (kPa): 550
- Minimum Air Inlet Pressure (MPa): 0.55
- Minimum Air Inlet Pressure (psi): 80
- Overall Height (cm): 9.5
- Overall Height (in): 3.75
- Overall Height (mm): 95
- Overall Length (cm): 19.3
- Overall Length (in): 7.6
- Overall Length (mm): 193
- Overall Width (cm): 7.9
- Overall Width (in): 3.1
- Overall Width (mm): 79
- Pattern Size (in): 8
- Pattern Size (mm): 203.2
