Manual Dispense Guns

BB 6277-3525-7

GG 110202

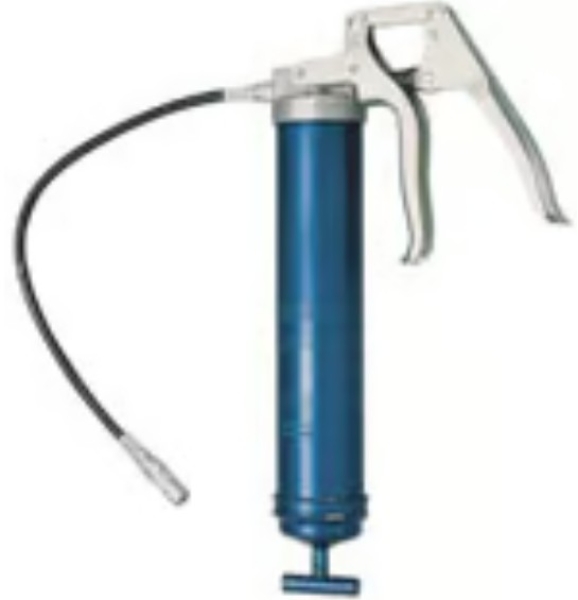

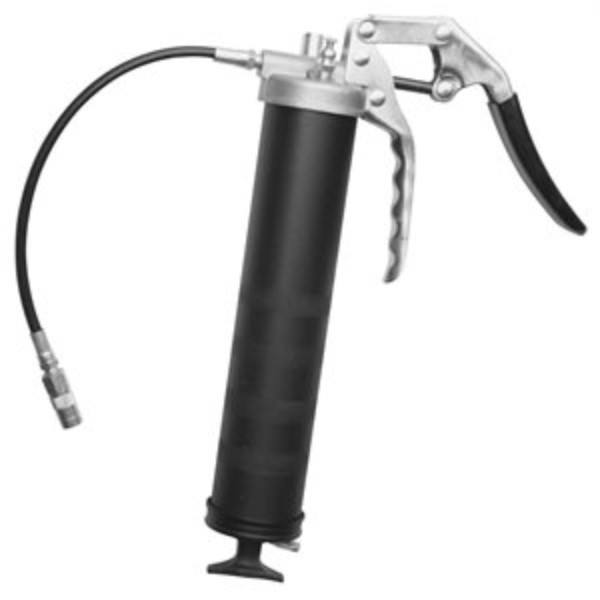

LUBRICATOR, PISTOL-MATIC

Graco 110202 Manually-Operated Heavy-Duty Grease Gun - Pistol-Style with Hose and Coupler

Durable design for years of trouble-free use in demanding environments. Two- or three-way loading capability makes it easy to keep on greasing reducing downtime.

• Comfortable Pistol-Style Grip - Allows for easy, one-handed operation.
• Bulk Loader Valve - Allows loading from bulk container pumps.
• Optional Pneumatic Operation - Works faster, reduces fatigue and is easier to use in cold conditions.

• Compatible Material: Grease

• Extension Type: Flexible
• Fill Type: Cartridge Fill, Bulk Fill, Loader Fill

• Grease Gun Type: Pistol Grip, Manual

• Includes: Flexible Extension, Hydraulic Coupler, Air Bleeder Valve

• Maximum Working Pressure (bar): 690
• Maximum Working Pressure (kPa): 69000
• Maximum Working Pressure (psi): 10000

• Pump Material: Steel

GG 25R084

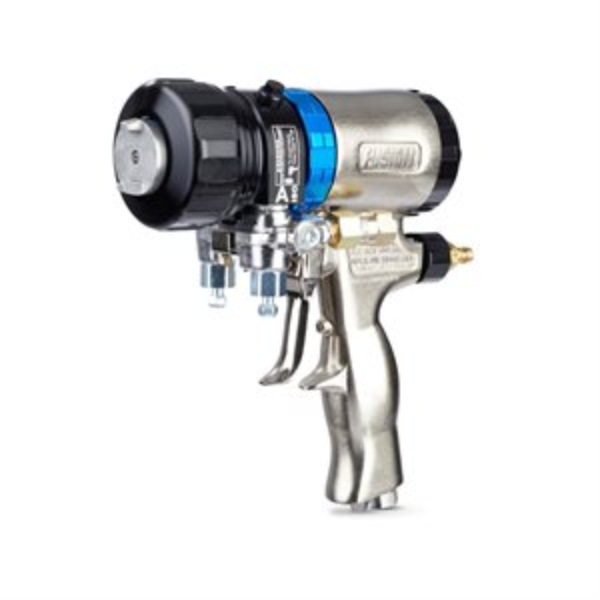

FUSION PC GUN, RND, 00-01

Graco 25R084 Fusion ProConnect Gun with Round 00-01 Mix Chamber and 0.037 in (0.94 mm) Orifice Size

A perfect rebuild in seconds is now possible with the revolutionary Fusion PC (ProConnect) gun, featuring an all-in-one cartridge head that replaces multiple individual parts of the fluid section with a single component. Simply replacing the cartridge completely eliminates the need for a time-consuming traditional rebuild, keeping you spraying and minimizing costly downtime.

• A single cartridge replaces the entire fluid section in seconds
• Built on top of the time-tested Fusion AP platform, the PC gun sprays exactly like a Fusion AP
• Integrated check valves for cross-over containment
• Eliminates the need to purchase fluid section o-rings
• Spare ProConnect cartridges can replace your back-up guns
• Retrofit Kit available to convert existing Fusion AP guns

• Model: Fusion PC
• Series: Round

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPT

• Applicator Type: Manual

• Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam
• Component A Inlet Size (cm): 1.27

• Component A Inlet Size (in): 1/2-20
• Component A Inlet Size (mm): 12.7
• Component A Inlet Thread Type: UNF
• Component B Inlet Size (cm): 1.42875
• Component B Inlet Size (in): 9/16-18
• Component B Inlet Size (mm): 14.2875
• Component B Inlet Thread Type: UNF
• Component Type: Plural-Component

• Fluid Orifice Size (cm): 0.107
• Fluid Orifice Size (in): .037
• Fluid Orifice Size (mm): 1.07

• For Use With: Non-Flammable Foam and Polyurea

• Gun Activation: Manual
• Gun Included: 1
• Gun Type: Air Purge Gun
• Gun Weight (g): 1338
• Gun Weight (kg): 1.3
• Gun Weight (lb): 2.95
• Gun Weight (oz): 47

• Impingement Port Size (in): 0.037
• Impingement Port Size (mm): 0.94
• Includes: PC37RD Mix Chamber Tip

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate @ PSI (lb/min): 50

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Working Pressure (bar): 245
• Maximum Fluid Working Pressure (MPa): 24.5
• Maximum Fluid Working Pressure (psi): 3500

• Minimum Air Inlet Pressure (bar): 5.5
• Minimum Air Inlet Pressure (kPa): 550
• Minimum Air Inlet Pressure (MPa):

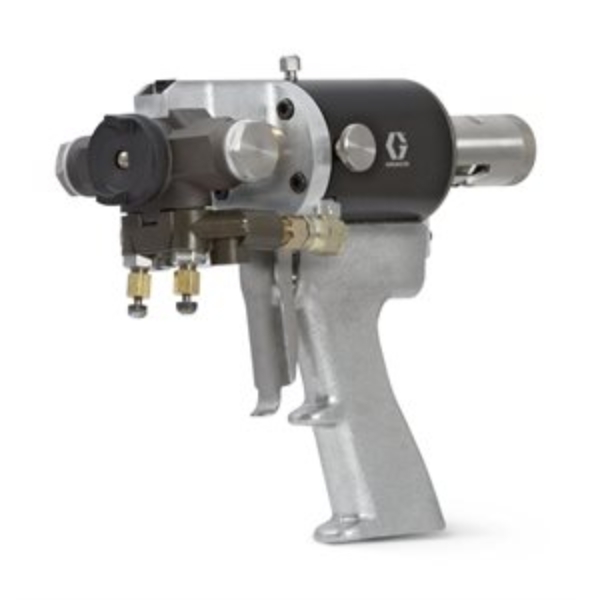

GG 295542

GX-7 GUN, GX-7A 1/90

Graco 295542 Gusmer GX-7A Spray Gun - 1/90

Graco's GX-7 gun is the industries preferred roofing application gun. Ideal for concrete lifting applications since the mechanical-purge operation eliminates back pressure related issues.

• A variety of mixing chamber sizes allows the operator to fine-tune the round spray pattern for virtually any application
• Lightweight, easy to operate and maintain
• Mechanically self-cleaning so you eliminate costly solvent-flushing
• Lightweight design reduces operator fatigue
• Pattern control knob allows for fine tune adjustments

• Model: GX-7
• Series: Standard

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPT

• Applicator Type: Manual

• Bleed Type: Bleeder

• Compatible Material: Polyurethane, Roof Coating, Plural Component Protective Coating, Polyurea, Elastomeric Coating, Spray Polyurethane Foam
• Component A Inlet Size (cm): 1.27

• Component A Inlet Size (in): 1/2
• Component A Inlet Size (mm): 12.7
• Component A Inlet Thread Type: UNF
• Component B Inlet Size (cm): 1.42875
• Component B Inlet Size (in): 9/16-18
• Component B Inlet Size (mm): 14.2875
• Component B Inlet Thread Type: UNF
• Component Type: Plural-Component

• For Use With: Mobile Spray Rig

• Gun Activation: Manual
• Gun Included: 1
• Gun Model: GX-7
• Gun Type: Mechanical-Purge
• Gun Weight (g): 1860
• Gun Weight (kg): 1.9
• Gun Weight (lb): 4.1
• Gun Weight (oz): 65.6

• Includes: Mix Module, Tip

• Maximum Air Inlet Pressure (bar): 8.6
• Maximum Air Inlet Pressure (kPa): 860
• Maximum Air Inlet Pressure (MPa): 0.86
• Maximum Air Inlet Pressure (psi): 125
• Maximum Air Pressure (bar): 8.6

• Maximum Air Pressure (kPa): 860
• Maximum Air Pressure (MPa): 0.86
• Maximum Air Pressure (psi): 125

• Maximum Flow Rate (kg/min): 18
• Maximum Flow Rate (lb/min): 40

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500

• Maximum Fluid Working Pressure (bar): 240
• Maximum Fluid Working Pressure (MPa): 24
• Maximum Fluid Working Pressure (psi): 3500

• Minimum Air Inlet Pressure (bar): 6.9
• Minimum Air Inlet Pressure (kPa): 690
• Minimum Air Inlet Pressure (MPa): 0.69
• Minimum Air Inlet Pressure (psi): 100

• Minimum Flow Rate (kg/min): 1.6
• Minimum Flow Rate (lb/min): 3.5

• Overall Height (cm): 24
• Overall Height (in): 9.5
• Overall Height (mm): 240
• Overall Length (cm): 23
• Overall Length (in): 9
• Overall Length (mm): 230
• Overall Width (cm): 11
• Overall Width (in): 4.5
• Overall Width (mm): 110

• Pattern Size (in): 22 in @ 24 in from target
• Pattern Size

GG 295545

GX-7 GUN, GX-7A 5/70

Graco 295545 Gusmer GX-7A Spray Gun - 5/70

Graco's GX-7 gun is the industries preferred roofing application gun. Ideal for concrete lifting applications since the mechanical-purge operation eliminates back pressure related issues.

• Designed for construction, bedlining, roofing and other plural-component spraying
• Hardened steel side seals and mix chamber for long-lasting performance
• No adjustments necessary

• Model: GX-7
• Series: Standard

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPT

• Compatible Material: Polyurethane, Roof Coating, Plural Component Protective Coating, Polyurea, Elastomeric Coating, Spray Polyurethane Foam
• Component A Inlet Size (cm): 1.27

• Component A Inlet Size (in): 1/2-20
• Component A Inlet Size (mm): 12.7
• Component A Inlet Thread Type: UNF
• Component B Inlet Size (cm): 1.42875
• Component B Inlet Size (in): 9/16
• Component B Inlet Size (mm): 14.2875
• Component B Inlet Thread Type: UNF

• Gun Activation: Manual
• Gun Model: GX-7
• Gun Type: Mechanical-Purge
• Gun Weight (g): 1860
• Gun Weight (kg): 1.9
• Gun Weight (lb): 4.1
• Gun Weight (oz): 65.6

• Includes: Mix Module, Tip

• Maximum Air Inlet Pressure (bar): 8.6
• Maximum Air Inlet Pressure (kPa): 860
• Maximum Air Inlet Pressure (MPa): 0.86
• Maximum Air Inlet Pressure (psi): 125
• Maximum Air Pressure (bar): 8.6

• Maximum Air Pressure (kPa): 860
• Maximum Air Pressure (MPa): 0.86
• Maximum Air Pressure (psi): 125

• Maximum Flow Rate (kg/min): 18
• Maximum Flow Rate (lb/min): 40

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500

• Maximum Fluid Working Pressure (bar): 240
• Maximum Fluid Working Pressure (MPa): 24
• Maximum Fluid Working Pressure (psi): 3500

• Minimum Air Inlet Pressure (bar): 6.9
• Minimum Air Inlet Pressure (kPa): 690
• Minimum Air Inlet Pressure (MPa): 0.69
• Minimum Air Inlet Pressure (psi): 100

• Minimum Flow Rate (kg/min): 1.6
• Minimum Flow Rate (lb/min): 3.5

• Overall Height (cm): 24
• Overall Height (in): 9.5
• Overall Height (mm): 240
• Overall Length (cm): 23
• Overall Length (in): 9
• Overall Length (mm): 230
• Overall Width (cm): 11
• Overall Width (in): 4.5
• Overall Width (mm): 110

• Pattern Size (in): 14 in @ 24 in from target
• Pattern Size (mm): 355.6

• Pressure Type: High Pressure

• Purge Method: Mechanical

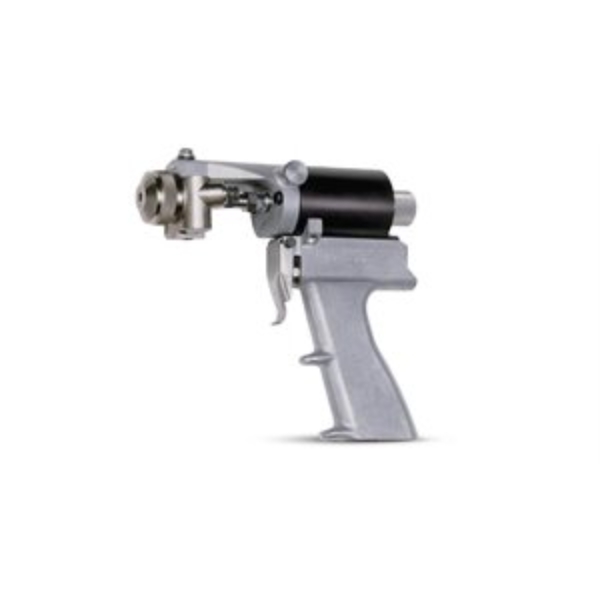

GG 297898

GX-8 GUN

Graco 297898 GX-8 Spray Gun

The GX-8 Gun is designed for very low output, fast-set polyurea, polyurethane and hybrid coatings. It is designed to save on material consumption by significantly reducing overspray associated with low-output spraying.

• Solvent-free, mechanically self-cleaning
• Direct impingement mixing assures high yield per unit of material and superior surface finish
• More air volume to air cap helps keep the guns tip cleaner longer

• Model: GX-8
• Series: Standard

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPT

• Compatible Material: Plural Component Protective Coating, Polyurea, Elastomeric Coating, Polyurethane Coating
• Component A Inlet Size (cm): 1.27

• Component A Inlet Size (in): 1/2-20
• Component A Inlet Size (mm): 12.7
• Component A Inlet Thread Type: UNF
• Component B Inlet Size (cm): 1.42875
• Component B Inlet Size (in): 9/16
• Component B Inlet Size (mm): 14.2875
• Component B Inlet Thread Type: UNF

• Gun Activation: Manual
• Gun Model: GX-8
• Gun Type: Mechanical-Purge
• Gun Weight (g): 1588
• Gun Weight (kg): 1.59
• Gun Weight (lb): 3.5
• Gun Weight (oz): 56

• Includes: Mix Module, Tip

• Maximum Air Inlet Pressure (bar): 8.6
• Maximum Air Inlet Pressure (kPa): 860
• Maximum Air Inlet Pressure (MPa): 0.86
• Maximum Air Inlet Pressure (psi): 125
• Maximum Air Pressure (bar): 8.6

• Maximum Air Pressure (kPa): 860
• Maximum Air Pressure (MPa): 0.86
• Maximum Air Pressure (psi): 125

• Maximum Flow Rate (kg/min): 0.7
• Maximum Flow Rate (lb/min): 1.5

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500

• Maximum Fluid Working Pressure (bar): 240
• Maximum Fluid Working Pressure (MPa): 24
• Maximum Fluid Working Pressure (psi): 3500

• Minimum Air Inlet Pressure (bar): 6.9
• Minimum Air Inlet Pressure (kPa): 690
• Minimum Air Inlet Pressure (MPa): 0.69
• Minimum Air Inlet Pressure (psi): 100

• Minimum Flow Rate (kg/min): 0.45
• Minimum Flow Rate (lb/min): 1

• Overall Height (cm): 19
• Overall Height (in): 7.5
• Overall Height (mm): 190
• Overall Length (cm): 17.8
• Overall Length (in): 7
• Overall Length (mm): 178
• Overall Width (cm): 6.25
• Overall Width (in): 2.5
• Overall Width (mm): 62.5

• Pattern Size (in): 6 in @ 18-24 in from target
• Pattern Size (mm): 152.4

• Pressure Type: High Pressure

• Purge Method: Mechanical

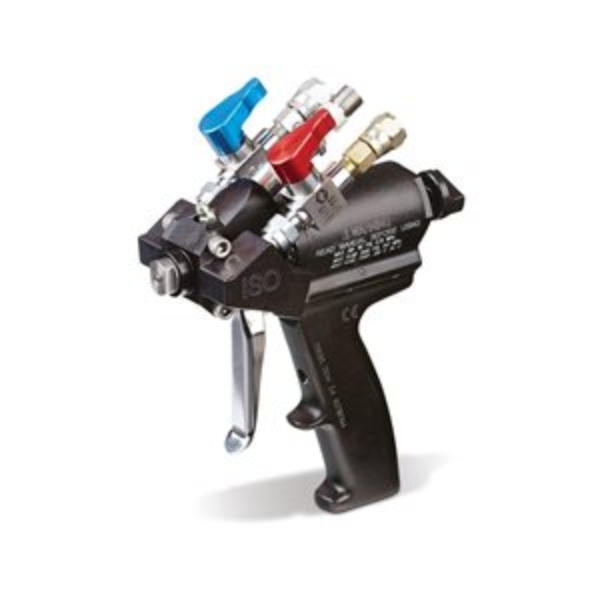

GG GCP2R1

P2 GUN

Graco GCP2R1 Probler P2 Gun Assembly with 01 Mix Chamber Kit

The Probler P2 Gun is lightweight and easy to maneuver - even in difficult spraying positions. Its double piston design provides more than 300 pounds (136 kg) of triggering force - much more than a smaller piston diameter. The Probler P2 reduces maintenance, increases spraying uptime and is easy to use.

• Easy daily maintenance
• Responsive trigger action
• Easy-to-replace mix chamber insert
• Ergonomic handle and balanced design

• Model: P2
• Series: Standard

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4-18
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPSM

• Applicator Type: Manual

• Compatible Material: Adhesives, Polyurethane, Roof Coating, Polyurea, Polyurethane Coating
• Component A Inlet Size (cm): 1.27

• Component A Inlet Size (in): 1/2-20
• Component A Inlet Size (mm): 12.7
• Component A Inlet Thread Type: UNF
• Component B Inlet Size (cm): 1.11125
• Component B Inlet Size (in): 7/16-18
• Component B Inlet Size (mm): 11.1125
• Component B Inlet Thread Type: UNF
• Component Type: Plural-Component

• Fluid Orifice Size (cm): 0.107
• Fluid Orifice Size (in): 0.042
• Fluid Orifice Size (mm): 1.07

• For Use With: Reactor Plural Component Proportioner, Reactor Spray Foam and Coatings Equipment

• Gun Activation: Manual
• Gun Included: 1
• Gun Series: Standard
• Gun Type: Air-Purge
• Gun Weight (g): 1770
• Gun Weight (kg): 1.77
• Gun Weight (lb): 3.9
• Gun Weight (oz): 32.4

• Maximum Air Inlet Pressure (bar): 7.6
• Maximum Air Inlet Pressure (kPa): 760
• Maximum Air Inlet Pressure (MPa): 0.76
• Maximum Air Inlet Pressure (psi): 110
• Maximum Air Pressure (bar): 7.6

• Maximum Air Pressure (kPa): 760
• Maximum Air Pressure (MPa): 0.76
• Maximum Air Pressure (psi): 110

• Maximum Flow Rate (kg/min): 18
• Maximum Flow Rate (lb/min): 40

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Working Pressure (bar): 241
• Maximum Fluid Working Pressure (MPa): 24.1
• Maximum Fluid Working Pressure (psi): 3500

• Minimum Air Inlet Pressure (bar): 6.2
• Minimum Air Inlet Pressure (kPa): 620
• Minimum Air Inlet Pressure (MPa): 0.62
• Minimum Air Inlet Pressure (psi): 90

• Minimum Flow Rate (kg/min): 1.4
• Minimum Flow Rate (lb/min): 3

• Mix Chamber: 01 (.042)

• Overall Height (cm): 12.1
• Overall Height (in): 4.75
• Overall Height (mm): 121
• Overall Length (cm):

GG GCP3R2

P2 GUN, ASSY, GUN, PROBLER ELITE

Graco GCP3R2 Probler P2 Elite Gun Assembly with 02 Mix Chamber Kit

The Probler P2 Gun is lightweight and easy to maneuver - even in difficult spraying positions. Its double piston design provides more than 300 pounds (136 kg) of triggering force - much more than a smaller piston diameter. The Probler P2 reduces maintenance, increases spraying uptime and is easy to use.

• Easy daily maintenance
• Responsive trigger action
• Easy-to-replace mix chamber insert
• Ergonomic handle and balanced design
• Allows use of additional accessories
• Alternate side block hose routings
• Allows filters to be easily removed

• Model: P2
• Series: Elite

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4-18
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPT

• Compatible Material: Adhesives, Polyurethane, Roof Coating, Polyurea, Polyurethane Coating
• Component A Inlet Size (cm): 1.27

• Component A Inlet Size (in): 1/2-20
• Component A Inlet Size (mm): 12.7
• Component A Inlet Thread Type: UNF
• Component B Inlet Size (cm): 1.11125
• Component B Inlet Size (in): 7/16-18
• Component B Inlet Size (mm): 11.1125
• Component B Inlet Thread Type: UNF
• Component Type: Plural-Component

• Fluid Orifice Size (cm): 0.132
• Fluid Orifice Size (in): 0.052
• Fluid Orifice Size (mm): 1.32

• Gun Activation: Manual
• Gun Series: Elite
• Gun Type: Air-Purge
• Gun Weight (g): 1770
• Gun Weight (kg): 1.77
• Gun Weight (lb): 3.9
• Gun Weight (oz): 32.4

• Maximum Air Inlet Pressure (bar): 7.6
• Maximum Air Inlet Pressure (kPa): 760
• Maximum Air Inlet Pressure (MPa): 0.76
• Maximum Air Inlet Pressure (psi): 110
• Maximum Air Pressure (bar): 7.6

• Maximum Air Pressure (kPa): 760
• Maximum Air Pressure (MPa): 0.76
• Maximum Air Pressure (psi): 110

• Maximum Flow Rate (kg/min): 18
• Maximum Flow Rate (lb/min): 40

• Maximum Fluid Pressure (bar): 220
• Maximum Fluid Pressure (kPa): 22000
• Maximum Fluid Pressure (MPa): 22
• Maximum Fluid Pressure (psi): 3200
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Pressure (bar): 220
• Maximum Fluid Pressure (kPa): 22000
• Maximum Fluid Pressure (MPa): 22
• Maximum Fluid Pressure (psi): 3200
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Working Pressure (bar): 221
• Maximum Fluid Working Pressure (MPa): 22.1
• Maximum Fluid Working Pressure (psi): 3200

• Minimum Air Inlet Pressure (bar): 6.2
• Minimum Air Inlet Pressure (kPa): 620
• Minimum Air Inlet Pressure (MPa): 0.62
• Minimum Air Inlet Pressure (psi): 90

• Minimum Flow Rate (kg/min): 1.4
• Minimum Flow Rate (lb/min): 3

• Mix Chamber: 02 (.052)

• Overall Height (cm): 12.1
• Overall Height (in): 4.75
• Overall Height (mm): 121
• Overall Length (cm): 7.9
• Overall Length (in): 3.1

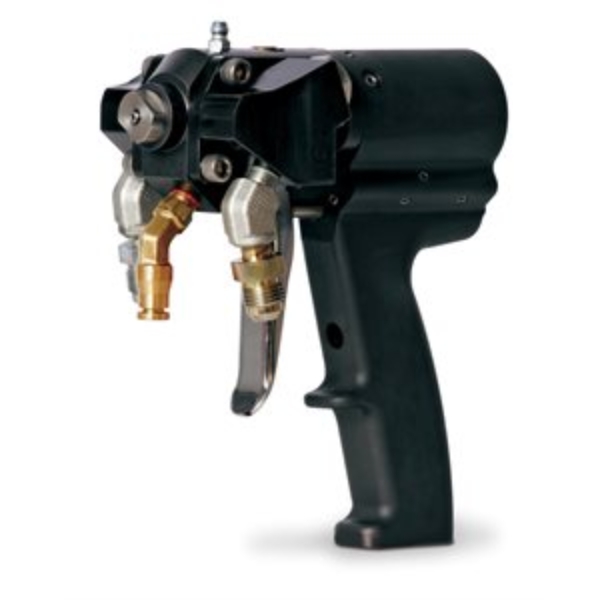

GG GCP3R3

P2 GUN, ASSY, GUN, PROBLER ELITE

Graco GCP3R3 Probler P2 Elite Gun Assembly with 03 Mix Chamber Kit

The Probler P2 Gun is lightweight and easy to maneuver - even in difficult spraying positions. Its double piston design provides more than 300 pounds (136 kg) of triggering force - much more than a smaller piston diameter. The Probler P2 reduces maintenance, increases spraying uptime and is easy to use.

• Easy daily maintenance
• Responsive trigger action
• Easy-to-replace mix chamber insert
• Ergonomic handle and balanced design
• Allows use of additional accessories
• Alternate side block hose routings
• Allows filters to be easily removed

• Model: P2
• Series: Elite

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4-18
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPT

• Compatible Material: Adhesives, Polyurethane, Roof Coating, Polyurea, Polyurethane Coating
• Component A Inlet Size (cm): 1.27

• Component A Inlet Size (in): 1/2-20
• Component A Inlet Size (mm): 12.7
• Component A Inlet Thread Type: UNF
• Component B Inlet Size (cm): 1.11125
• Component B Inlet Size (in): 7/16-18
• Component B Inlet Size (mm): 11.1125
• Component B Inlet Thread Type: UNF
• Component Type: Plural-Component

• Fluid Orifice Size (cm): 0.152
• Fluid Orifice Size (in): 0.060
• Fluid Orifice Size (mm): 1.52

• Gun Activation: Manual
• Gun Series: Elite
• Gun Type: Air-Purge
• Gun Weight (g): 1770
• Gun Weight (kg): 1.77
• Gun Weight (lb): 3.9
• Gun Weight (oz): 32.4

• Maximum Air Inlet Pressure (bar): 7.6
• Maximum Air Inlet Pressure (kPa): 760
• Maximum Air Inlet Pressure (MPa): 0.76
• Maximum Air Inlet Pressure (psi): 110
• Maximum Air Pressure (bar): 7.6

• Maximum Air Pressure (kPa): 760
• Maximum Air Pressure (MPa): 0.76
• Maximum Air Pressure (psi): 110

• Maximum Flow Rate (kg/min): 18
• Maximum Flow Rate (lb/min): 40

• Maximum Fluid Pressure (bar): 220
• Maximum Fluid Pressure (kPa): 22000
• Maximum Fluid Pressure (MPa): 22
• Maximum Fluid Pressure (psi): 3200
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Pressure (bar): 220
• Maximum Fluid Pressure (kPa): 22000
• Maximum Fluid Pressure (MPa): 22
• Maximum Fluid Pressure (psi): 3200
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Working Pressure (bar): 221
• Maximum Fluid Working Pressure (MPa): 22.1
• Maximum Fluid Working Pressure (psi): 3200

• Minimum Air Inlet Pressure (bar): 6.2
• Minimum Air Inlet Pressure (kPa): 620
• Minimum Air Inlet Pressure (MPa): 0.62
• Minimum Air Inlet Pressure (psi): 90

• Minimum Flow Rate (kg/min): 1.4
• Minimum Flow Rate (lb/min): 3

• Mix Chamber: 03 (.060)

• Overall Height (cm): 12.1
• Overall Height (in): 4.75
• Overall Height (mm): 121
• Overall Length (cm): 7.9
• Overall Length (in): 3.1

JD LP91076A

JD LP91076-HC

BB 102-3600

BB 6277-3522-5

BB 6279-0000-5

BB FG142500

GG 112001

GG 112004

GG 112006

GG 112016

GG 112020

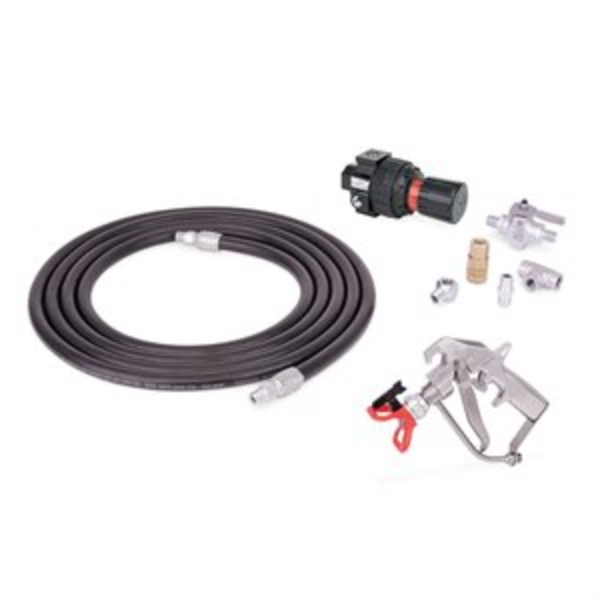

GG 222079

KIT, DISPENSE UCOAT 15'

Graco 222079 Dispense Kit for Undercoating and Rustproofing Pump Packages - 15 ft (4.6 m) Hose

Utilizing the durable Fire-Ball® 300 pump, these kits are designed for use in medium-volume undercoating and rustproofing dispense applications. The 3 inch (7.62 cm) differential air motor ensures smooth pumping, and the double acting pump design provides reliable material flow and accurate dispense.

• Durable -Thick cast aluminum air motor housing offers unmatched durability.
• Superior Material Handling - Double-acting pump ensures smooth fluid flow.
• Extended Seal Life -In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid nitrating, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Compatible Material: Undercoating

• For Use With: 15:1 Ratio Fire-Ball� Undercoater Pumps

• Kit Type: Dispense Kit

• Number of Pieces: 12

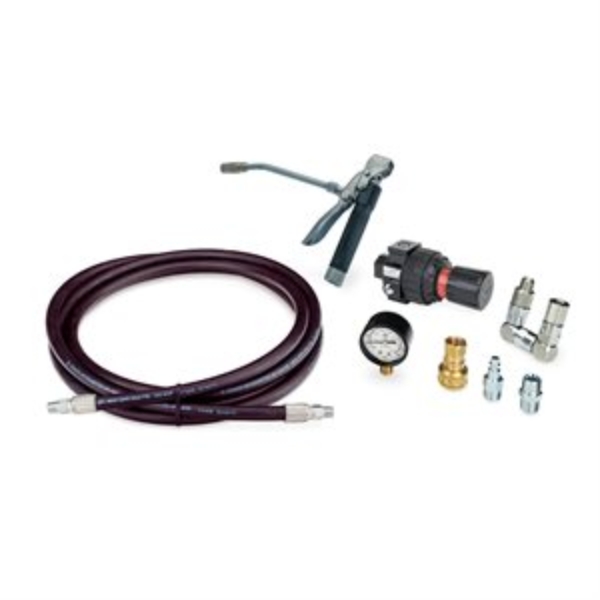

GG 222080

KIT, DISPENSE 15'

Graco 222080 Dispense Kit for Fire-Ball® 300 15:1 Grease Pump Packages - 15 ft (14.5 m) Hose

Grease dispense kit includes Pro Shot dispense valve, z-swivel, 15 ft. (4.6 m) hose, regulator, coupler, nipple, fitting, and gauge.

• Pressure-assisted trigger for ease of operation
• Easy top adjustment with locking nut
• Rugged design to withstand harsh environments

• Model: Fire-Ball
• Series: 300

• Compatible Material: Grease

• Extension Type: Rigid

• Includes: Dispense Valve, Fluid Hose, Air Regulator, Fittings
• Inlet Size (cm): 0.635
• Inlet Size (in): 1/4
• Inlet Size (mm): 6.35

• Inlet Thread Gender: Female
• Inlet Thread Type: NPT

• Maximum Working Pressure (bar): 552
• Maximum Working Pressure (kPa): 55200
• Maximum Working Pressure (psi): 8000

• Power Type: Manual

GG 222081

KIT, INSTALLATION, DISPENSE, 25'

Graco 222081 Dispense Kit for Fire-Ball® 300 15:1 Grease Pump Packages - 25 ft (7.6 m) Hose

Grease dispense kit includes Pro Shot dispense valve, z-swivel, 25 ft. (7.6 m) hose, regulator, coupler, nipple, fitting, and gauge.

• Pressure-assisted trigger for ease of operation
• Easy top adjustment with locking nut
• Rugged design to withstand harsh environments

• Model: Fire-Ball
• Series: 300

• Compatible Material: Grease

• Extension Type: Rigid

• Includes: Dispense Valve, Fluid Hose, Air Regulator, Fittings
• Inlet Size (cm): 0.635
• Inlet Size (in): 1/4
• Inlet Size (mm): 6.35

• Inlet Thread Gender: Female
• Inlet Thread Type: NPT

• Maximum Working Pressure (bar): 552
• Maximum Working Pressure (kPa): 55200
• Maximum Working Pressure (psi): 8000

• Power Type: Manual

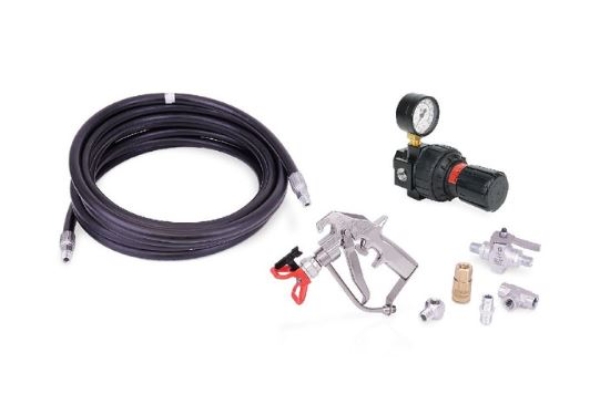

GG 222082

DISPENCER KIT

Graco 222082 Dispense Kit for Undercoating and Rustproofing Pump Packages - 25 ft (7.6 m) Hose

Utilizing the durable Fire-Ball® 300 pump, these kits are designed for use in medium-volume undercoating and rustproofing dispense applications. The 3 inch (7.62 cm) differential air motor ensures smooth pumping, and the double acting pump design provides reliable material flow and accurate dispense.

• Durable -Thick cast aluminum air motor housing offers unmatched durability.
• Superior Material Handling - Double-acting pump ensures smooth fluid flow.
• Extended Seal Life -In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid nitrating, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Compatible Material: Undercoating

• For Use With: 15:1 Ratio Fire-Ball� Undercoater Pumps

• Kit Type: Dispense Kit

• Number of Pieces: 12

GG 249526

FUSION AP GUN, AF5252 FTM979

Graco 249526 Round Fusion Air-Purge Stud Wall Gun with 0.070 Mix Chamber

With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.

• Easy air-blast tip cleaning reduces build-up and tip clogging.
• Long-lasting side seals means less downtime for maintenance
• Quick-release fluid housing - lets you easily change the mix chambers without tools
• Ergonomic handle

• Model: Fusion AP
• Series: Specialty

• Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam

• Fluid Orifice Size (cm): 0.132
• Fluid Orifice Size (in): 0.052
• Fluid Orifice Size (mm): 1.32

• Gun Type: Air Purge Gun

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate @ PSI (lb/min): 50

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500

• Minimum Air Inlet Pressure (bar): 5.5
• Minimum Air Inlet Pressure (kPa): 550
• Minimum Air Inlet Pressure (MPa): 0.55
• Minimum Air Inlet Pressure (psi): 80

• Mix Chamber: 04 (.070)

• Pattern Size (in): 22 in @ 24 in from target
