GG 297898
GX-8 GUN

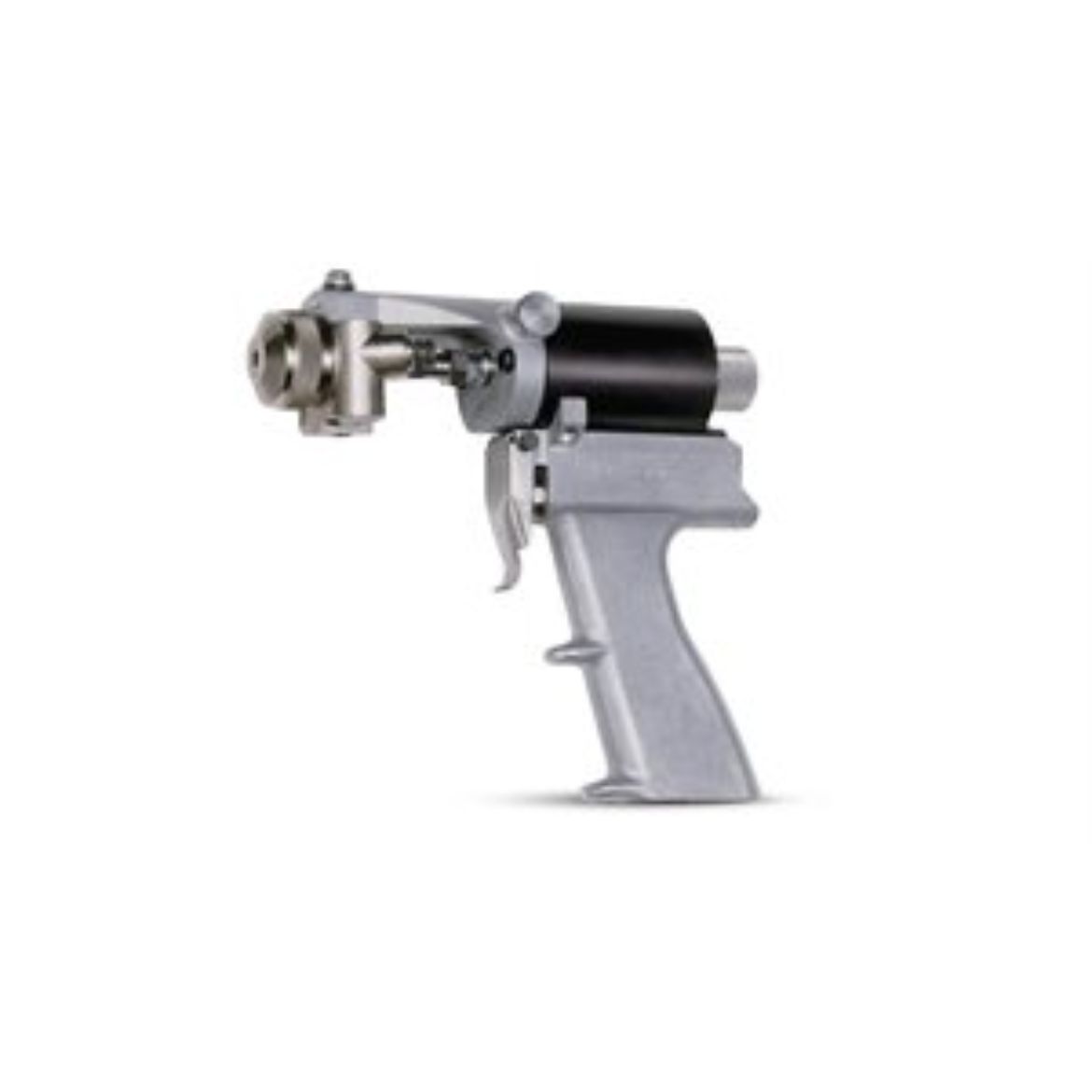

Graco 297898 GX-8 Spray Gun
The GX-8 Gun is designed for very low output, fast-set polyurea, polyurethane and hybrid coatings. It is designed to save on material consumption by significantly reducing overspray associated with low-output spraying.
Application: For very low-output fast-set polyurea, polyurethane and hybrid coatings.
- Solvent-free, mechanically self-cleaning
- Direct impingement mixing assures high yield per unit of material and superior surface finish
- More air volume to air cap helps keep the gun&prime, s tip cleaner longer
- Model: GX-8
- Series: Standard
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: NPT
- Compatible Material: Plural Component Protective Coating, Polyurea, Elastomeric Coating, Polyurethane Coating
- Component A Inlet Size (cm): 1.27
- Component A Inlet Size (in): 1/2-20
- Component A Inlet Size (mm): 12.7
- Component A Inlet Thread Type: UNF
- Component B Inlet Size (cm): 1.42875
- Component B Inlet Size (in): 9/16
- Component B Inlet Size (mm): 14.2875
- Component B Inlet Thread Type: UNF
- Gun Activation: Manual
- Gun Model: GX-8
- Gun Type: Mechanical-Purge
- Gun Weight (g): 1588
- Gun Weight (kg): 1.59
- Gun Weight (lb): 3.5
- Gun Weight (oz): 56
- Includes: Mix Module, Tip
- Maximum Air Inlet Pressure (bar): 8.6
- Maximum Air Inlet Pressure (kPa): 860
- Maximum Air Inlet Pressure (MPa): 0.86
- Maximum Air Inlet Pressure (psi): 125
- Maximum Air Pressure (bar): 8.6
- Maximum Air Pressure (kPa): 860
- Maximum Air Pressure (MPa): 0.86
- Maximum Air Pressure (psi): 125
- Maximum Flow Rate (kg/min): 0.7
- Maximum Flow Rate (lb/min): 1.5
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Working Pressure (bar): 240
- Maximum Fluid Working Pressure (MPa): 24
- Maximum Fluid Working Pressure (psi): 3500
- Minimum Air Inlet Pressure (bar): 6.9
- Minimum Air Inlet Pressure (kPa): 690
- Minimum Air Inlet Pressure (MPa): 0.69
- Minimum Air Inlet Pressure (psi): 100
- Minimum Flow Rate (kg/min): 0.45
- Minimum Flow Rate (lb/min): 1
- Overall Height (cm): 19
- Overall Height (in): 7.5
- Overall Height (mm): 190
- Overall Length (cm): 17.8
- Overall Length (in): 7
- Overall Length (mm): 178
- Overall Width (cm): 6.25
- Overall Width (in): 2.5
- Overall Width (mm): 62.5
- Pattern Size (in): 6 in @ 18-24 in from target
- Pattern Size (mm): 152.4
- Pressure Type: High Pressure
