Gx-7 Gun,Gx-7A 5/70

GG 295545

GX-7 GUN, GX-7A 5/70

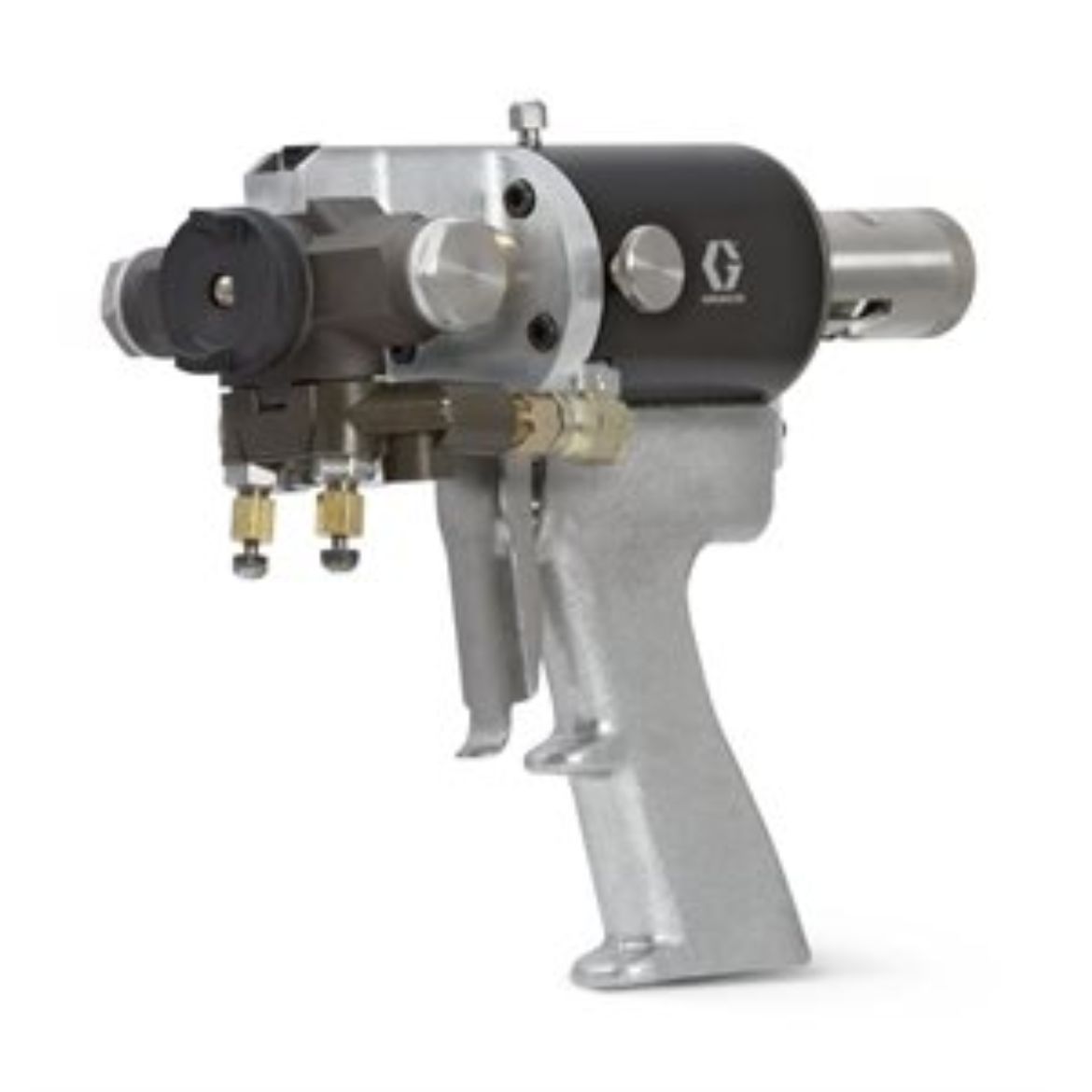

Graco 295545 Gusmer GX-7A Spray Gun - 5/70

Graco's GX-7 gun is the industries preferred roofing application gun. Ideal for concrete lifting applications since the mechanical-purge operation eliminates back pressure related issues.

• Designed for construction, bedlining, roofing and other plural-component spraying
• Hardened steel side seals and mix chamber for long-lasting performance
• No adjustments necessary

• Model: GX-7
• Series: Standard

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPT

• Compatible Material: Polyurethane, Roof Coating, Plural Component Protective Coating, Polyurea, Elastomeric Coating, Spray Polyurethane Foam
• Component A Inlet Size (cm): 1.27

• Component A Inlet Size (in): 1/2-20
• Component A Inlet Size (mm): 12.7
• Component A Inlet Thread Type: UNF
• Component B Inlet Size (cm): 1.42875
• Component B Inlet Size (in): 9/16
• Component B Inlet Size (mm): 14.2875
• Component B Inlet Thread Type: UNF

• Gun Activation: Manual
• Gun Model: GX-7
• Gun Type: Mechanical-Purge
• Gun Weight (g): 1860
• Gun Weight (kg): 1.9
• Gun Weight (lb): 4.1
• Gun Weight (oz): 65.6

• Includes: Mix Module, Tip

• Maximum Air Inlet Pressure (bar): 8.6
• Maximum Air Inlet Pressure (kPa): 860
• Maximum Air Inlet Pressure (MPa): 0.86
• Maximum Air Inlet Pressure (psi): 125
• Maximum Air Pressure (bar): 8.6

• Maximum Air Pressure (kPa): 860
• Maximum Air Pressure (MPa): 0.86
• Maximum Air Pressure (psi): 125

• Maximum Flow Rate (kg/min): 18
• Maximum Flow Rate (lb/min): 40

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500

• Maximum Fluid Working Pressure (bar): 240
• Maximum Fluid Working Pressure (MPa): 24
• Maximum Fluid Working Pressure (psi): 3500

• Minimum Air Inlet Pressure (bar): 6.9
• Minimum Air Inlet Pressure (kPa): 690
• Minimum Air Inlet Pressure (MPa): 0.69
• Minimum Air Inlet Pressure (psi): 100

• Minimum Flow Rate (kg/min): 1.6
• Minimum Flow Rate (lb/min): 3.5

• Overall Height (cm): 24
• Overall Height (in): 9.5
• Overall Height (mm): 240
• Overall Length (cm): 23
• Overall Length (in): 9
• Overall Length (mm): 230
• Overall Width (cm): 11
• Overall Width (in): 4.5
• Overall Width (mm): 110

• Pattern Size (in): 14 in @ 24 in from target
• Pattern Size (mm): 355.6

• Pressure Type: High Pressure

• Purge Method: Mechanical
