Fusion Ap Gun,Af5252 Ftm979

GG 249526

FUSION AP GUN, AF5252 FTM979

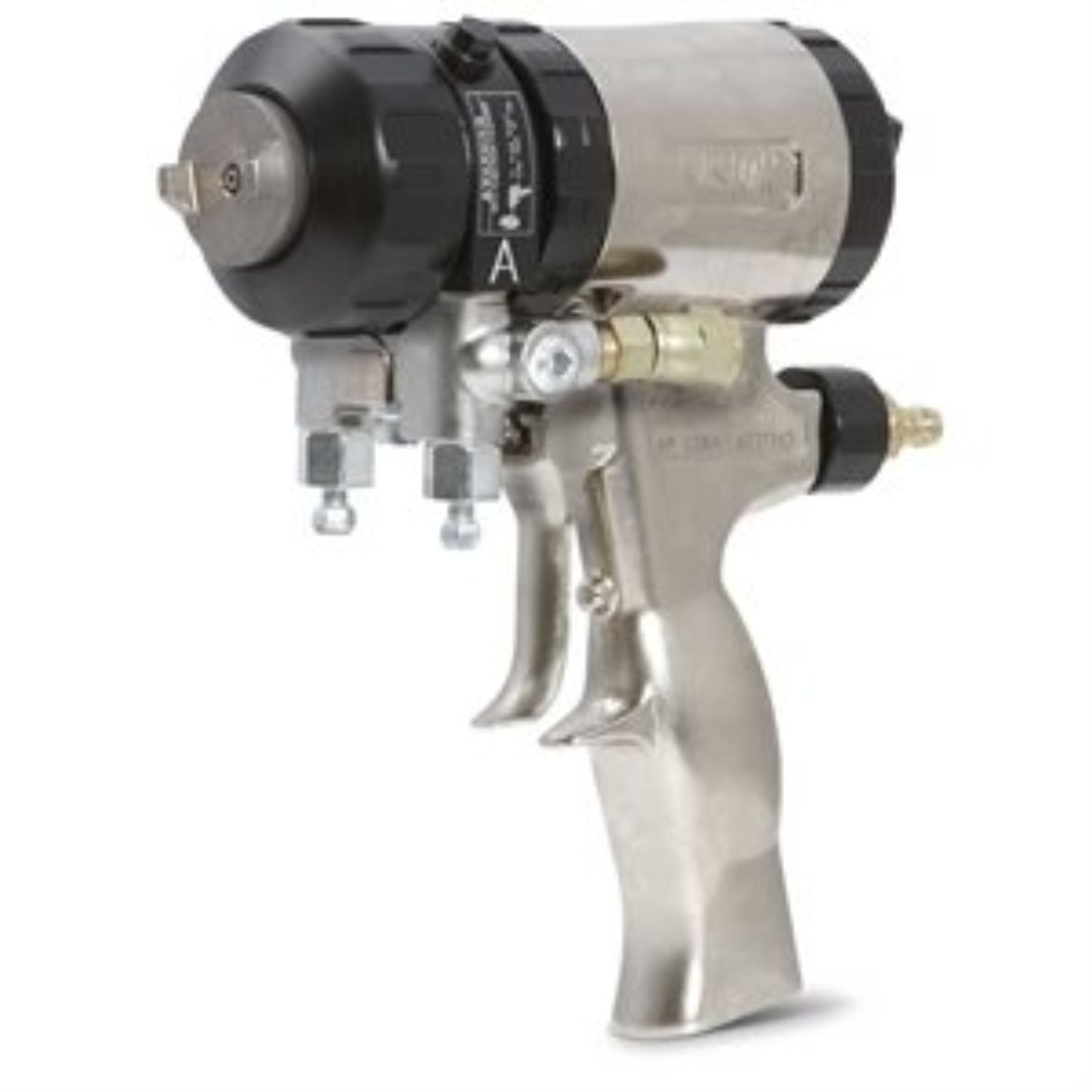

Graco 249526 Round Fusion Air-Purge Stud Wall Gun with 0.070 Mix Chamber

With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.

• Easy air-blast tip cleaning reduces build-up and tip clogging.
• Long-lasting side seals means less downtime for maintenance
• Quick-release fluid housing - lets you easily change the mix chambers without tools
• Ergonomic handle

• Model: Fusion AP
• Series: Specialty

• Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam

• Fluid Orifice Size (cm): 0.132
• Fluid Orifice Size (in): 0.052
• Fluid Orifice Size (mm): 1.32

• Gun Type: Air Purge Gun

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate @ PSI (lb/min): 50

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500

• Minimum Air Inlet Pressure (bar): 5.5
• Minimum Air Inlet Pressure (kPa): 550
• Minimum Air Inlet Pressure (MPa): 0.55
• Minimum Air Inlet Pressure (psi): 80

• Mix Chamber: 04 (.070)

• Pattern Size (in): 22 in @ 24 in from target
