FUSION AP GUN, WIDE, RND 00

Manufacturer: GRACO INC. S10595

GG 24D581

FUSION AP GUN, WIDE, RND 00

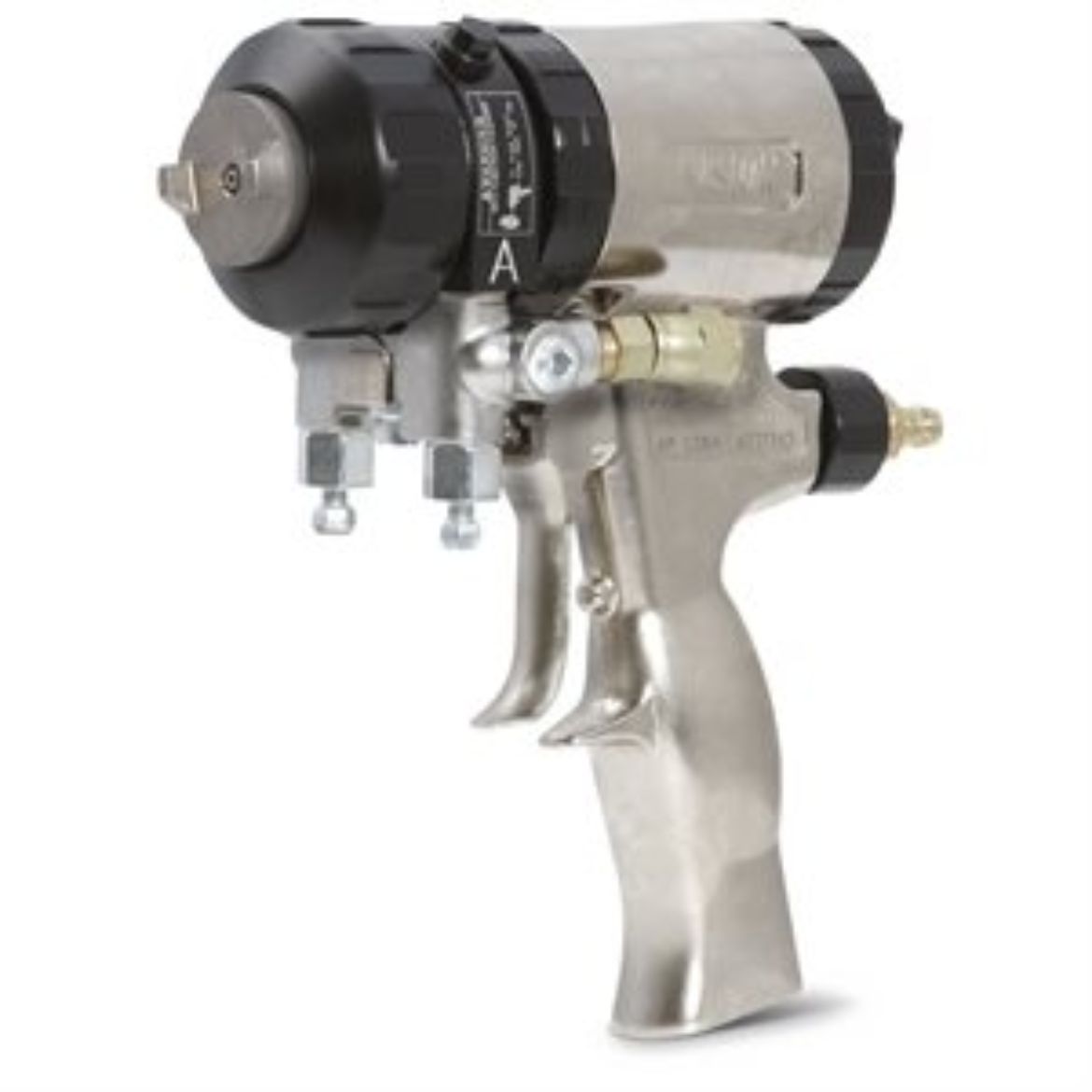

Graco 24D581 Wide Round Pattern Fusion Air-Purge Gun with 00 Mix Chamber

With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.

Application: For high output spray polyurethane foam and polyurea applications.
  • Easy air-blast tip cleaning reduces build-up and tip clogging.
  • Long-lasting side seals means less downtime for maintenance
  • Quick-release fluid housing - lets you easily change the mix chambers without tools
  • Ergonomic handle


  • Model: Fusion AP
  • Series: Wide
  • Air Inlet Size (cm): 0.635
  • Air Inlet Size (in): 1/4
  • Air Inlet Size (mm): 6.35
  • Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam
  • Fluid Orifice Size (cm): 0.074
  • Fluid Orifice Size (in): 0.029
  • Fluid Orifice Size (mm): 0.74
  • Gun Type: Air Purge Gun
  • Gun Weight (kg): 1.1
  • Gun Weight (lb): 2.5
  • Maximum Air Inlet Pressure (bar): 9
  • Maximum Air Inlet Pressure (kPa): 900
  • Maximum Air Inlet Pressure (MPa): 0.9
  • Maximum Air Inlet Pressure (psi): 130
  • Maximum Air Pressure (bar): 9
  • Maximum Air Pressure (kPa): 900
  • Maximum Air Pressure (MPa): 0.9
  • Maximum Air Pressure (psi): 130
  • Maximum Flow Rate @ PSI (lb/min): 50
  • Maximum Fluid Pressure (bar): 245
  • Maximum Fluid Pressure (kPa): 24500
  • Maximum Fluid Pressure (MPa): 24.5
  • Maximum Fluid Pressure (psi): 3500
  • Maximum Fluid Temperature (°C): 94
  • Maximum Fluid Temperature (°F): 200
  • Maximum Fluid Pressure (bar): 245
  • Maximum Fluid Pressure (kPa): 24500
  • Maximum Fluid Pressure (MPa): 24.5
  • Maximum Fluid Pressure (psi): 3500
  • Maximum Fluid Temperature (°C): 94
  • Maximum Fluid Temperature (°F): 200
  • Minimum Air Inlet Pressure (bar): 5.6
  • Minimum Air Inlet Pressure (kPa): 560
  • Minimum Air Inlet Pressure (MPa): 0.56
  • Minimum Air Inlet Pressure (psi): 80
  • Mix Chamber: 00 (.029)
  • Overall Height (cm): 20.6
  • Overall Height (in): 8.1
  • Overall Height (mm): 206
  • Overall Length (cm): 19.1
  • Overall Length (in): 7.5
  • Overall Length (mm): 191
  • Overall Width (cm): 8.4
  • Overall Width (in): 3.3
  • Overall Width (mm): 84
  • Pattern Size (in): 15 in @ 24 in from target
SKU: GG 24D581
Availability:
Price: $3,680.00
