GG 25B021
APPLICATOR, GM100, SINGLE, 24VDC, PT100

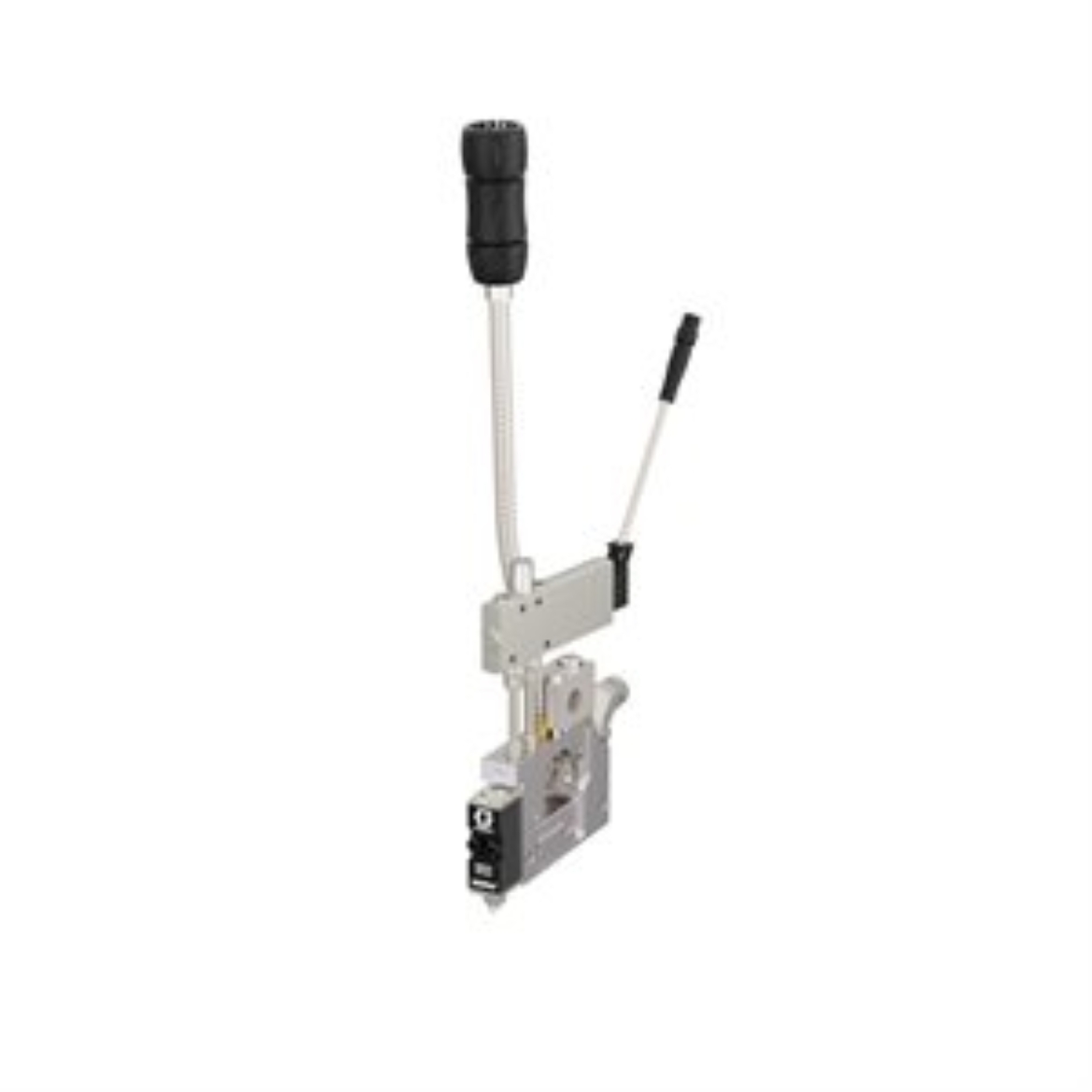

Graco 25B021 GM100 Single Slim 24 VDC Applicator with Pt 100 RTD
With the InvisiPac Hot Melt Adhesive Applicator, you'll experience a new era in hassle-free operation with improved uptime. With its innovative free-flow manifold design and integrated applicator filtering – when used with the InvisiPac System – you can eliminate nozzle plugs. You'll finally have a hot melt system that runs reliably, unnoticed and invisible.
Application: GM100 plug-free hot melt adhesive dispensing nozzle for case and carton sealing
- Adhesive is processed in a better way
The applicators free-flow manifold design is engineered to eliminate dead zones where char will build up
Module includes an integrated filter assembly near the ball and seat junction that eliminates nozzle plugging
Adhesive spends less time at high temperature, resulting in less char
Changes in the heated hose construction significantly reduce the formation of char in the hose itself
Less char allows you to use lower cost adhesives and save money
- Works with the InvisiPac Tank-Free Hot Melt Delivery System
- Quick start-up - ready in less than 10 minutes
- Less char results in less nozzle plugging, less system maintenance and more uptime
- Model: InvisiPac
- Series: GM100
- Ambient/Warm Melt/Hot Melt: Hot Melt
- Application: Bonding, Sealing
- Component Type: Single Component
- For Use With: InvisiPac GM100 Plug-Free
- Gun Activation: Automatic
- Maximum Air Pressure (bar): 5.5
- Maximum Air Pressure (kg/cm²): 5.62
- Maximum Air Pressure (kPa): 550
- Maximum Air Pressure (MPa): 0.5
- Maximum Air Pressure (psi): 80
- Maximum Fluid Pressure (bar): 103
- Maximum Fluid Pressure (kg/cm²): 105.46
- Maximum Fluid Pressure (kPa): 10300
- Maximum Fluid Pressure (MPa): 10.3
- Maximum Fluid Pressure (psi): 1500
- Maximum Fluid Pressure (bar): 103
- Maximum Fluid Pressure (kg/cm²): 105.46
- Maximum Fluid Pressure (kPa): 10300
- Maximum Fluid Pressure (MPa): 10.3
- Maximum Fluid Pressure (psi): 1500
- Meter Type: Time Pressure
- Minimum Air Inlet Pressure (bar): 4.4
- Minimum Air Inlet Pressure (kg/cm²): 4.57
- Minimum Air Inlet Pressure (kPa): 440
- Minimum Air Inlet Pressure (MPa): 0.44
- Minimum Air Inlet Pressure (psi): 65
- Number of Modules: 1
- Number of Outputs: 1
