Manual Dispense Guns

GG 249529

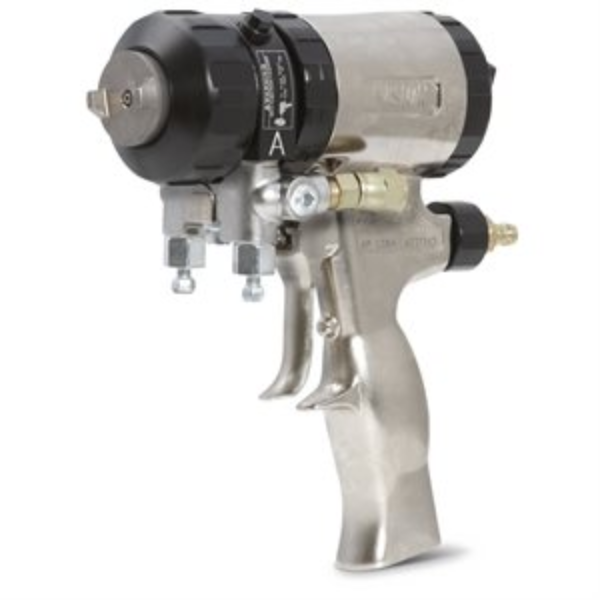

FUSION AP GUN, WIDE RND 01

Graco 249529 Wide Round Fusion Air-Purge Gun with 01 Mix Chamber

With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.

• Easy air-blast tip cleaning reduces build-up and tip clogging.
• Long-lasting side seals means less downtime for maintenance
• Quick-release fluid housing - lets you easily change the mix chambers without tools
• Ergonomic handle

• Model: Fusion AP
• Series: Wide

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35

• Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam

• Fluid Orifice Size (cm): 0.099
• Fluid Orifice Size (in): 0.039
• Fluid Orifice Size (mm): 0.99

• Gun Type: Air Purge Gun
• Gun Weight (g): 1130
• Gun Weight (kg): 1.1
• Gun Weight (lb): 2.5
• Gun Weight (oz): 40

• Impingement Port Size (in): 0.039
• Impingement Port Size (mm): 0.99

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate @ PSI (lb/min): 50

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Minimum Air Inlet Pressure (bar): 5.5
• Minimum Air Inlet Pressure (kPa): 550
• Minimum Air Inlet Pressure (MPa): 0.55
• Minimum Air Inlet Pressure (psi): 80

• Mix Chamber: 01 (.042)

• Overall Height (cm): 20.6
• Overall Height (in): 8.1
• Overall Height (mm): 206
• Overall Length (cm): 19.1
• Overall Length (in): 7.5
• Overall Length (mm): 191
• Overall Width (cm): 8.4
• Overall Width (in): 3.3
• Overall Width (mm): 84

• Pattern Size (in): 16 in @ 24 in from target

GG 24D581

FUSION AP GUN, WIDE, RND 00

Graco 24D581 Wide Round Pattern Fusion Air-Purge Gun with 00 Mix Chamber

With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.

• Easy air-blast tip cleaning reduces build-up and tip clogging.
• Long-lasting side seals means less downtime for maintenance
• Quick-release fluid housing - lets you easily change the mix chambers without tools
• Ergonomic handle

• Model: Fusion AP
• Series: Wide

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35

• Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam

• Fluid Orifice Size (cm): 0.074
• Fluid Orifice Size (in): 0.029
• Fluid Orifice Size (mm): 0.74

• Gun Type: Air Purge Gun
• Gun Weight (kg): 1.1
• Gun Weight (lb): 2.5

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate @ PSI (lb/min): 50

• Maximum Fluid Pressure (bar): 245
• Maximum Fluid Pressure (kPa): 24500
• Maximum Fluid Pressure (MPa): 24.5
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 94
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Pressure (bar): 245
• Maximum Fluid Pressure (kPa): 24500
• Maximum Fluid Pressure (MPa): 24.5
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 94
• Maximum Fluid Temperature (°F): 200

• Minimum Air Inlet Pressure (bar): 5.6
• Minimum Air Inlet Pressure (kPa): 560
• Minimum Air Inlet Pressure (MPa): 0.56
• Minimum Air Inlet Pressure (psi): 80

• Mix Chamber: 00 (.029)

• Overall Height (cm): 20.6
• Overall Height (in): 8.1
• Overall Height (mm): 206
• Overall Length (cm): 19.1
• Overall Length (in): 7.5
• Overall Length (mm): 191
• Overall Width (cm): 8.4
• Overall Width (in): 3.3
• Overall Width (mm): 84

• Pattern Size (in): 15 in @ 24 in from target

GG 25B021

APPLICATOR, GM100, SINGLE, 24VDC, PT100

Graco 25B021 GM100 Single Slim 24 VDC Applicator with Pt 100 RTD

With the InvisiPac Hot Melt Adhesive Applicator, you'll experience a new era in hassle-free operation with improved uptime. With its innovative free-flow manifold design and integrated applicator filtering – when used with the InvisiPac System – you can eliminate nozzle plugs. You'll finally have a hot melt system that runs reliably, unnoticed and invisible.

• Adhesive is processed in a better way

  The applicators free-flow manifold design is engineered to eliminate dead zones where char will build up

  Module includes an integrated filter assembly near the ball and seat junction that eliminates nozzle plugging

  Adhesive spends less time at high temperature, resulting in less char

  Changes in the heated hose construction significantly reduce the formation of char in the hose itself

  Less char allows you to use lower cost adhesives and save money

  • Works with the InvisiPac Tank-Free Hot Melt Delivery System
  • Quick start-up - ready in less than 10 minutes
  • Less char results in less nozzle plugging, less system maintenance and more uptime




  • Model: InvisiPac
  • Series: GM100
  • Ambient/Warm Melt/Hot Melt: Hot Melt
  • Application: Bonding, Sealing
  • Component Type: Single Component
  • For Use With: InvisiPac GM100 Plug-Free
  • Gun Activation: Automatic
  • Includes: Manual
  • Maximum Air Pressure (bar): 5.5
  • Maximum Air Pressure (kg/cm²): 5.62
  • Maximum Air Pressure (kPa): 550
  • Maximum Air Pressure (MPa): 0.5
  • Maximum Air Pressure (psi): 80
  • Maximum Fluid Pressure (bar): 103
  • Maximum Fluid Pressure (kg/cm²): 105.46
  • Maximum Fluid Pressure (kPa): 10300
  • Maximum Fluid Pressure (MPa): 10.3
  • Maximum Fluid Pressure (psi): 1500
  • Maximum Fluid Pressure (bar): 103
  • Maximum Fluid Pressure (kg/cm²): 105.46
  • Maximum Fluid Pressure (kPa): 10300
  • Maximum Fluid Pressure (MPa): 10.3
  • Maximum Fluid Pressure (psi): 1500
  • Meter Type: Time Pressure
  • Minimum Air Inlet Pressure (bar): 4.4
  • Minimum Air Inlet Pressure (kg/cm²): 4.57
  • Minimum Air Inlet Pressure (kPa): 440
  • Minimum Air Inlet Pressure (MPa): 0.44
  • Minimum Air Inlet Pressure (psi): 65
  • Number of Modules: 1
  • Number of Outputs: 1

GG 25E217

GG 25R085

GG 25U291

GG 295540

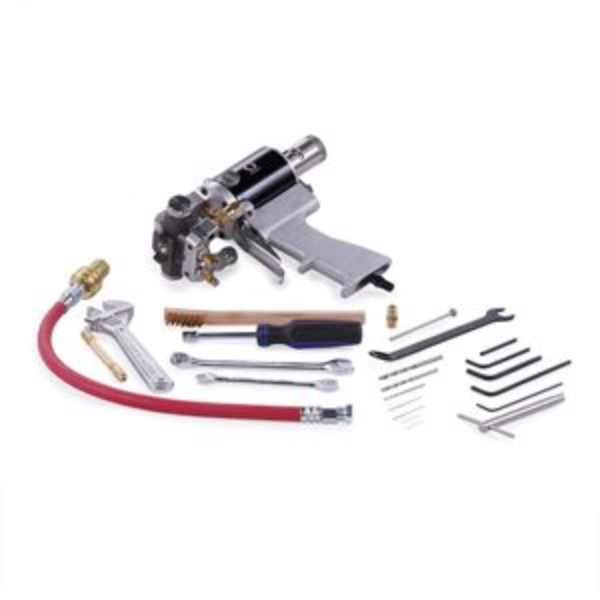

GX-7 GUN, GX-7 400

Graco 295540 Gusmer GX-7 400 Spray Gun

The GX7-400 Gun is the same as a standard GX-7, but features a shorter stroke length. This is important for fast-setting polyureas because the material spends less time in the gun.

• A variety of mixing chamber sizes allows the operator to fine-tune the round spray pattern for virtually any application
• Lightweight, easy to operate and maintain
• Mechanically self-cleaning so you eliminate costly solvent-flushing
• Lightweight design reduces operator fatigue
• Pattern control knob allows for fine tune adjustments

• Model: GX-7
• Series: 400

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPT

• Compatible Material: Polyurethane, Roof Coating, Plural Component Protective Coating, Polyurea, Elastomeric Coating, Spray Polyurethane Foam
• Component A Inlet Size (cm): 1.27

• Component A Inlet Size (in): 1/2-20
• Component A Inlet Size (mm): 12.7
• Component A Inlet Thread Type: UNF
• Component B Inlet Size (cm): 1.42875
• Component B Inlet Size (in): 9/16
• Component B Inlet Size (mm): 14.2875
• Component B Inlet Thread Type: UNF

• Gun Activation: Manual
• Gun Model: GX-7
• Gun Type: Mechanical-Purge
• Gun Weight (g): 1860
• Gun Weight (kg): 1.9
• Gun Weight (lb): 4.1
• Gun Weight (oz): 65.6

• Includes: Mix Module, Tip

• Maximum Air Inlet Pressure (bar): 8.6
• Maximum Air Inlet Pressure (kPa): 860
• Maximum Air Inlet Pressure (MPa): 0.86
• Maximum Air Inlet Pressure (psi): 125
• Maximum Air Pressure (bar): 8.6

• Maximum Air Pressure (kPa): 860
• Maximum Air Pressure (MPa): 0.86
• Maximum Air Pressure (psi): 125

• Maximum Flow Rate (kg/min): 3.6
• Maximum Flow Rate (lb/min): 8

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500

• Maximum Fluid Working Pressure (bar): 240
• Maximum Fluid Working Pressure (MPa): 24
• Maximum Fluid Working Pressure (psi): 3500

• Minimum Air Inlet Pressure (bar): 6.9
• Minimum Air Inlet Pressure (kPa): 690
• Minimum Air Inlet Pressure (MPa): 0.69
• Minimum Air Inlet Pressure (psi): 100

• Minimum Flow Rate (kg/min): 1.6
• Minimum Flow Rate (lb/min): 3.5

• Overall Height (cm): 24
• Overall Height (in): 9.5
• Overall Height (mm): 240
• Overall Length (cm): 23
• Overall Length (in): 9
• Overall Length (mm): 230
• Overall Width (cm): 11
• Overall Width (in): 4.5
• Overall Width (mm): 110

• Pattern Size (in): 16 in @ 18 in from target
• Pattern Size (mm): 406.4

• Pressure Type: High Pressure

• Purge Method: Mechanical

GG 297832

GG CS22WD

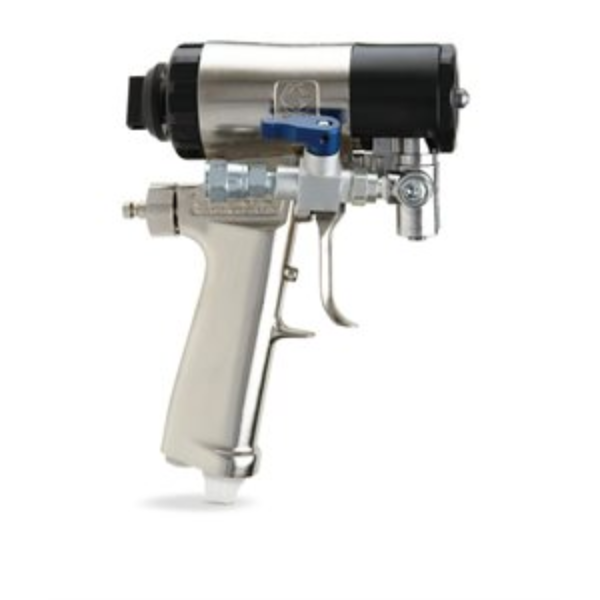

FUSION CS GUN, WD2222

Graco CS22WD Fusion CS Gun, 8-9 in (203-229 mm) Wide Round Spray Pattern, 0.022 in (0.56 mm) Mix Chamber

ClearShot Technology sets the Fusion CS gun apart from every other applicator. With its revolutionary technology, the Fusion CS is poised to virtually eliminate drilling of the mix chamber - increasing your spraying uptime and reducing downtime spent on maintenance. Flexible for polyurea and foam applications, this gun provides you with versatile advantages.

• New technology comprised of ClearShot Liquid and disposable, non-reusable ClearShot Cartridge
• Removes foam and keeps mix chamber clear
• Saves almost an hour of maintenance time each spray day
• Easy-to-insert cartridge fits into ergonomic handle
• Variable flow - an industry first

  First plural-component gun with variable flow

  Switch from large to small spray patterns in seconds

  Gives you more maneuverability to spray in small, tight areas

  Ten different settings

  • Quick-change front - simpler and cleaner

    Swap out fluid heads in seconds

    Non-stick polymer cover keeps gun head cleaner

    Air knifereduces material build-up

    Fast and simple change-outs put an end to lengthy interruptions and keep jobs on schedule




    • Model: Fusion CS
    • Series: Round
    • Air Inlet Size (cm): 0.635
    • Air Inlet Size (in): 1/4
    • Air Inlet Size (mm): 6.35
    • Air Inlet Thread Gender: Male
    • Air Inlet Thread Type: NPT
    • Compatible Material: Polyurethane, Polyurea, Spray Polyurethane Foam, No-Heat Foam
    • Component A Inlet Size (cm): 1.27
    • Component A Inlet Size (in): 1/2-20
    • Component A Inlet Size (mm): 12.7
    • Component A Inlet Thread Type: UNF
    • Component B Inlet Size (cm): 1.42875
    • Component B Inlet Size (in): 9/16-18
    • Component B Inlet Size (mm): 14.2875
    • Component B Inlet Thread Type: UNF
    • Component Type: Plural-Component
    • Fluid Orifice Size (cm): 0.056
    • Fluid Orifice Size (in): 0.022
    • Fluid Orifice Size (mm): 0.56
    • For Use With: Non-Flammable Foam and Polyurea
    • Gun Activation: Manual
    • Gun Type: Liquid-Purge
    • Gun Weight (g): 1180
    • Gun Weight (kg): 1.18
    • Gun Weight (lb): 2.6
    • Gun Weight (oz): 41.6
    • Impingement Port Size (in): 0.022
    • Impingement Port Size (mm): 0.56
    • Includes: Mix Chamber
    • Maximum Air Inlet Pressure (bar): 9
    • Maximum Air Inlet Pressure (kPa): 900
    • Maximum Air Inlet Pressure (MPa): 0.9
    • Maximum Air Inlet Pressure (psi): 130
    • Maximum Air Pressure (bar): 9
    • Maximum Air Pressure (kPa): 900
    • Maximum Air Pressure (MPa): 0.9
    • Maximum Air Pressure (psi): 130
    • Maximum Flow Rate (kg/min): 11.3
    • Maximum Flow Rate (lb/min): 25
    • Maximum Flow Rate @ PSI (lb/min): 25
    • Maximum Fluid Pressure (bar): 241
    • Maximum Fluid Pressure (kPa): 24100
    • Maximum Fluid Pressure (MPa): 24.1
    • Maximum Fluid Pressure (psi): 3500
    • Maximum Fluid Temperature (°C): 93
    • Maximum Fluid Temperature (°F): 200
    • Maximum Fluid Pressure (bar): 241
    • Maximum Fluid Pressure (kPa): 24100
    • Maximum Fluid Pressure (MPa): 24.1

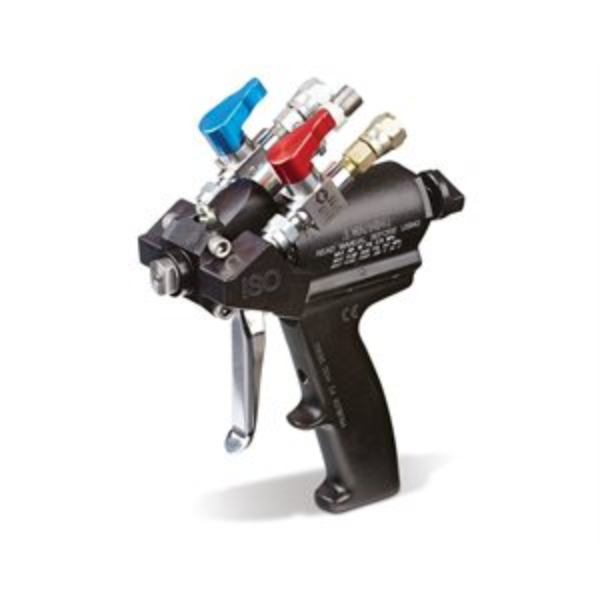

GG GCP2R3

P2 GUN

Graco GCP2R3 Probler P2 Gun Assembly with 03 Mix Chamber Kit

The Probler P2 Gun is lightweight and easy to maneuver - even in difficult spraying positions. Its double piston design provides more than 300 pounds (136 kg) of triggering force - much more than a smaller piston diameter. The Probler P2 reduces maintenance, increases spraying uptime and is easy to use.

• Easy daily maintenance
• Responsive trigger action
• Easy-to-replace mix chamber insert
• Ergonomic handle and balanced design

• Model: P2
• Series: Standard

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4-18
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPSM

• Compatible Material: Adhesives, Polyurethane, Roof Coating, Polyurea, Polyurethane Coating
• Component A Inlet Size (cm): 1.27

• Component A Inlet Size (in): 1/2-20
• Component A Inlet Size (mm): 12.7
• Component A Inlet Thread Type: UNF
• Component B Inlet Size (cm): 1.11125
• Component B Inlet Size (in): 7/16-18
• Component B Inlet Size (mm): 11.1125
• Component B Inlet Thread Type: UNF
• Component Type: Plural-Component

• Fluid Orifice Size (cm): 0.152
• Fluid Orifice Size (in): 0.060
• Fluid Orifice Size (mm): 1.52

• Gun Activation: Manual
• Gun Series: Standard
• Gun Type: Air-Purge
• Gun Weight (g): 1770
• Gun Weight (kg): 1.77
• Gun Weight (lb): 3.9
• Gun Weight (oz): 32.4

• Maximum Air Inlet Pressure (bar): 7.6
• Maximum Air Inlet Pressure (kPa): 760
• Maximum Air Inlet Pressure (MPa): 0.76
• Maximum Air Inlet Pressure (psi): 110
• Maximum Air Pressure (bar): 7.6

• Maximum Air Pressure (kPa): 760
• Maximum Air Pressure (MPa): 0.76
• Maximum Air Pressure (psi): 110

• Maximum Flow Rate (kg/min): 18
• Maximum Flow Rate (lb/min): 40

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Working Pressure (bar): 221
• Maximum Fluid Working Pressure (MPa): 22.1
• Maximum Fluid Working Pressure (psi): 3200

• Minimum Air Inlet Pressure (bar): 6.2
• Minimum Air Inlet Pressure (kPa): 620
• Minimum Air Inlet Pressure (MPa): 0.62
• Minimum Air Inlet Pressure (psi): 90

• Minimum Flow Rate (kg/min): 1.4
• Minimum Flow Rate (lb/min): 3

• Mix Chamber: 03 (.060)

• Overall Height (cm): 12.1
• Overall Height (in): 4.75
• Overall Height (mm): 121
• Overall Length (cm): 7.9
• Overall Length (in): 3.125
• Overall Length (mm): 79
• Overall Width (cm): 17.4
• Overall Width (in): 6.875
• Overall Width (mm):

GG GCP2RA

P2 GUN

Graco GCP2RA Probler P2 Gun Assembly with AA Mix Chamber Kit

The Probler P2 Gun is lightweight and easy to maneuver - even in difficult spraying positions. Its double piston design provides more than 300 pounds (136 kg) of triggering force - much more than a smaller piston diameter. The Probler P2 reduces maintenance, increases spraying uptime and is easy to use.

• Easy daily maintenance
• Responsive trigger action
• Easy-to-replace mix chamber insert
• Ergonomic handle and balanced design

• Model: P2
• Series: Standard

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4-18
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPSM

• Compatible Material: Adhesives, Polyurethane, Roof Coating, Polyurea, Polyurethane Coating
• Component A Inlet Size (cm): 1.27

• Component A Inlet Size (in): 1/2-20
• Component A Inlet Size (mm): 12.7
• Component A Inlet Thread Type: UNF
• Component B Inlet Size (cm): 1.11125
• Component B Inlet Size (in): 7/16-18
• Component B Inlet Size (mm): 11.1125
• Component B Inlet Thread Type: UNF
• Component Type: Plural-Component

• Fluid Orifice Size (cm): 0.091
• Fluid Orifice Size (in): 0.036
• Fluid Orifice Size (mm): 0.91

• Gun Activation: Manual
• Gun Series: Standard
• Gun Type: Air-Purge
• Gun Weight (g): 1770
• Gun Weight (kg): 1.77
• Gun Weight (lb): 3.9
• Gun Weight (oz): 32.4

• Maximum Air Inlet Pressure (bar): 7.6
• Maximum Air Inlet Pressure (kPa): 760
• Maximum Air Inlet Pressure (MPa): 0.76
• Maximum Air Inlet Pressure (psi): 110
• Maximum Air Pressure (bar): 7.6

• Maximum Air Pressure (kPa): 760
• Maximum Air Pressure (MPa): 0.76
• Maximum Air Pressure (psi): 110

• Maximum Flow Rate (kg/min): 18
• Maximum Flow Rate (lb/min): 40

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Working Pressure (bar): 221
• Maximum Fluid Working Pressure (MPa): 22.1
• Maximum Fluid Working Pressure (psi): 3200

• Minimum Air Inlet Pressure (bar): 6.2
• Minimum Air Inlet Pressure (kPa): 620
• Minimum Air Inlet Pressure (MPa): 0.62
• Minimum Air Inlet Pressure (psi): 90

• Minimum Flow Rate (kg/min): 1.4
• Minimum Flow Rate (lb/min): 3

• Mix Chamber: AA (0.036)

• Overall Height (cm): 12.1
• Overall Height (in): 4.75
• Overall Height (mm): 121
• Overall Length (cm): 7.9
• Overall Length (in): 3.125
• Overall Length (mm): 79
• Overall Width (cm): 17.4
• Overall Width (in): 6.875
• Overall Width (mm)

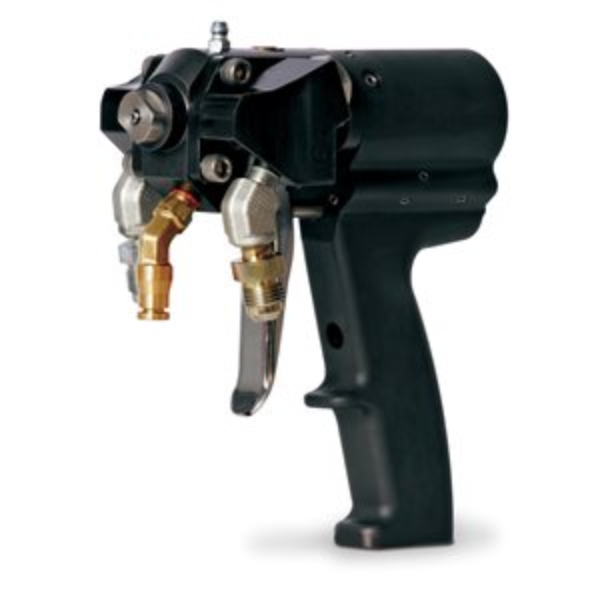

GG GCP3R0

P2 GUN, ASSY, GUN, PROBLER ELITE

Graco GCP3R0 Probler P2 Elite Gun Assembly with 00 Mix Chamber Kit

The Probler P2 Gun is lightweight and easy to maneuver - even in difficult spraying positions. Its double piston design provides more than 300 pounds (136 kg) of triggering force - much more than a smaller piston diameter. The Probler P2 reduces maintenance, increases spraying uptime and is easy to use.

• Easy daily maintenance
• Responsive trigger action
• Easy-to-replace mix chamber insert
• Ergonomic handle and balanced design
• Allows use of additional accessories
• Alternate side block hose routings
• Allows filters to be easily removed

• Model: P2
• Series: Elite

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4-18
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPT

• Compatible Material: Adhesives, Polyurethane, Roof Coating, Polyurea, Polyurethane Coating
• Component A Inlet Size (cm): 1.27

• Component A Inlet Size (in): 1/2-20
• Component A Inlet Size (mm): 12.7
• Component A Inlet Thread Type: UNF
• Component B Inlet Size (cm): 1.11125
• Component B Inlet Size (in): 7/16-18
• Component B Inlet Size (mm): 11.1125
• Component B Inlet Thread Type: UNF
• Component Type: Plural-Component

• Fluid Orifice Size (cm): 0.074
• Fluid Orifice Size (in): 0.029
• Fluid Orifice Size (mm): 0.74

• Gun Activation: Manual
• Gun Series: Elite
• Gun Type: Air-Purge
• Gun Weight (g): 1770
• Gun Weight (kg): 1.77
• Gun Weight (lb): 3.9
• Gun Weight (oz): 32.4

• Maximum Air Inlet Pressure (bar): 7.6
• Maximum Air Inlet Pressure (kPa): 760
• Maximum Air Inlet Pressure (MPa): 0.76
• Maximum Air Inlet Pressure (psi): 110
• Maximum Air Pressure (bar): 7.6

• Maximum Air Pressure (kPa): 760
• Maximum Air Pressure (MPa): 0.76
• Maximum Air Pressure (psi): 110

• Maximum Flow Rate (kg/min): 18
• Maximum Flow Rate (lb/min): 40

• Maximum Fluid Pressure (bar): 220
• Maximum Fluid Pressure (kPa): 22000
• Maximum Fluid Pressure (MPa): 22
• Maximum Fluid Pressure (psi): 3200
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Pressure (bar): 220
• Maximum Fluid Pressure (kPa): 22000
• Maximum Fluid Pressure (MPa): 22
• Maximum Fluid Pressure (psi): 3200
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Working Pressure (bar): 221
• Maximum Fluid Working Pressure (MPa): 22.1
• Maximum Fluid Working Pressure (psi): 3200

• Minimum Air Inlet Pressure (bar): 6.2
• Minimum Air Inlet Pressure (kPa): 620
• Minimum Air Inlet Pressure (MPa): 0.62
• Minimum Air Inlet Pressure (psi): 90

• Minimum Flow Rate (kg/min): 1.4
• Minimum Flow Rate (lb/min): 3

• Mix Chamber: 00 (.029)

• Overall Height (cm): 12.1
• Overall Height (in): 4.75
• Overall Height (mm): 121
• Overall Length (cm): 7.9
• Overall Length (in): 3.1

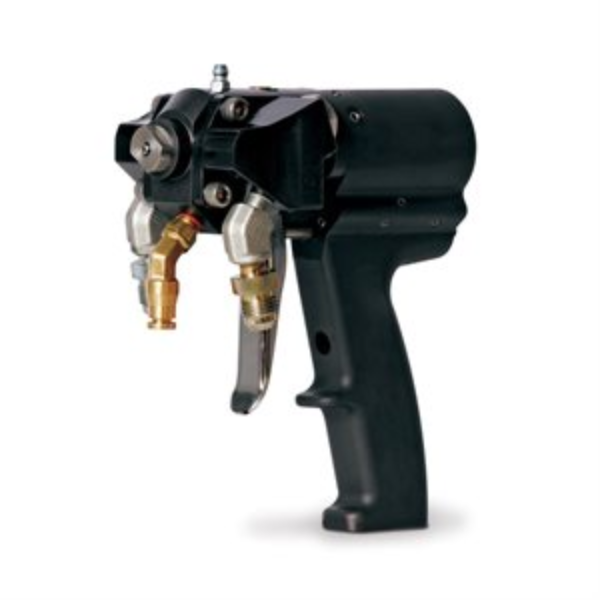

GG GCP3R1

P2 GUN, ASSY, GUN, PROBLER ELITE

Graco GCP3R1 Probler P2 Elite Gun Assembly with 01 Mix Chamber Kit

The Probler P2 Gun is lightweight and easy to maneuver - even in difficult spraying positions. Its double piston design provides more than 300 pounds (136 kg) of triggering force - much more than a smaller piston diameter. The Probler P2 reduces maintenance, increases spraying uptime and is easy to use.

• Easy daily maintenance
• Responsive trigger action
• Easy-to-replace mix chamber insert
• Ergonomic handle and balanced design
• Allows use of additional accessories
• Alternate side block hose routings
• Allows filters to be easily removed

• Model: P2
• Series: Elite

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPT

• Applicator Type: Manual

• Compatible Material: Adhesives, Polyurethane, Roof Coating, Polyurea, Polyurethane Coating
• Component A Inlet Size (cm): 1.27

• Component A Inlet Size (in): 1/2-20
• Component A Inlet Size (mm): 12.7
• Component A Inlet Thread Type: UNF
• Component B Inlet Size (cm): 1.11125
• Component B Inlet Size (in): 7/16-18
• Component B Inlet Size (mm): 11.1125
• Component B Inlet Thread Type: UNF
• Component Type: Plural-Component

• Fluid Orifice Size (cm): 0.107
• Fluid Orifice Size (in): 0.042
• Fluid Orifice Size (mm): 1.07

• For Use With: Reactor Plural Component Proportioner, Reactor Spray Foam and Coatings Equipment

• Gun Activation: Manual
• Gun Included: 1
• Gun Series: Elite
• Gun Type: Air-Purge
• Gun Weight (g): 1770
• Gun Weight (kg): 1.77
• Gun Weight (lb): 3.9
• Gun Weight (oz): 32.4

• Maximum Air Inlet Pressure (bar): 7.6
• Maximum Air Inlet Pressure (kPa): 760
• Maximum Air Inlet Pressure (MPa): 0.76
• Maximum Air Inlet Pressure (psi): 110
• Maximum Air Pressure (bar): 7.6

• Maximum Air Pressure (kPa): 760
• Maximum Air Pressure (MPa): 0.76
• Maximum Air Pressure (psi): 110

• Maximum Flow Rate (kg/min): 18
• Maximum Flow Rate (lb/min): 40

• Maximum Fluid Pressure (bar): 220
• Maximum Fluid Pressure (kPa): 22000
• Maximum Fluid Pressure (MPa): 22
• Maximum Fluid Pressure (psi): 3200
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Pressure (bar): 220
• Maximum Fluid Pressure (kPa): 22000
• Maximum Fluid Pressure (MPa): 22
• Maximum Fluid Pressure (psi): 3200
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Working Pressure (bar): 220
• Maximum Fluid Working Pressure (MPa): 22
• Maximum Fluid Working Pressure (psi): 3200

• Minimum Air Inlet Pressure (bar): 6.2
• Minimum Air Inlet Pressure (kPa): 620
• Minimum Air Inlet Pressure (MPa): 0.62
• Minimum Air Inlet Pressure (psi): 90

• Minimum Flow Rate (kg/min): 1.4
• Minimum Flow Rate (lb/min): 3

• Mix Chamber: 01 (.042)

<

GG GCP3RA

P2 GUN, ASSY, GUN, PROBLER ELITE

Graco GCP3RA Probler P2 Elite Gun Assembly with AA Mix Chamber Kit

The Probler P2 Gun is lightweight and easy to maneuver - even in difficult spraying positions. Its double piston design provides more than 300 pounds (136 kg) of triggering force - much more than a smaller piston diameter. The Probler P2 reduces maintenance, increases spraying uptime and is easy to use.

• Easy daily maintenance
• Responsive trigger action
• Easy-to-replace mix chamber insert
• Ergonomic handle and balanced design
• Allows use of additional accessories
• Alternate side block hose routings
• Allows filters to be easily removed

• Model: P2
• Series: Elite

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4-18
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPT

• Compatible Material: Adhesives, Polyurethane, Roof Coating, Polyurea, Polyurethane Coating
• Component A Inlet Size (cm): 1.27

• Component A Inlet Size (in): 1/2-20
• Component A Inlet Size (mm): 12.7
• Component A Inlet Thread Type: UNF
• Component B Inlet Size (cm): 1.11125
• Component B Inlet Size (in): 7/16-18
• Component B Inlet Size (mm): 11.1125
• Component B Inlet Thread Type: UNF
• Component Type: Plural-Component

• Fluid Orifice Size (cm): 0.091
• Fluid Orifice Size (in): 0.036
• Fluid Orifice Size (mm): 0.91

• Gun Activation: Manual
• Gun Series: Elite
• Gun Type: Air-Purge
• Gun Weight (g): 1770
• Gun Weight (kg): 1.77
• Gun Weight (lb): 3.9
• Gun Weight (oz): 32.4

• Maximum Air Inlet Pressure (bar): 7.6
• Maximum Air Inlet Pressure (kPa): 760
• Maximum Air Inlet Pressure (MPa): 0.76
• Maximum Air Inlet Pressure (psi): 110
• Maximum Air Pressure (bar): 7.6

• Maximum Air Pressure (kPa): 760
• Maximum Air Pressure (MPa): 0.76
• Maximum Air Pressure (psi): 110

• Maximum Flow Rate (kg/min): 18
• Maximum Flow Rate (lb/min): 40

• Maximum Fluid Pressure (bar): 220
• Maximum Fluid Pressure (kPa): 22000
• Maximum Fluid Pressure (MPa): 22
• Maximum Fluid Pressure (psi): 3200
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Pressure (bar): 220
• Maximum Fluid Pressure (kPa): 22000
• Maximum Fluid Pressure (MPa): 22
• Maximum Fluid Pressure (psi): 3200
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Working Pressure (bar): 221
• Maximum Fluid Working Pressure (MPa): 22.1
• Maximum Fluid Working Pressure (psi): 3200

• Minimum Air Inlet Pressure (bar): 6.2
• Minimum Air Inlet Pressure (kPa): 620
• Minimum Air Inlet Pressure (MPa): 0.62
• Minimum Air Inlet Pressure (psi): 90

• Minimum Flow Rate (kg/min): 1.4
• Minimum Flow Rate (lb/min): 3

• Mix Chamber: AA (0.036)

• Overall Height (cm): 12.1
• Overall Height (in): 4.75
• Overall Height (mm): 121
• Overall Length (cm): 7.9
• Overall Length (in): 3.

LN 1133

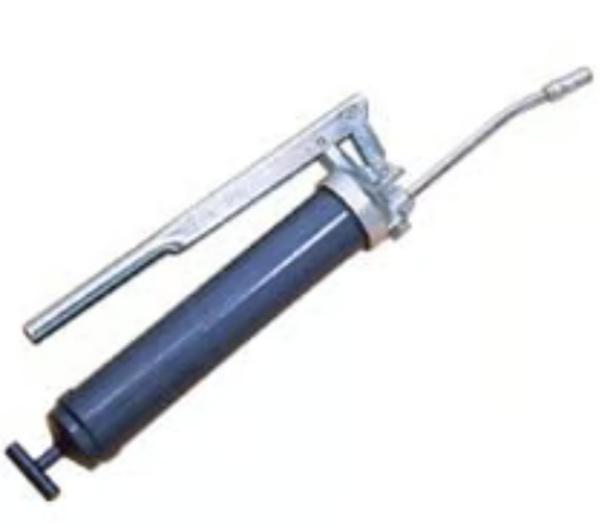

LN 1142

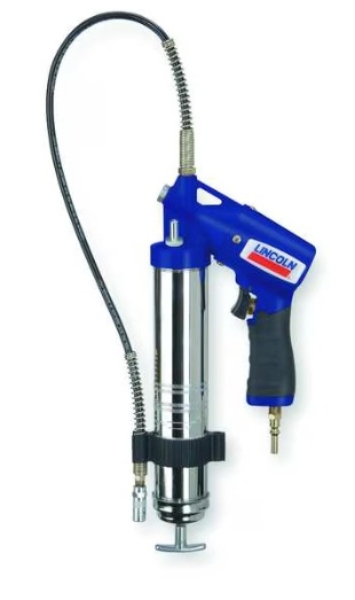

LN 1162
