GX-7 GUN, GX-7A 1/90

Manufacturer: GRACO INC. S10595

GG 295542

GX-7 GUN, GX-7A 1/90

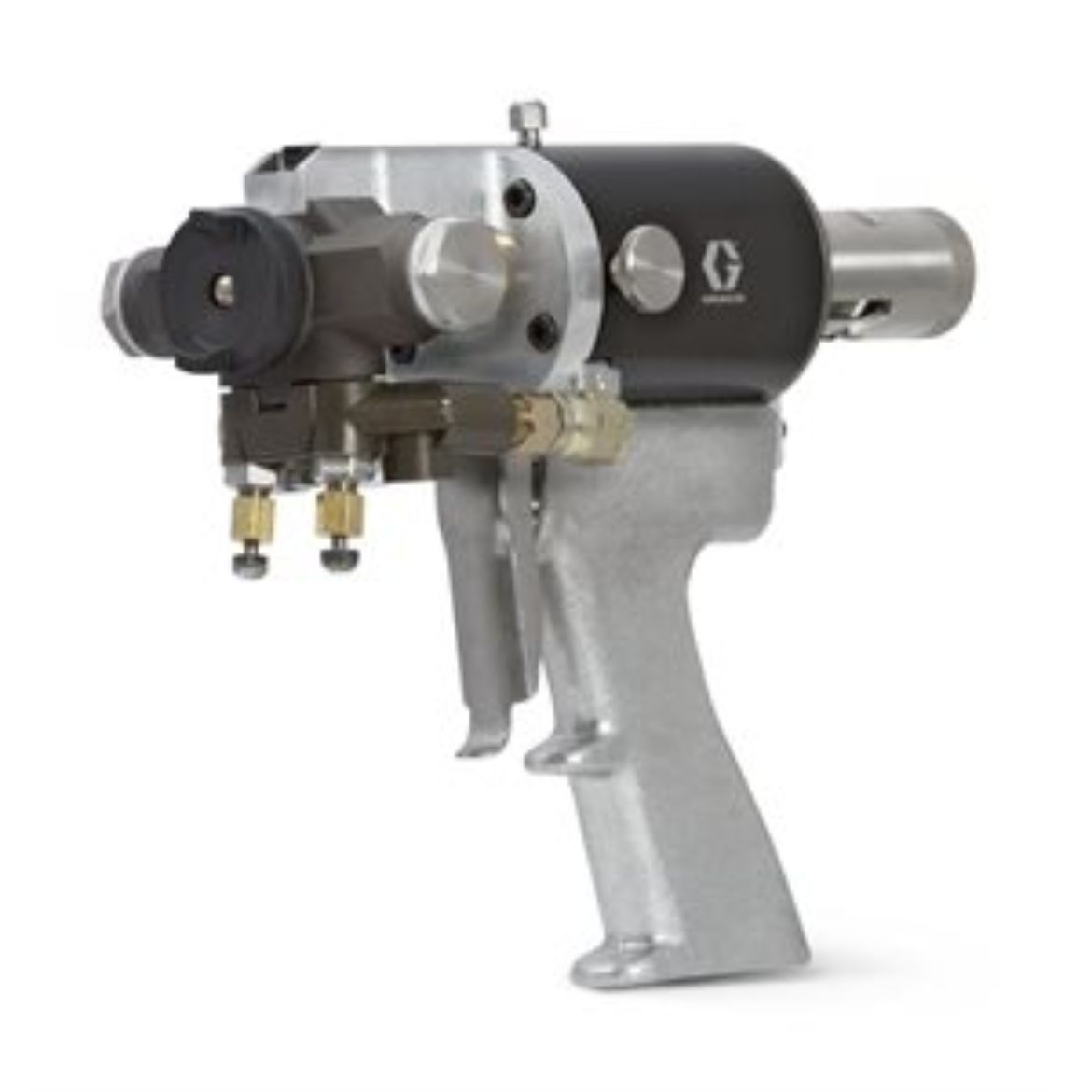

Graco 295542 Gusmer GX-7A Spray Gun - 1/90

Graco’s GX-7 gun is the industries preferred roofing application gun. Ideal for concrete lifting applications since the mechanical-purge operation eliminates back pressure related issues.

Application: Ideal for low to medium output foam applications.
  • A variety of mixing chamber sizes allows the operator to fine-tune the round spray pattern for virtually any application
  • Lightweight, easy to operate and maintain
  • Mechanically self-cleaning so you eliminate costly solvent-flushing
  • Lightweight design reduces operator fatigue
  • Pattern control knob allows for fine tune adjustments


  • Model: GX-7
  • Series: Standard
  • Air Inlet Size (cm): 0.635
  • Air Inlet Size (in): 1/4
  • Air Inlet Size (mm): 6.35
  • Air Inlet Thread Type: NPT
  • Applicator Type: Manual
  • Bleed Type: Bleeder
  • Compatible Material: Polyurethane, Roof Coating, Plural Component Protective Coating, Polyurea, Elastomeric Coating, Spray Polyurethane Foam
  • Component A Inlet Size (cm): 1.27
  • Component A Inlet Size (in): 1/2
  • Component A Inlet Size (mm): 12.7
  • Component A Inlet Thread Type: UNF
  • Component B Inlet Size (cm): 1.42875
  • Component B Inlet Size (in): 9/16-18
  • Component B Inlet Size (mm): 14.2875
  • Component B Inlet Thread Type: UNF
  • Component Type: Plural-Component
  • For Use With: Mobile Spray Rig
  • Gun Activation: Manual
  • Gun Included: 1
  • Gun Model: GX-7
  • Gun Type: Mechanical-Purge
  • Gun Weight (g): 1860
  • Gun Weight (kg): 1.9
  • Gun Weight (lb): 4.1
  • Gun Weight (oz): 65.6
  • Includes: Mix Module, Tip
  • Maximum Air Inlet Pressure (bar): 8.6
  • Maximum Air Inlet Pressure (kPa): 860
  • Maximum Air Inlet Pressure (MPa): 0.86
  • Maximum Air Inlet Pressure (psi): 125
  • Maximum Air Pressure (bar): 8.6
  • Maximum Air Pressure (kPa): 860
  • Maximum Air Pressure (MPa): 0.86
  • Maximum Air Pressure (psi): 125
  • Maximum Flow Rate (kg/min): 18
  • Maximum Flow Rate (lb/min): 40
  • Maximum Fluid Pressure (bar): 241
  • Maximum Fluid Pressure (kPa): 24100
  • Maximum Fluid Pressure (MPa): 24.1
  • Maximum Fluid Pressure (psi): 3500
  • Maximum Fluid Pressure (bar): 241
  • Maximum Fluid Pressure (kPa): 24100
  • Maximum Fluid Pressure (MPa): 24.1
  • Maximum Fluid Pressure (psi): 3500
  • Maximum Fluid Working Pressure (bar): 240
  • Maximum Fluid Working Pressure (MPa): 24
  • Maximum Fluid Working Pressure (psi): 3500
  • Minimum Air Inlet Pressure (bar): 6.9
  • Minimum Air Inlet Pressure (kPa): 690
  • Minimum Air Inlet Pressure (MPa): 0.69
  • Minimum Air Inlet Pressure (psi): 100
  • Minimum Flow Rate (kg/min): 1.6
  • Minimum Flow Rate (lb/min): 3.5
  • Overall Height (cm): 24
  • Overall Height (in): 9.5
  • Overall Height (mm): 240
  • Overall Length (cm): 23
  • Overall Length
SKU: GG 295542
Availability:
Price: $5,080.00
