E-Series Pump,Resv Assy Grs Ll

GG 563364

E-SERIES PUMP, RESV ASSY GRS LL

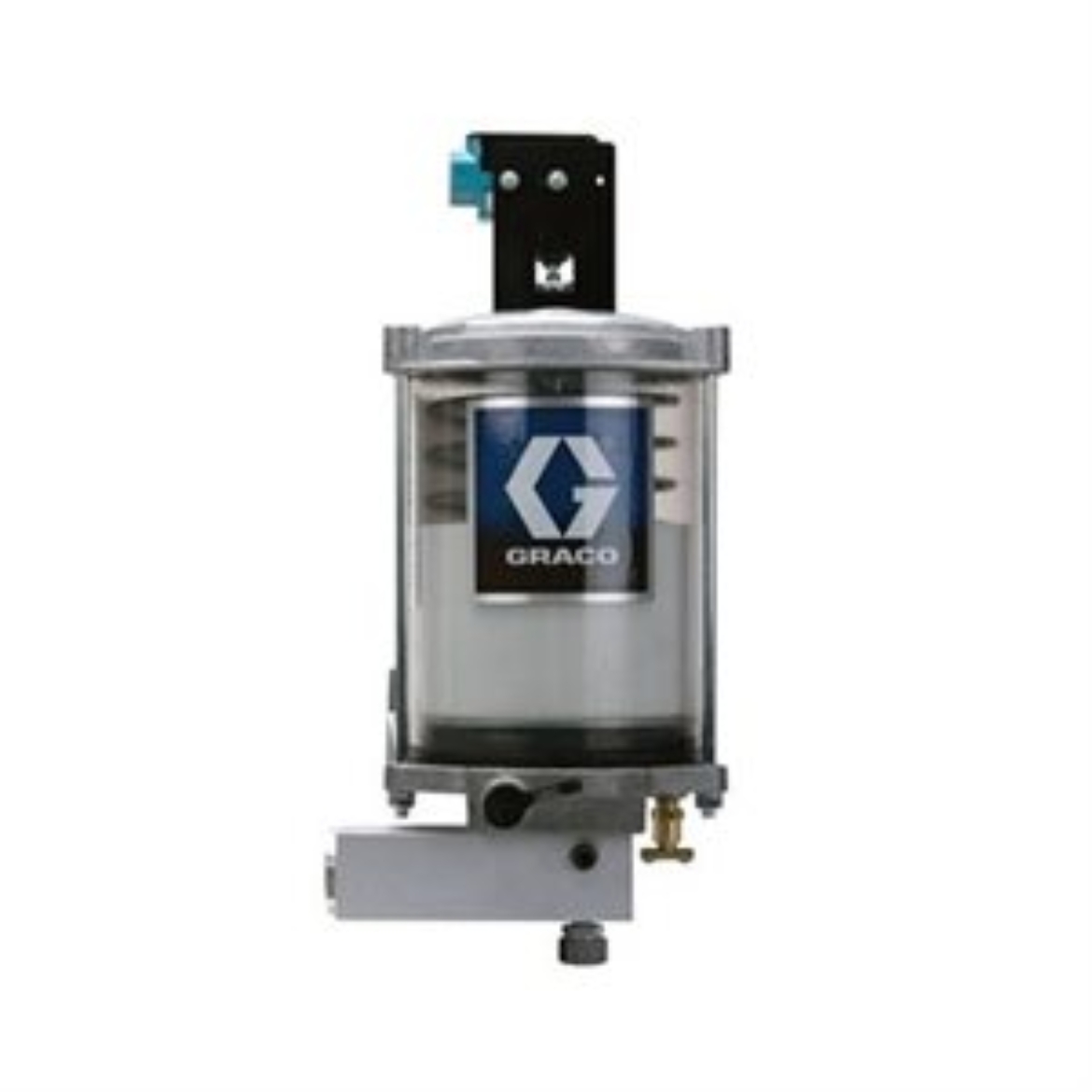

Graco 563364 E-Series Pump with 6 lb. (2.72 kg) Plastic Cylindrical Grease Reservoir, Low Level Switch with 2350 psi (162 bar) Rupture Disc

The E-Series pump is a great, minimum cost, entry level alternative to standard pneumatic pump products. This all-in-one pump package comes complete with no assembly required and is easy to install. All pump packages include high-pressure rupture disc assembly and lube outlet check valve. Great for any application where price is a concern and installation time is at a premium.

• Easy field installation of accessories without disturbing existing plumbing
• Smart pump design with few moving parts ensures long-lasting dependability
• Lubriquip part number 521-300-670

• Model: E-Series

• Application: In-Plant Machinery

• Compatible Material: Grease
• Compatible Metering Device: Series Progressive

• Fluid Outlet Size (in): 0.5
• Fluid Outlet Size (mm): 12.7000
• Fluid Outlet Thread Type: NPSF

• Includes: E-Series Pump, Plastic Cylindrical Grease Reservoir, Low Level Switch, Rupture Disc

• Material: Aluminum, Plastic

• Maximum Air Inlet Pressure (bar): 10.34
• Maximum Air Inlet Pressure (kPa): 1034
• Maximum Air Inlet Pressure (psi): 150

• Maximum cST Grade (cST): 30000
• Maximum Cycle Rate (CPM): 10

• Maximum Fluid Output Pressure (bar): 138
• Maximum Fluid Output Pressure (psi): 2000

• Maximum Fluid Output Pressure (bar): 138
• Maximum Fluid Output Pressure (psi): 2000

• Maximum NLGI Grade: #2

• Maximum Working Pressure (bar): 137.9
• Maximum Working Pressure (kPa): 13790
• Maximum Working Pressure (MPa): 13.8
• Maximum Working Pressure (psi): 2000

• Minimum Air Inlet Pressure (psi): 40

• Overall Depth (cm): 22.4
• Overall Depth (in): 8.81
• Overall Depth (mm): 224

• Overall Height (cm): 26.7
• Overall Height (in): 10.5
• Overall Height (mm): 267
• Overall Width (cm): 18.4
• Overall Width (in): 7.25
• Overall Width (mm): 184

• Power Type: Pneumatic
