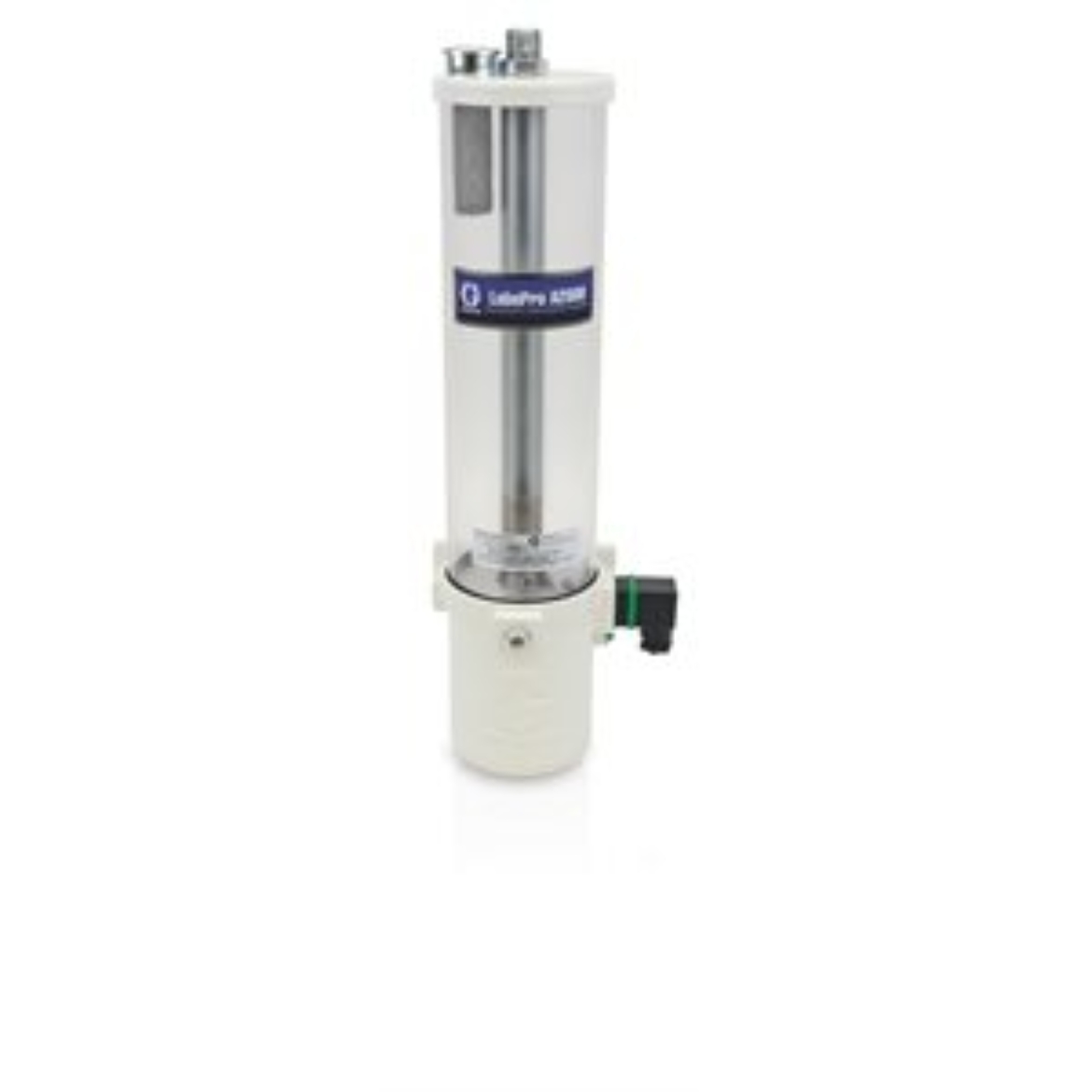

LubePro A2800 Vertical Oil Pumps, 2 liter Reservoir, Normally Closed, Low Level -NPT

GG 24Z028

LUBEPRO A2800 PUMP, OIL, 2.0L, N.C, LL

Graco 24Z028 LubePro A2800 Vertical Oil Pumps, 2 liter Reservoir, Normally Closed, Low Level - NPT

Without proper lubrication your factorys machines can suffer from downtime and reduced life, which impacts your companys bottom line. Avoid the hassle. LubePro series leverages the same proven quality and leading technology as Gracos Fire-Ball pump - the leader in durability and quality for over 50 years.

• LubePro A2800 is compatible with GL-1, GL-32 and GL-33 injectors
• Pressure Ratio of 28:1
• A2800 delivers a greater output than competitive models at 0.56 in cu (9.18 cm cu ) per stroke
• Factory installed Low Level Detection available
• Integrated vent automatically and reliably relieves pressure on return stroke, no pressure switch or wiring required
• Built with high-quality seals tested to outperform the competition
• High-strength, shatter resistant, 2 liter reservoir
• Optimally lubricates while your machines are running
• Provides accurate, reliable lubrication for every lube point
• Provides higher lube output and faster lubrication cycle

• Model: LubePro
• Series: A2800

• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: In-Plant Machinery

• Compatible Material: Oil
• Compatible Metering Device: Series Progressive, Single Line Parallel

• Fluid Outlet Size (in): 0.25
• Fluid Outlet Size (mm): 6.3500
• Fluid Outlet Thread Type: NPT

• Includes: Low Level

• Maximum Air Inlet Pressure (bar): 12.07
• Maximum Air Inlet Pressure (kPa): 1207
• Maximum Air Inlet Pressure (psi): 175

• Maximum Working Pressure (bar): 241
• Maximum Working Pressure (kPa): 24100
• Maximum Working Pressure (MPa): 24.1
• Maximum Working Pressure (psi): 3500

• Minimum cST Grade (cST): 40

• Overall Depth (cm): 13
• Overall Depth (in): 5.1
• Overall Depth (mm): 130

• Overall Height (cm): 50.4
• Overall Height (in): 19.83
• Overall Height (mm): 504
• Overall Width (cm): 17.3
• Overall Width (in): 6.8
• Overall Width (mm): 173

• Power Type: Pneumatic
