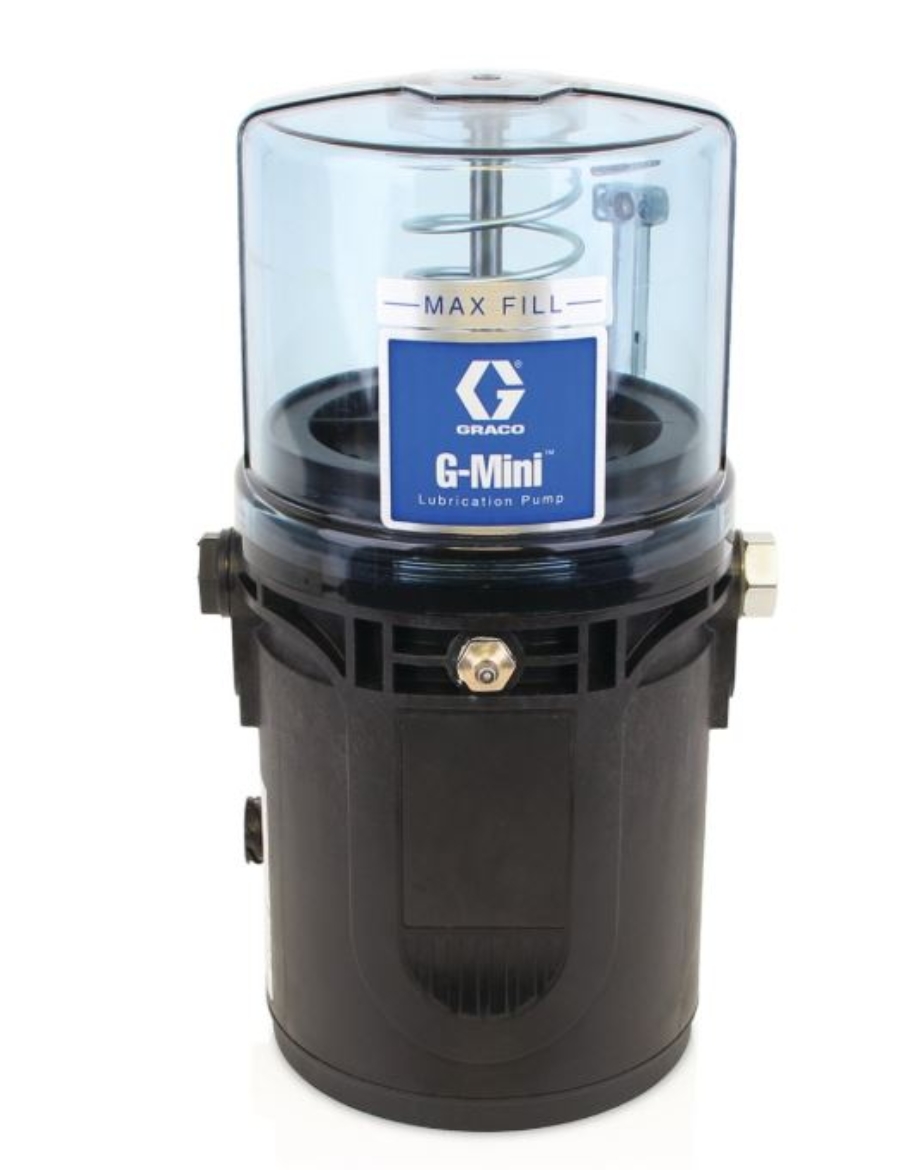

G-Mini Oil Lubrication Pump, SC, 2 Liter

GG 2000639

PUMP, G-MINI, OIL, 2L, AC, NC

Graco 2000639 G-Mini Oil Lubrication Pump, AC, 2 Liter

Make the most of your space, budget and machines. The new full-featured G-Mini offers reliable lubrication in a small footprint to fit more types of machines. Use it to simplify everyday maintenance, extend lifecycles and optimize uptime. It's rugged and tough, perfect for handling the daily, 24/7 rigors of any job, both big and small. Best of all, it comes with a modest price tag - boosting your productivity and profitability.

• DIN Form-A power connection (cable sold separately)

• 2 liter reservoir option

• One Pump Element - 0.18 in3/min (3 cm3/min), 4,100 psi (280 bar)

• Rugged Construction - Designed to withstand the harshest of environments, IP69K rated

• Model: G-Mini

• Application: Industrial, Off-Road Equipment, On-Road Vehicles, Wind Energy
• Approvals: CE, EAC

• Compatible Material: Oil
• Compatible Metering Device: Series Progressive

• Control Options: Internal Controller

• Fluid Inlet Type: Zerk Fitting to Fill Reservoir

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPSF

• For Use With: Series Progressive

• Input Voltage (V ac): 100 - 240

• IP Rating: IP69K

• Maximum Flow Rate (ci/min): 3

• Maximum Operating Temperature ( degree C): 70
• Maximum Operating Temperature ( degree F): 158

• Maximum Working Pressure (bar): 280
• Maximum Working Pressure (psi): 4061

• Minimum Operating Temperature ( degree C): -15
• Minimum Operating Temperature ( degree F): 5

• Number of Pump Elements: Up to 2

• Number of Sensor Inputs: 1

• Overall Depth (in): 6.57

• Overall Height (in): 12.2
• Overall Width (in): 6.97

• Power Connection Type: DIN
