Impacts

IR 2125PTI-THK1

IR 2130

1/2" Air Impact Wrench, Heavy Duty, 550 ft-lb Torque, Friction Ring Retainer, Pistol

Description: Reliable and durable, this 2130 Series Impact Wrench was built to help you succeed. From your first to your last job, this wrench will see you through.

Features And Benefits:

• Access: This impact wrench is great for changing tires and general vehicle repair.
• Durability: Thanks to its steel hammer case and composite housing, this wrench will endure anything, from repeated drops to harsh chemicals. It'll never let you down.

Product Application and Uses:

Vehicle Repair, General Industrial, Facility Maintenance

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 22
• Air Consumption @ Load (l/min): 623
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 4.4
• Average Air Consumption (l/min): 125

• Blows per Min: 1200

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 1/2
• Drive Type: Square
• Duty Rating: Heavy Duty

• End Plates: Aluminum with Hard-coating
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 89.8 / 100.8

• Hammer Case: Steel
• Handle Material: Composite
• Impact Mechanism: Twin Hammer
• Impacting Sound Pressure/Power Db(A): 94.5 / 105.5

• Max Bolt Diameter (in): 9/16
• Max Free Speed (rpm): 9500
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 549
• Max Torque (in-lb): 6594
• Max Torque (nm): 745
• Min Hose Size (in): 3/8
• Motor: Reverse Bias

• Number of Power Settings: 3
• Power Source: Air Powered
• Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 131
• Product Length (in): 7.3

• Product Width (in): 2.8
• Product Height (in): 7.2
• Product Weight (lb): 4.2
• Recommended Forward Torque Range (ft-lb): 25-350
• Recommended Forward Torque Range (in-lb): 301-4195
• Recommended Forward Torque Range (nm): 34-474
• Retainer Type: Friction Ring

• Side to Center Distance (in): 1.4
• Side to Center Distance (mm): 36

• Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 10.7
• Warranty: 1-year

• Accessories: 2130-BOOT
• Accessories: S64H1316L-PS1
• Accessories: S64H1516L-PS1
• Accessories: S64H34L-PS1
• Accessories: S64H78L-PS1
• Accessories: S64M17L-PS1
• Accessories: S64M18L-PS1
• Accessories: S64M21L-PS1
• Accessories: S64M22L-PS1
• Accessories: S64M24L-PS1
• Accessories: S64M26L-PS1

• Lubrication: 105-LBK1
• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 2130-D1093
• Parts: 2130-TK1

IR 2130-638

IR 2131-A727

IR 2131A-941

IR 2131PEX

1/2" Air Impact Wrench, ATEX/Hazardous Duty, 600 ft-lb Torque, Pin Retainer, Pistol

Description: Specifically designed to meet ATEX Zone 1 or Zone 2 requirements, this 2130 Series Impact Wrench was built to help you succeed. Reliable and durable from your first to your last job, this wrench will see you through.ATEX Marking: ATEX 2014/34/EU and Ex h IIA T6 Gb XISO 80079-36 Certified

Features And Benefits:

• Durability: Thanks to its steel hammer case and composite housing, this wrench will endure anything, from repeated drops to harsh chemicals. It'll never let you down.
• Bronze bushing reduces risk of sparks
• Twin hammer mechanism ensure consistent power and balance
• Pressure-fed mechanism lubrication ensures complete coverage throughout the tool
• Feather-touch trigger allows precise delivery of pressure and speed
• Composite Housing is impact and chemical resistant to extend the life of the tool.
• ATEX Marking: ATEX 2014/34/EU and Ex h IIA T6 Gb X
• ISO 80079-36 Certified

Product Application and Uses:

Hazardous Environment, Heavy Industry, Oil&Gas, Foundry

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Feather-touch Trigger
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 4.8

• Blows per Min: 1250

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 1/2
• Drive Type: Square
• Duty Rating: Atex/Hazardous Duty

• End Plates: Aluminum with Hard-coating
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 86.4 / 97.4

• Hammer Case: Steel
• Handle Material: Composite
• Impact Mechanism: Twin Hammer
• Impacting Sound Pressure/Power Db(A): 90.4 / 101.4

• Max Bolt Diameter (in): 9/16
• Max Free Speed (rpm): 10250
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 600
• Max Torque (in-lb): 7196
• Max Torque (nm): 813
• Min Hose Size (in): 3/8
• Motor: Reverse Bias

• Number of Power Settings: 4
• Power Source: Air Powered
• Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 122
• Product Length (in): 7.3

• Product Width (in): 2.7
• Product Height (in): 7.2
• Product Weight (lb): 4.9
• Recommended Forward Torque Range (ft-lb): 450
• Recommended Forward Torque Range (in-lb): 5399
• Recommended Forward Torque Range (nm): 610
• Retainer Type: Pin Detent

• Side to Center Distance (in): 1.35
• Side to Center Distance (mm): 34

• Special Features: ATEX Rated
• Standards/Certifications: Atex 2014/34/Eu, Atex Ex H Iia T6 Gb X, Iso 80079-36

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 8.31
• Warranty: 1-year

• Accessories: S64H1316L-PS1
• Accessories: S64H1516L-PS1
• Accessories: S64H34L-PS1
• Accessories: S64H78L-PS1
• Accessories: S64M17L-PS1
• Accessories: S64M18L-PS1
• Accessories: S64M19L-PS1
• Accessories: S64M21L-PS1
• Accessories: S64M22L-PS1
• Accessories: S64M24L-PS1
• Accessories: S64M26L-PS1
• Accessories: S64M27L-PS1

• Lubrication: 105-LBK1
• Lubrication: 10G
• Lubrication: 10P

IR 2141-11B

IR 2141-A703

IR 2141-TK1

Tune-up Kit for Ingersoll Rand 2141 Series Impact Wrench

IR 2145-61A

IR 2145QIMAX-3

3/4" Air Impact Wrench, Quiet, 1700 ft-lbs Nut-busting Torque, Maintenance Duty, Pistol Grip, 3" Extended Anvil

Description: As one of the toughest, most durable wrenches on the market 2145QiMAX Series is particularly beneficial in vehicle repair work- though this impact wrench is well suited for any job you want to take on.

Features And Benefits:

• MAX POWER: 1350 ft-lb (1830Nm) maximum reverse torque from a tool that weighs just 7.4 lbs (3.36kg)and is compact enough to access tight spaces.
• MAX DURABILITY: Built to last and designed to withstand tough use in rugged environments, a two-year limited warranty is standard.
• MAX PRODUCTIVITY: An air motor that's 16% more efficient than its predecessor and an easy-to-clean inlet screen means less downtime, better tool performance, and less money spent on compressed air.
• The 3-inch extended anvil provides you with increased reach that's invaluable when working with deeper fasteners.
• Easier access to grease fitting – for quicker maintenance and less downtime.
• Enhanced socket retention.
• 7-vane Motor delivers added power with less weight.
• Finely tuned twin hammer impact mechanism and motor deliver more torque, durability, and efficiency.
• Feather-touch trigger provides maximum control of this air impact wrench.
• Anodized end plate for enhanced durability.
• Optimized for the vehicle repair industry, body shops, general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, and construction.
• Patented one-hand forward/reverse control for easy operation.
• Optimized air flow for maximized performance when using this pneumatic impact wrench.

• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 32
• Air Consumption @ Load (l/min): 906
• Air Inlet: 3/8" NPT
• Air Pressure (psi): 90
• Anvil Length: 3" Extended
• Average Air Consumption (cfm): 8.5
• Average Air Consumption (l/min): 241

• Blows per Min: 1150

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 3/4
• Drive Type: Square
• Duty Rating: Maintenance Duty

• End Plates: Aluminum with Steel Wear Plate
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 91.1 / 102.1

• Hammer Case: Steel
• Handle Material: Composite
• Impact Mechanism: Twin Hammer
• Impacting Sound Pressure/Power Db(A): 96.3 / 107.3

• Max Bolt Diameter (in): 1
• Max Free Speed (rpm): 7000
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 1350
• Max Torque (in-lb): 16197
• Max Torque (nm): 1830
• Min Hose Size (in): 1/2
• Motor: Reverse Bias

• Number of Power Settings: 4
• Nut-busting/Breakaway Torque (ft-lb): 1700
• Nut-busting/Breakaway Torque (in-lb): 20401
• Nut-busting/Breakaway Torque (nm): 2305
• Power Source: Air Powered
• Product Length (in): 11.5

• Product Width (in): 3.3
• Product Height (in): 8.1
• Product Weight (lb): 8.4
• Quiet Tool: Yes
• Recommended Forward Torque Range (ft-lb): 1100
• Recommended Forward Torque Range (in-lb): 13196
• Recommended Forward Torque Range (nm): 1491
• Retainer Type: Friction Ring and Thru-hole

• Side to Center Distance (in): 1.7
• Side to Center Distance (mm): 43

• Special Features: Quiet Tool, 2-Year Max warranty

IR 2145SP-D727

IR 215-22

IR 2161-278

IR 2161-28

IR 2161-A102

IR 2161P

3/4" Air Impact Wrench, 1250 ft-lb Torque, Thru-hole Retainer, Pistol

Description: The metal housing and steel hammer case of the 2161 Series Impact Wrench makes this one of the toughest tools on the market. You'll also benefit from the twin hammer impact mechanism, which provides a more even impact with every blow and makes it less sensitive to changes in air pressure.

Features And Benefits:

• Durability: This heavy-duty impact wrench is tough enough to handle harsh environments and repeated drops.
• Versatility: The 2161 Series is an ideal impact wrench for use in multiple markets, from vehicle repair and heavy machinery to general industrial and facility maintenance.
• Increased Safety: The square pin drive of the 2161 Series provides the strongest connection to the socket to increase safety, especially when doing overhead work.

Product Application and Uses:

Ideal impact wrench for use in multiple markets, from vehicle repair and heavy machinery to general industrial and facility maintenance.

• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 46
• Air Consumption @ Load (l/min): 1303
• Air Inlet: 3/8" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 55
• Average Air Consumption (l/min): 1558

• Blows per Min: 1025

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 3/4
• Drive Type: Square
• Duty Rating: Maintenance Duty

• End Plates: Steel
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 97.7 / 108.7

• Hammer Case: Steel
• Handle Material: Composite
• Housing Material: Aluminum core with composite sleeve
• Impact Mechanism: Twin Hammer
• Impacting Sound Pressure/Power Db(A): 90.7 / 101.8

• Max Bolt Diameter (in): 1
• Max Free Speed (rpm): 6000
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 1250
• Max Torque (in-lb): 15002
• Max Torque (nm): 1695
• Min Hose Size (in): 1/2
• Motor: Reverse Bias

• Number of Power Settings: 3
• Power Source: Air Powered
• Product Length (in): 8.5

• Product Width (in): 3.5
• Product Height (in): 9.5
• Product Weight (lb): 12.14
• Recommended Forward Torque Range (ft-lb): 300-1000
• Recommended Forward Torque Range (in-lb): 3602-12002
• Recommended Forward Torque Range (nm): 407-1356
• Retainer Type: Thru-hole

• Side to Center Distance (in): 1.75
• Side to Center Distance (mm): 44

• Speed Setting: Variable Speed
• Standards/Certifications: CE

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 11.5
• Warranty: 1-year

• Accessories: 2161-BOOT

• Lubrication: 50P
• Parts: 2141-THK1
• Parts: 2161-36

• Parts: 2161-366
• Parts: 2161-739
• Parts: 2161-TK2

IR 216B-12

IR 216B-52

IR 216B-55

IR 216B-666

IR 216B-708

IR 2171XP

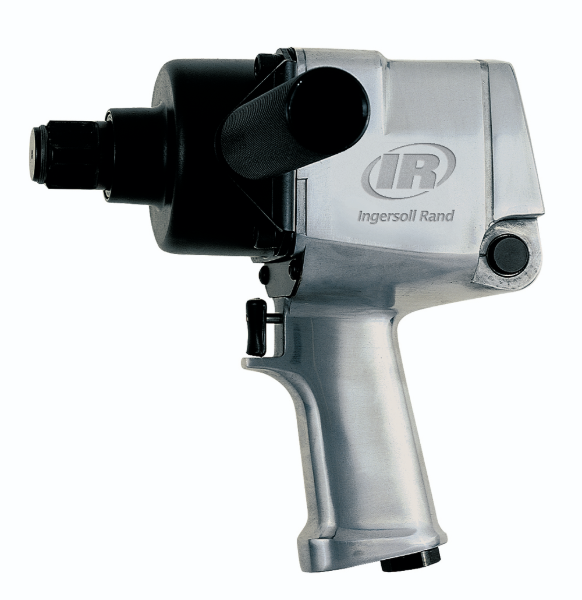

1" Air Impact Wrench, 1250 ft-lb Torque, Friction Ring Retainer, Pistol

Description: The metal housing and steel hammer case of the 2171 Series Impact Wrench makes this one of the toughest tools on the market. You'll also benefit from the twin hammer impact mechanism, which provides a more even impact with every blow and makes it less sensitive to changes in air pressure.

Features And Benefits:

• Durability: This heavy-duty impact wrench is tough enough to handle harsh environments and repeated drops.
• Versatility: The 2171 Series is an ideal impact wrench for use in multiple markets, from vehicle repair and heavy machinery to general industrial and facility maintenance.

Product Application and Uses:

Ideal impact wrench for use in multiple markets, from vehicle repair and heavy machinery to general industrial and facility maintenance.

• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 46
• Air Consumption @ Load (l/min): 1303
• Air Inlet: 3/8" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 10
• Average Air Consumption (l/min): 283

• Blows per Min: 1025

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 1
• Drive Type: Square
• Duty Rating: Maintenance Duty

• End Plates: Steel
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 96.4 / 107.4

• Hammer Case: Steel
• Handle Material: Composite
• Housing Material: Aluminum core with composite sleeve
• Impact Mechanism: Twin Hammer
• Impacting Sound Pressure/Power Db(A): 95.3 / 106.3

• Max Bolt Diameter (in): 1
• Max Free Speed (rpm): 6000
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 1250
• Max Torque (in-lb): 15002
• Max Torque (nm): 1695
• Min Hose Size (in): 1/2
• Motor: Reverse Bias

• Number of Power Settings: 3
• Power Source: Air Powered
• Product Length (in): 8.5

• Product Width (in): 3.5
• Product Height (in): 9.5
• Product Weight (lb): 12.32
• Recommended Forward Torque Range (ft-lb): 300-1000
• Recommended Forward Torque Range (in-lb): 3602-12002
• Recommended Forward Torque Range (nm): 407-1356
• Retainer Type: Friction Ring

• Side to Center Distance (in): 1.75
• Side to Center Distance (mm): 44

• Speed Setting: Variable Speed
• Standards/Certifications: CE

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 10.3
• Warranty: 1-year

• Lubrication: 50P
• Parts: 2141-THK1
• Parts: 2161-36

• Parts: 2161-739
• Parts: 2161-TK2
• Parts: 834-61
• Parts: BBFM-557

IR 2235M-BOOT

Protective Boot for Ingersoll Rand 2235 Series Impact Wrenches

Description: Ingersoll Rand's tool boots absorb vibrations and protect the tool from external damage.

Features And Benefits:

• Protects surrounding surfaces from scratches, nicks ect.
• Protects tool from damage if dropped.
• Adds further protection from unwanted contaminates that can affect tool performance.
• Fits all 2235TiMAX Series impact wrenches.

Product Application and Uses:

Tool Boot for 2235 Series impact wrenches

• Color: Grey

• Product Length (in): 3.2

• Product Width (in): 3
• Product Height (in): 6.7
• Product Weight (lb): 0.15

• For Use With: 2235QPTIMAX
• For Use With: 2235TIMAX-2
• For Use With: 2235QTIMAX
• For Use With: 2235TIMAX
• For Use With: 2235QTIMAX-2
• For Use With: 2235PTIMAX

IR 2236QTIMAX-R

DXS2 1/2 inch Air Impact Wrench, Quiet, 1500 ft-lb Torque, Titanium Hammercase, Friction Ring Retainer, Red

Description: The Ingersoll Rand 2236QTiMAX Visibility Series, provides the power you know and trust in vibrant colors. Ingersoll Rand has delivered the gold standard in pneumatic tools for almost 100 years - and the performance, durability, and power of the 2236 1/2 inch pneumatic impact is no different. Our patented Drive Xchange System lets you swap out anvils without torque-zapping adapters and extenders. Plus, a powerful motor, durable build, and quiet, efficient operation make the 2236 model the perfect choice for serious technicians. Powerful Versatility: Say goodbye to that drawer full of adapters for good. The Ingersoll Rand 2236 Pneumatic 1/2 inch impact wrench has an interchangeable anvil system that lets you tailor your tool to whatever job is at hand - without losing a single ft-lb of power. Innovation: Ingersoll Rand's patented Drive Xchange System helps you get more versatility, torque, and control out of your impact wrench. Torque: The 2236 series operates with 1,500 ft-lbs of breakaway torque.

Features And Benefits:

• Visibility: The red 2236QTIMAX-R impact wrench allows you to see it on the job and in the garage, while customizing your toolbox. Also available in orange and green.
• Patented Drive Xchange System: Helps you get more versatility, torque, and control out of your impact wrench. With 3/8 inch , 1/2 inch , and 3/4 inch drive options and 5 different anvil lengths ranging from 2 to 10 inch, you can do more work with less equipment.
• Powerful Versatility: 1,500 ft.-lbs. of breakaway torque from a unique patented motor design.
• Patented Direct Greasing System: Greasing your tool has never been easier. Directly grease the tool's hammer for more efficient operation and increased run time.
• Reliable Performance: Stay working, and at peak power by quickly replacing worn or broken anvils. Titanium hammer case is light weight with unyielding durability.
• Ergonomic: Smaller, lighter and better balanced design under 4.5 lbs. and 7.4 inch overall length.
• Quiet: 4 decibels quieter than the 2235TIMAX for a more user-friendly environment.
• Includes 1/2 inch Square Drive Anvil (A41H), 3/8 inch and 3/4 inch drive size options as well as extended lengths sold separately.

Product Application and Uses:

Vehicle Repair

• Includes: DXS2 1/2 inch Square Drive Anvil (A41H). Compatible with all DXS2 anvils and sockets. 3/8 inch and 3/4 inch drive size options as well as extended lengths sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 36
• Air Consumption @ Load (l/min): 1090
• Air Inlet: 1/4 inch NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 9
• Average Air Consumption (l/min): 255

• Blows per Min: 1350

• Color: Red
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 1/2
• Drive Type: Square
• Duty Rating: Heavy Duty

• End Plates: Steel
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 96.4 / 107.4

• Hammer Case: Titanium
• Housing Material: Impact and chemical-resistant composite housing
• Impact Mechanism: Twin Hammer
• Impacting Sound Pressure/Power Db(A): 94.2 / 105.2

• Max Bolt Diameter (in): 1 1/4
• Max Free Speed (rpm): 7500
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 1000
• Max Torque (in-lb): 12002
• Max Torque (nm): 1356
• Min Hose Size (in): <
