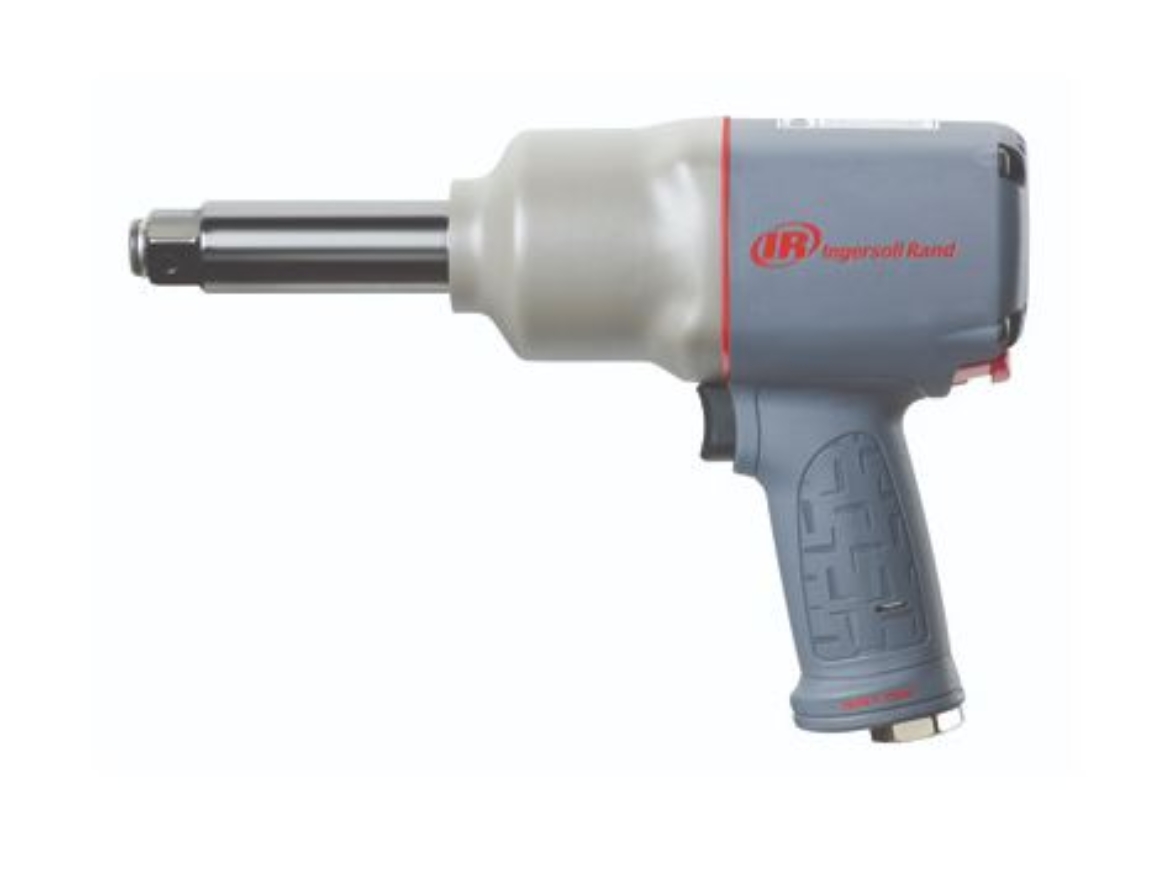

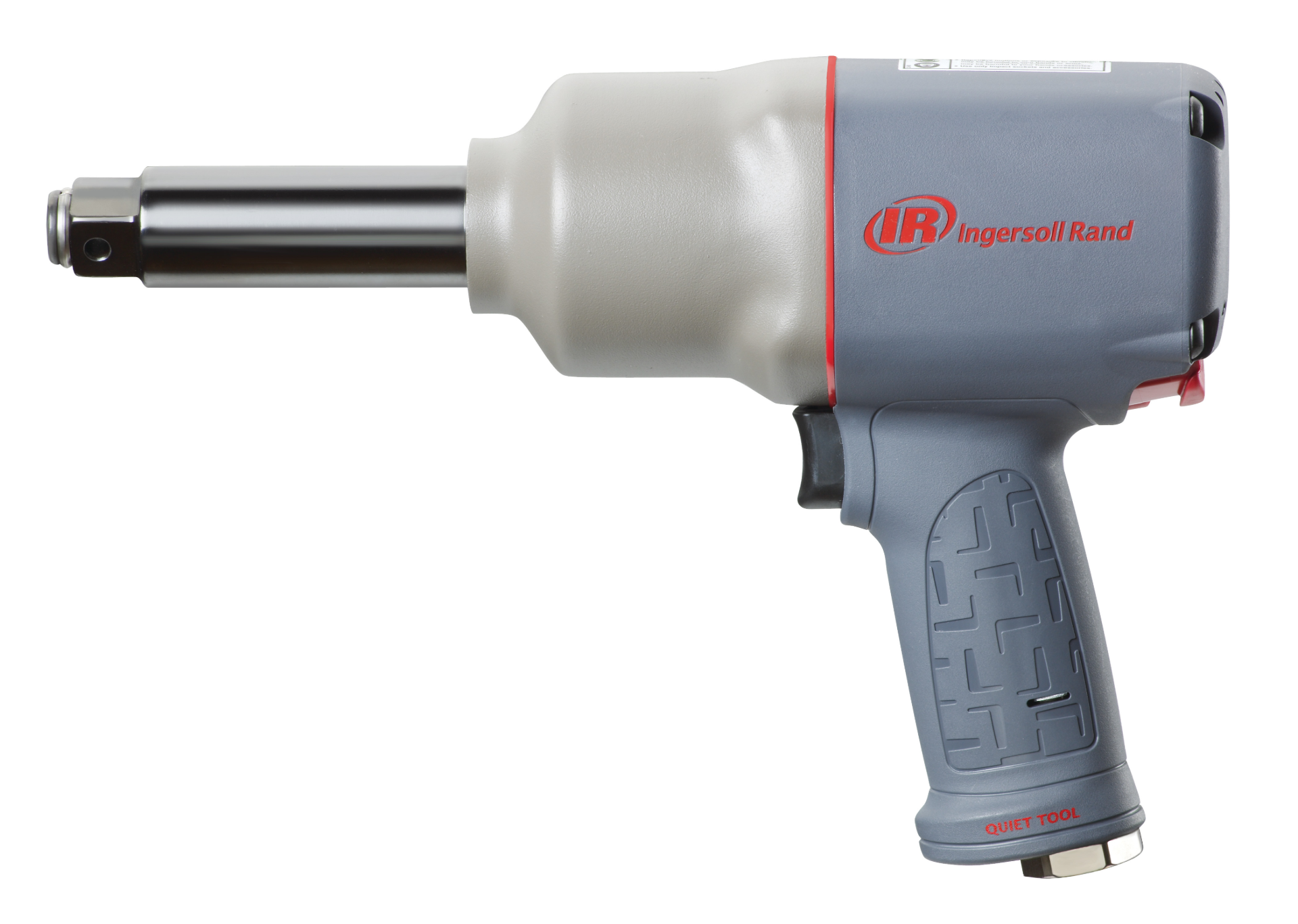

IR 2145QIMAX-3
3/4" Air Impact Wrench, Quiet, 1700 ft-lbs Nut-busting Torque, Maintenance Duty, Pistol Grip, 3" Extended Anvil
Description: As one of the toughest, most durable wrenches on the market 2145QiMAX Series is particularly beneficial in vehicle repair work- though this impact wrench is well suited for any job you want to take on.
Features And Benefits:
- MAX POWER: 1350 ft-lb (1830Nm) maximum reverse torque from a tool that weighs just 7.4 lbs (3.36kg)and is compact enough to access tight spaces.
- MAX DURABILITY: Built to last and designed to withstand tough use in rugged environments, a two-year limited warranty is standard.
- MAX PRODUCTIVITY: An air motor that's 16% more efficient than its predecessor and an easy-to-clean inlet screen means less downtime, better tool performance, and less money spent on compressed air.
- The 3-inch extended anvil provides you with increased reach that's invaluable when working with deeper fasteners.
- Easier access to grease fitting - for quicker maintenance and less downtime.
- Enhanced socket retention.
- 7-vane Motor delivers added power with less weight.
- Finely tuned twin hammer impact mechanism and motor deliver more torque, durability, and efficiency.
- Feather-touch trigger provides maximum control of this air impact wrench.
- Anodized end plate for enhanced durability.
- Optimized for the vehicle repair industry, body shops, general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, and construction.
- Patented one-hand forward/reverse control for easy operation.
- Optimized air flow for maximized performance when using this pneumatic impact wrench.
- Actuation/Throttle Type/Switch Type: Trigger
- Air Consumption @ Load (cfm): 32
- Air Consumption @ Load (l/min): 906
- Air Inlet: 3/8in NPT
- Air Pressure (psi): 90
- Anvil Length: 3" Extended
- Average Air Consumption (cfm): 8.5
- Average Air Consumption (l/min): 241
- Color: Grey
- Configuration/Handle Type: Pistol Grip
- Drive Size (in): 3/4
- Drive Type: Square
- Duty Rating: Maintenance Duty
- End Plates: Aluminum with Steel Wear Plate
- Exhaust Location: Bottom
- Free Speed Sound Pressure/Power Db(A): 91.1 / 102.1
- Hammer Case: Steel
- Handle Material: Composite
- Impact Mechanism: Twin Hammer
- Impacting Sound Pressure/Power Db(A): 96.3 / 107.3
- Max Bolt Diameter (in): 1
- Max Free Speed (rpm): 7000
- Max Pressure (bar): 6.2
- Max Torque (ft-lb): 1350
- Max Torque (in-lb): 16197
- Max Torque (nm): 1830
- Min Hose Size (in): 1/2
- Motor: Reverse Bias
- Number of Power Settings: 4
- Nut-busting/Breakaway Torque (ft-lb): 1700
- Nut-busting/Breakaway Torque (in-lb): 20401
- Nut-busting/Breakaway Torque (nm): 2305
- Power Source: Air Powered
- Product Length (in): 11.5
- Product Width (in): 3.3
- Product Height (in): 8.1
- Product Weight (lb): 8.4
- Quiet Tool: Yes
- Recommended Forward Torque Range (ft-lb): 1100
- Recommended Forward Torque Range (in-lb): 13196
- Recommended Forward Torque Range (nm): 1491
- Retainer Type: Friction Ring and Thru-hole
- Side to Center Distance (in): 1.7
- Side to Center Distance (mm): 43
- Special Features: Quiet Tool, 2-Year Max warranty
