Impacts

IR 231HA

1/2" Air Impact Wrench, Super Duty, 600 ft-lb Torque, Friction Ring Retainer, Pistol

Description: The 231HA Series is the ideal impact wrench for any job you take it to, from facility maintenance and industrial work to vehicle repair and tire work. Tough and durable with a powerful vane motor, this impact wrench won't let you down.

Features And Benefits:

• Max Torque: 590 ft.-lbs. of max. torque. Pressure feed lubrication system.
• Durability: This impact wrench is tough enough to handle harsh environments, repeated drops and run-ins with any number of chemicals.
• Variable Power: Variable power control in forward and reverse.
• Handle Exhaust: Handle exhaust directs air away from the user.
• Comfort: Comfortable handle contour.

Product Application and Uses:

Vehicle Repair, General Industrial, Facility Maintenance

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 22
• Air Consumption @ Load (l/min): 623
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 4.2
• Average Air Consumption (l/min): 119

• Blows per Min: 1150

• Color: Silver
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 1/2
• Drive Type: Square
• Duty Rating: Super Duty

• End Plates: Steel
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 94.0 / 105.0

• Hammer Case: Steel
• Handle Material: Aluminum
• Housing Material: Aluminum
• Impact Mechanism: Twin Hammer

• Max Bolt Diameter (in): 9/16
• Max Free Speed (rpm): 8000
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 600
• Max Torque (in-lb): 7196
• Max Torque (nm): 813
• Min Hose Size (in): 3/8
• Motor: Reverse Bias

• Number of Power Settings: 6
• Power Source: Air Powered
• Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 101.7
• Product Length (in): 7.3

• Product Width (in): 2.75
• Product Height (in): 7.9
• Product Weight (lb): 5.8
• Recommended Forward Torque Range (ft-lb): 25-300
• Recommended Forward Torque Range (in-lb): 301-3602
• Recommended Forward Torque Range (nm): 34-407
• Recommended Reverse Torque (ft-lb): 25-350
• Recommended Reverse Torque (nm): 34-475
• Retainer Type: Friction Ring

• Side to Center Distance (in): 1.4
• Side to Center Distance (mm): 36

• Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 6.5
• Warranty: 1-year

• Accessories: 231-BOOT
• Accessories: S64H1316L-PS1
• Accessories: S64H1516L-PS1
• Accessories: S64H34L-PS1
• Accessories: S64H78L-PS1
• Accessories: S64M17L-PS1
• Accessories: S64M18L-PS1
• Accessories: S64M21L-PS1
• Accessories: S64M22L-PS1
• Accessories: S64M24L-PS1
• Accessories: S64M26L-PS1
• Accessories: SK4H13N

• Lubrication: 105-LBK1
• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 231-TK2
• Parts: 231-TK3

• Parts: 231B-HK

IR 231XP-A703

IR 232TGSL

1/2 inch Air Impact Wrench, Super Duty, 625 ft-lb Torque, Friction Ring Retainer, Pistol

Description: If you're looking for NASCAR pitstop-level speeds, the 232TGSL 1/2 inch is the impact wrench for you. Its powerful vane motor and smooth trigger actuation will help you fly through vehicle repair jobs with an added level of confidence and control.

Features And Benefits:

• POWER: The 232TGSL impact gun delivers 625 ft/lbs of maximum reverse torque to give technicians the power they need to complete tough repairs.
• SPEED: This pneumatic thunder gun is the fastest 1/2 inch impact wrench in the Ingersoll Rand line, at 10,000 RPM, to deliver pit crew speed.
• Durability: The steel hammer case and metal housing in the 232TGSL 1/2 inch makes this impact wrench strong and durable to last through any job.
• Warranty: Your 232TGSL 1/2 inch comes with a one-year standard warranty to protect against any manufacturing defects.

Product Application and Uses:

Automotive Vehicle Service Racing

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 23
• Air Consumption @ Load (l/min): 651
• Air Inlet: 1/4 inch NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 5.4
• Average Air Consumption (l/min): 153

• Blows per Min: 1250

• Color: Yellow
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 1/2
• Drive Type: Square
• Duty Rating: Super Duty

• End Plates: Steel
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 105.3 / 109.3

• Hammer Case: Steel
• Handle Material: Aluminum
• Housing Material: Aluminum
• Impact Mechanism: Twin Hammer

• Max Bolt Diameter (in): 9/16
• Max Free Speed (rpm): 10000
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 625
• Max Torque (in-lb): 7497
• Max Torque (nm): 847
• Min Hose Size (in): 3/8
• Motor: Reverse Bias

• Number of Power Settings: 6
• Power Source: Air Powered
• Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 104.1
• Product Length (in): 7.3

• Product Width (in): 2.8
• Product Height (in): 7.3
• Product Weight (lb): 6
• Recommended Forward Torque Range (ft-lb): 500
• Recommended Forward Torque Range (in-lb): 6001
• Recommended Forward Torque Range (nm): 678
• Retainer Type: Friction Ring

• Side to Center Distance (in): 1.4
• Side to Center Distance (mm): 36

• Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744

• Tool Type: Full-size
• Vanes: 6
• Warranty: 1-year

• Accessories: 232TGSL-P32
• Accessories: S64H1316L-PS1
• Accessories: S64H1516L-PS1
• Accessories: S64H34L-PS1
• Accessories: S64H78L-PS1
• Accessories: S64M17L-PS1
• Accessories: S64M18L-PS1
• Accessories: S64M21L-PS1
• Accessories: S64M22L-PS1
• Accessories: S64M24L-PS1
• Accessories: S64M26L-PS1

• Lubrication: 105-LBK1
• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 231XP-THK1

IR 244-23

IR 244-53

IR 244-BOOT

Protective Boot for Ingersoll Rand 244A Series Impact Wrench

Description: Ingersoll Rand's tool boots absorb vibrations and protect the tool from external damage.

Features And Benefits:

• Protects surrounding surfaces from scratches, nicks ect.
• Protects tool from damage if dropped.
• Adds further protection from unwanted contaminates that can affect tool performance.

• Color: Red

• Housing Material: Thermoplastic Polymer

• For Use With: 244A
• For Use With: 244A-2

IR 25520

IR 259-119

IR 259-42-6

IR 259-638-4

IR 259-703

IR 259-78-4

IR 261-6

3/4" Air Impact Wrench, 6" Ext Anvil, Super Duty, 1100 ft-lb Torque, Friction Ring Retainer, Pistol

Description: The 261 Series impact wrench is ideal for vehicle repair and heavy truck and machinery jobs where you'll benefit from the square socket retaining ring and the power behind the vane motor. Trigger actuation and a power regulator let you complete projects with control and ease.

Features And Benefits:

• Power: The 6 vane motor on the 261 Series provides a high torque output for increased power.
• Jumbo Hammer Mechanism: The patented jumbo hammer is unaffected by air pressure changes and delivers 1100 ft-lbs. of max torque and a working torque of 200-900 ft-lbs.
• Square Socket: The square socket retaining ring makes this an ideal impact wrench for projects where you need increased socket connection, like auto repair and heavy truck and machinery jobs.
• Lasting Performance: This power tool is equipped with a pressure-fed lube system which provides trouble-free, longer performance.
• Handle Exhaust: Handle exhaust directs dust and dirt from being blow at you while working as it directs air away from the operator.
• Extended Reach: The 6-inch extended anvil provides you with increased reach that's invaluable when working with deeper fasteners.

Product Application and Uses:

Applications include tire changing, engine repair, engine component installation and removal, body work installation and removal, farm implement assembly and repair, auto repair and maintenance, and truck repair.

• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 38
• Air Consumption @ Load (l/min): 1076
• Air Inlet: 3/8" NPT
• Air Pressure (psi): 90
• Anvil Length: 6" Extended
• Average Air Consumption (cfm): 9.5
• Average Air Consumption (l/min): 269

• Blows per Min: 1000

• Color: Silver
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 3/4
• Drive Type: Square
• Duty Rating: Super Duty

• End Plates: Cast Iron
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 100.3 / 111.3

• Hammer Case: Steel
• Handle Material: Aluminum
• Housing Material: Aluminum
• Impact Mechanism: Jumbo Hammer
• Impacting Sound Pressure/Power Db(A): 98.4 / 109.4

• Max Bolt Diameter (in): 1
• Max Free Speed (rpm): 5500
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 1100
• Max Torque (in-lb): 13196
• Max Torque (nm): 1491
• Min Hose Size (in): 1/2
• Motor: Non-Biased

• Number of Power Settings: Continuous
• Power Source: Air Powered
• Product Length (in): 14.8

• Product Width (in): 3.76
• Product Height (in): 10.3
• Product Weight (lb): 13.7
• Recommended Forward Torque Range (ft-lb): 200-600
• Recommended Forward Torque Range (in-lb): 2399-7196
• Recommended Forward Torque Range (nm): 271-813
• Recommended Reverse Torque (ft-lb): 200-600
• Recommended Reverse Torque (nm): 271-813
• Retainer Type: Friction Ring

• Side to Center Distance (in): 1.88
• Side to Center Distance (mm): 48

• Special Features: Extended anvil
• Speed Setting: Variable Speed
• Standards/Certifications: CE

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 10.4
• Warranty: 1-year

IR 2705-TK3

Tune-up Kit for Ingersoll Rand 2705 Series Impact Wrenches

• Includes: Bearings, Spring, O-Rings, Gaskets, Pin, Ball, Retainers, Vane pack

• For Use With: 2705P1

IR 271

1" Air Impact Wrench, Super Duty, 1100 ft-lb Torque, Friction Ring Retainer, Pistol

Description: The 271 Series impact wrench is ideal for vehicle repair and heavy truck and machinery jobs where you'll benefit from the square socket retaining ring and the power behind the vane motor. Trigger actuation and a power regulator let you complete projects with control and ease.

Features And Benefits:

• RELIABILITY: The 271 Series is made to last, and will be a trusted tool for all your heavy machinery projects and more
• POWER: The vane motor on the 271 Series provides a high torque output for increased power.
• DURABILITY: The impact wrench's jumbo hammer provides a great power-to-weight ratio and is easy to maintain.
• VEHICLE REPAIR: The square socket retaining ring makes this an ideal impact wrench for projects where you need increased socket connection.

Product Application and Uses:

Vehicle Repair And Heavy Truck Markets

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 39
• Air Consumption @ Load (l/min): 1104
• Air Inlet: 3/8" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 9.5
• Average Air Consumption (l/min): 269

• Blows per Min: 1000

• Color: Silver
• Configuration/Handle Type: Pistol Grip
• Configuration/Handle Type: Auxiliary Handle
• Drive Size (in): 1
• Drive Type: Square
• Duty Rating: Super Duty

• End Plates: Cast Iron
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 100.5 / 111.5

• Hammer Case: Steel
• Handle Material: Aluminum
• Housing Material: Aluminum
• Impact Mechanism: Jumbo Hammer
• Impacting Sound Pressure/Power Db(A): 98.5 / 109.5

• Max Bolt Diameter (in): 1
• Max Free Speed (rpm): 5500
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 1103
• Max Torque (in-lb): 13241
• Max Torque (nm): 1496
• Min Hose Size (in): 1/2
• Motor: Non-Biased

• Number of Power Settings: Continuous
• Power Source: Air Powered
• Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 96
• Product Length (in): 8.9

• Product Width (in): 8
• Product Height (in): 8
• Product Weight (lb): 12.5
• Recommended Forward Torque Range (ft-lb): 100-750
• Recommended Forward Torque Range (in-lb): 1204-9001
• Recommended Forward Torque Range (nm): 136-1017
• Recommended Reverse Torque (ft-lb): 100-750
• Recommended Reverse Torque (nm): 136-1017
• Retainer Type: Friction Ring

• Side to Center Distance (in): 4
• Side to Center Distance (mm): 102

• Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 13.2
• Warranty: 1-year

• Accessories: SK8H9TN
• Accessories: SK8M4LN

• Lubrication: 105-LBK1
• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 1720P-23
• Parts: 261-283

• Parts: 261-TK2
• Parts: 261B-A727
• Parts: 2920P-465
• Parts: 2920P-A93
• Parts: 910-36
• Parts: 910E5-918

IR 27925-XLP

IR 280

1" Air Impact Wrench, Super Duty, 1600 ft-lb Torque, Thru-hole Retainer, D-Handle Inside Trigger

Description: For a versatile impact wrench that doesn't compromise safety for power, the 280 Series can't be beat. The D-shaped handle fits comfortably in your hand and the jumbo hammer impact mechanism provides an excellent power-to-weight ratio.

Features And Benefits:

• Reliability: The 280 Series Impact Wrench will stand the test of time. You can count on this tool to deliver the same high-impact performance time and time again.
• Durability: The steel hammer case and metal housing of the 280 Series make this impact wrench incredibly durable and long-lasting.
• High Power: The drive type on the 280 Series provides a higher torque output and an increased reach to help you get the job done.
• Increased Safety: This impact wrench increases on-the-job safety by providing a strong socket connection.

Product Application and Uses:

Applications include tire changing, engine repair, engine component installation and removal, body work installation and removal, farm implement assembly and repair, auto repair and maintenance, and truck repair.

• Actuation/Throttle Type/Switch Type: Inside Trigger
• Air Consumption @ Load (cfm): 55
• Air Consumption @ Load (l/min): 1557
• Air Inlet: 1/2" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 10
• Average Air Consumption (l/min): 283

• Blows per Min: 750

• Color: Grey
• Configuration/Handle Type: D-Handle
• Drive Size (in): 1
• Drive Type: Square
• Duty Rating: Super Duty

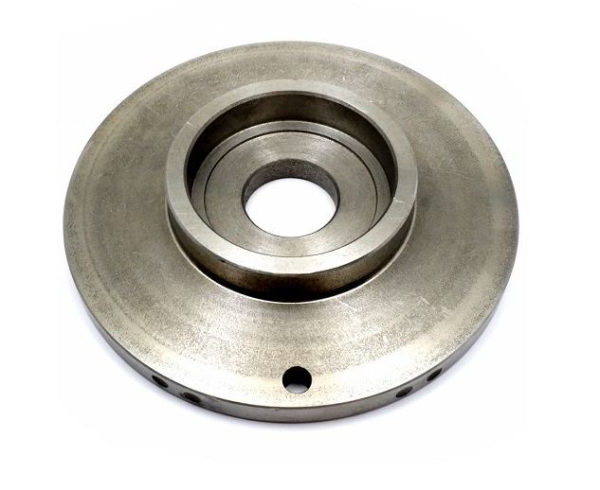

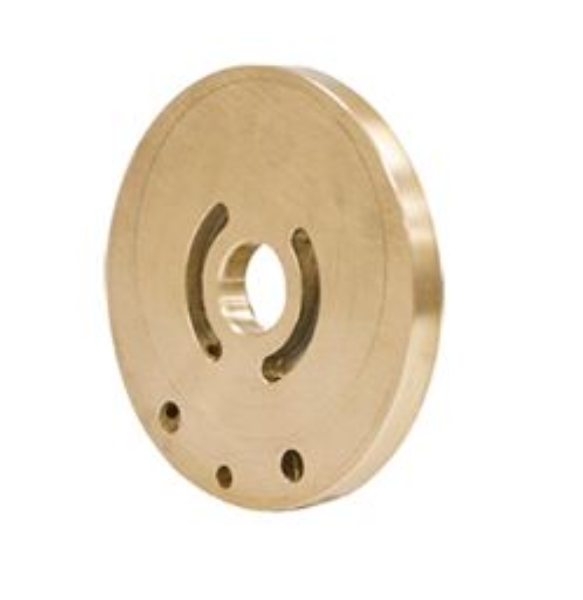

• End Plates: Bronze
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 107.7 / 118.7

• Hammer Case: Steel
• Handle Material: Aluminum
• Housing Material: Aluminum

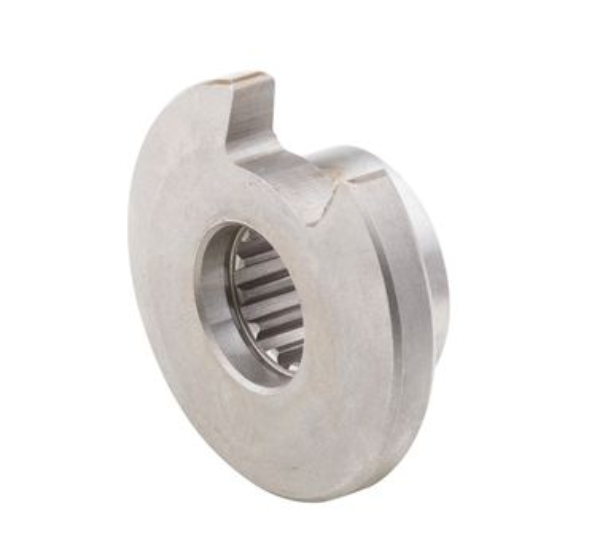

• Impact Mechanism: Jumbo Hammer
• Impacting Sound Pressure/Power Db(A): 103 / 114

• Max Bolt Diameter (in): 1.25
• Max Free Speed (rpm): 6000
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 1600
• Max Torque (in-lb): 19197
• Max Torque (nm): 2169
• Min Hose Size (in): 1/2
• Motor: Non-Biased

• Number of Power Settings: Continuous
• Power Source: Air Powered
• Product Length (in): 13

• Product Width (in): 4.8
• Product Height (in): 6.7
• Product Weight (lb): 22
• Recommended Forward Torque Range (ft-lb): 148-1003
• Recommended Forward Torque Range (in-lb): 1770-12037
• Recommended Forward Torque Range (nm): 200-1360
• Recommended Reverse Torque (ft-lb): 148-1003
• Recommended Reverse Torque (nm): 200-1360

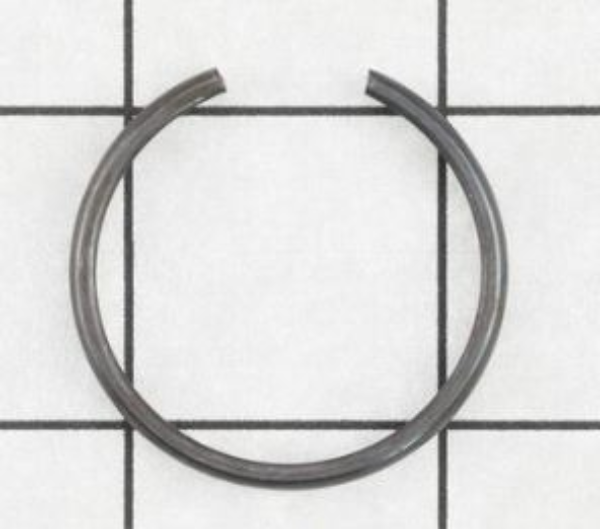

• Retainer Type: Thru-hole

• Speed Setting: Variable Speed
• Standards/Certifications: CE

• Tool Type: Full-size

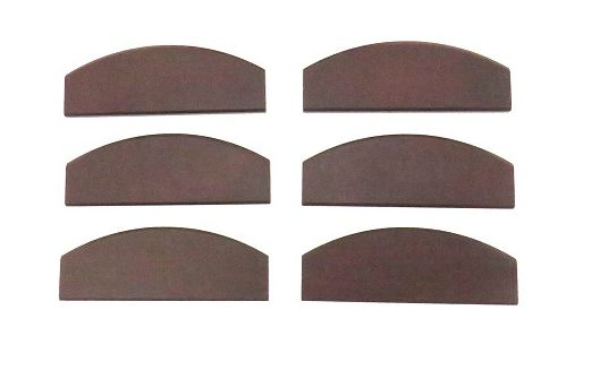

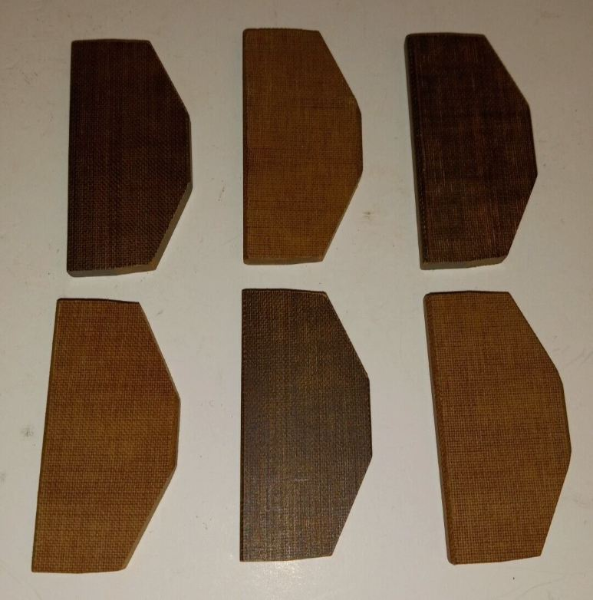

• Vanes: 6
• Vibration Level (m/s2): 19.7
• Warranty: 1-year

• Lubrication: 10P
• Parts: 280-TK2
• Parts: 2934-42-6

IR 2850-638

IR 2850-93RD

IR 2850-A329

IR 2850-A53

IR 2850-D565

IR 2850-D727

IR 285B-24

IR 285B-437
