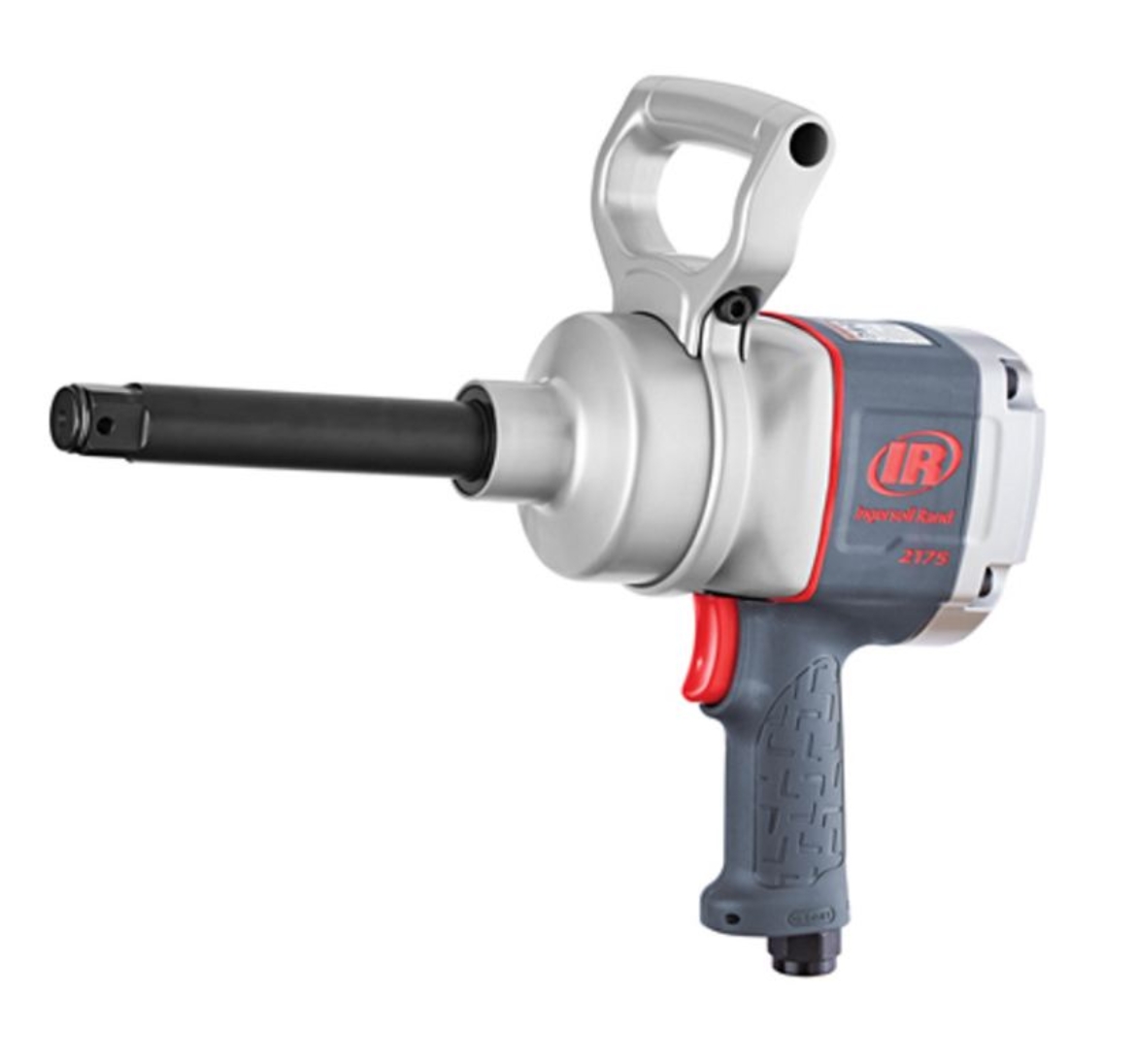

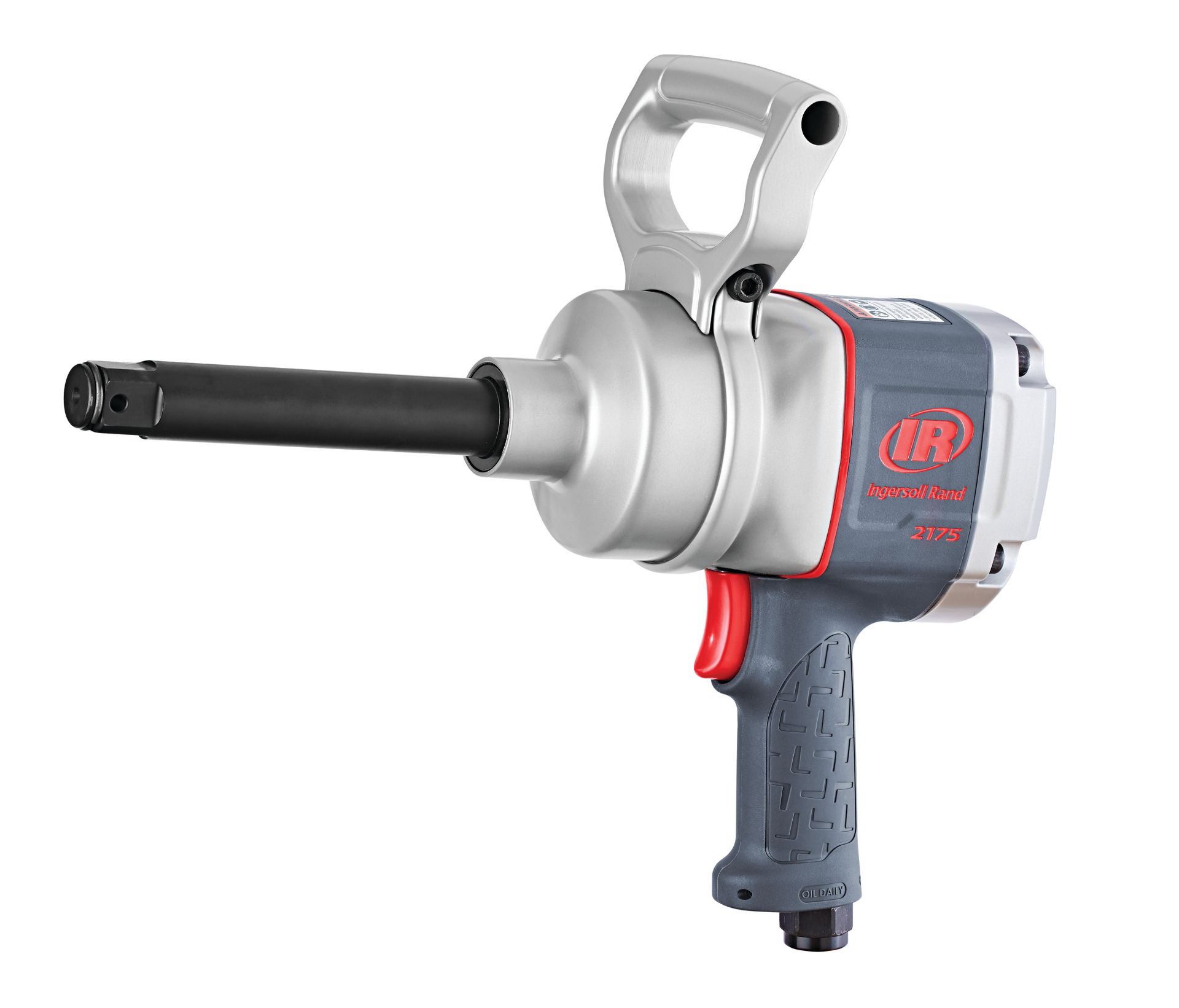

1 in Pistol Impact Wrench With 6 in Anvil

IR 2175MAX-6

1" Air Impact Wrench, 6" Ext Anvil, 2000 ft-lb Torque, Thru-hole Retainer, Pistol

Description: The 2175MAX 1" Pistol Grip Impact Wrench - engineered to make quick work of big bolting jobs and semi trucks, bus and heavy equipment tires. This tool has been made lighter, pushed harder and worked longer to make sure it can handle repeated demands without sacrificing power. Every time you need extreme torque, this lightweight boss can get the job done.

Features And Benefits:

• Power: A solid steel impact mechanism and robust motor deliver 2,000 ft- lbs of torque.
• Durability: The steel core and chemical resistant housing are made to last even in the harshest working conditions.
• Ergomonics: The 2175MAX-6 weighs in under 20 lbs. and the 360° adjustable handle design increases maneuverability and comfort.
• Swivel hose connection: Keeps cords from getting tangled so you can move freely around the garage
• Extended Reach: 6" anvil extension: Increases accessibility in hard to reach places

Product Application and Uses:

Heavy Duty Fastening On Trucks, Buses Or Other Large Vehicles

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 56.7
• Air Consumption @ Load (l/min): 1606
• Air Inlet: 1/2" NPT
• Air Pressure (psi): 90
• Anvil Length: 6" Extended
• Average Air Consumption (cfm): 14.2
• Average Air Consumption (l/min): 402

• Blows per Min: 740

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 1
• Drive Type: Square
• Duty Rating: Maintenance Duty

• End Plates: Aluminum with Steel Wear Plate
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 103.6 / 114.6

• Hammer Case: Steel
• Handle Material: Composite
• Impact Mechanism: Twin Hammer
• Impacting Sound Pressure/Power Db(A): 101.5 / 112.5

• Max Bolt Diameter (in): 1-1/4
• Max Free Speed (rpm): 4500
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 2002
• Max Torque (in-lb): 24030
• Max Torque (nm): 2715
• Min Hose Size (in): 3/4
• Motor: Reverse Bias

• Number of Power Settings: 3
• Power Source: Air Powered
• Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 111.2
• Product Length (in): 16

• Product Width (in): 14
• Product Height (in): 6.5
• Product Weight (lb): 20.04
• Recommended Forward Torque Range (ft-lb): 1903
• Recommended Forward Torque Range (in-lb): 22835
• Recommended Forward Torque Range (nm): 2580
• Retainer Type: Friction Ring and Thru-hole

• Side to Center Distance (in): 7
• Side to Center Distance (mm): 178

• Special Features: 2-year Max warranty
• Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744

• Tool Type: Full-size
• Vanes: 7
• Vibration Level (m/s2): 11.2
• Warranty: 2-year

• Accessories: SK8H9TN

• Lubrication: 105-LBK1
• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 2175MAX-TK1
• Parts: 2850-A626-6
