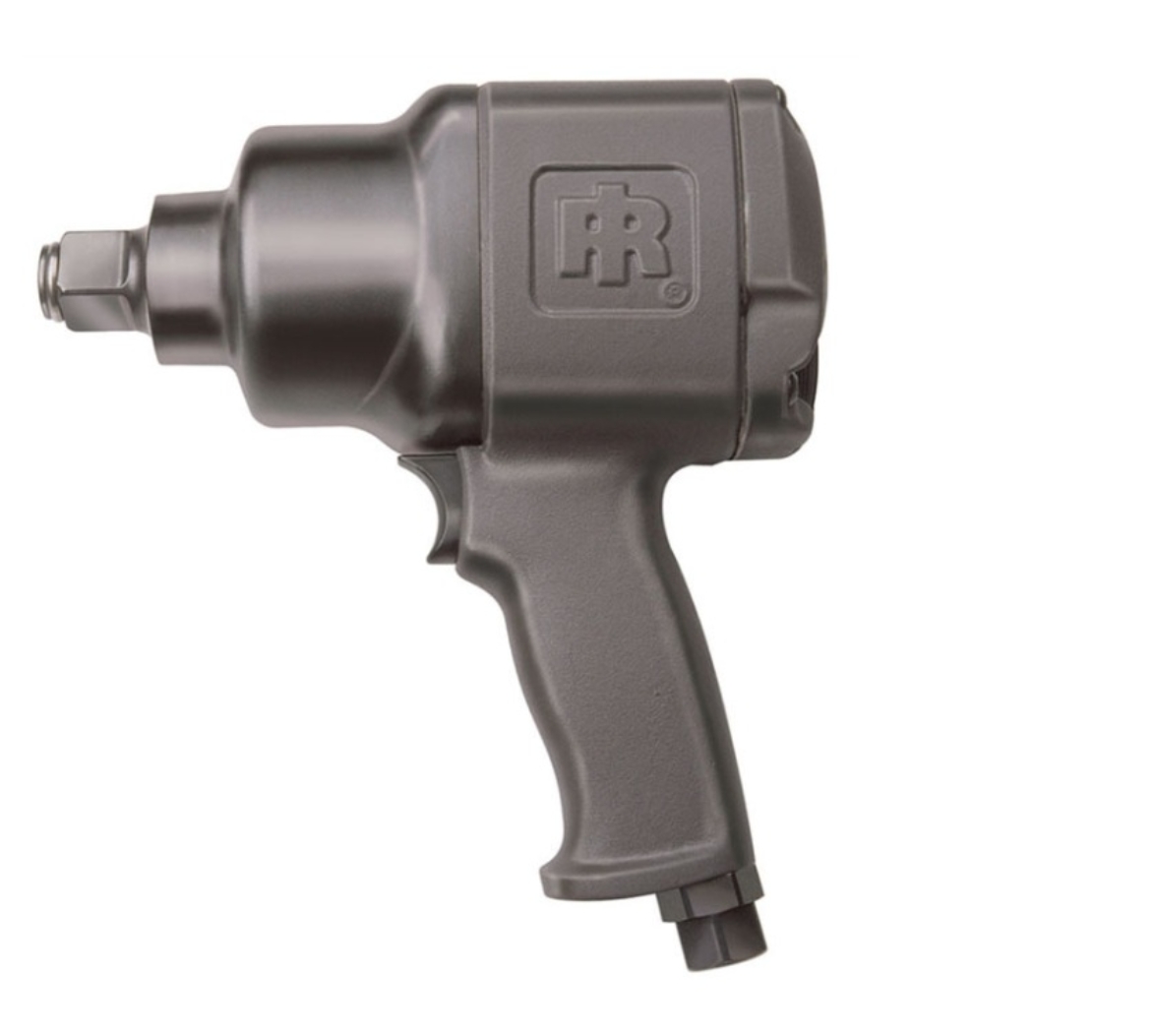

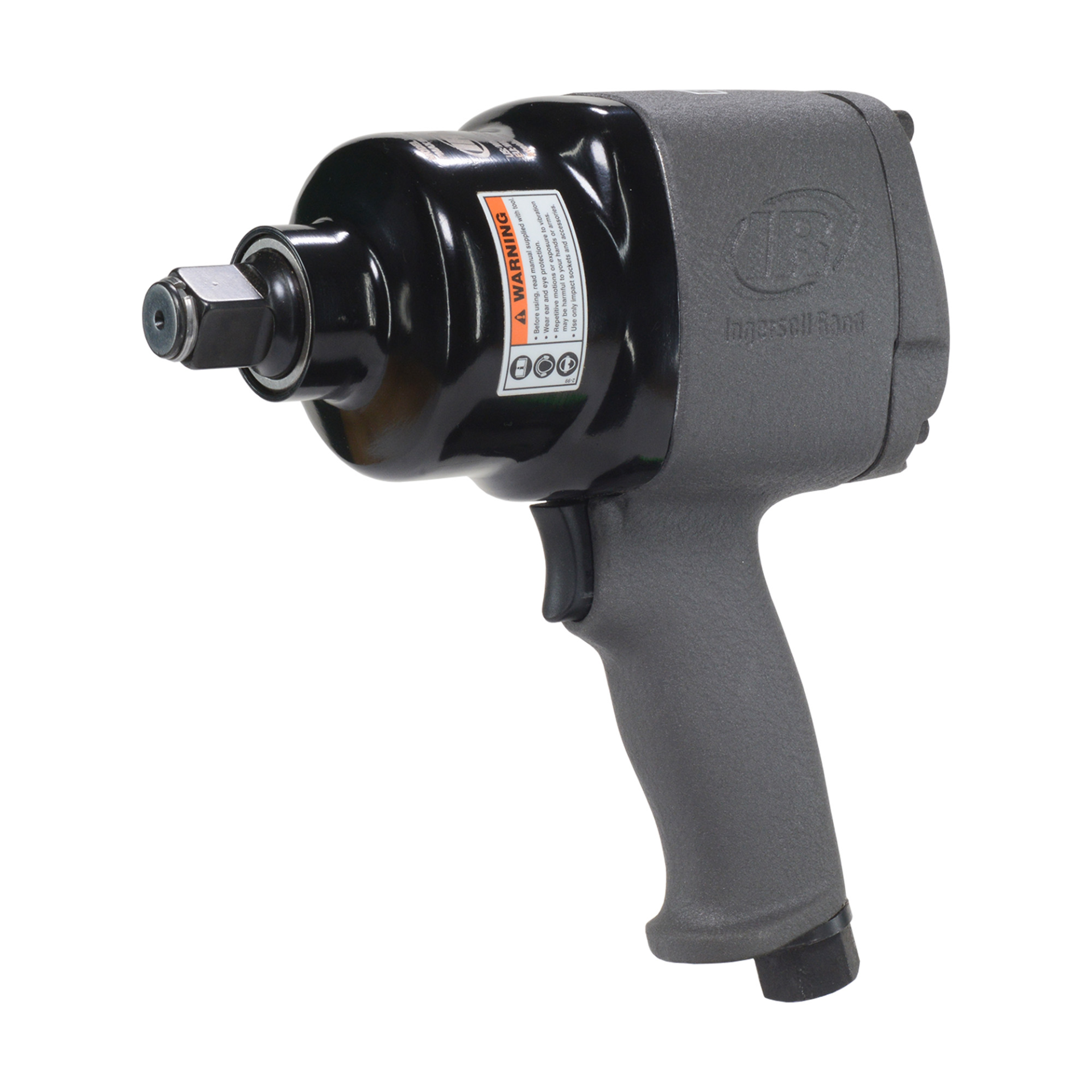

1 In Sq Dr Impact Pistol Grip1250 Ft Lbs

IR 2171XP

1" Air Impact Wrench, 1250 ft-lb Torque, Friction Ring Retainer, Pistol

Description: The metal housing and steel hammer case of the 2171 Series Impact Wrench makes this one of the toughest tools on the market. You'll also benefit from the twin hammer impact mechanism, which provides a more even impact with every blow and makes it less sensitive to changes in air pressure.

Features And Benefits:

• Durability: This heavy-duty impact wrench is tough enough to handle harsh environments and repeated drops.
• Versatility: The 2171 Series is an ideal impact wrench for use in multiple markets, from vehicle repair and heavy machinery to general industrial and facility maintenance.

Product Application and Uses:

Ideal impact wrench for use in multiple markets, from vehicle repair and heavy machinery to general industrial and facility maintenance.

• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 46
• Air Consumption @ Load (l/min): 1303
• Air Inlet: 3/8" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 10
• Average Air Consumption (l/min): 283

• Blows per Min: 1025

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 1
• Drive Type: Square
• Duty Rating: Maintenance Duty

• End Plates: Steel
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 96.4 / 107.4

• Hammer Case: Steel
• Handle Material: Composite
• Housing Material: Aluminum core with composite sleeve
• Impact Mechanism: Twin Hammer
• Impacting Sound Pressure/Power Db(A): 95.3 / 106.3

• Max Bolt Diameter (in): 1
• Max Free Speed (rpm): 6000
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 1250
• Max Torque (in-lb): 15002
• Max Torque (nm): 1695
• Min Hose Size (in): 1/2
• Motor: Reverse Bias

• Number of Power Settings: 3
• Power Source: Air Powered
• Product Length (in): 8.5

• Product Width (in): 3.5
• Product Height (in): 9.5
• Product Weight (lb): 12.32
• Recommended Forward Torque Range (ft-lb): 300-1000
• Recommended Forward Torque Range (in-lb): 3602-12002
• Recommended Forward Torque Range (nm): 407-1356
• Retainer Type: Friction Ring

• Side to Center Distance (in): 1.75
• Side to Center Distance (mm): 44

• Speed Setting: Variable Speed
• Standards/Certifications: CE

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 10.3
• Warranty: 1-year

• Lubrication: 50P
• Parts: 2141-THK1
• Parts: 2161-36

• Parts: 2161-739
• Parts: 2161-TK2
• Parts: 834-61
• Parts: BBFM-557
