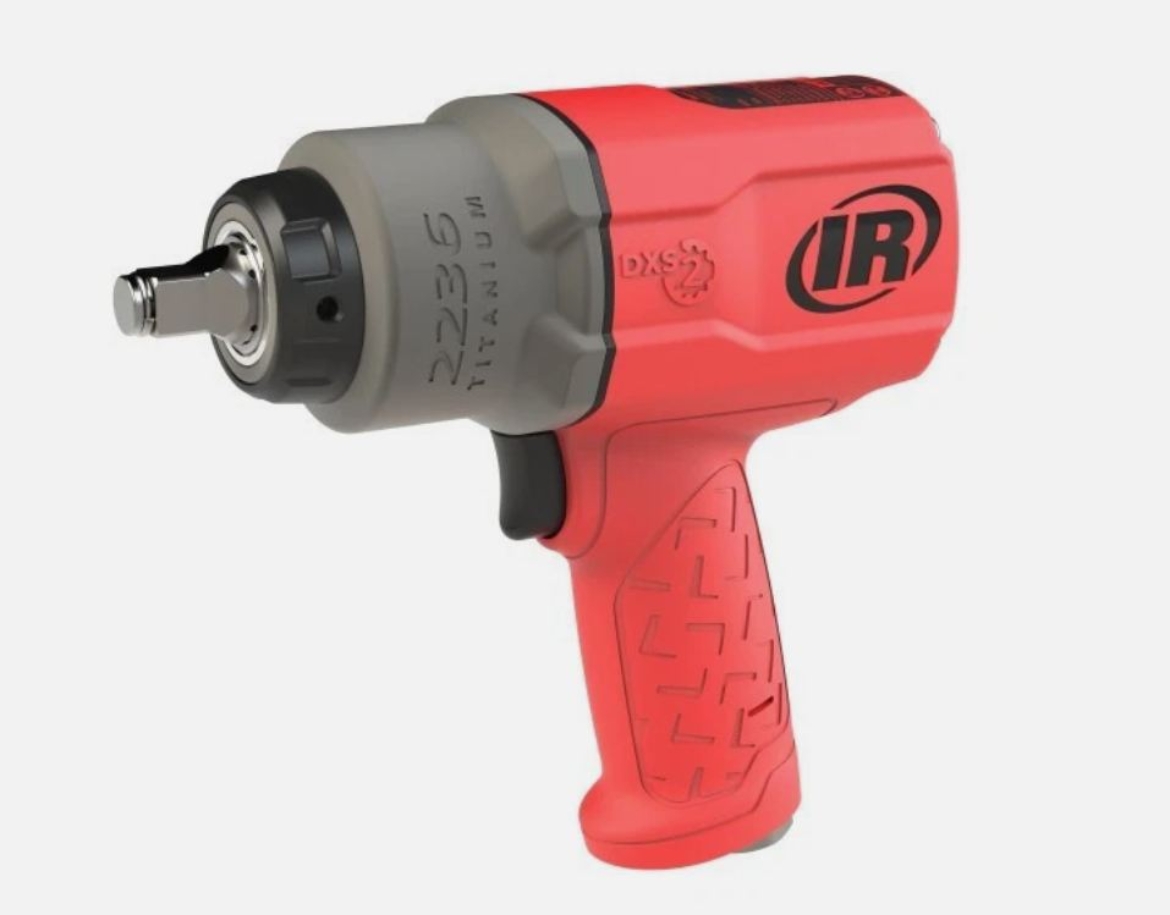

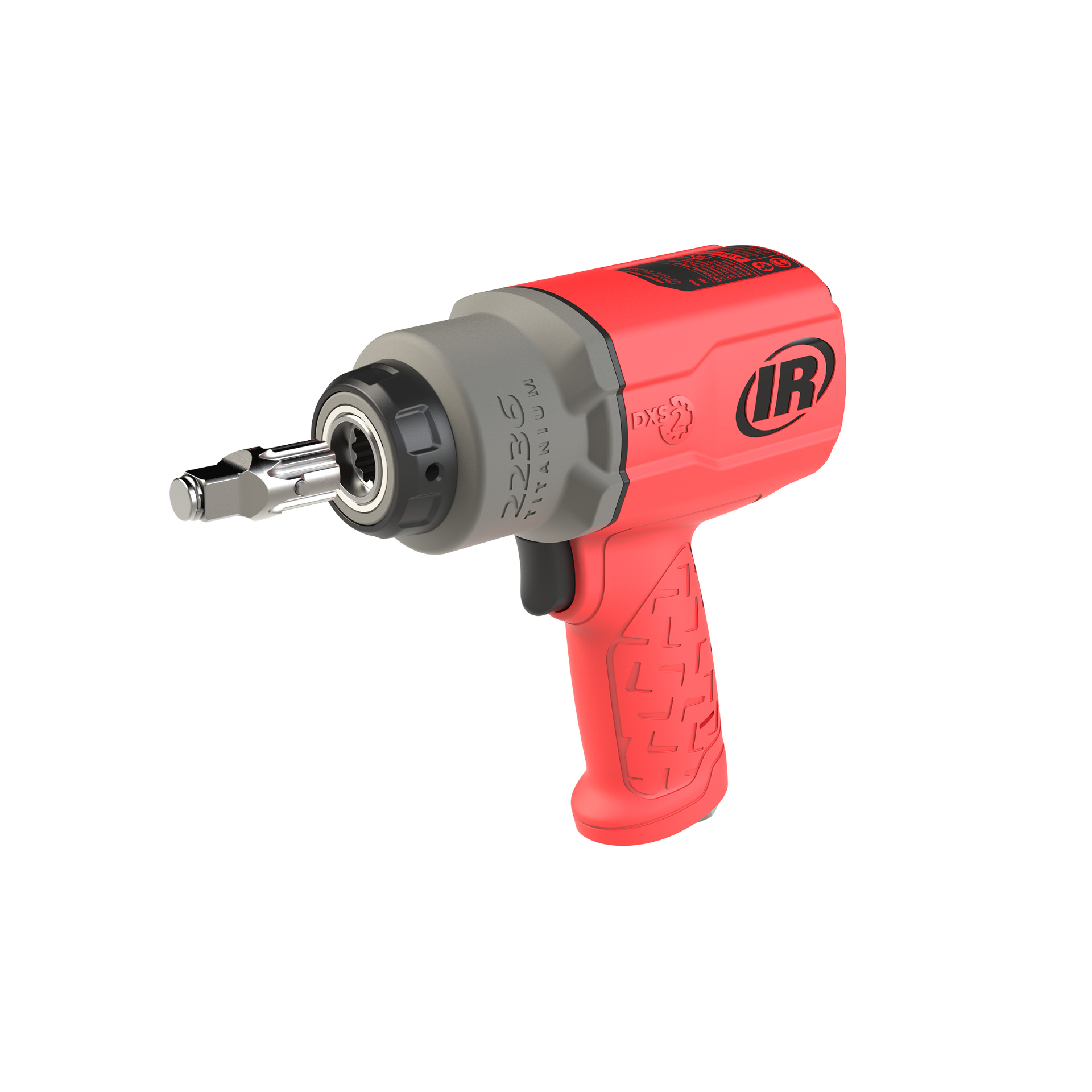

IR 2236QTIMAX-R
DXS2 1/2" Air Impact Wrench, Quiet, 1500 ft-lb Torque, Titanium Hammercase, Friction Ring Retainer, Red
Description: The Ingersoll Rand 2236QTiMAX Visibility Series, provides the power you know and trust in vibrant colors. Ingersoll Rand has delivered the gold standard in pneumatic tools for almost 100 years — and the performance, durability, and power of the 2236 1/2" pneumatic impact is no different. Our patented Drive Xchange System lets you swap out anvils without torque-zapping adapters and extenders. Plus, a powerful motor, durable build, and quiet, efficient operation make the 2236 model the perfect choice for serious technicians. Powerful Versatility: Say goodbye to that drawer full of adapters for good. The Ingersoll Rand 2236 Pneumatic 1/2 inch impact wrench has an interchangeable anvil system that lets you tailor your tool to whatever job is at hand — without losing a single ft-lb of power. Innovation: Ingersoll Rand's patented Drive Xchange System helps you get more versatility, torque, and control out of your impact wrench. Torque: The 2236 series operates with 1,500 ft-lbs of breakaway torque.
Features And Benefits:
- Visibility: The red 2236QTIMAX-R impact wrench allows you to see it on the job and in the garage, while customizing your toolbox. Also available in orange and green.
- Patented Drive Xchange System: Helps you get more versatility, torque, and control out of your impact wrench. With 3/8," 1/2" , and 3/4" drive options and 5 different anvil lengths ranging from 2 to 10 inches, you can do more work with less equipment.
- Powerful Versatility: 1,500 ft.-lbs. of breakaway torque from a unique patented motor design.
- Patented Direct Greasing System: Greasing your tool has never been easier. Directly grease the tool's hammer for more efficient operation and increased run time.
- Reliable Performance: Stay working, and at peak power by quickly replacing worn or broken anvils. Titanium hammer case is light weight with unyielding durability.
- Ergonomic: Smaller, lighter and better balanced design under 4.5 lbs. and 7.4" overall length.
- Quiet: 4 decibels quieter than the 2235TIMAX for a more user-friendly environment.
- Includes 1/2" Square Drive Anvil (A41H), 3/8" and 3/4" drive size options as well as extended lengths sold separately.
Product Application and Uses:
Vehicle Repair
- Includes: DXS2 1/2" Square Drive Anvil (A41H). Compatible with all DXS2 anvils and sockets. 3/8" and 3/4" drive size options as well as extended lengths sold separately.
- Actuation/Throttle Type/Switch Type: Trigger
- Air Consumption @ Load (cfm): 36
- Air Consumption @ Load (l/min): 1090
- Air Inlet: 1/4" NPT
- Air Pressure (psi): 90
- Anvil Length: Standard
- Average Air Consumption (cfm): 9
- Average Air Consumption (l/min): 255
- Color: Red
- Configuration/Handle Type: Pistol Grip
- Drive Size (in): 1/2
- Drive Type: Square
- Duty Rating: Heavy Duty
- End Plates: Steel
- Exhaust Location: Bottom
- Free Speed Sound Pressure/Power Db(A): 96.4 / 107.4
- Hammer Case: Titanium
- Housing Material: Impact and chemical-resistant composite housing
- Impact Mechanism: Twin Hammer
- Impacting Sound Pressure/Power Db(A): 94.2 / 105.2
- Max Bolt Diameter (in): 1 1/4
- Max Free Speed (rpm): 7500
- Max Pressure (bar): 6.2
- Max Torque (ft-lb): 1000
- Max Torque (in-lb): 12002
- Max Torque (nm): 1356
- Min Hose Size (in): 3/8
- Motor: Reverse Bias
