Impacts

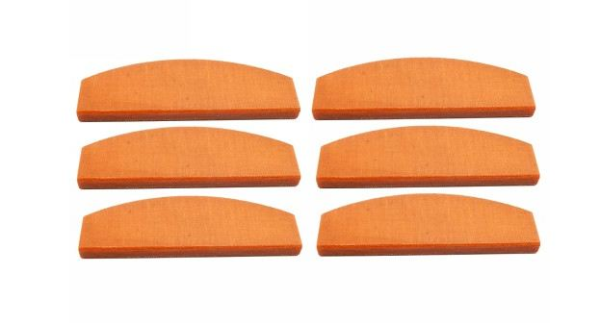

IR 2950-42-6

Vane Pack (set of 6) Service Part for Ingersoll Rand 2950 Series Impact Wrenches

For Use With

• 2950B7
• 2950B7-EU

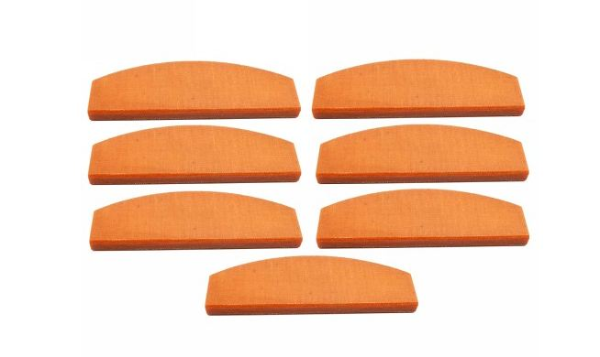

IR 2950-42-7

Vane Pack Service Part for Ingersoll Rand Power Tools

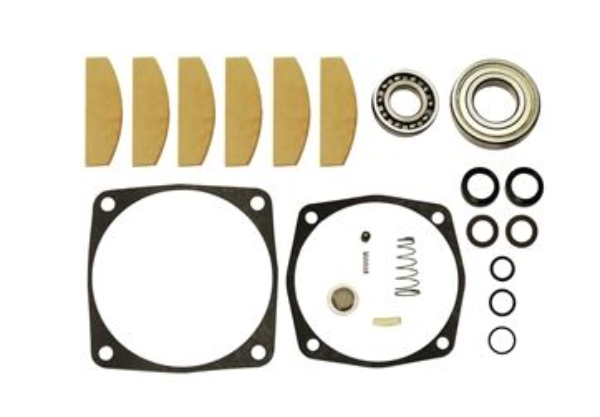

IR 2950-TK2

Tune-up Kit for Ingersoll Rand 2950 Series Impact Wrench

For Use With

• 2950B7
• 2950B7-EU

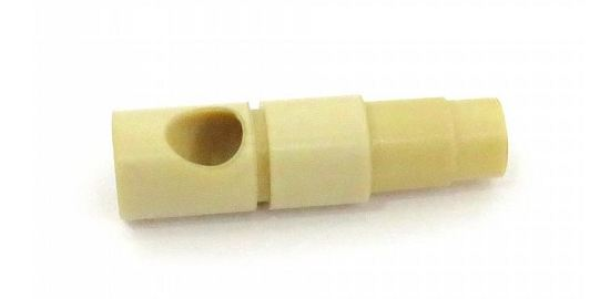

IR 3934-329

REVERSE VALVE

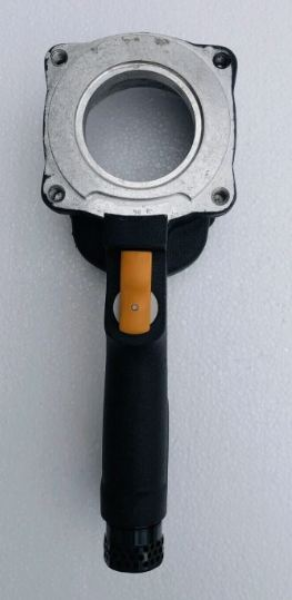

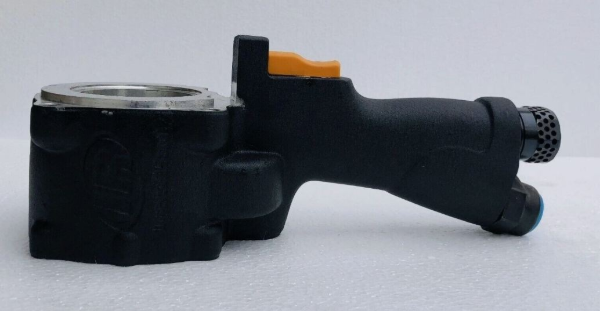

IR 3940-A40

MOTOR HOUSING ASSEMBLY

IR 3940P-A40

MOTOR HOUSING ASSEMBLY

IR 3942B2TI

1" Air Impact Wrench, Super Duty, 3250 ft-lb Torque, Titanium Hammercase, Thru-hole Retainer, D-Handle Inside Trigger

With a titanium hammercase, bronze end plates and torque up to 3,250 ft-lbs, the 3900 Series are the premier industrial grade impacts in the industry.

Features And Benefits

• Power: The 3900 Series delivers a high torque output of 3250 ft-lbs and 850 blows per minute.
• Bronze End Plates: Thanks to the bronze end-plate and a corrosion preventative treatment, this tool is corrosion and wear resistant, which makes it great for outdoor conditions.
• Durability: With a titanium hammer case and metal housing, this tool can withstand even the harshest conditions.
• Balance: Twin hammer mechanism ensure consistent power and balance.
• Reverse bias motor to help remove the most stubborn bolts.
• Pressure-fed mechanism lubrication ensures complete coverage throughout the tool
• Integral muffler
• Optimized for general industrial use, MRO, rail, heavy machinery, and shipbuilding
• Integral muffler.

Product Application and Uses: Heavy Industry, Oil&Gas, Foundry
Actuation/Throttle Type/Switch Type: Inside Trigger
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 95
Average Air Consumption (l/min): 2690
Blows per Min: 850
Color: Grey
Configuration/Handle Type: D-Handle
Drive Size (in): 1
Drive Type: Square
Duty Rating: Super Duty
End Plates: Bronze
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 102.7 / 113.7
Hammer Case: Titanium
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 99.0 / 110.0
Max Bolt Diameter (in): 1-3/8
Max Free Speed (rpm): 5000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 3250
Max Torque (in-lb): 39005
Max Torque (nm): 4407
Min Hose Size (in): 3/4
Motor: Reverse Bias
Number of Power Settings: Continuous
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 143.8
Product Length (in): 14.3
Product Weight (lb): 22.6
Quiet Tool: No
Recommended Forward Torque Range (ft-lb): 3000
Recommended Forward Torque Range (in-lb): 36005
Recommended Forward Torque Range (nm): 4068
Retainer Type: Thru-hole
Special Features: Titanium hammercase
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 7
Vibration Level (m/s2): 16.9
Vibration Uncertainy K* (m/s2): 4.6
Warranty: 1-year

Similar IR

• 3942A2TI

IR 4U-97

Bearing for Ingersoll Rand 231, 236G, 2705, 35MAX, 15QMAX, 36QMAX Series Impact Wrench

IR 508-97

Rear Motor Bearing Service Part for Ingersoll Rand Power Tools

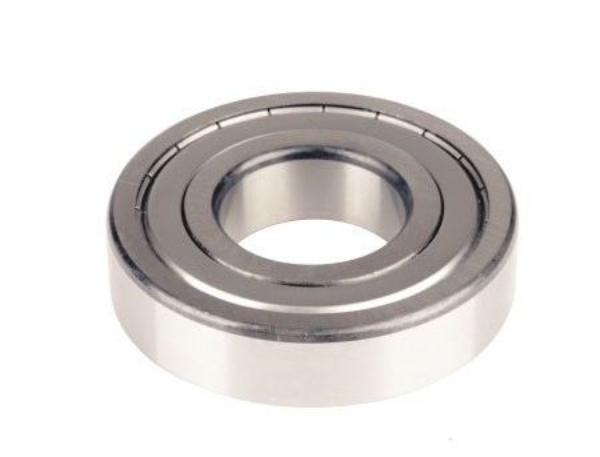

IR 555-24

BEARING

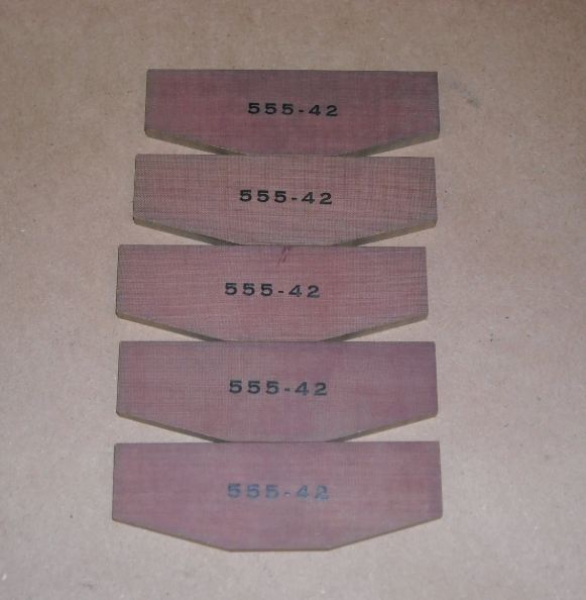

IR 555-42-5

VANE PACK

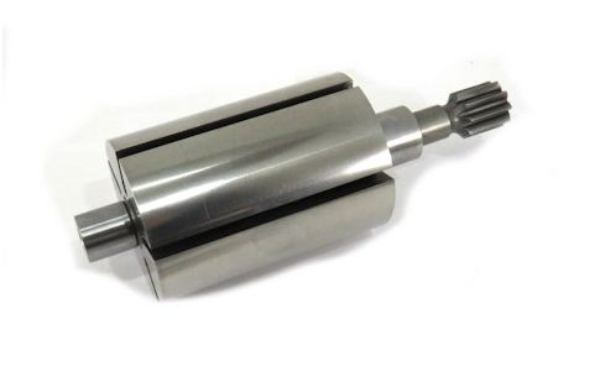

IR 577-53

ROTOR WITH PINION

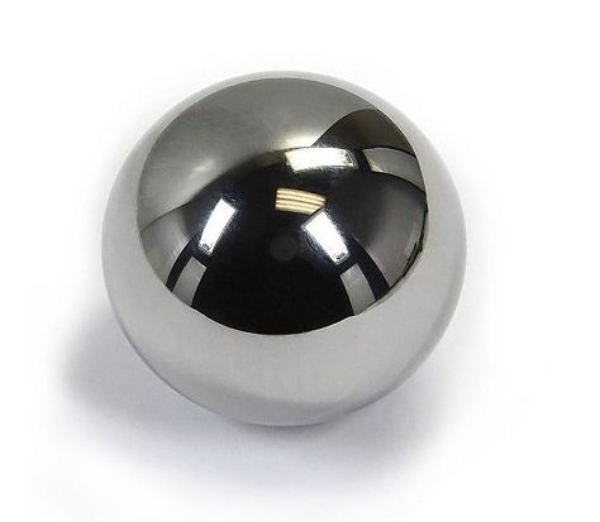

IR 577-714

STEEL BALL

IR 5780-72

GUIDE

IR 5780-724

HAMMER

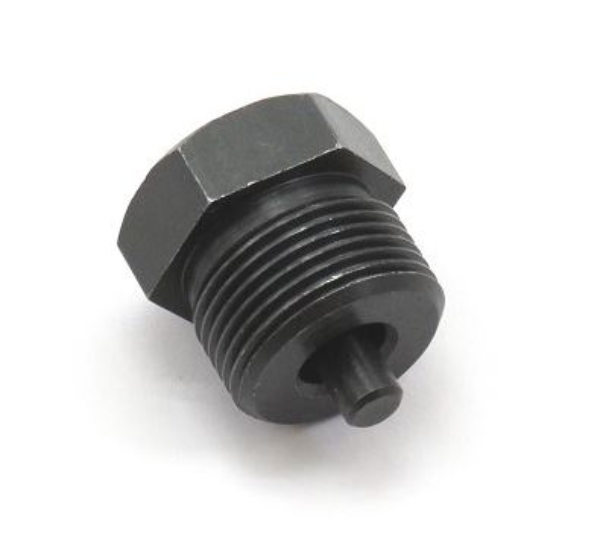

IR 7500-109

THROTTLE VALVE CAP

IR 834-565

STRAINER

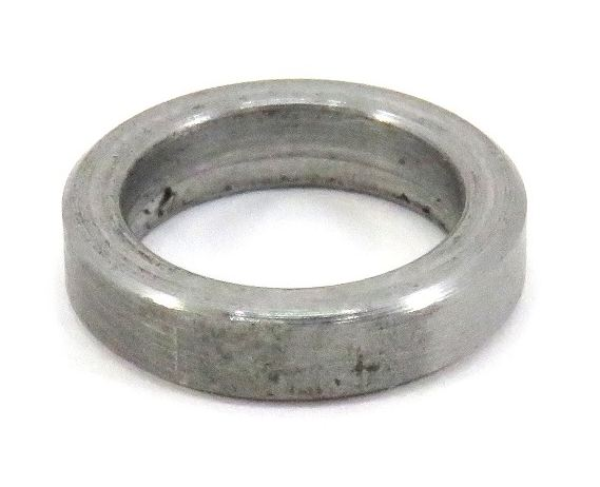

IR 845-140

SPACER

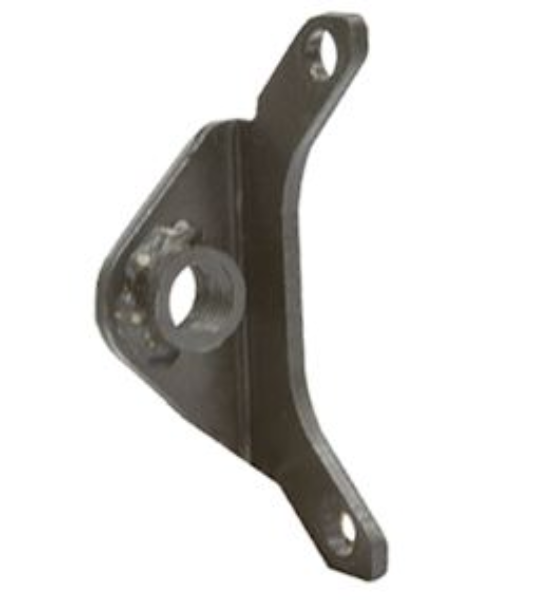

IR 845-364

BRACKET

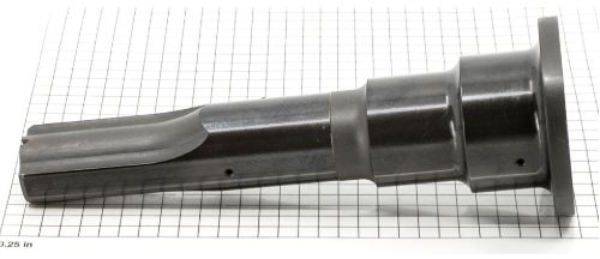

IR ILA578A1-725

ARBOR

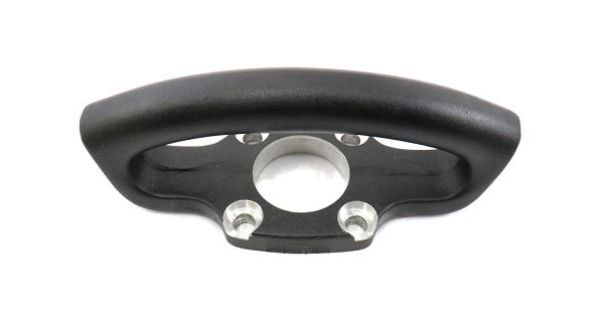

IR ILA582A1-1

HANDLE

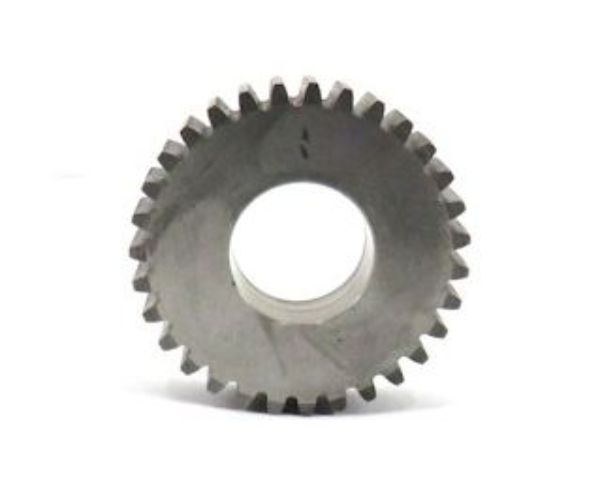

IR ILA582A1-10

GEAR

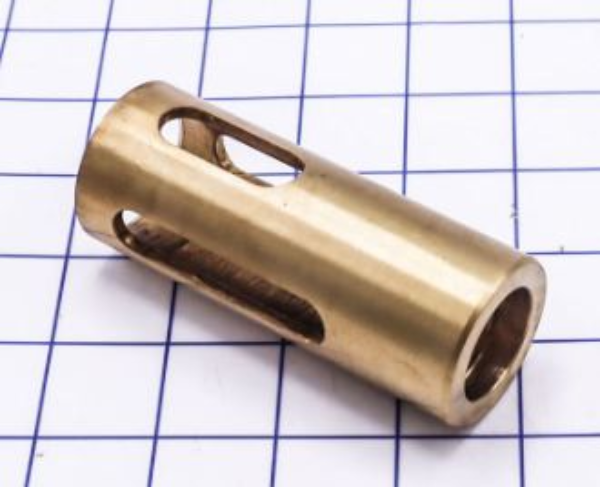

IR ILA582A1-330

BUSHING

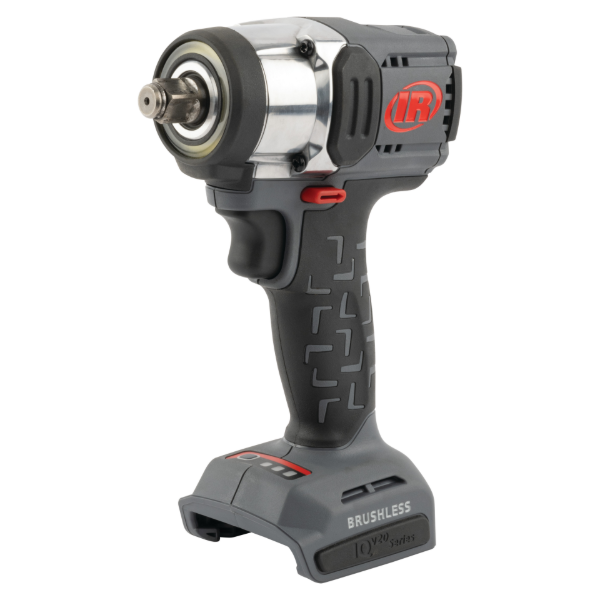

IR W3151

1/2" 20V Cordless Impact Wrench, 450 ft-lb Torque, Compact, Friction Ring Retainer, Pistol, Bare Tool

From the brand you trust for precise, high-performance fastening tools – Ingersoll Rand grows its IQV® 20 system with the W3151 Compact Impact Wrench. Its brushless motor delivers breakaway torque up to 450 ft-lbs. to quickly complete demanding applications. A compact form factor with 5.3” tip-to-tail length and weight under 2.3 lbs. provide excellent control and maneuverability in tight workspaces. Including 3 speed modes and patented 360º LED light ring to fully eliminate shadows, the W3151 Compact Impact Wrench includes 3-year limited warranty and is compatible with all IQV® 20 batteries.

Features And Benefits

• PERFORMANCE: Powerful Brushless Motor Delivers up to 450 ft-lbs. of Breakaway Torque.
• COMPACT: Short 5.3” tip-to-tail length enables working in enclosed spaces.
• VERSATILE: 3 Speed modes with Variable Speed Trigger to Fine-Tune for Application.
• DURABLE: Impact-resistant design with comfortable over molded handle grip.
• LIGHT WEIGHT: Light 2.3 lbs. weight provides excellent control and maneuverability of tool.
• VISIBILITY: 360º shadowless LED light ring to fully eliminate shadows.
• COMPATIBLE: Cordless Impact wrench works with all IQV® 20 batteries.

Includes: Bare tool only; batteries and charger sold separately or with other kits.
Product Application and Uses: Cordless Impact Wrenches are designed to remove and install threaded fasteners.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Blows per Min: 4200 (BL2022)
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: General Duty
Forward Torque setting 1 (ft-lb): 100
Forward Torque setting 1 (in-lb): 1195
Forward Torque setting 1 (nm): 135
Forward Torque setting 2 (ft-lb): 181
Forward Torque setting 2 (in-lb): 2168
Forward Torque setting 2 (nm): 245
Forward Torque setting 3 (ft-lb): 321
Forward Torque setting 3 (in-lb): 3850
Forward Torque setting 3 (nm): 435
Hammer Case: Metal
Housing Material: Impact and chemical-resistant composite housing
Impact Mechanism: Ball and Cam
Lumens: 34
Max Free Speed (rpm): 2800
Max Torque (ft-lb): 321
Max Torque (in-lb): 3850
Max Torque (nm): 435
Motor: Brushless Motor
Number of Batteries Required: 1
Number of Power Settings: 3
Nut-busting/Breakaway Torque (ft-lb): 450
Nut-busting/Breakaway Torque (in-lb): 5400
Nut-busting/Breakaway Torque (nm): 610
Power Source: Battery Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 119.4 (BL2022)
Product Length (in): 5.3
Product Width (in): 2.56
Product Height (in): 8.31
Product Height (in) (with Battery): 10.2
Product Weight (lb): 2.26
Product Weight (lb) (with Battery): 3.19 (BL2012)
Product Weight (lb) (with Battery): 3.77 (BL2022)
Recommended Forward Torque Range (ft-lb): 321
Recommended Forward Torque Range (in-lb): 3850
Recommended Forward Torque Range (nm): 435
Retainer Type: Friction Ring
RPM Setting 1: 725
RPM Setting 2: 1600
Side to Center Distance (in): 1.28
Side to Center Distance (mm): 33
Sound Pressure/Power Db(A): 90 / 101
Speed Setting: Variable Speed
Standards/Certifications: UL/EN/IEC 62841-1, EN/IEC 62841-2-2
Tool Type: Mid-torque
Tool Type: Compact
Vibration Level (m/s2): 18.1
Vibration Uncertainy K* (m/s2): 5.8
Voltage DC: 20
Warranty: 3-year tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality

Similar IR

• 36QMAX
• 2235TIMAX
• W5153

CL CWM-750P

IMPACT WRENCH, METAL 3/4" SQ DR, PIN RET
