Impacts

FP AC-811

FP U AF-20C

IR 1702-A727

Hammer Assembly Service Part for Ingersoll Rand Impact Wrench

• For Use With: 211

IR 1702B-A329

IR 1702P-A40

IR 1712-724

IR 1712-A92

IR 1720P-230

IR 1720P-A40

IR 2015-40-B

IR 2015-BOOT

Protective Boot for 2015MAX and 2025MAX Series Impact Wrenches

Description: Ingersoll Rand's tool boots absorb vibrations and protect the tool from external damage.

Features And Benefits:

• Protects surrounding surfaces from scratches, nicks ect.
• Protects tool from damage if dropped.
• Adds further protection from unwanted contaminates that can affect tool performance.

• Color: Grey

• For Use With: 2015MAX
• For Use With: 2025MAX

IR 2015-K273

IR 2102XPA

3/8" Mini Air Impact Wrench, 55 ft-lb Torque, Friction Ring Retainer, Pistol

Description: Despite its small size, this Mini Impact Wrench packs a punch. Thanks to its rocking dog impact mechanism and finely tuned vane motor, this wrench is as compact as it is powerful.

Features And Benefits:

• Access: Thanks to its small size, this wrench can fit in even the toughest to reach spaces.
• Reliability: These parts will stand the test of time. The rocking dog impact mechanism is easy to maintain, and delivers a powerful burst with low air needs.
• Increased Productivity: The less time you have to worry about changing parts, the more time you have to work.
• 1-year warranty

Product Application and Uses:

Designed to remove and install threaded fasteners. Optimized for the vehicle repair industry, body shops, and MRO

• Actuation/Throttle Type/Switch Type: Trigger
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 13.5
• Average Air Consumption (l/min): 382

• Blows per Min: 3650

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 3/8
• Drive Type: Square
• Duty Rating: General Duty

• End Plates: Steel
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 83.5 / 94.5

• Hammer Case: Steel
• Handle Material: Composite
• Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
• Impact Mechanism: Rocking Dog
• Impacting Sound Pressure/Power Db(A): 84.9 / 95.9

• Max Bolt Diameter (in): M5
• Max Free Speed (rpm): 14500
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 55
• Max Torque (in-lb): 664
• Max Torque (nm): 75
• Min Hose Size (in): 3/8
• Motor: Non-Biased

• Number of Power Settings: Continuous
• Power Source: Air Powered
• Product Length (in): 6.8

• Product Width (in): 1.7
• Product Height (in): 6.1
• Product Weight (lb): 1.6
• Recommended Forward Torque Range (ft-lb): 50
• Recommended Forward Torque Range (in-lb): 602
• Recommended Forward Torque Range (nm): 68
• Retainer Type: Friction Ring

• Side to Center Distance (in): 0.85
• Side to Center Distance (mm): 22

• Speed Setting: Variable Speed
• Standards/Certifications: CE

• Tool Type: Compact
• Vanes: 5
• Vibration Level (m/s2): 3
• Warranty: 1-year

• Lubrication: 105-LBK1
• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 2101XPA-42-5

IR 2112-283

IR 2112-641

IR 2112-703

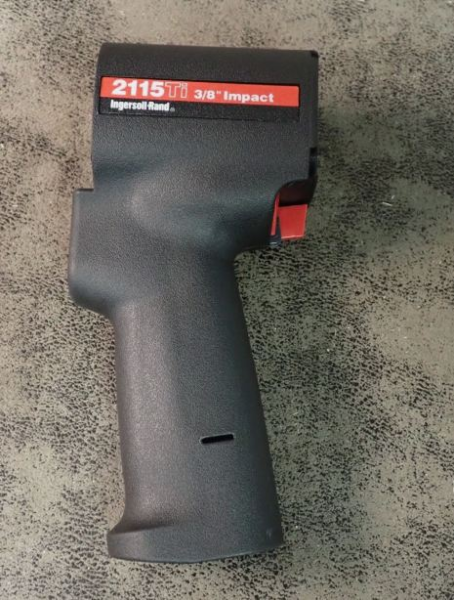

IR 2115PTI-A40

IR 2115TI-A40

IR 211-TK2

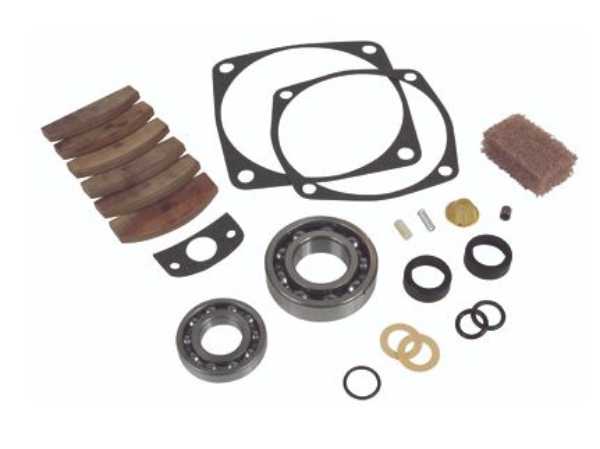

Tune-Up Kit for Ingersoll Rand 211 Impact Wrench

• For Use With: 211

IR 2125PTI-THK1

IR 2130

1/2" Air Impact Wrench, Heavy Duty, 550 ft-lb Torque, Friction Ring Retainer, Pistol

Description: Reliable and durable, this 2130 Series Impact Wrench was built to help you succeed. From your first to your last job, this wrench will see you through.

Features And Benefits:

• Access: This impact wrench is great for changing tires and general vehicle repair.
• Durability: Thanks to its steel hammer case and composite housing, this wrench will endure anything, from repeated drops to harsh chemicals. It'll never let you down.

Product Application and Uses:

Vehicle Repair, General Industrial, Facility Maintenance

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 22
• Air Consumption @ Load (l/min): 623
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 4.4
• Average Air Consumption (l/min): 125

• Blows per Min: 1200

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 1/2
• Drive Type: Square
• Duty Rating: Heavy Duty

• End Plates: Aluminum with Hard-coating
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 89.8 / 100.8

• Hammer Case: Steel
• Handle Material: Composite
• Impact Mechanism: Twin Hammer
• Impacting Sound Pressure/Power Db(A): 94.5 / 105.5

• Max Bolt Diameter (in): 9/16
• Max Free Speed (rpm): 9500
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 549
• Max Torque (in-lb): 6594
• Max Torque (nm): 745
• Min Hose Size (in): 3/8
• Motor: Reverse Bias

• Number of Power Settings: 3
• Power Source: Air Powered
• Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 131
• Product Length (in): 7.3

• Product Width (in): 2.8
• Product Height (in): 7.2
• Product Weight (lb): 4.2
• Recommended Forward Torque Range (ft-lb): 25-350
• Recommended Forward Torque Range (in-lb): 301-4195
• Recommended Forward Torque Range (nm): 34-474
• Retainer Type: Friction Ring

• Side to Center Distance (in): 1.4
• Side to Center Distance (mm): 36

• Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 10.7
• Warranty: 1-year

• Accessories: 2130-BOOT
• Accessories: S64H1316L-PS1
• Accessories: S64H1516L-PS1
• Accessories: S64H34L-PS1
• Accessories: S64H78L-PS1
• Accessories: S64M17L-PS1
• Accessories: S64M18L-PS1
• Accessories: S64M21L-PS1
• Accessories: S64M22L-PS1
• Accessories: S64M24L-PS1
• Accessories: S64M26L-PS1

• Lubrication: 105-LBK1
• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 2130-D1093
• Parts: 2130-TK1

IR 2130-638

IR 2131-A727

IR 2131A-941

IR 2131PEX

1/2" Air Impact Wrench, ATEX/Hazardous Duty, 600 ft-lb Torque, Pin Retainer, Pistol

Description: Specifically designed to meet ATEX Zone 1 or Zone 2 requirements, this 2130 Series Impact Wrench was built to help you succeed. Reliable and durable from your first to your last job, this wrench will see you through.ATEX Marking: ATEX 2014/34/EU and Ex h IIA T6 Gb XISO 80079-36 Certified

Features And Benefits:

• Durability: Thanks to its steel hammer case and composite housing, this wrench will endure anything, from repeated drops to harsh chemicals. It'll never let you down.
• Bronze bushing reduces risk of sparks
• Twin hammer mechanism ensure consistent power and balance
• Pressure-fed mechanism lubrication ensures complete coverage throughout the tool
• Feather-touch trigger allows precise delivery of pressure and speed
• Composite Housing is impact and chemical resistant to extend the life of the tool.
• ATEX Marking: ATEX 2014/34/EU and Ex h IIA T6 Gb X
• ISO 80079-36 Certified

Product Application and Uses:

Hazardous Environment, Heavy Industry, Oil&Gas, Foundry

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Feather-touch Trigger
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 4.8

• Blows per Min: 1250

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 1/2
• Drive Type: Square
• Duty Rating: Atex/Hazardous Duty

• End Plates: Aluminum with Hard-coating
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 86.4 / 97.4

• Hammer Case: Steel
• Handle Material: Composite
• Impact Mechanism: Twin Hammer
• Impacting Sound Pressure/Power Db(A): 90.4 / 101.4

• Max Bolt Diameter (in): 9/16
• Max Free Speed (rpm): 10250
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 600
• Max Torque (in-lb): 7196
• Max Torque (nm): 813
• Min Hose Size (in): 3/8
• Motor: Reverse Bias

• Number of Power Settings: 4
• Power Source: Air Powered
• Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 122
• Product Length (in): 7.3

• Product Width (in): 2.7
• Product Height (in): 7.2
• Product Weight (lb): 4.9
• Recommended Forward Torque Range (ft-lb): 450
• Recommended Forward Torque Range (in-lb): 5399
• Recommended Forward Torque Range (nm): 610
• Retainer Type: Pin Detent

• Side to Center Distance (in): 1.35
• Side to Center Distance (mm): 34

• Special Features: ATEX Rated
• Standards/Certifications: Atex 2014/34/Eu, Atex Ex H Iia T6 Gb X, Iso 80079-36

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 8.31
• Warranty: 1-year

• Accessories: S64H1316L-PS1
• Accessories: S64H1516L-PS1
• Accessories: S64H34L-PS1
• Accessories: S64H78L-PS1
• Accessories: S64M17L-PS1
• Accessories: S64M18L-PS1
• Accessories: S64M19L-PS1
• Accessories: S64M21L-PS1
• Accessories: S64M22L-PS1
• Accessories: S64M24L-PS1
• Accessories: S64M26L-PS1
• Accessories: S64M27L-PS1

• Lubrication: 105-LBK1
• Lubrication: 10G
• Lubrication: 10P
