Impacts

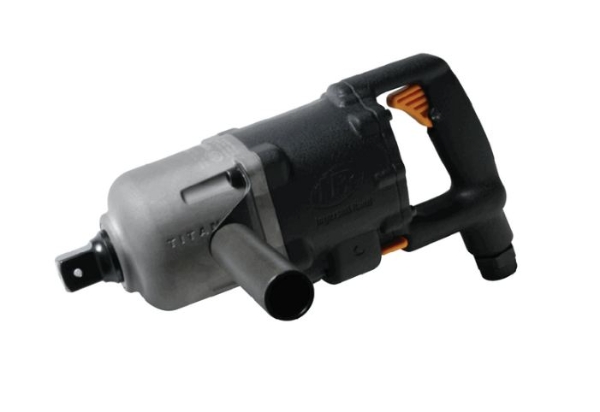

IR 3942B1TI

No. 5 Spline Air Impact Wrench, Super Duty, 3250 ft-lb Torque, Titanium Hammercase, Thru-hole Retainer, D-Handle Inside Trigger

With a titanium hammercase, bronze end plates and torque up to 3,250 ft-lbs, the 3900 Series are the premier industrial grade impacts in the industry.

Features And Benefits

• Power: The 3900 Series delivers a high torque output of 3250 ft-lbs and 850 blows per minute.
• Bronze End Plates: Thanks to the bronze end-plate and a corrosion preventative treatment, this tool is corrosion and wear resistant, which makes it great for outdoor conditions.
• Durability: With a titanium hammer case and metal housing, this tool can withstand even the harshest conditions.
• Balance: Twin hammer mechanism ensure consistent power and balance.
• Reverse bias motor to help remove the most stubborn bolts.
• Pressure-fed mechanism lubrication ensures complete coverage throughout the tool
• Integral muffler
• Optimized for general industrial use, MRO, rail, heavy machinery, and shipbuilding

Product Application and Uses: Heavy Industry, Oil&Gas, Foundry
Actuation/Throttle Type/Switch Type: Inside Trigger
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 95
Average Air Consumption (l/min): 2690
Blows per Min: 850
Color: Grey
Configuration/Handle Type: D-Handle
Drive Size (in): No. 5
Drive Type: Spline
Duty Rating: Super Duty
End Plates: Bronze
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 102.7 / 113.7
Hammer Case: Titanium
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 99.0 / 110.0
Max Free Speed (rpm): 5000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 3250
Max Torque (in-lb): 39005
Max Torque (nm): 4407
Min Hose Size (in): 3/4
Motor: Reverse Bias
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 14.3
Product Weight (lb): 22.6
Quiet Tool: No
Recommended Forward Torque Range (ft-lb): 3000
Recommended Forward Torque Range (in-lb): 36005
Recommended Forward Torque Range (nm): 4068
Retainer Type: Thru-hole
Special Features: Titanium hammercase
Tool Type: Full-size
Vanes: 7
Vibration Level (m/s2): 16.9
Vibration Uncertainy K* (m/s2): 4.6
Warranty: 1-year

Similar IR

• 3940A1TI
• 3940B1TI
• 3955B1TI

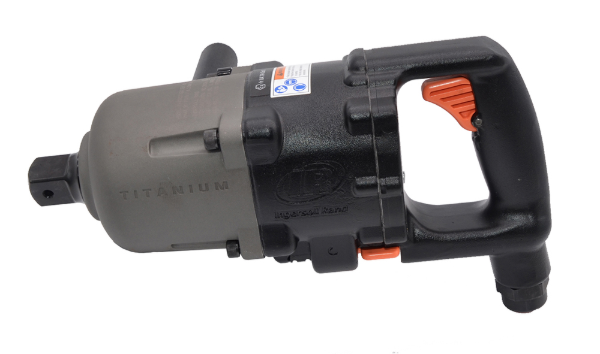

IR 3940B2TIEX

1" Air Impact Wrench, ATEX/Hazardous Duty, 2750 ft-lb Torque, Titanium Hammercase, D-Handle Inside Trigger

Specifically designed to meet ATEX Zone 1 or Zone 2 requirements, with titanium hammer case, bronze end plates, and a corrosion preventative treatment up to 2750 ft-lbs, the 3900 Series are the premier industrial grade impact wrench in the industry. ATEX Marking ATEX 2014/34/EU Ex h IIA T6 Gb X and ISO 80079-36 Certified.

Features And Benefits

• Environmental, Health and Safety: ISO 80079-36 and ATEX 2014/34/EU, Ex h IIA T6 Gb X Certified to meet ATEX Zone 1 or Zone 2 requirements.
• Power: High torque output of 2750 ft-lbs and 800 blows per minute. The reverse bias motor helps remove the most stubborn bolts and the twin hammer mechanism ensures consistent power and balance.
• Bronze End Plates: Thanks to the bronze end-plate and a corrosion preventative treatment, this tool is corrosion and wear resistant, which makes it great for outdoor conditions.
• Durability: With a titanium hammer case and metal housing, this tool can withstand even the harshest conditions.
• Reverse bias motor to help remove the most stubborn bolts.
• Balance: Twin hammer mechanism ensure consistent power and balance.
• Pressure-fed mechanism lubrication ensures complete coverage throughout the tool
• Integral muffler

Product Application and Uses: Hazardous Zones, Vehicle Repair, General Industrial, Facility Maintenance
Actuation/Throttle Type/Switch Type: Inside Trigger
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 64
Average Air Consumption (l/min): 1812
Blows per Min: 800
Color: Grey
Configuration/Handle Type: D-Handle
Drive Size (in): 1
Drive Type: Square
Duty Rating: Atex/Hazardous Duty
End Plates: Bronze
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 103.4 / 114.4
Hammer Case: Titanium
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 100.6 / 111.6
Max Bolt Diameter (in): 1-3/8
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 2750
Max Torque (in-lb): 33004
Max Torque (nm): 3729
Min Hose Size (in): 3/4
Motor: Reverse Bias
Number of Power Settings: Continuous
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 117.9
Product Length (in): 13.5
Product Weight (lb): 21.2
Quiet Tool: No
Recommended Forward Torque Range (ft-lb): 500-1800
Recommended Forward Torque Range (in-lb): 6001-21596
Recommended Forward Torque Range (nm): 678-2440
Retainer Type: Thru-hole
Special Features: ATEX Rated, Titanium hammercase
Standards/Certifications: Atex 2014/34/Eu, Atex Ex H Iia T6 Gb X, Iso 80079-36
Tool Type: Full-size
Vanes: 7
Vibration Level (m/s2): 13.1
Vibration Uncertainy K* (m/s2): 1.6
Warranty: 1-year

Similar IR

• 3942B2TIEX

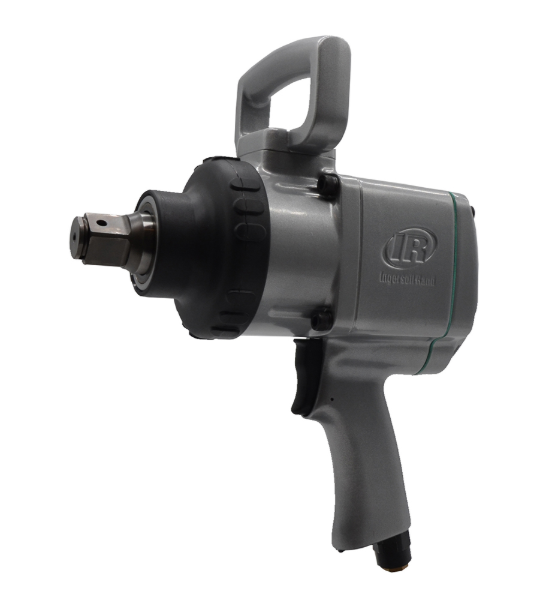

IR 295A

1" Air Impact Wrench, 1475 ft-lb Torque, Friction Ring-Thru-hole Retainer, Pistol

The 295A Series Impact Wrench combines exceptional power, control and durability is great for any garage. They deliver 1,770 ft-lb of maximum torque @ 120 psi, with 5,250 rpm free speed and a high-efficiency, 6-vane motor. The top-mounted dead handle provides great leverage for difficult underbody work.

Features And Benefits

• Power: The rocking dog's combination of high inertia and low BPM means this tool can deliver a powerful blow with little air, giving you all the power you want without having to overextend yourself.
• Professional Use: Designed for the professional with over 1770 ft.-lbs. of torque for the toughest applications.
• Reliability: Built with a steel hammer case and metal housing, this wrench can withstand repeated drops and harsh weather conditions.
• Durable and Resistant: Phenolic 6 vane motor resist harsh environments for less downtime on the job.
• Control: Features top mounted dead handle, Feather Touch trigger and 3 position power regulator in both forward and reverse.
• Speed: The impact wrench has a free speed of 5,250 rpm.
• Optimized: Optimized for the vehicle repair industry, heavy trucks, tire lanes, and MRO. 1-year warranty.

Product Application and Uses: Vehicle Repair, General Industrial, Facility Maintenance
Actuation/Throttle Type/Switch Type: Feather-touch Trigger
Air Consumption @ Load (cfm): 61
Air Consumption @ Load (l/min): 1727
Air Inlet: 1/2" NPT
Air Pressure (psi): 120
Anvil Length: Standard
Average Air Consumption (cfm): 10
Average Air Consumption (l/min): 283
Blows per Min: 830
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1
Drive Type: Square
Duty Rating: Heavy Duty
End Plates: Cast Iron
Exhaust Location: Bottom
Hammer Case: Aluminum
Housing Material: Aluminum core with composite sleeve
Impact Mechanism: Rocking Dog
Max Bolt Diameter (in): 1-1/4
Max Free Speed (rpm): 5250
Max Torque (ft-lb): 1770
Max Torque (in-lb): 21242
Max Torque (nm): 2400
Min Hose Size (in): 3/4
Motor: Non-Biased
Number of Power Settings: 3
Power Source: Air Powered
Product Length (in): 10.5
Product Width (in): 8
Product Height (in): 7.5
Product Weight (lb): 22
Recommended Forward Torque Range (ft-lb): 120-1080
Recommended Forward Torque Range (in-lb): 1443-12957
Recommended Forward Torque Range (nm): 163-1464
Retainer Type: Friction Ring and Thru-hole
Side to Center Distance (in): 4
Side to Center Distance (mm): 102
Sound Pressure/Power Db(A): 102.5/113.5
Speed Setting: Variable Speed
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 12.7
Vibration Uncertainy K* (m/s2): 2.5
Warranty: 1-year

Similar IR

• 2146Q2MAX
• 2155QIMAX
• 2175MAX
• 290
• 2922P3
• 2925RBP3TI
• 2934P2

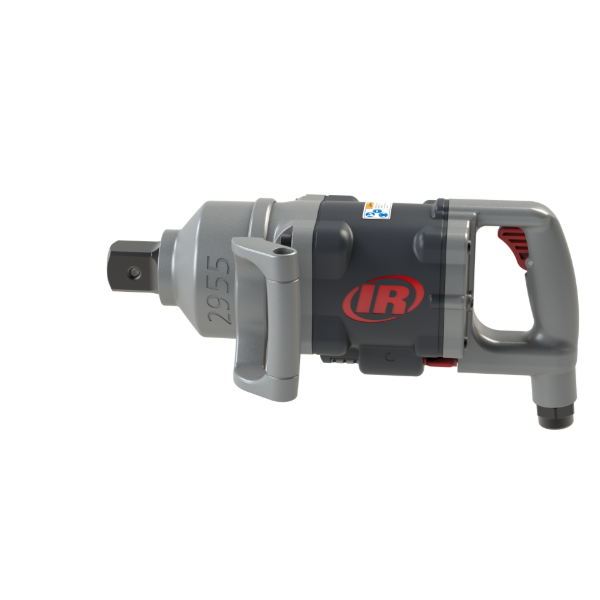

IR 2955B2

1-1/2" Air Impact Wrench, Heavy Duty, 4500 ft-lb Torque, Friction Ring-Thru-hole Retainer, D-Handle Inside Trigger

This powerful and innovative 1-1/2” square drive Impact Wrench delivers durability at an unmatched economic value. The 2955 Series delivers a competition leading 4,500 ft-lb of Max Reverse torque powered by Ingersoll Rand’s finely tuned cold forged twin-hammer impact mechanism. The innovative auxiliary handle allows the tool to be configured for the operator or application. The handle is fully adjustable to any orientation around the hammer case body allowing the tool to reach into confined bolt locations or fit to the most user-friendly position, reducing operator fatigue. Cold forged twin hammers, steel endplates and steel housing deliver unmatched durability in the most rugged applications. The 2955 Series is engineered with Ingersoll Rand’s legendary impact mechanism that makes maintenance simple for long life and low total cost of ownership. The 2955 Series is proudly assembled in our Southern Pines, NC facility with domestic and globally sourced components ensuring quality and fast, dependable delivery.

Features And Benefits

• 4,500 Ft-lbs of torque for tough applications, neutral bias air motor
• 360 Degree side-handle for added versatility when working on pipe flange applications
• Steel hammer case housing and aluminum handle provides durable design for industrial environments
• Cold Forged Twin Hammer mechanism
• Steel Endplates provide wear resistance
• 6-vane motor with optimized air flow
• Assembled in the USA of domestic and global components ensures quality, and fast delivery

Includes: Bare Tool
Product Application and Uses: Oil and Gas Repair and Maintenance, Dredging Companies, Mining Equipment Repair and Maintenance, Foundry Shops, River Dams, Hydro and Thermal Power Plants
Actuation/Throttle Type/Switch Type: Inside Trigger
Air Consumption @ Load (cfm): 95
Air Consumption @ Load (l/min): 2690
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Blows per Min: 700
Color: Grey
Configuration/Handle Type: D-Handle
Drive Size (in): 1-1/2
Drive Type: Square
Duty Rating: Heavy Duty
End Plates: Steel
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 98.2 / 109.2
Hammer Case: Steel
Handle Material: Aluminum
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 103.3 / 114.3
Max Bolt Diameter (in): 1 1/2
Max Free Speed (rpm): 3300
Max Pressure (bar): 6.2
Max Torque (ft-lb): 4500
Max Torque (in-lb): 53990
Max Torque (nm): 6100
Min Hose Size (in): 3/4
Motor: Non-Biased
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 16.5
Product Width (in): 5.3
Product Height (in): 8.1
Product Weight (lb): 35.3
Recommended Forward Torque Range (ft-lb): 1601-3762
Recommended Forward Torque Range (in-lb): 19206-45139
Recommended Forward Torque Range (nm): 2170-5100
Recommended Reverse Torque (ft-lb): 1601-3762
Recommended Reverse Torque (nm): 2170-5100
Retainer Type: Friction Ring and Thru-hole
Side to Center Distance (in): 2.7
Side to Center Distance (mm): 69
Special Features: 360 degree adjustable handle
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 18
Warranty: 1-year

Similar IR

• 3955B2TI
• W9491
• 3940B2TI

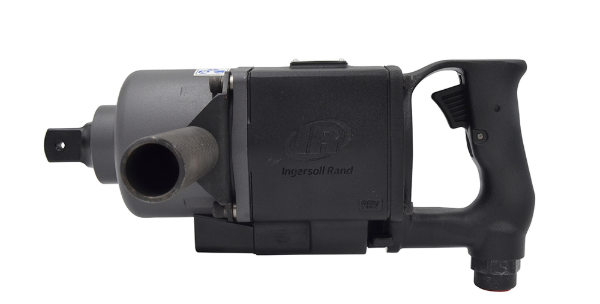

IR 2940B2

1" Air Impact Wrench, Industrial Duty, 1600 ft-lb Torque, Thru-hole Retainer, D-handle Inside Trigger

Find the top impact tools in the industry. The 2940 Series from Ingersoll Rand has over 100 years of legacy behind it.

Features And Benefits

• 2,000 ft.-lbs. of maximum torque
• Cast iron hammer case and metal housing that will withstand harsh conditions and repeated drops
• Finely Tuned twin hammer impact mechanism delivers more balanced blows that reduces vibration and increases durability
• Bronze end-plate that increases durability and is corrosion resistant
• Pressure-fed mechanism lubrication
• Reverse Bias Motor and Integral muffler

Product Application and Uses: Heavy Industry, Oil&Gas, Foundry
Actuation/Throttle Type/Switch Type: Inside Trigger
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Blows per Min: 850
Color: Grey
Configuration/Handle Type: D-Handle
Drive Size (in): 1
Drive Type: Square
Duty Rating: Industrial Duty
End Plates: Bronze
Exhaust Location: Bottom
Hammer Case: Steel
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Max Bolt Diameter (in): 1-3/8
Max Free Speed (rpm): 5000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1601
Max Torque (in-lb): 19206
Max Torque (nm): 2170
Min Hose Size (in): 3/4
Motor: Non-Biased
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 10.2
Product Width (in): 22.1
Product Height (in): 6.5
Product Weight (lb): 22
Recommended Forward Torque Range (ft-lb): 1003-1601
Recommended Forward Torque Range (in-lb): 12037-19206
Recommended Forward Torque Range (nm): 1360 - 2170
Recommended Reverse Torque (ft-lb): 1003-1601
Recommended Reverse Torque (nm): 1360-2170
Retainer Type: Thru-hole
Side to Center Distance (in): 11.1
Side to Center Distance (mm): 282
Sound Pressure/Power Db(A): 94.8 / 105.8
Standards/Certifications: CE, Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 17.8
Vibration Uncertainy K* (m/s2): 3.4
Warranty: 1-year

Similar IR

• 2940A2

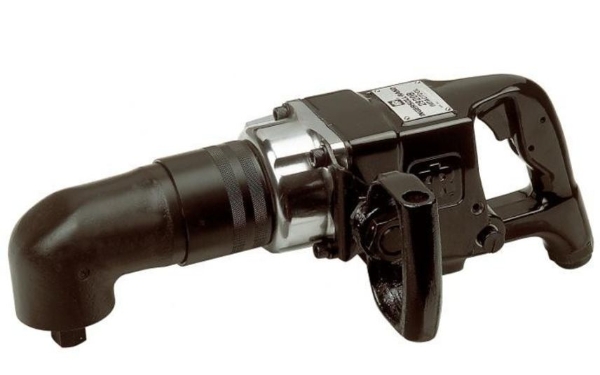

IR 2934B9

1" Air Impact Wrench, Super Duty, 750 ft-lb Torque, Thru-hole Retainer, D-Handle Inside Trigger

The twin hammer impact mechanism ensures this series is reliable, durable, and will produce the same output every time.

Features And Benefits

• Durability: This Series features an iron hammer case and metal housing that’ll withstand harsh conditions and drops.
• Reliability: Resistant to fluctuations in air pressures, this series will work just as well in any condition. Comes with a 1-year warranty.
• Great for Outdoor Environments: This wrench contains a bronze end-plate that increases durability and is corrosion resistant.

Product Application and Uses: Optimized for general industrial use, rail, heavy machinery, oil and gas, and shipbuilding
Actuation/Throttle Type/Switch Type: Inside Trigger
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 47
Average Air Consumption (l/min): 1331
Blows per Min: 780
Color: Grey
Configuration/Handle Type: D-Handle
Drive Size (in): 1
Drive Type: Square
Duty Rating: Super Duty
End Plates: Bronze
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 93.2 / 104.2
Handle Material: Composite
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 94.5 / 105.5
Max Bolt Diameter (in): 1.125
Max Free Speed (rpm): 5300
Max Pressure (bar): 6.2
Max Torque (ft-lb): 750
Max Torque (in-lb): 9001
Max Torque (nm): 1017
Min Hose Size (in): 3/4
Motor: Non-Biased
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 18.63
Product Width (in): 4.4
Product Height (in): 6.7
Product Weight (lb): 35.75
Recommended Forward Torque Range (ft-lb): 500-656
Recommended Forward Torque Range (in-lb): 6001-7877
Recommended Forward Torque Range (nm): 678-890
Recommended Reverse Torque (ft-lb): 500-656
Recommended Reverse Torque (nm): 678-890
Retainer Type: Thru-hole
Side to Center Distance (in): 1.63
Side to Center Distance (mm): 41
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 30.8
Warranty: 1-year

Similar IR

• 2934B2
• 2934P2

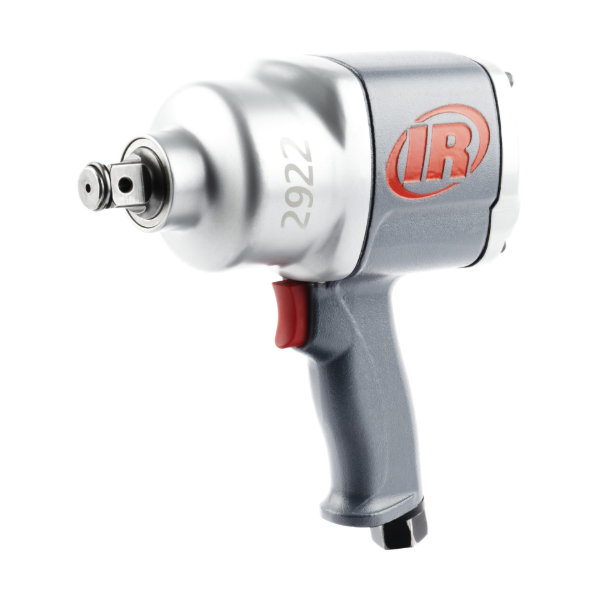

IR 2922P3

1" Air Impact Wrench, Super Duty, 2000 ft-lb Torque, Friction Ring-Thru-hole Retainer, Pistol

Ingersoll Rand’s 2922 Series 1” Air Impact Wrenches are making their impact on the industry by combining top-of-the-line performance and power at an attainable price point. The 2,000 ft-lbs. of nut-busting torque and 1,450 ft-lbs. of max breakaway torque allow you to quickly take on your toughest jobs with ease, while the pressure feed lubrication ensures better distribution throughout the mechanism to improve the life of your tool. Even the harshest environments are no match for the durable construction of this all-metal masterpiece.

Features And Benefits

• Power: Best-in-class raw power and power to weight ratio means you’ll always be prepared with the power necessary to perform any task. 2,000 ft-lbs. of Nut Busting Torque and 1,450 ft-lbs. of breakaway torque promises premium power from every angle.
• Versatility: Equipped with a combo friction ring and thru hole anvil for more socket applications, the versatility of the Industrial Impacts knows no bounds.
• Durability: Features a steel hammer case and metal housing that’ll withstand harsh conditions and drops. Pressure Feed Lubrication ensures better distribution throughout the mechanism to improve tool life.

Product Application and Uses: Optimized for general industrial use, rail, heavy machinery, oil and gas, and shipbuilding.
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Free Speed (cfm): 148
Air Consumption @ Free Speed (l/min): 4188
Air Consumption @ Load (cfm): 98
Air Consumption @ Load (l/min): 2773
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 25
Average Air Consumption (l/min): 693
Blows per Min: 1050
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1
Drive Type: Square
Duty Rating: Super Duty
End Plates: Steel
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 99.6 / 110.6
Hammer Case: Steel
Handle Material: Aluminum
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 95.9 / 106.9
Max Bolt Diameter (in): 1.125
Max Free Speed (rpm): 5200
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1450
Max Torque (in-lb): 17401
Max Torque (nm): 1966
Min Hose Size (in): 1/2
Motor: Non-Biased
Number of Power Settings: 3
Nut-busting/Breakaway Torque (ft-lb): 2000
Nut-busting/Breakaway Torque (in-lb): 23986
Nut-busting/Breakaway Torque (nm): 2710
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 166
Product Length (in): 8.9
Product Width (in): 3.5
Product Height (in): 9.6
Product Weight (lb): 12
Recommended Forward Torque Range (ft-lb): 350-1100
Recommended Forward Torque Range (in-lb): 4204-13205
Recommended Forward Torque Range (nm): 475-1492
Recommended Reverse Torque (ft-lb): 350-1100
Recommended Reverse Torque (nm): 475-1492
Retainer Type: Friction Ring and Thru-hole
Side to Center Distance (in): 1.75
Side to Center Distance (mm): 44
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 7
Vibration Level (m/s2): 10.5
Warranty: 1-year

Similar IR

• 2922P1
• 2925RBP1TI
• 2175MAX

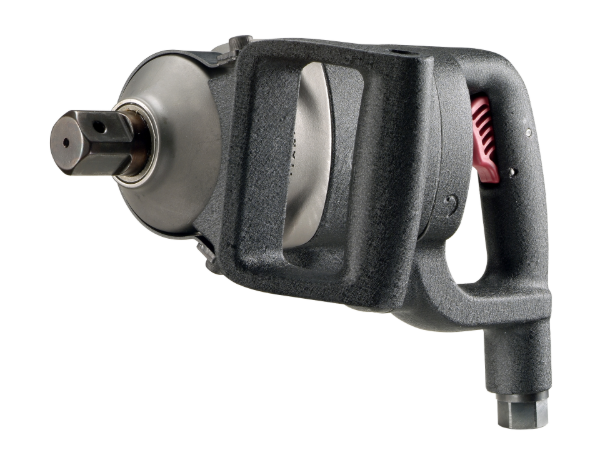

IR 2925B2TI

1" Air Impact Wrench, 1600 ft-lb Torque, Titanium Hammercase, Thru-hole Retainer, D-handle Inside Trigger

Features And Benefits

• Durability: Thanks to a titanium hammer case, this wrench is both lightweight and durable.
• Reliability: The twin hammer impact mechanism means it's less sensitive to air pressure fluctuation, which means you never have to worry about your location affecting your wrench's effectiveness.
• Bronze endplates and a corrosion preventative treatment prevents internal in outdoor, wet environments.
• Pressure-fed mechanism lubrication ensures complete coverage throughout the tool.
• Optimized for general industrial use, rail, heavy machinery, oil and gas, and shipbuilding.
• Integral muffler.

Actuation/Throttle Type/Switch Type: Inside Trigger
Air Consumption @ Load (cfm): 60
Air Consumption @ Load (l/min): 1699
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 12
Average Air Consumption (l/min): 340
Blows per Min: 900
Color: Grey
Configuration/Handle Type: D-Handle
Drive Size (in): 1
Drive Type: Square
End Plates: Bronze
Free Speed Sound Pressure/Power Db(A): 99.6 / 110.6
Hammer Case: Titanium
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 95.9 / 106.9
Max Free Speed (rpm): 6500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1497
Max Torque (in-lb): 17967
Max Torque (nm): 2030
Min Hose Size (in): 1/2
Motor: Non-Biased
Power Source: Air Powered
Product Length (in): 13.3
Product Height (in): 10.9
Product Weight (lb): 15.2
Recommended Forward Torque Range (ft-lb): 1298
Recommended Forward Torque Range (in-lb): 15577
Recommended Forward Torque Range (nm): 1760
Retainer Type: Thru-hole
Special Features: Titanium hammercase
Vibration Level (m/s2): 9.8
Warranty: 1-year

IR 2922P1

3/4" Air Impact Wrench, Super Duty, 2000 ft-lb Torque, Friction Ring and Thru-hole Retainer, Pistol

Ingersoll Rand’s 2922 Series 3/4” Air Impact Wrenches are making their impact on the industry by combining top-of-the-line performance and power at an attainable price point. The 2,000 ft-lbs. of nut-busting torque and 1,450 ft-lbs. of max breakaway torque allow you to quickly take on your toughest jobs with ease, while the pressure feed lubrication ensures better distribution throughout the mechanism to improve the life of your tool. Even the harshest environments are no match for the durable construction of this all-metal masterpiece.

Features And Benefits

• Power: Best-in-class raw power and power to weight ratio means you’ll always be prepared with the power necessary to perform any task. 2,000 ft-lbs. of Nut Busting Torque and 1,450 ft-lbs. of breakaway torque promises premium power from every angle.
• Durability: Features a steel hammer case and metal housing that’ll withstand harsh conditions and drops. Pressure Feed Lubrication ensures better distribution throughout the mechanism to improve tool life.
• Versatility: Equipped with a combo friction ring and thru hole anvil for more socket applications, the versatility of the Industrial Impacts knows no bounds.

Product Application and Uses: Optimized for general industrial use, rail, heavy machinery, oil and gas, and shipbuilding.
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Free Speed (cfm): 148
Air Consumption @ Free Speed (l/min): 4188
Air Consumption @ Load (cfm): 98
Air Consumption @ Load (l/min): 2773
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 25
Average Air Consumption (l/min): 693
Blows per Min: 1050
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Super Duty
End Plates: Steel
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 99.6 / 110.6
Hammer Case: Steel
Handle Material: Aluminum
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 95.9 / 106.9
Max Bolt Diameter (in): 1.125
Max Free Speed (rpm): 5200
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1450
Max Torque (in-lb): 17401
Max Torque (nm): 1966
Min Hose Size (in): 1/2
Motor: Non-Biased
Number of Power Settings: 3
Nut-busting/Breakaway Torque (ft-lb): 2000
Nut-busting/Breakaway Torque (in-lb): 23986
Nut-busting/Breakaway Torque (nm): 2710
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 166
Product Length (in): 8.9
Product Width (in): 3.5
Product Height (in): 9.6
Product Weight (lb): 12
Recommended Forward Torque Range (ft-lb): 350-1100
Recommended Forward Torque Range (in-lb): 4204-13205
Recommended Forward Torque Range (nm): 475-1492
Recommended Reverse Torque (ft-lb): 350-1100
Recommended Reverse Torque (nm): 475-1492
Retainer Type: Friction Ring and Thru-hole
Side to Center Distance (in): 1.75
Side to Center Distance (mm): 44
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 7
Vibration Level (m/s2): 10.5
Warranty: 1-year

Similar IR

• 2922P3
• 2925P1TI

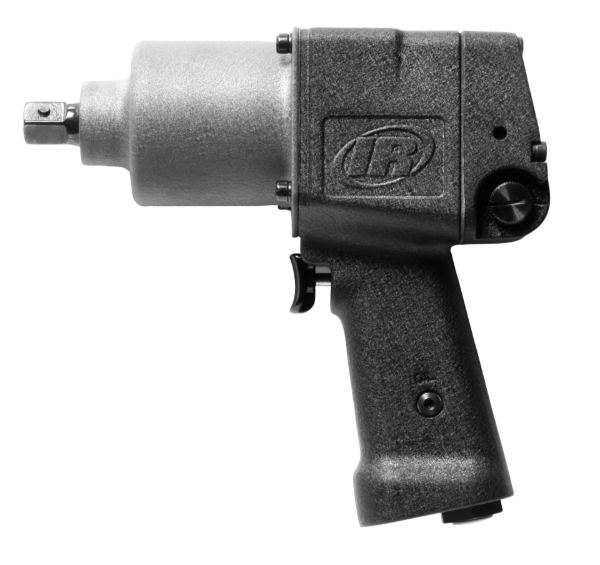

IR 2906P1

1/2" Air Impact Wrench, Super Duty, 500 ft-lb Torque, Pin Retainer, Pistol

This heavy duty impact wrench has your back. This tool is safe, reliable and always ready to perform at its peak.

Features And Benefits

• Durability: The 2906P1 Impact Wrench was built to last. Thanks to its steel hammer case and metal housing, this tool will work after multiple drops and harsh weather conditions.
• Power: Finely tuned twin hammer impact mechanism and a reverse bias motor delivers 500 ft-lbs. of max. torque, and 1200 blows per minute.
• Increased Safety: The square pin drive ensures provides the strongest connection to the socket to increase safety.

Includes: Bare Tool
Product Application and Uses: Heavy Industry, Oil&Gas, Foundry
Actuation/Throttle Type/Switch Type: Trigger
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 23
Average Air Consumption (l/min): 651
Blows per Min: 1200
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: Super Duty
End Plates: Steel
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 84.2 / 95.2
Hammer Case: Steel
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 86.0 / 97.0
Max Bolt Diameter (in): 9/16
Max Free Speed (rpm): 5000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 500
Max Torque (in-lb): 6001
Max Torque (nm): 678
Min Hose Size (in): 3/8
Motor: Non-Biased
Number of Power Settings: 6
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 83.3
Product Length (in): 6.88
Product Width (in): 8.82
Product Height (in): 3.39
Product Weight (lb): 6
Recommended Forward Torque Range (ft-lb): 40-350
Recommended Forward Torque Range (in-lb): 480-4204
Recommended Forward Torque Range (nm): 54.2-475
Recommended Reverse Torque (ft-lb): 40-350
Recommended Reverse Torque (nm): 54.2-475
Retainer Type: Pin Detent
Side to Center Distance (in): 4.4
Side to Center Distance (mm): 112
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 7.6
Warranty: 1-year

Similar IR

• 2705P1
• 2235TIMAX
• 2707P1
• 2236QPTIMAX

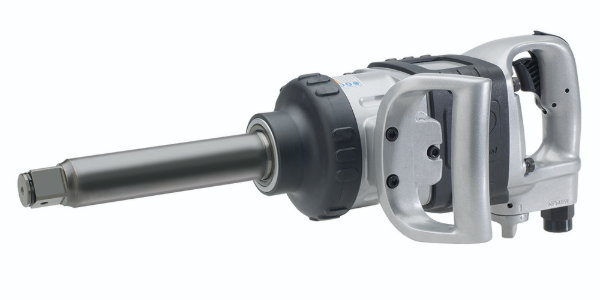

IR 285B-6

1" Air Impact Wrench, 6" Ext Anvil, Heavy Duty, 1770 ft-lb Torque, Friction Ring-Thru-hole Retainer, D-handle Inside Trigger

The 285B combine exceptional power, control and durability. It delivers 1770 ft-lb of maximum torque @ 120 psi, with 5,250 rpm free speed and a high-efficiency, 6-vane motor. The swept-back 285B handle provides excellent maneuverability. The 285B 6-inch extended anvil makes changing tires and deeper fastening will be a breeze.

Features And Benefits

• Power: The rocking dog's combination of high inertia and low BPM means this tool can deliver a powerful blow with little air, giving you all the power you want without having to overextend yourself.
• Professional Use: Designed for the professional with over 1770 ft.-lbs. of torque for the toughest applications.
• Reliability: Built with a steel hammer case and metal housing, this wrench can withstand repeated drops and harsh weather conditions.
• Durable and Resistant: Phenolic 6 vane motor resist harsh environments for less downtime on the job. A protective rubber boot shields the tool from exterior damage.
• Reach: With Multiple retention methods and a 6-inch extended anvil you access hard-to-reach spaces, while maintaining a strong connection to the socket.
• Control: Feather Touch trigger and 3 position power regulator in both forward and reverse. Ergonomic swept-back handle provides excellent maneuverability.
• Speed: The impact wrench has a free speed of 5,250 rpm.
• Optimized: Optimized for the vehicle repair industry, heavy trucks, tire lanes, and MRO. 1-year warranty.

Product Application and Uses: Vehicle Repair, General Industrial, Facility Maintenance
Actuation/Throttle Type/Switch Type: Inside Trigger
Actuation/Throttle Type/Switch Type: Feather-touch Trigger
Air Consumption @ Load (cfm): 61
Air Consumption @ Load (l/min): 1727
Air Inlet: 1/2" NPT
Air Pressure (psi): 120
Anvil Length: 6" Extended
Average Air Consumption (cfm): 10
Average Air Consumption (l/min): 283
Blows per Min: 830
Color: Grey
Configuration/Handle Type: D-Handle
Drive Size (in): 1
Drive Type: Square
Duty Rating: Heavy Duty
End Plates: Cast Iron
Exhaust Location: Bottom
Hammer Case: Aluminum
Housing Material: Aluminum core with composite sleeve
Impact Mechanism: Rocking Dog
Max Bolt Diameter (in): 1-1/4
Max Free Speed (rpm): 5250
Max Torque (ft-lb): 1770
Max Torque (in-lb): 21242
Max Torque (nm): 2400
Min Hose Size (in): 3/4
Motor: Non-Biased
Number of Power Settings: 3
Power Source: Air Powered
Product Length (in): 20.43
Product Width (in): 7.94
Product Height (in): 7.18
Product Weight (lb): 27.8
Recommended Forward Torque Range (ft-lb): 120-1080
Recommended Forward Torque Range (in-lb): 1443-12957
Recommended Forward Torque Range (nm): 163-1464
Retainer Type: Friction Ring and Thru-hole
Side to Center Distance (in): 4.1
Side to Center Distance (mm): 104
Sound Pressure/Power Db(A): 107/118
Speed Setting: Variable Speed
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 13.3
Vibration Uncertainy K* (m/s2): 2.1
Warranty: 1-year

Similar IR

• 2850MAX-6
• W9691-K4E
• W9691-K2E
• 2850MAX

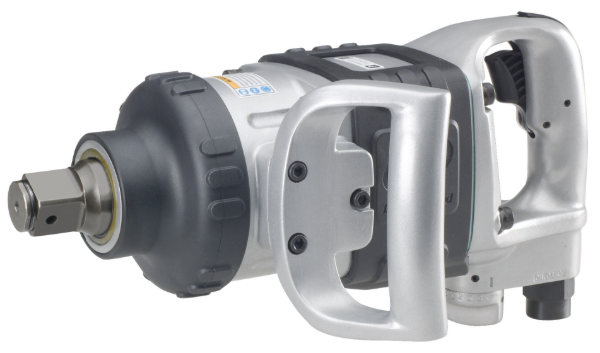

IR 285B

1" Air Impact Wrench, Heavy Duty, 1475 ft-lb Torque, Friction Ring -Thru-hole Retainer, D-handle Inside Trigger

The 285B combine exceptional power, control and durability. It delivers 1770 ft-lb of maximum torque @ 120 psi, with 5,250 rpm free speed and a high-efficiency, 6-vane motor. The swept-back 285B handle provides excellent maneuverability. The 285B 6-inch extended anvil makes changing tires and deeper fastening will be a breeze.

Features And Benefits

• Power: The rocking dog's combination of high inertia and low BPM means this tool can deliver a powerful blow with little air, giving you all the power you want without having to overextend yourself.
• Professional Use: Designed for the professional with over 1770 ft.-lbs. of torque for the toughest applications.
• Reliability: Built with a steel hammer case and metal housing, this wrench can withstand repeated drops and harsh weather conditions.
• Durable and Resistant: Phenolic 6 vane motor resist harsh environments for less downtime on the job. A protective rubber boot shields the tool from exterior damage.
• Control: Feather Touch trigger and 3 position power regulator in both forward and reverse. Ergonomic swept-back handle provides excellent maneuverability.
• Speed: The impact wrench has a free speed of 5,250 rpm.
• Optimized: Optimized for the vehicle repair industry, heavy trucks, tire lanes, and MRO. 1-year warranty.

Product Application and Uses: Vehicle Repair, General Industrial, Facility Maintenance
Actuation/Throttle Type/Switch Type: Inside Trigger
Actuation/Throttle Type/Switch Type: Feather-touch Trigger
Air Consumption @ Load (cfm): 61
Air Consumption @ Load (l/min): 1727
Air Inlet: 1/2" NPT
Air Pressure (psi): 120
Anvil Length: Standard
Average Air Consumption (cfm): 10
Average Air Consumption (l/min): 283
Blows per Min: 830
Color: Grey
Configuration/Handle Type: D-Handle
Drive Size (in): 1
Drive Type: Square
Duty Rating: Heavy Duty
End Plates: Cast Iron
Exhaust Location: Bottom
Hammer Case: Aluminum
Housing Material: Aluminum core with composite sleeve
Impact Mechanism: Rocking Dog
Max Bolt Diameter (in): 1-1/4
Max Free Speed (rpm): 5250
Max Torque (ft-lb): 1770
Max Torque (in-lb): 21242
Max Torque (nm): 2400
Min Hose Size (in): 3/4
Motor: Non-Biased
Number of Power Settings: 3
Power Source: Air Powered
Product Length (in): 13.2
Product Width (in): 9.1
Product Height (in): 7.2
Product Weight (lb): 24.6
Recommended Forward Torque Range (ft-lb): 120-1080
Recommended Forward Torque Range (in-lb): 1443-12957
Recommended Forward Torque Range (nm): 163-1464
Retainer Type: Friction Ring and Thru-hole
Sound Pressure/Power Db(A): 107/118
Speed Setting: Variable Speed
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 16.5
Vibration Uncertainy K* (m/s2): 3.4
Warranty: 1-year

Similar IR

• 280
• 2850MAX
• 2925B2TI
• 3940B2TI
• 2940B2
• W9491-K4E
• W9491-K2E
• 2850MAX-6

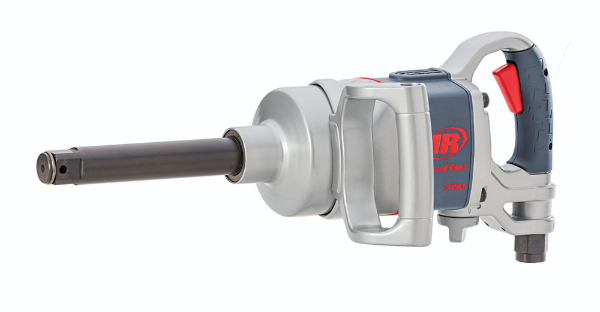

IR 2850MAX-6

1" Air Impact Wrench, 6" Ext Anvil, 2100 ft-lb Torque, Friction Ring-Thru-hole Retainer, D-handle Inside Trigger

The 2850MAX 1” D-handle 6 inch extended anvil Impact Wrench, our fiercest 1” wrench, engineered to make quick work of big jobs like semi, bus and tractor tires. This tool has been made lighter, pushed harder and worked longer to make sure it can handle repeated demands without sacrificing power. Every time you need extreme torque, this lightweight boss can get the job done.

Features And Benefits

• Solid steel impact mechanism: Deliver 2,100 ft- lbs of torque
• Chemical resistant housing & steel core: Stands up to drops and harsh work environments
• Lightweight: Weighs under 20 lbs. and is 25% lighter than the industry’s leading 1” wrench.
• 360° adjustable handle: The side handle rotates fully around the tool as the job demands
• Swivel hose connection: Keeps cords from getting tangled so you can move freely around the garage
• 6” anvil extension: Increases accessibility in hard to reach places

Includes: Bare Tool
Product Application and Uses: Vehicle Repair, General Industrial, Facility Maintenance
Actuation/Throttle Type/Switch Type: Inside Trigger
Air Consumption @ Load (cfm): 56
Air Consumption @ Load (l/min): 1587
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: 6" Extended
Average Air Consumption (cfm): 14
Average Air Consumption (l/min): 397
Blows per Min: 770
Color: Grey
Configuration/Handle Type: D-Handle
Drive Size (in): 1
Drive Type: Square
Duty Rating: Maintenance Duty
End Plates: Aluminum with Steel Wear Plate
Exhaust Location: Top
Free Speed Sound Pressure/Power Db(A): 105.0 / 116.0
Hammer Case: Steel
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 96.7 / 107.7
Max Bolt Diameter (in): 1-1/4
Max Free Speed (rpm): 5500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 2102
Max Torque (in-lb): 25225
Max Torque (nm): 2850
Min Hose Size (in): 3/4
Motor: Reverse Bias
Number of Power Settings: 3
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 97.2
Product Length (in): 19.1
Product Width (in): 9.5
Product Height (in): 6.5
Product Weight (lb): 21.58
Recommended Forward Torque Range (ft-lb): 2002
Recommended Forward Torque Range (in-lb): 24030
Recommended Forward Torque Range (nm): 2715
Retainer Type: Friction Ring and Thru-hole
Side to Center Distance (in): 4.8
Side to Center Distance (mm): 122
Special Features: 2-year Max warranty
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 7
Vibration Level (m/s2): 10.3
Warranty: 2-year

Similar IR

• 2850MAX
• 285B-6
• 285B
• W9691-K4E
• W9691-K2E

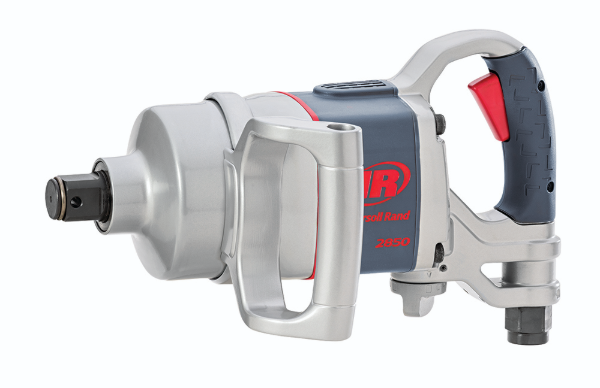

IR 2850MAX

1" Air Impact Wrench, 2100 ft-lb Torque, Friction Ring-Thru-hole Retainer, D-handle Inside Trigger

The 2850MAX 1” D-handle Impact Wrench, our fiercest 1” wrench, engineered to make quick work of big jobs like semi, bus and tractor tires. This tool has been made lighter, pushed harder and worked longer to make sure it can handle repeated demands without sacrificing power. Every time you need extreme torque, this lightweight boss can get the job done.

Features And Benefits

• Solid steel impact mechanism: Deliver 2,100 ft.-lbs. of torque.
• Chemical resistant housing & steel core: Stands up to drops and harsh work environments.
• Lightweight: Weighs under 20 lbs. and is 25% lighter than the industry’s leading 1” wrench.
• 360° adjustable handle: The side handle rotates fully around the tool as the job demands.
• Swivel hose connection: Keeps cords from getting tangled so you can move freely around the garage.

Includes: Bare Tool
Product Application and Uses: Vehicle Repair, General Industrial, Facility Maintenance
Actuation/Throttle Type/Switch Type: Inside Trigger
Air Consumption @ Load (cfm): 56
Air Consumption @ Load (l/min): 1587
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 14
Average Air Consumption (l/min): 397
Blows per Min: 770
Color: Grey
Configuration/Handle Type: D-Handle
Drive Size (in): 1
Drive Type: Square
Duty Rating: Maintenance Duty
End Plates: Aluminum with Steel Wear Plate
Exhaust Location: Top
Free Speed Sound Pressure/Power Db(A): 105.0 / 116.0
Hammer Case: Steel
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 96.7 / 107.7
Max Bolt Diameter (in): 1-1/4
Max Free Speed (rpm): 5500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 2102
Max Torque (in-lb): 25225
Max Torque (nm): 2850
Min Hose Size (in): 3/4
Motor: Reverse Bias
Number of Power Settings: 3
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 108.2
Product Length (in): 13.1
Product Width (in): 6.5
Product Height (in): 9
Product Weight (lb): 19.43
Recommended Forward Torque Range (ft-lb): 2002
Recommended Forward Torque Range (in-lb): 24030
Recommended Forward Torque Range (nm): 2715
Retainer Type: Friction Ring and Thru-hole
Side to Center Distance (in): 3.3
Side to Center Distance (mm): 84
Special Features: 2-Year Max warranty
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 7
Vibration Level (m/s2): 12.6
Warranty: 2-year

Similar IR

• 2850MAX-6
• 285B
• 285B-6
• W9491-K4E
• W9491-K2E

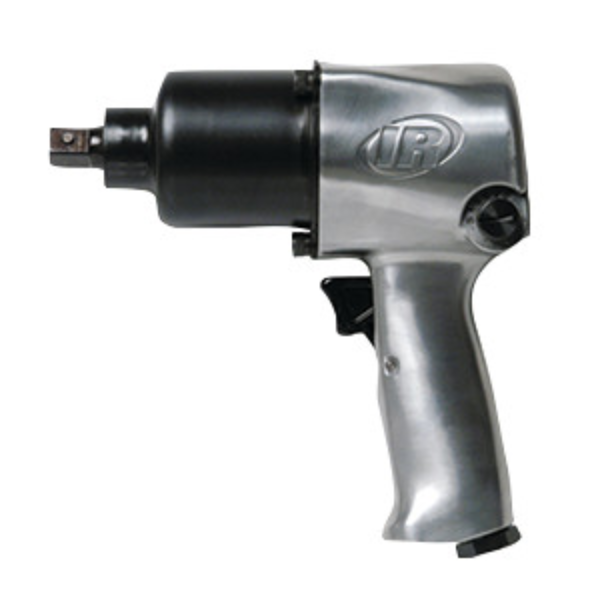

IR 2705P1

1/2" Air Impact Wrench, Heavy Duty, 600 ft-lb Torque, Pin Retainer, Pistol

The 2700 Series impact wrench is built strong with a twin hammer impact mechanism, smooth trigger actuation and an easy-to-hold pistol grip. This wrench’s vane motor delivers high torque output, while the power regulator allows for increased control.

Features And Benefits

• Durability: Steel hammer case and metal housing increases the ability to withstand drops or harsh conditions.
• Power and Performance: Finely tuned twin hammer impact mechanism and power regulator

Includes: Bare Tool
Product Application and Uses: Heavy Industry, Oil&Gas, Foundry
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 4.2
Air Consumption @ Load (l/min): 119
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Blows per Min: 1200
Color: Silver
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: Heavy Duty
End Plates: Steel
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 99.0 / 110.0
Hammer Case: Steel
Handle Material: Aluminum
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Max Bolt Diameter (in): 9/16
Max Free Speed (rpm): 8500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 600
Max Torque (in-lb): 7196
Max Torque (nm): 813
Min Hose Size (in): 3/8
Motor: Non-Biased
Number of Power Settings: 6
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 106.5
Product Length (in): 7.3
Product Width (in): 2.81
Product Height (in): 7.7
Product Weight (lb): 5.63
Recommended Forward Torque Range (ft-lb): 40-200
Recommended Forward Torque Range (in-lb): 478-2399
Recommended Forward Torque Range (nm): 54-271
Retainer Type: Pin Detent
Side to Center Distance (in): 1.4
Side to Center Distance (mm): 36
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 6.5
Warranty: 1-year

Similar IR

• 2707P1
• 231C

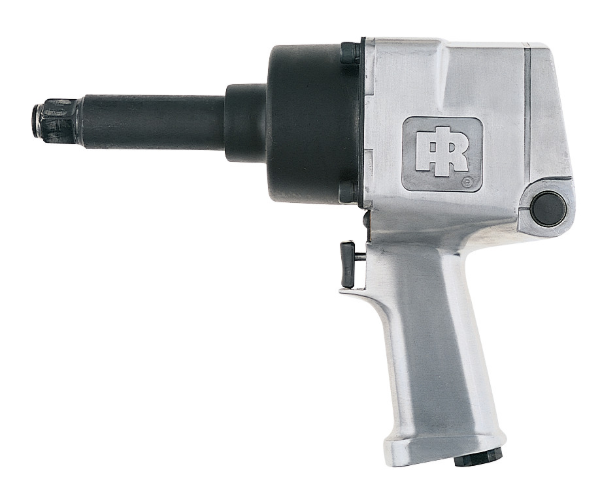

IR 261-3

3/4" Air Impact Wrench, 3" Ext Anvil, Super Duty, 1100 ft-lb Torque, Friction Ring Retainer, Pistol

The 261 Series impact wrench is ideal for vehicle repair and heavy truck and machinery jobs where you’ll benefit from the square socket retaining ring and the power behind the vane motor. Trigger actuation and a power regulator let you complete projects with control and ease.

Features And Benefits

• Power: The 6 vane motor provides a high torque output for increased power.
• Jumbo Hammer Mechanism: The patented jumbo hammer is unaffected by air pressure changes and delivers 1100 ft-lbs. of max torque and a working torque of 200-900 ft-lbs.
• Lasting Performance: This power tool is equipped with a pressure-fed lube system which provides trouble-free, longer performance.
• Square Socket: The square socket retaining ring makes this an ideal impact wrench for projects where you need increased socket connection, like auto repair and heavy truck and machinery jobs.
• Handle Exhaust: Handle exhaust directs dust and dirt from being blow at you while working as it directs air away from the operator.
• Extended Reach: The 3-inch extended anvil provides you with increased reach that’s invaluable when working with deeper fasteners.

Product Application and Uses: Applications include tire changing, engine repair, engine component installation and removal, body work installation and removal, farm implement assembly and repair, auto repair and maintenance, and truck repair.
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 38
Air Consumption @ Load (l/min): 1076
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Anvil Length: 3" Extended
Average Air Consumption (cfm): 9.5
Average Air Consumption (l/min): 269
Blows per Min: 1000
Color: Silver
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Super Duty
End Plates: Cast Iron
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 100.3 / 111.3
Hammer Case: Steel
Handle Material: Aluminum
Housing Material: Aluminum
Impact Mechanism: Jumbo Hammer
Impacting Sound Pressure/Power Db(A): 98.4 / 109.4
Max Bolt Diameter (in): 1
Max Free Speed (rpm): 5500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1100
Max Torque (in-lb): 13196
Max Torque (nm): 1491
Min Hose Size (in): 1/2
Motor: Non-Biased
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 11.8
Product Width (in): 3.76
Product Height (in): 10.3
Product Weight (lb): 13
Recommended Forward Torque Range (ft-lb): 200-600
Recommended Forward Torque Range (in-lb): 2399-7196
Recommended Forward Torque Range (nm): 271-813
Recommended Reverse Torque (ft-lb): 200-600
Recommended Reverse Torque (nm): 271-813
Retainer Type: Friction Ring
Side to Center Distance (in): 1.88
Side to Center Distance (mm): 48
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 10.4
Warranty: 1-year

Similar IR

• 259
• 2130-2

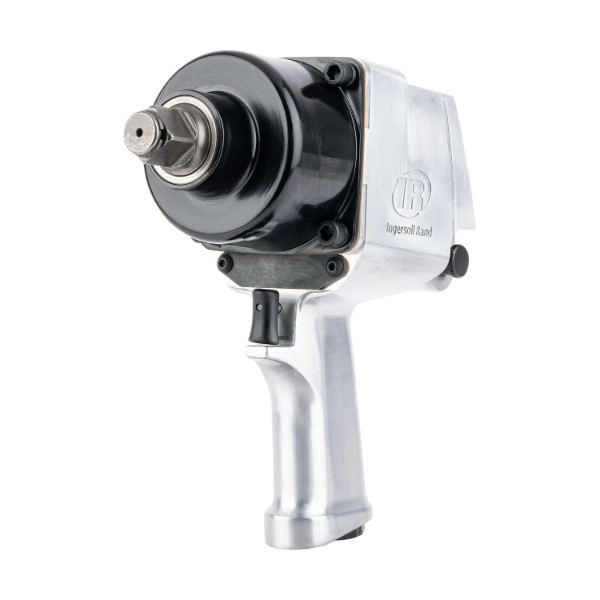

IR 261

3/4" Air Impact Wrench, Super Duty, 1100 ft-lb Torque, Friction Ring Retainer, Pistol

The 261 Series impact wrench is ideal for vehicle repair and heavy truck and machinery jobs where you’ll benefit from the square socket retaining ring and the power behind the vane motor. Trigger actuation and a power regulator let you complete projects with control and ease.

Features And Benefits

• Power to Weight: Lightweight but still delivers high torque output capabilities, making it the best choice for spring work, pinion nut and track pad removal, and major engine teardowns.
• Power: The 6 vane motor provides a high torque output for increased power.
• Jumbo Hammer Mechanism: The patented jumbo hammer is unaffected by air pressure changes and delivers 1100 ft-lbs. of max torque and a working torque of 200-900 ft-lbs.
• Square Socket: The square socket retaining ring makes this an ideal impact wrench for projects where you need increased socket connection, like auto repair and heavy truck and machinery jobs.
• Lasting Performance: This power tool is equipped with a pressure-fed lube system which provides trouble-free, longer performance.
• Handle Exhaust: Handle exhaust directs dust and dirt from being blow at you while working as it directs air away from the operator.

Includes: Bare Tool
Product Application and Uses: Vehicle Repair And Heavy Truck Markets
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 38
Air Consumption @ Load (l/min): 1076
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 9.5
Average Air Consumption (l/min): 269
Blows per Min: 1000
Color: Silver
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Super Duty
End Plates: Cast Iron
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 100.3 / 111.3
Hammer Case: Steel
Handle Material: Aluminum
Housing Material: Aluminum
Impact Mechanism: Jumbo Hammer
Impacting Sound Pressure/Power Db(A): 98.4 / 109.4
Max Bolt Diameter (in): 1
Max Free Speed (rpm): 5500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1100
Max Torque (in-lb): 13196
Max Torque (nm): 1491
Min Hose Size (in): 1/2
Motor: Non-Biased
Number of Power Settings: Continuous
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 96.7
Product Length (in): 8.8
Product Width (in): 4.7
Product Height (in): 10.3
Product Weight (lb): 12.4
Recommended Forward Torque Range (ft-lb): 200-600
Recommended Forward Torque Range (in-lb): 2399-7196
Recommended Forward Torque Range (nm): 271-813
Recommended Reverse Torque (ft-lb): 200-600
Recommended Reverse Torque (nm): 271-813
Retainer Type: Friction Ring
Side to Center Distance (in): 2.4
Side to Center Distance (mm): 61
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 10.4
Warranty: 1-year

Similar IR

• 261-6
• 261-3
• 2130
• 271
• 259
• W8171-K2

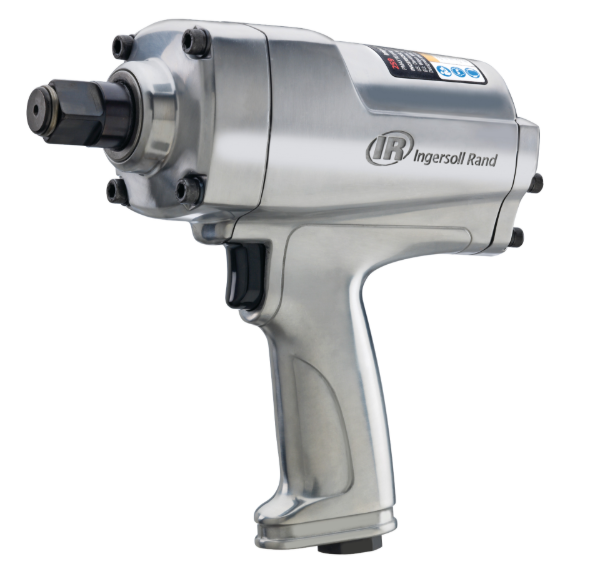

IR 259

3/4" Air Impact Wrench, 1050 ft-lb Torque, Friction Ring Retainer, Pistol

The 259 Series impact wrench is great for jobs in vehicle repair and heavy truck markets. Backed by Ingersoll Rand’s strong reputation of developing industry-leading tools, the 259 Series can be counted on for durable and consistent power at a great value.

Features And Benefits

• LIGHT WEIGHT: With the 259 Series’ aluminum hammer case and powerful vane motor, this impact wrench offers a great power-to-weight ratio.
• RELIABILITY: These parts will stand the test of time. The rocking dog impact mechanism is easy to maintain, and delivers a powerful burst with low air needs.
• ERGONOMIC: The aluminum hammer case and pistol grip make the 259 Series easy to hold, while the power regulator offers deeper control during use.
• Patent-pending soft-mount system reduces vibration for extended motor and switch life
• Handle-vented exhaust directs air away from the operator
• Silenced exhaust reduces tool noise while using this pneumatic impact wrench
• Feather-touch trigger provides maximum speed control
• Ergonomically designed small-handle grip helps reduce operator fatigue during extended use of this pneumatic air wrench
• Optimized for the vehicle repair industry and heavy trucks
• Non-biased motor delivers 1,050 ft-lb of maximum torque in both forward and reverse
• 1-year warranty

Includes: Bare Tool
Product Application and Uses: Vehicle Repair And Heavy Truck Markets
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 30
Air Consumption @ Load (l/min): 850
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 8
Average Air Consumption (l/min): 227
Blows per Min: 1000
Color: Silver
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: General Duty
End Plates: Steel
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 96.5 / 107.5
Hammer Case: Aluminum
Handle Material: Aluminum
Housing Material: Aluminum
Impact Mechanism: Rocking Dog
Impacting Sound Pressure/Power Db(A): 91.6 / 102.6
Max Bolt Diameter (in): 7/8
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1050
Max Torque (in-lb): 12603
Max Torque (nm): 1424
Min Hose Size (in): 3/8
Motor: Non-Biased
Number of Power Settings: 2
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 119.3
Product Length (in): 8.6
Product Width (in): 3.2
Product Height (in): 8.5
Product Weight (lb): 8.8
Recommended Forward Torque Range (ft-lb): 201-800
Recommended Forward Torque Range (in-lb): 2407-9603
Recommended Forward Torque Range (nm): 272-1085
Retainer Type: Friction Ring
Side to Center Distance (in): 1.6
Side to Center Distance (mm): 41
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 6.4
Warranty: 1-year

Similar IR

• 236
• 261

FP AC-1320

3/8in Butterfly Impact

CL CWC-750P

IMPACT WRENCH, COMP 3/4" SQ DR, PIN RET

CL CWM-750P

IMPACT WRENCH, METAL 3/4" SQ DR, PIN RET

CL CWM-500P

IMPACT WRENCH, METAL 1/2" SQ DR, PIN RET

CL CWC-500R

IMPACT WRENCH, COMP 1/2" SQ DR, RING RET

CL CWC-500P

IMPACT WRENCH, COMP 1/2" SQ DR, PIN RET

CL CWC-375P

IMPACT WRENCH, COMP 3/8" SQ DR, PIN RET
