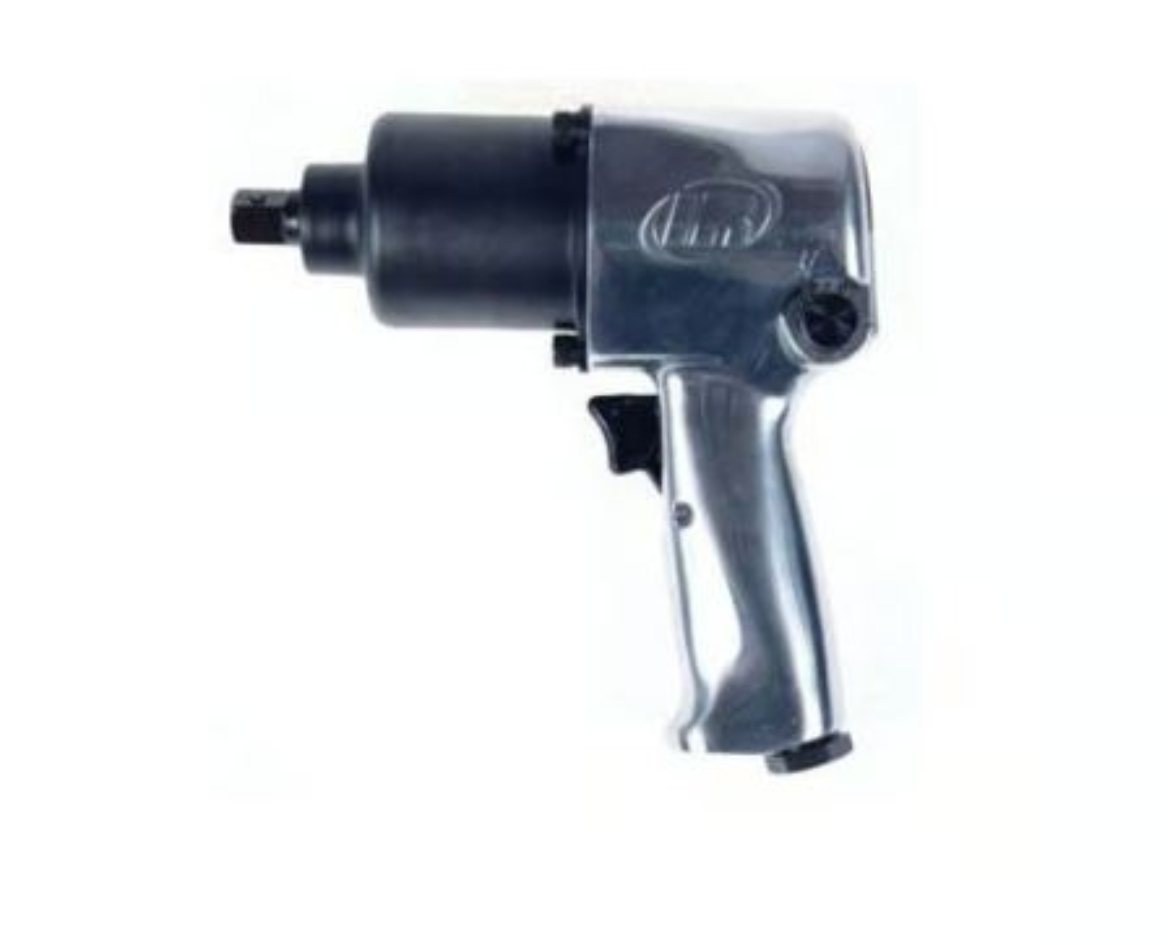

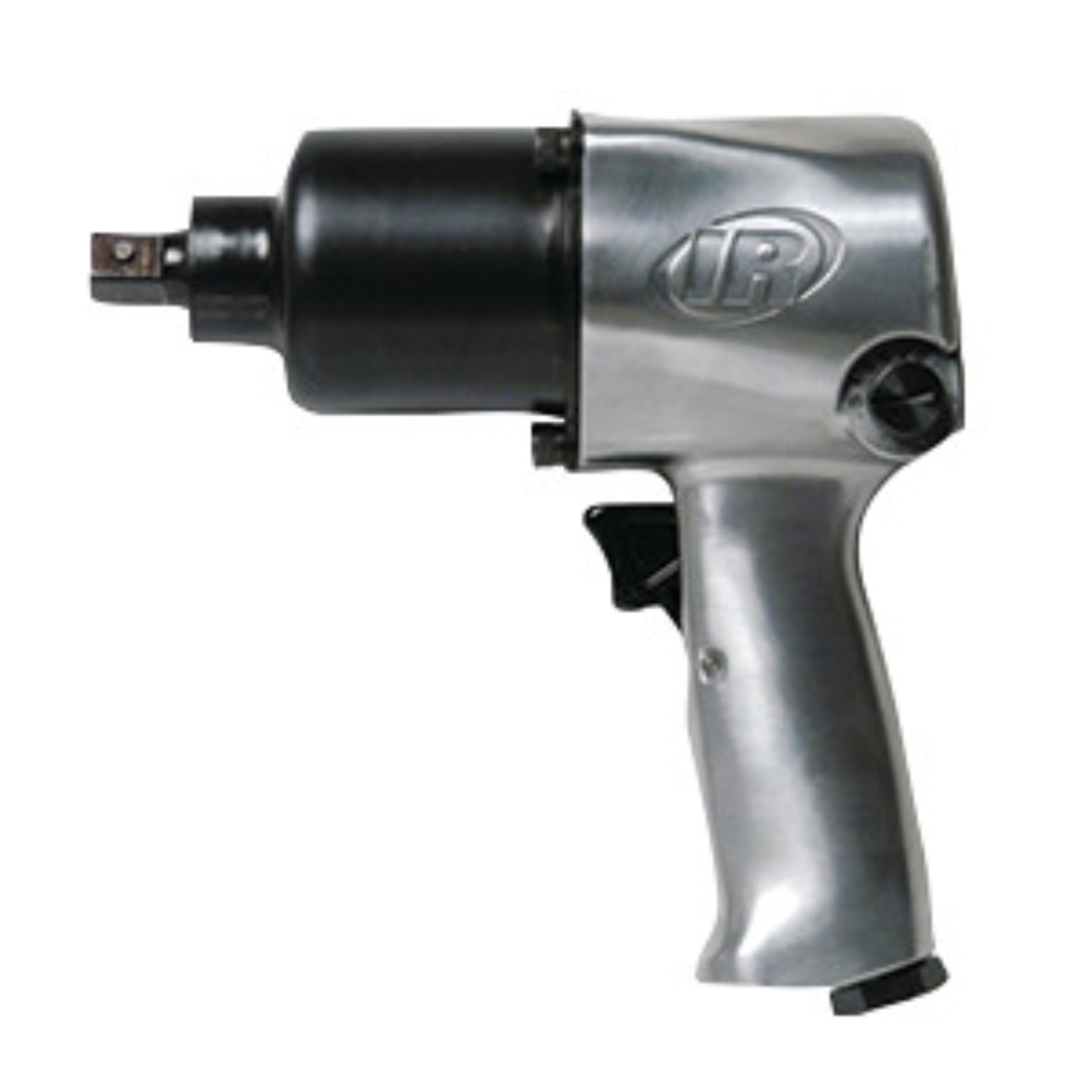

Impactool (2705A1)

IR 2705P1

1/2" Air Impact Wrench, Heavy Duty, 600 ft-lb Torque, Pin Retainer, Pistol

Description: The 2700 Series impact wrench is built strong with a twin hammer impact mechanism, smooth trigger actuation and an easy-to-hold pistol grip. This wrench's vane motor delivers high torque output, while the power regulator allows for increased control.

Features And Benefits:

• Durability: Steel hammer case and metal housing increases the ability to withstand drops or harsh conditions.
• Power and Performance: Finely tuned twin hammer impact mechanism and power regulator

Product Application and Uses:

Heavy Industry, Oil&Gas, Foundry

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 4.2
• Air Consumption @ Load (l/min): 119
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard

• Blows per Min: 1200

• Color: Silver
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 1/2
• Drive Type: Square
• Duty Rating: Heavy Duty

• End Plates: Steel
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 99.0 / 110.0

• Hammer Case: Steel
• Handle Material: Aluminum
• Housing Material: Aluminum
• Impact Mechanism: Twin Hammer

• Max Bolt Diameter (in): 9/16
• Max Free Speed (rpm): 8500
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 600
• Max Torque (in-lb): 7196
• Max Torque (nm): 813
• Min Hose Size (in): 3/8
• Motor: Non-Biased

• Number of Power Settings: 6
• Power Source: Air Powered
• Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 106.5
• Product Length (in): 7.3

• Product Width (in): 2.81
• Product Height (in): 7.7
• Product Weight (lb): 5.63
• Recommended Forward Torque Range (ft-lb): 40-200
• Recommended Forward Torque Range (in-lb): 478-2399
• Recommended Forward Torque Range (nm): 54-271
• Retainer Type: Pin Detent

• Side to Center Distance (in): 1.4
• Side to Center Distance (mm): 36

• Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 6.5
• Warranty: 1-year

• Accessories: S64H1316L-PS1
• Accessories: S64H1516L-PS1
• Accessories: S64H34L-PS1
• Accessories: S64H78L-PS1
• Accessories: S64M17L-PS1
• Accessories: S64M18L-PS1
• Accessories: S64M21L-PS1
• Accessories: S64M22L-PS1
• Accessories: S64M24L-PS1
• Accessories: S64M26L-PS1
• Accessories: SK4H13N
• Accessories: SK4M14LN

• Lubrication: 105-LBK1
• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 2705-TK3
• Parts: 402-302

• Parts: 402-303
• Parts: 404-50A
• Parts: 405-159
• Parts: 705-93
