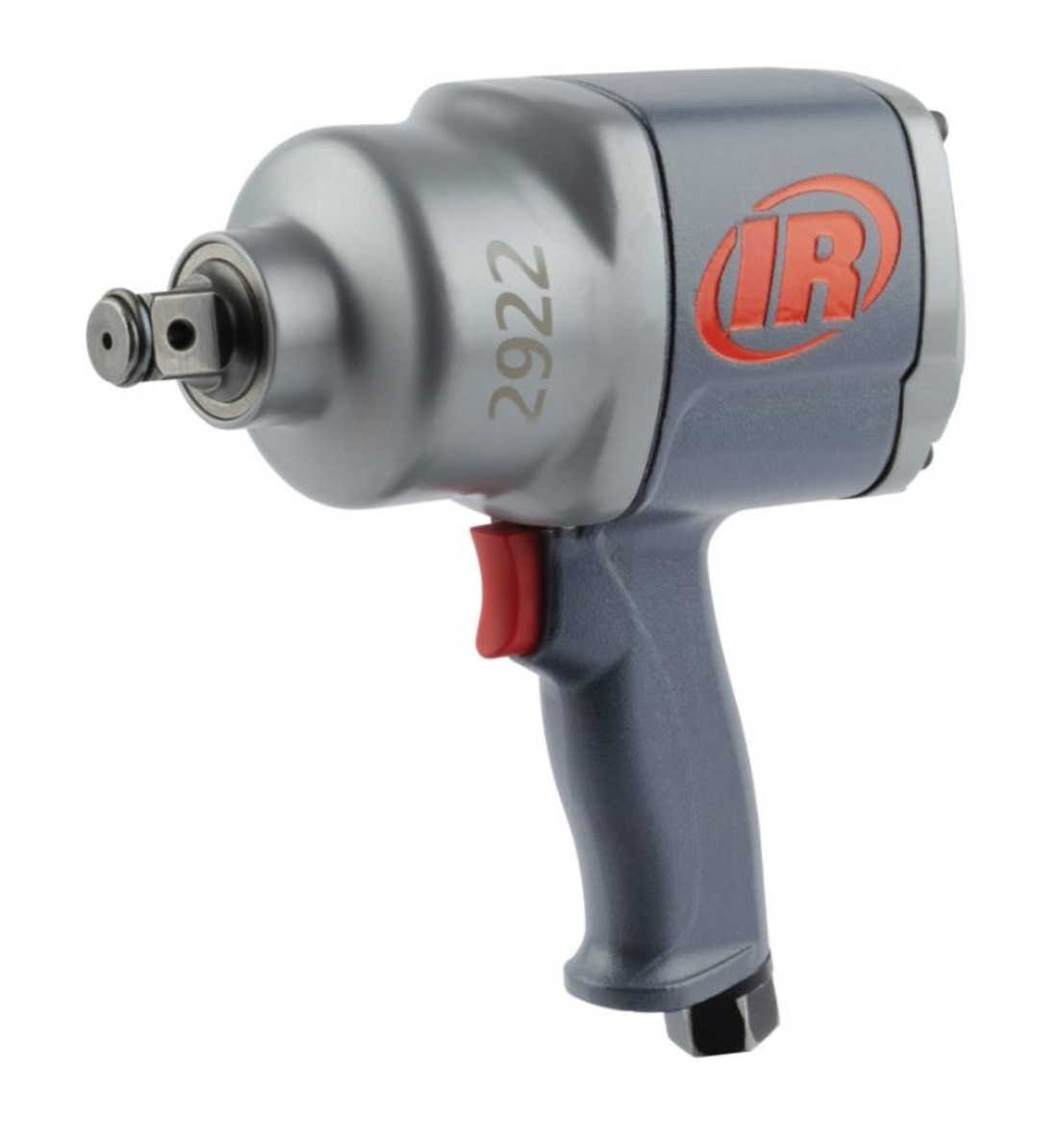

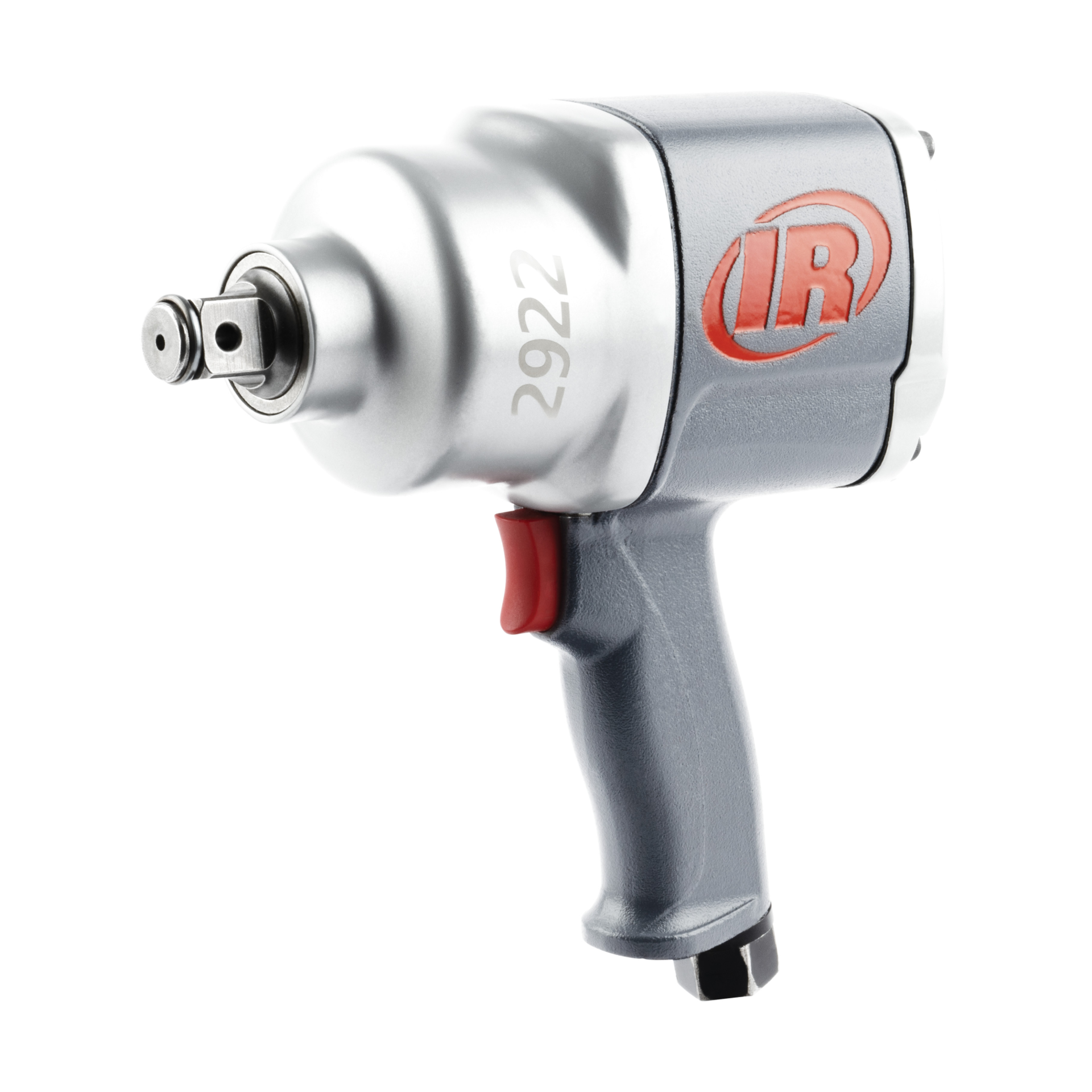

IR 2922P3
1" Air Impact Wrench, Super Duty, 2000 ft-lb Torque, Friction Ring-Thru-hole Retainer, Pistol
Ingersoll Rand’s 2922 Series 1” Air Impact Wrenches are making their impact on the industry by combining top-of-the-line performance and power at an attainable price point. The 2,000 ft-lbs. of nut-busting torque and 1,450 ft-lbs. of max breakaway torque allow you to quickly take on your toughest jobs with ease, while the pressure feed lubrication ensures better distribution throughout the mechanism to improve the life of your tool. Even the harshest environments are no match for the durable construction of this all-metal masterpiece.
Features And Benefits
- Power: Best-in-class raw power and power to weight ratio means you’ll always be prepared with the power necessary to perform any task. 2,000 ft-lbs. of Nut Busting Torque and 1,450 ft-lbs. of breakaway torque promises premium power from every angle.
- Versatility: Equipped with a combo friction ring and thru hole anvil for more socket applications, the versatility of the Industrial Impacts knows no bounds.
- Durability: Features a steel hammer case and metal housing that’ll withstand harsh conditions and drops. Pressure Feed Lubrication ensures better distribution throughout the mechanism to improve tool life.
Product Application and Uses: Optimized for general industrial use, rail, heavy machinery, oil and gas, and shipbuilding.
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Free Speed (cfm): 148
Air Consumption @ Free Speed (l/min): 4188
Air Consumption @ Load (cfm): 98
Air Consumption @ Load (l/min): 2773
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 25
Average Air Consumption (l/min): 693
Blows per Min: 1050
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1
Drive Type: Square
Duty Rating: Super Duty
End Plates: Steel
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 99.6 / 110.6
Hammer Case: Steel
Handle Material: Aluminum
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 95.9 / 106.9
Max Bolt Diameter (in): 1.125
Max Free Speed (rpm): 5200
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1450
Max Torque (in-lb): 17401
Max Torque (nm): 1966
Min Hose Size (in): 1/2
Motor: Non-Biased
Number of Power Settings: 3
Nut-busting/Breakaway Torque (ft-lb): 2000
Nut-busting/Breakaway Torque (in-lb): 23986
Nut-busting/Breakaway Torque (nm): 2710
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 166
Product Length (in): 8.9
Product Width (in): 3.5
Product Height (in): 9.6
Product Weight (lb): 12
Recommended Forward Torque Range (ft-lb): 350-1100
Recommended Forward Torque Range (in-lb): 4204-13205
Recommended Forward Torque Range (nm): 475-1492
Recommended Reverse Torque (ft-lb): 350-1100
Recommended Reverse Torque (nm): 475-1492
Retainer Type: Friction Ring and Thru-hole
Side to Center Distance (in): 1.75
Side to Center Distance (mm): 44
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 7
Vibration Level (m/s2): 10.5
Warranty: 1-year
