3/4 IMPACT

IR 2922P1

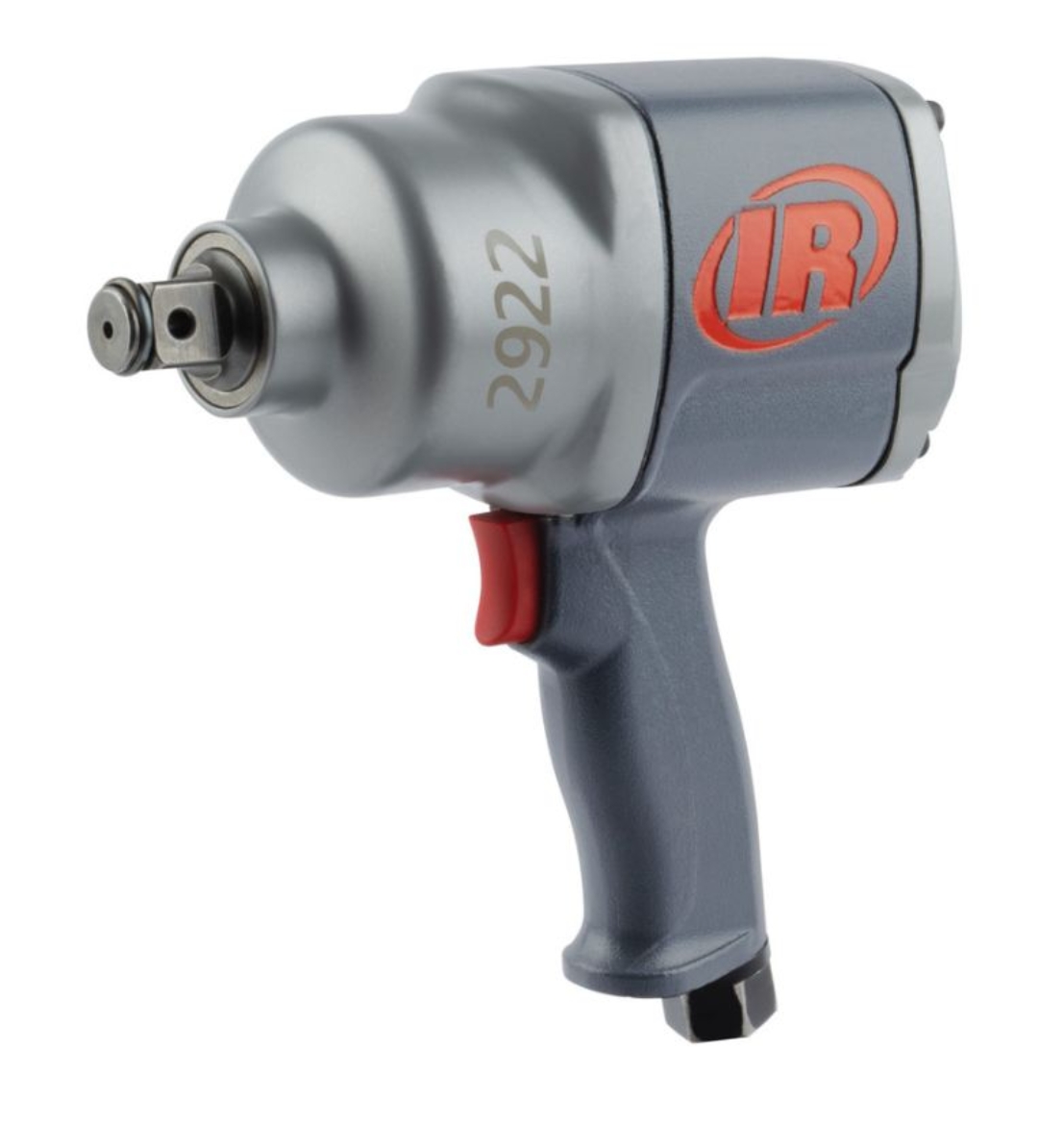

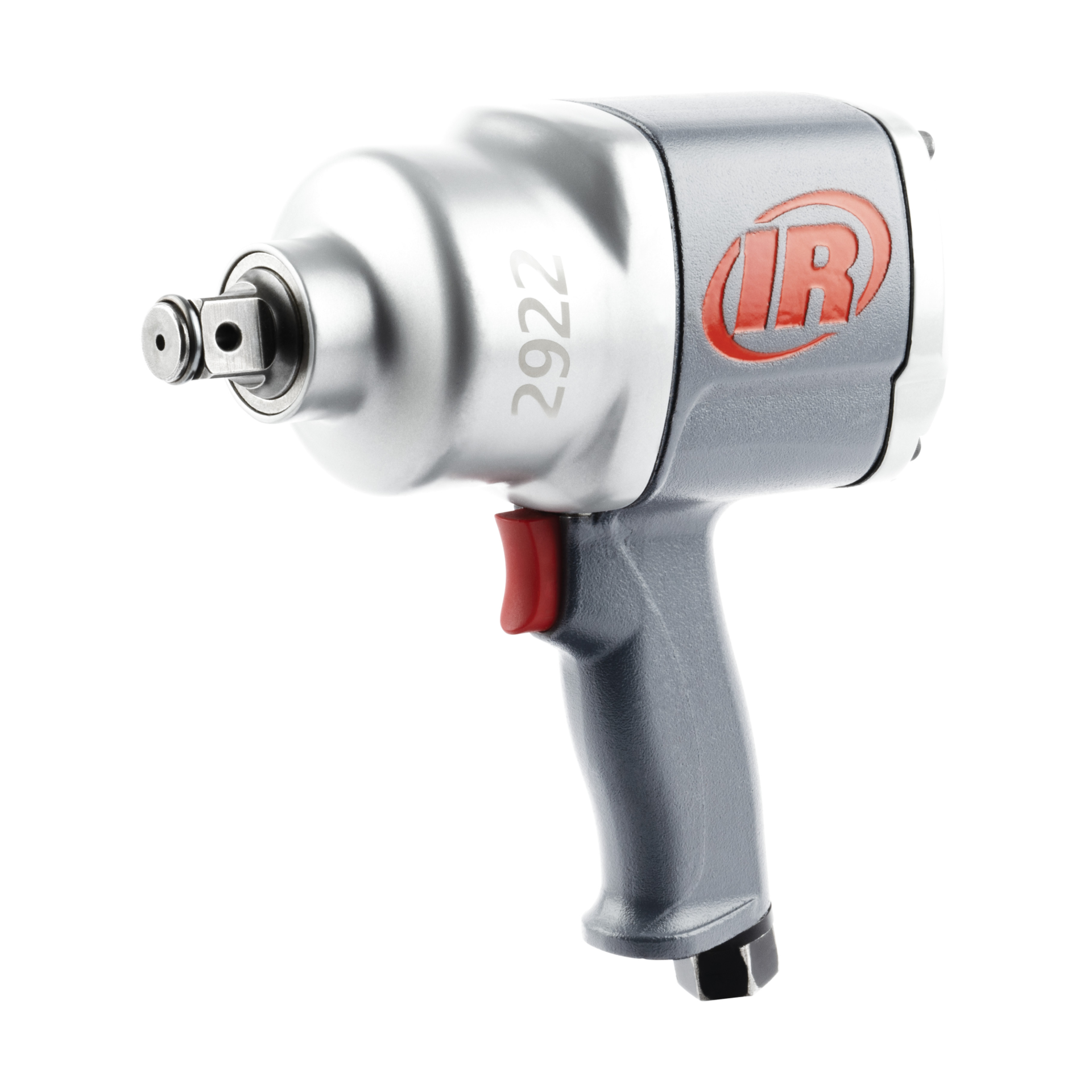

3/4" Air Impact Wrench, Super Duty, 2000 ft-lb Torque, Friction Ring and Thru-hole Retainer, Pistol

Description: Ingersoll Rand's 2922 Series 3/4" Air Impact Wrenches are making their impact on the industry by combining top-of-the-line performance and power at an attainable price point. The 2,000 ft-lbs. of nut-busting torque and 1,450 ft-lbs. of max breakaway torque allow you to quickly take on your toughest jobs with ease, while the pressure feed lubrication ensures better distribution throughout the mechanism to improve the life of your tool. Even the harshest environments are no match for the durable construction of this all-metal masterpiece.

Features And Benefits:

• Power: Best-in-class raw power and power to weight ratio means you'll always be prepared with the power necessary to perform any task. 2,000 ft-lbs. of Nut Busting Torque and 1,450 ft-lbs. of breakaway torque promises premium power from every angle.
• Durability: Features a steel hammer case and metal housing that'll withstand harsh conditions and drops. Pressure Feed Lubrication ensures better distribution throughout the mechanism to improve tool life.
• Versatility: Equipped with a combo friction ring and thru hole anvil for more socket applications, the versatility of the Industrial Impacts knows no bounds.

Product Application and Uses:

Optimized for general industrial use, rail, heavy machinery, oil and gas, and shipbuilding.

• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Free Speed (cfm): 148
• Air Consumption @ Free Speed (l/min): 4188
• Air Consumption @ Load (cfm): 98
• Air Consumption @ Load (l/min): 2773
• Air Inlet: 3/8" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 25
• Average Air Consumption (l/min): 693

• Blows per Min: 1050

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 3/4
• Drive Type: Square
• Duty Rating: Super Duty

• End Plates: Steel
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 99.6 / 110.6

• Hammer Case: Steel
• Handle Material: Aluminum
• Housing Material: Aluminum
• Impact Mechanism: Twin Hammer
• Impacting Sound Pressure/Power Db(A): 95.9 / 106.9

• Max Bolt Diameter (in): 1.125
• Max Free Speed (rpm): 5200
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 1450
• Max Torque (in-lb): 17401
• Max Torque (nm): 1966
• Min Hose Size (in): 1/2
• Motor: Non-Biased

• Number of Power Settings: 3
• Nut-busting/Breakaway Torque (ft-lb): 2000
• Nut-busting/Breakaway Torque (in-lb): 23986
• Nut-busting/Breakaway Torque (nm): 2710
• Power Source: Air Powered
• Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 166
• Product Length (in): 8.9

• Product Width (in): 3.5
• Product Height (in): 9.6
• Product Weight (lb): 12
• Recommended Forward Torque Range (ft-lb): 350-1100
• Recommended Forward Torque Range (in-lb): 4204-13205
• Recommended Forward Torque Range (nm): 475-1492
• Recommended Reverse Torque (ft-lb): 350-1100
• Recommended Reverse Torque (nm): 475-1492
• Retainer Type: Friction Ring and Thru-hole

• Side to Center Distance (in): 1.75
• Side to Center Distance (mm): 44

• Standards/Certifications: <
