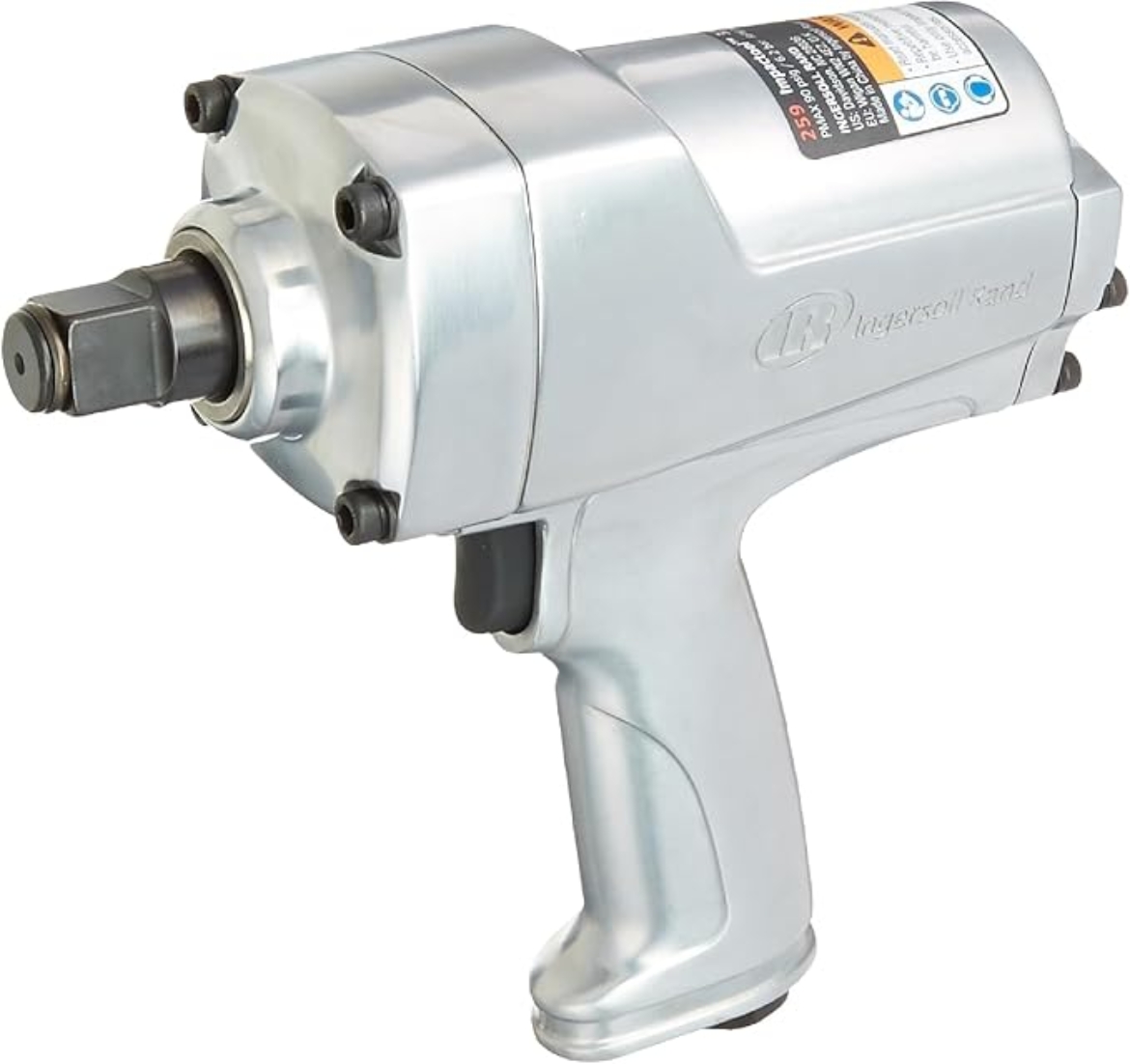

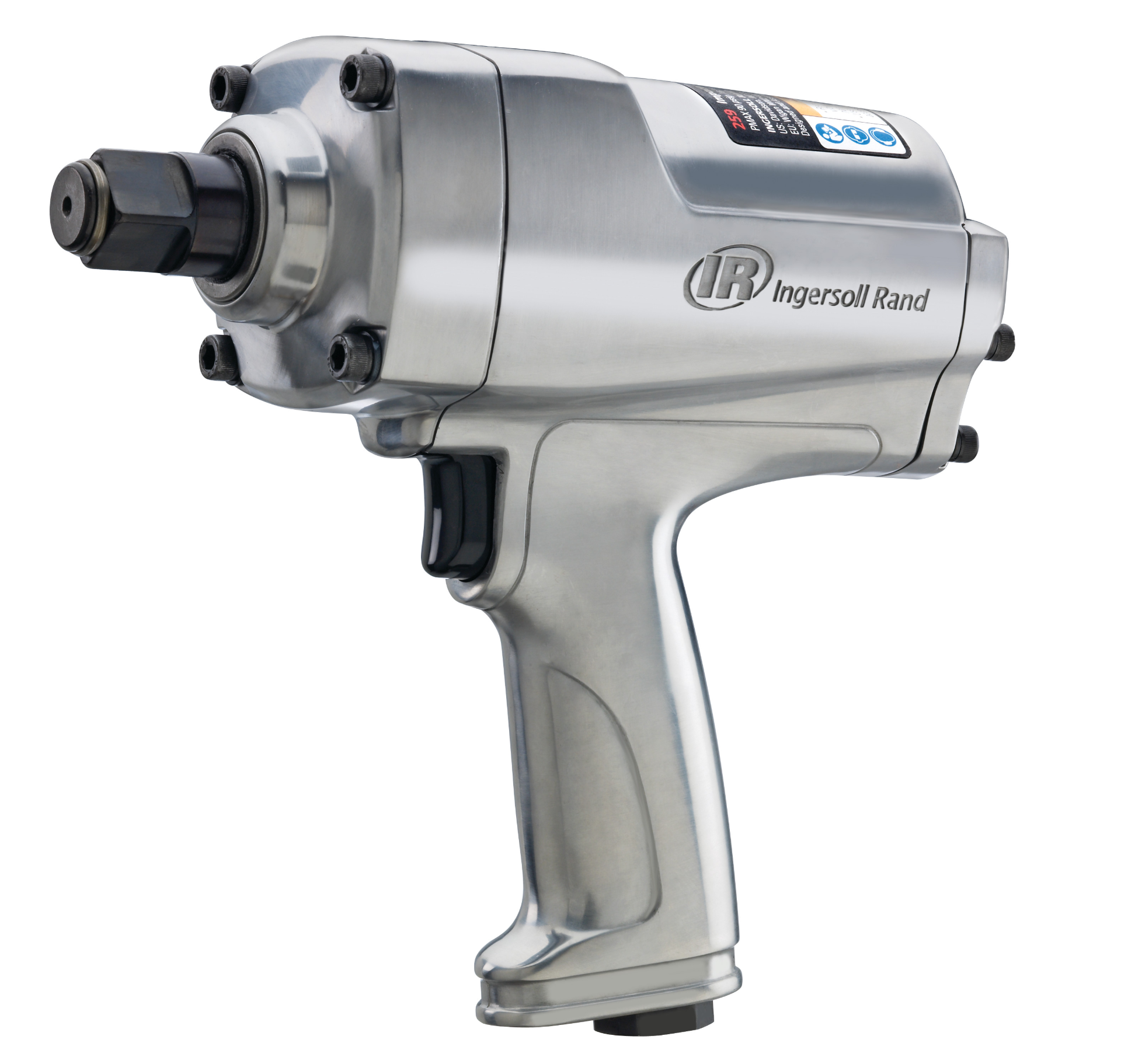

3/4" Pneumatic Impact

IR 259

3/4" Air Impact Wrench, 1050 ft-lb Torque, Friction Ring Retainer, Pistol

Description: The 259 Series impact wrench is great for jobs in vehicle repair and heavy truck markets. Backed by Ingersoll Rand's strong reputation of developing industry-leading tools, the 259 Series can be counted on for durable and consistent power at a great value.

Features And Benefits:

• LIGHT WEIGHT: With the 259 Series' aluminum hammer case and powerful vane motor, this impact wrench offers a great power-to-weight ratio.
• RELIABILITY: These parts will stand the test of time. The rocking dog impact mechanism is easy to maintain, and delivers a powerful burst with low air needs.
• ERGONOMIC: The aluminum hammer case and pistol grip make the 259 Series easy to hold, while the power regulator offers deeper control during use.
• Patent-pending soft-mount system reduces vibration for extended motor and switch life
• Handle-vented exhaust directs air away from the operator
• Silenced exhaust reduces tool noise while using this pneumatic impact wrench
• Feather-touch trigger provides maximum speed control
• Ergonomically designed small-handle grip helps reduce operator fatigue during extended use of this pneumatic air wrench
• Optimized for the vehicle repair industry and heavy trucks
• Non-biased motor delivers 1,050 ft-lb of maximum torque in both forward and reverse
• 1-year warranty

Product Application and Uses:

Vehicle Repair And Heavy Truck Markets

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 30
• Air Consumption @ Load (l/min): 850
• Air Inlet: 3/8" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 8
• Average Air Consumption (l/min): 227

• Blows per Min: 1000

• Color: Silver
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 3/4
• Drive Type: Square
• Duty Rating: General Duty

• End Plates: Steel
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 96.5 / 107.5

• Hammer Case: Aluminum
• Handle Material: Aluminum
• Housing Material: Aluminum
• Impact Mechanism: Rocking Dog
• Impacting Sound Pressure/Power Db(A): 91.6 / 102.6

• Max Bolt Diameter (in): 7/8
• Max Free Speed (rpm): 6000
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 1050
• Max Torque (in-lb): 12603
• Max Torque (nm): 1424
• Min Hose Size (in): 3/8
• Motor: Non-Biased

• Number of Power Settings: 2
• Power Source: Air Powered
• Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 119.3
• Product Length (in): 8.6

• Product Width (in): 3.2
• Product Height (in): 8.5
• Product Weight (lb): 8.8
• Recommended Forward Torque Range (ft-lb): 201-800
• Recommended Forward Torque Range (in-lb): 2407-9603
• Recommended Forward Torque Range (nm): 272-1085
• Retainer Type: Friction Ring

• Side to Center Distance (in): 1.6
• Side to Center Distance (mm): 41

• Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 6.4
• Warranty: 1-year

• Accessories: 259-BOOT
• Accessories: SK6H8N
