GRACO INC. S10595
GRACO INC. S10595 branded products

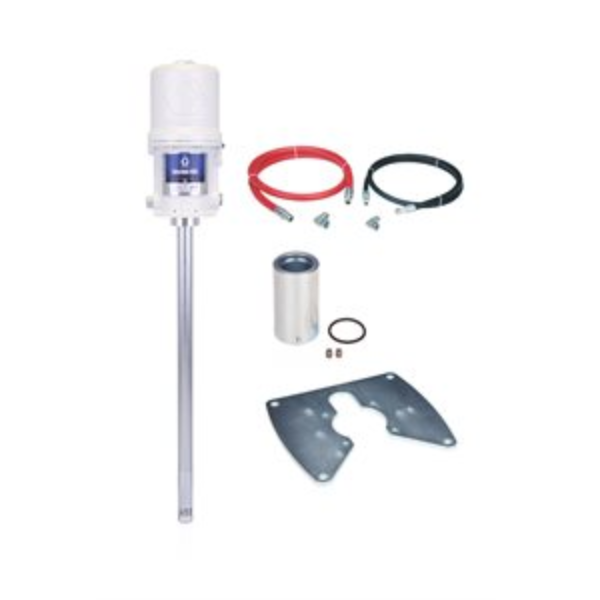

FIREBALL 425 SYSTEM, BULK GREASE
GG 244905
GG 244905
FIREBALL 425 SYSTEM, BULK GREASE
Fire-Ball® 425 Series 50:1 400 lb. (181 kg) Grease Pump Stationary Ram PackageThe Fire-Ball 425 features a large air motor to supply the power you need for long pipe runs and higher-volume dispensing. An ideal choice for applications where multiple dispenses happen at the same time.
The Fire-Ball 425 is the pump of choice for your most demanding high volume applications. Durable Casting - Thick cast aluminum air motor housing offers unmatched durability. Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost. Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair. Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life. Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.
$19,680.00
Endure Valve, HTD, 240V, 400 DG F
GG 244909
GG 244909
Endure Valve, HTD, 240V, 400 DG F
Graco 244909 Endure Valve, 240V Electric Heat Model, temperatures to 400ºF (204ºC)
The EnDure Valve offers high reliability for high pressure, high flow sealant and adhesive dispensing applications.
- Dual seal design
- Air operated with spring-assisted closing
- Used in heat-only applications
- Replaces 243694, 243696 hot melt valves where operating temperature is between 200º and 400ºF (95ºC and 204ºC)
- Model: EnDure
- Air Inlet Size (in): 1/8
- Air Inlet Thread Type: NPT
- Ambient/Warm Melt/Hot Melt: Ambient, Warm Melt, Hot Melt
- Application: Bonding, Sealing, Gasketing
- Compatible Material: Sealants, Adhesives
- Component Type: Single Component
- Fluid Inlet Size (cm): 1.27
- Fluid Inlet Size (in): 1/2
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (in): 5/8
- Fluid Outlet Thread Gender: Male
- Gun Activation: Automatic
- Includes: Heater Cartridge
- Maximum Working Pressure (bar): 241
- Maximum Working Pressure (kg/cm²): 246.1
- Maximum Working Pressure (kPa): 24100
- Maximum Working Pressure (psi): 3500
- Metering Valve Orifice Size (in): 1/8
- Mount Hole Size (mm): M6 x 1
- Orifice Diameter (in): 0.03
$5,020.00
Kit, Repair, Air Seals, Es
GG 244781
GG 244781
KIT, REPAIR,AIR SEALS,ES
Graco 244781 Gun Repair Kit- Air Seal Repair
$350.00
Endure Valve, Disp, 400 Deg F
GG 244907
GG 244907
ENDURE VALVE,DISP,400 DEG F
Graco 244907 Fixed Dispense Endure Valve
- Model: Endure
- Air Inlet Size (cm): 0.3175
- Air Inlet Size (in): 1/8
- Air Inlet Size (mm): 3.175
- Air Inlet Thread Type: NPT
- Ambient/Warm Melt/Hot Melt: Ambient, Warm Melt, Hot Melt
- Application: Bonding, Sealing, Gasketing
$4,100.00
ENDURE VALVE, AMB OR T/C
GG 244910
GG 244910
ENDURE VALVE, AMB OR T/C
Graco 244910 Endure Valve with Ambient or Temperature Conditioning Manifold
The EnDure Valve offers high reliability for high pressure, high flow sealant and adhesive dispensing applications.
- Dual seal design
- Air operated with spring-assisted closing
- Replace 918512, C27340 valves
- Model: EnDure
- Air Inlet Size (in): 1/8
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Ambient/Warm Melt/Hot Melt: Ambient, Warm Melt
- Application: Bonding, Sealing, Gasketing
- Compatible Material: Sealants, Adhesives
- Component Type: Single Component
- Fluid Inlet Size (cm): 1.27
- Fluid Inlet Size (in): 1/2
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (in): 5/8-18
- Fluid Outlet Thread Gender: Male
- Fluid Outlet Thread Type: UNF
- Gun Activation: Automatic
- Inlet Size (in): 1/2
- Maximum Working Pressure (bar): 241
- Maximum Working Pressure (kg/cm²): 246
- Maximum Working Pressure (kPa): 24100
- Maximum Working Pressure (psi): 3500
- Orifice Diameter (in): 0.125
- Outlet Size (in): 5/8-18
$3,930.00
Hose, Cpld, Cond, Air, 75 Ft
GG 244968
GG 244968
HOSE, CPLD, COND, AIR, 75 FT
Graco 244968 AirFlex Flexible Grounded Air Hose, Gray, 75 ft (23 m)
$1,325.00
Kit, Accy, Agitator
GG 245081
GG 245081
KIT, ACCY, AGITATOR
Graco 245081 SST Pail Agitator Kit for Triton Packages
$990.00
Kit, Accy, Suction Hose, SS, 4 ft for 5 Gallon Pail
GG 245083
GG 245083
Kit, Accy, Suction Hose, SS, 4 ft for 5 Gallon Pail
$328.00
Kit, Accy, Suction Hose, SS, 6 ft With Aceta Bung Adapter for 55 Gallon Drum
GG 245085
GG 245085
KIT, ACCY, SUCTION TUBE
Graco 245085 Suction Hose, Stainless Steel, 6 ft (1.8 m), with acetal bung adapter for 55 gal (200 l) drum
$674.00
Kit, Repair, 085 Ball Check
GG 245067
GG 245067
KIT, REPAIR, 085 BALL CHECK
Graco 245067 Triton 3D 150 Acetal Balls and Stainless Seats Kit
$181.50
ENDURE VALVE, HTD, 240V, 1/2NPT, 400
GG 244951
GG 244951
ENDURE VALVE, HTD, 240V, 1/2NPT, 400
Graco 244951 Endure Valve, 240V Electric Heat Model, temperatures to 200ºF (95ºC)
The EnDure Valve offers high reliability for high pressure, high flow sealant and adhesive dispensing applications.
- Dual seam design
- Air operated with spring-assisted closing
- 240 volt electrically heated, 8 pin square connection
- Model: EnDure
- Air Inlet Size (in): 1/8
- Air Inlet Thread Type: NPT
- Ambient/Warm Melt/Hot Melt: Ambient, Warm Melt, Hot Melt
- Application: Bonding, Sealing, Gasketing
- Compatible Material: Sealants, Adhesives
- Component Type: Single Component
- Fluid Inlet Size (cm): 1.27
- Fluid Inlet Size (in): 1/2
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Thread Gender: Male
- Fluid Outlet Thread Type: NPT
- Gun Activation: Automatic
- Includes: Heater Cartridge
- Inlet Size (in): 1/2
- Maximum Working Pressure (bar): 241
- Maximum Working Pressure (kg/cm²): 246
- Maximum Working Pressure (kPa): 24100
- Maximum Working Pressure (psi): 3500
- Mount Hole Size (mm): M6 x 1
- Orifice Diameter (in): 0.5
- Outlet Size (in): 1/2
$4,900.00
Kit, Gun Cover, Es Pk Of 10
GG 244915
GG 244915
KIT, GUN COVER,ES
Graco 244915 Manual Electrostatic Spray Gun Cover, box of 10
- Compatible Material: Sealants, Adhesives
$148.00
Hose, Cpld, Cond, Air, 100 Ft
GG 244969
GG 244969
HOSE, CPLD, COND, AIR, 100 FT
Graco 244969 AirFlex Flexible Grounded Air Hose (Grey)- 0.315 in. (8 mm) ID, 1/4 npsm(f) x 1/4 npsm(f) left-handthread, 100 ft (30.5 m) length
$1,820.00
Endure Valve, Disp., 400Deg F, 1/2Npt
GG 244937
GG 244937
ENDURE VALVE,DISP.,400DEG F,1/2NPT
- Compatible Material: 2K Sealants, Adhesives
$4,340.00

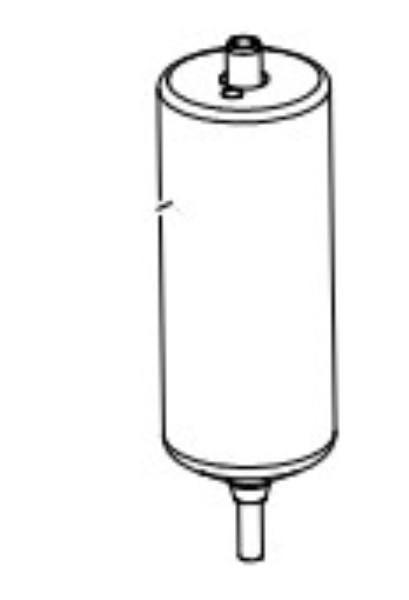

Plunger, Valve, Assm.
GG 245377
GG 245377
PLUNGER, VALVE, ASSM
- Compatible Material: Solventborne, High Solids, Xirallic, CARC, Metallics, Stains, Varnish
$329.00
Retainer
GG 244927
GG 244927
RETAINER, RING ASSY, BLACK
Graco 244927 Air cap retaining ring
- Bleed Type: Bleeder
$38.70

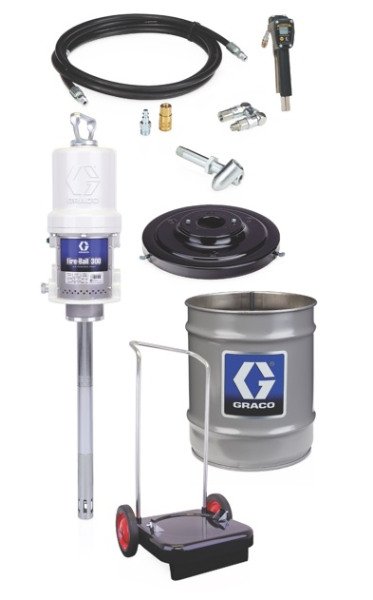

FIREBALL 300 LUBRICATOR, CHASSIS, 50:1
GG 245695
GG 245695
FIREBALL 300 LUBRICATOR, CHASSIS, 50:1
Fire-Ball® 300 Series 50:1 35 to 50 lb. (16 to 23 kg) Grease Pump - Portable Pail Dispenser Package As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently. Install the Fire-Ball 300 50:1 in grease dispense applications. Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense. Durable - Thick cast aluminum air motor housing offers unmatched durability. Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost. Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life. Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process. Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair. Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing. Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.
$3,920.00
KIT, ACCY, GUN
GG 245820
GG 245820
KIT, ACCY, GUN
Inline Heavy-Duty Texture Airless Spray Gun, 4 Finger Trigger The Inline Heavy-Duty Texture Airless Spray Gun with the Full Hand trigger is the ideal gun for spraying heavy coatings and joint compounds all day. Oversized Fluid Path- No-filter design offers minimal restriction and maximum flow
- Minimizes pack-out with heavy materials
- Reduces pressure drop for superior atomization
- Form-fitting handle design provides maximum control and comfort
- Full Hand trigger and lightweight design allows effortless, all-day spraying
Patented Needle Design
- Factory set needle needs no adjustment – ever
- Heavy-duty design for maximum performance and long life
- Perfect for skim coat in a Level 5 finish, drywall mud, epoxies and a whole range of paints and primers
- Contractor preferred
$1,240.00
Handle, Repl., 85Kv, As, Std Gun
GG 245285
GG 245285
HANDLE, REPL.,85KV,AS,STD GUN
Graco 245285 ProXs Manual Electrostatic Air Spray Gun Handle, hook included, 60 kV, 85 kV
$2,160.00
Handle, Repl., 60Kv, As Std Gn&Hc
GG 245290
GG 245290
HANDLE, REPL.,60KV,AS STD GN&HC
Graco 245290 Handle for for ProXs Standard 60 kV Manual Electrostatic Gun
$1,835.00
PUMP, DISPLACEMENT(.396/255.79)
GG 245970
GG 245970
PUMP, DISPLACEMENT(.396/255.79)
Call for pricing

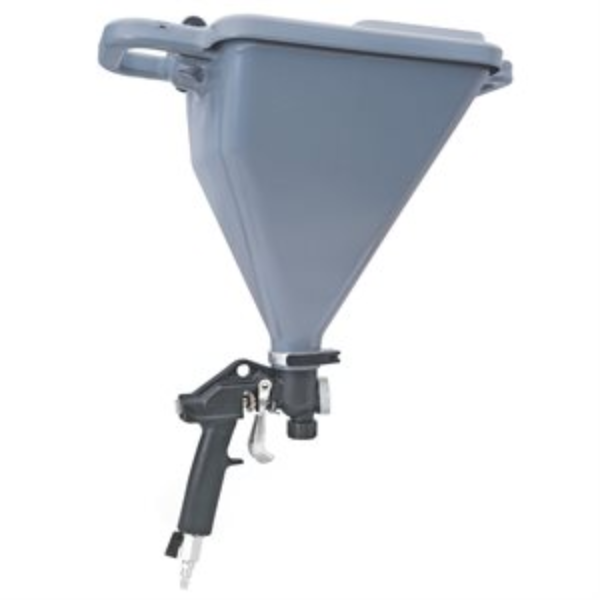

GUN, SPRAY, TEXTURE
GG 245924
GG 245924
GUN, SPRAY, TEXTURE
Graco 245924 Texture Gun and Hopper
Double-handle and lightweight design provides maximum support and control for ceiling, wall and floor applications. Sprays acoustics, drywall mud, waterproofing materials, pool-deck sealant, stucco and most gravity-fed materials.
- Lightweight Design - Weighs up to 35% less than comparable models to reduce operator fatigue
- Angled, 1-1/2 Gallon (5.7 L) Capacity for longer spraying periods before refills
- Handles on Both Sides - Rotates 180° for maximum control when spraying ceilings, walls and floors
- Durable metal trigger with conveniently located trigger adjustment allows fine tuning of fluid output for a precise and consistent finish
- Exclusive Hopper Clamp - No tools needed to attach hopper to gun
- Model: TexSpray
- Applicator Type: Manual
- Compatible Material: Water-Based Material
- Feed Type: Pressure Feed
- For Use With: Texture Sprayer
- Gun Activation: Manual
- Gun Included: 1
- Gun Type: Airless Gun
- Gun Weight (g): 990
- Gun Weight (kg): 0.99
- Gun Weight (lb): 2.1875
- Gun Weight (oz): 35
- Maximum Air Inlet Pressure (bar): 9
- Maximum Air Inlet Pressure (kPa): 900
- Maximum Air Inlet Pressure (MPa): 0.9
- Maximum Air Inlet Pressure (psi): 130.5
- Maximum Air Pressure (bar): 9
- Maximum Air Pressure (kPa): 900
- Maximum Air Pressure (MPa): 0.9
- Maximum Air Pressure (psi): 125
- Maximum Fluid Pressure (bar): 4.9
- Maximum Fluid Pressure (kPa): 490
- Maximum Fluid Pressure (MPa): 0.49
- Maximum Fluid Pressure (psi): 70
- Maximum Fluid Pressure (bar): 4.9
- Maximum Fluid Pressure (kPa): 490
- Maximum Fluid Pressure (MPa): 0.49
- Maximum Fluid Pressure (psi): 70
- Overall Height (cm): 60.96
- Overall Height (in): 24
- Overall Height (mm): 609.6
- Overall Length (cm): 45.085
- Overall Length (in): 17.75
- Overall Length (mm): 450.85
- Overall Width (cm): 27.94
- Overall Width (in): 11
- Overall Width (mm): 279.4
- Product Type: Spray Gun
$296.50
Pump, Displacement, .552/356.26
GG 245971
GG 245971
Pump, Displacement, .552/356.26
Call for pricing
Kit, Repair, 308Hp Diaphragm
GG 246011
GG 246011
KIT, REPAIR, 308HP DIAPHRAGM
Graco 246011 Diaphragm Repair Kit- for 308 hp Diaphragm Pumps
$638.00
REACTOR HEATED HOSE, 50', 1/4", 2000PSI
GG 246045
GG 246045
REACTOR HEATED HOSE, 50', 1/4", 2000PSI
Graco 246045 50 ft x 1/4 in Heated Hose, 2000 psi, Thermocouple, No Scuff, Reactor 1 & 2
Graco’s heated hoses are designed specifically for use with Reactor Equipment. Hoses are a key component to the total system, making it important to achieve accurate and uniform heating for the best application possible.
Application: For Reactor proportioners.- New multi-strand copper heating element has greatly increased hose quality:
- Copper-heated hoses are designed specifically for use with Graco proportioners
- Covered with proprietary butyl cover for protection against moisture sensitive isocyanate
- Different fitting sizes on the isocyanate and resin hoses prevent accidentally connecting the wrong hoses together
- Hoses use custom designed splice kit to electrically connect hoses without having to run copper under the fittings
- Helix-design whip hose uses braided copper wires for added flexibility and longer life
- Thermocouple
Very accurate and reliable way to monitor and maintain temperature
- Model: Reactor 1
- Series: No Scuff
- Compatible Sprayer: Reactor 1 & 2
- For Use With: Plural Component Proportioners
- Hose Heating Type: External Heated
- Hose Inside Diameter (in): 1/4
- Hose Inside Diameter (mm): 6.35
- Hose Length (ft): 50
- Hose Length (m): 15.2
- Inside Diameter (in): 1/4
- Maximum Working Pressure (bar): 138
- Maximum Working Pressure (kPa): 13800
- Maximum Working Pressure (MPa): 13.8
- Maximum Working Pressure (psi): 2000
Provides 10-times* the flex life compared to previous flat copper heating element
Long-term, even heating without hot spots
Backwards compatible with existing Reactor heated hoses
$2,340.00
REACTOR HEATED HOSE, 2000, W/SCUFF, 3/8, 25'
GG 246049
GG 246049
REACTOR HEATED HOSE, 2000, W/SCUFF, 3/8, 25'
25 ft (7.6 m) Low Pressure Thermocouple Heated Hose with 3/8 in (9.5 mm) Inside DiameterGraco’s heated hoses are designed specifically for use with Reactor Equipment. Hoses are a key component to the total system, making it important to achieve accurate and uniform heating for the best application possible.
For Reactor proportioners.New multi-strand copper heating element has greatly increased hose quality:
- Provides 10-times* the flex life compared to previous flat copper heating element
- Long-term, even heating without hot spots
- Backwards compatible with existing Reactor heated hoses
$1,825.00

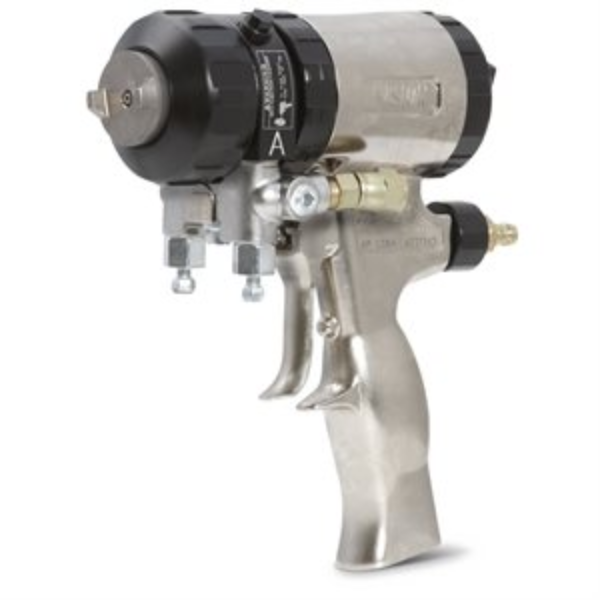

Fusion AP Gun, Round 01
GG 246101
GG 246101
Fusion AP Gun, Round 01
Graco 246101 Round Fusion Air-Purge Gun with 01 Mix Chamber and 0.042 in (1.6 mm) Orifice Size
With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.
Application: For high output spray polyurethane foam and polyurea applications.- Easy air-blast tip cleaning reduces build-up and tip clogging.
- Long-lasting side seals means less downtime for maintenance
- Quick-release fluid housing - lets you easily change the mix chambers without tools
- Ergonomic handle
- Model: Fusion AP
- Series: Round
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: NPT
- Applicator Type: Manual
- Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam
- Component A Inlet Size (cm): 1.27
- Component A Inlet Size (in): 1/2-20
- Component A Inlet Size (mm): 12.7
- Component A Inlet Thread Type: UNF
- Component B Inlet Size (cm): 1.42875
- Component B Inlet Size (in): 9/16-18
- Component B Inlet Size (mm): 14.2875
- Component B Inlet Thread Type: UNF
- Component Type: Plural-Component
- Fluid Orifice Size (cm): 0.107
- Fluid Orifice Size (in): 0.042
- Fluid Orifice Size (mm): 1.07
- For Use With: Non-Flammable Foam and Polyurea
- Gun Activation: Manual
- Gun Included: 1
- Gun Type: Air Purge Gun
- Gun Weight (g): 1130
- Gun Weight (kg): 1.1
- Gun Weight (lb): 2.5
- Gun Weight (oz): 40
- Impingement Port Size (in): 0.042
- Impingement Port Size (mm): 1.00
- Includes: AR4242 Mix Chamber Tip
- Maximum Air Inlet Pressure (bar): 9
- Maximum Air Inlet Pressure (kPa): 900
- Maximum Air Inlet Pressure (MPa): 0.9
- Maximum Air Inlet Pressure (psi): 130
- Maximum Air Pressure (bar): 9
- Maximum Air Pressure (kPa): 900
- Maximum Air Pressure (MPa): 0.9
- Maximum Air Pressure (psi): 130
- Maximum Flow Rate @ PSI (lb/min): 50
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Maximum Fluid Working Pressure (bar): 245
- Maximum Fluid Working Pressure (MPa): 24.5
- Maximum Fluid Working Pressure (psi): 3500
- Minimum Air Inlet Pressure (bar): 5.5
- Minimum Air Inlet Pressure (kPa): 550
- Minimum Air Inlet Pressure (MPa): 0.55
- Minimum Air Inlet Pressure (psi): 80
- Mix Chamber: 01 (.042)
- Overall Hei
$3,680.00
REACTOR HEATED HOSE, 50', 3/8, 3500PSI W/O S
GG 246053
GG 246053
REACTOR HEATED HOSE, 50', 3/8, 3500PSI W/O S
Graco 246053 50 ft x 3/8 in Heated Hose, 3500 psi, Thermocouple, No Scuff, Reactor 1
Graco’s heated hoses are designed specifically for use with Reactor Equipment. Hoses are a key component to the total system, making it important to achieve accurate and uniform heating for the best application possible.
Application: For Reactor proportioners.- New multi-strand copper heating element has greatly increased hose quality:
- Copper-heated hoses are designed specifically for use with Graco proportioners
- Covered with proprietary butyl cover for protection against moisture sensitive isocyanate
- Different fitting sizes on the isocyanate and resin hoses prevent accidentally connecting the wrong hoses together
- Hoses use custom designed splice kit to electrically connect hoses without having to run copper under the fittings
- Helix-design whip hose uses braided copper wires for added flexibility and longer life
- Thermocouple
Very accurate and reliable way to monitor and maintain temperature
- Model: Reactor 1
- Series: No Scuff
- Compatible Sprayer: Reactor 1
- For Use With: Plural Component Proportioners
- Hose Heating Type: External Heated
- Hose Inside Diameter (in): 3/8
- Hose Inside Diameter (mm): 9.525
- Hose Length (ft): 50
- Hose Length (m): 15.2
- Inside Diameter (in): 3/8
- Maximum Working Pressure (bar): 241
- Maximum Working Pressure (kPa): 24100
- Maximum Working Pressure (MPa): 24.1
- Maximum Working Pressure (psi): 3500
Provides 10-times* the flex life compared to previous flat copper heating element
Long-term, even heating without hot spots
Backwards compatible with existing Reactor heated hoses
$3,780.00
KIT, COMPLETE, 2:1(AIR/FLUID)
GG 246081
GG 246081
KIT, COMPLETE, 2:1(AIR/FLUID)
Graco 246081 T2 Complete Package: Includes 2 Pumps (Stainless Steel), 2 Supply Hoses, Air Supply Kit and Desicant Dryer Kit
Graco&prime, s family of transfer pumps maintains performance in any environment. Transfer pumps are required to feed chemical to your Reactor spray machine or any other equipment requiring fluid transfer. Consider your material viscosities, desired output rate, interior ceiling height of your rig, and available air pressure when choosing your ideal transfer pump.
Application: Ideal for moving A and B materials to Reactor spray machines.- Provide consistent feed pressures and flow rates for dependable results
- Lower pressure drops with higher viscosity materials at any ambient temperature
- Designed and manufactured by the worldwide leader in pump technology
- Quick-release bung adapter for easy drum removal without interference from hose connections
- Stainless steel wetted parts for corrosion-resistance
- PTFE seals for improved performance and less maintenance
- Model: T2
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Application: Industrial
- Compatible Material: Polyurethane Materials
- Cycles Per Gallon: 15.9
- Fluid Outlet Size (in): 3/4
- Fluid Outlet Size (mm): 19.05
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- For Use With: HFR Metering System
- Material: Stainless Steel
- Maximum Air Inlet Pressure (bar): 12.5
- Maximum Air Inlet Pressure (kPa): 1250
- Maximum Air Inlet Pressure (MPa): 1.2
- Maximum Air Inlet Pressure (psi): 180
- Maximum Flow Rate (GPM): 5
- Maximum Flow Rate (L/min): 19
- Maximum Operating Temperature (°C): 88
- Maximum Operating Temperature (°F): 190
- Maximum Working Pressure (bar): 28
- Maximum Working Pressure (kPa): 2800
- Maximum Working Pressure (MPa): 2.8
- Maximum Working Pressure (psi): 405
- Package Options: Air Supply & Supply Hose
- Pump Ratio: 2.25:1
$6,180.00
FUSION AP GUN, ROUND 04
GG 246104
GG 246104
FUSION AP GUN, ROUND 04
Graco 246104 Round Fusion Air-Purge Gun with 04 Mix Chamber and 0.070 in (1.8 mm) Orifice Size
With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.
Application: For high output spray polyurethane foam and polyurea applications.- Easy air-blast tip cleaning reduces build-up and tip clogging.
- Long-lasting side seals means less downtime for maintenance
- Quick-release fluid housing - lets you easily change the mix chambers without tools
- Ergonomic handle
- Model: Fusion AP
- Series: Round
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: NPT
- Applicator Type: Manual
- Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam
- Component A Inlet Size (cm): 1.27
- Component A Inlet Size (in): 1/2-20
- Component A Inlet Size (mm): 12.7
- Component A Inlet Thread Type: UNF
- Component B Inlet Size (cm): 1.42875
- Component B Inlet Size (in): 9/16-18
- Component B Inlet Size (mm): 14.2875
- Component B Inlet Thread Type: UNF
- Component Type: Plural-Component
- Fluid Orifice Size (cm): 0.178
- Fluid Orifice Size (in): 0.070
- Fluid Orifice Size (mm): 1.78
- For Use With: Non-Flammable Foam and Polyurea
- Gun Activation: Manual
- Gun Included: 1
- Gun Type: Air Purge Gun
- Gun Weight (g): 1130
- Gun Weight (kg): 1.1
- Gun Weight (lb): 2.5
- Gun Weight (oz): 40
- Impingement Port Size (in): 0.070
- Impingement Port Size (mm): 1.75
- Includes: AR7070 Mix Chamber Tip
- Maximum Air Inlet Pressure (bar): 9
- Maximum Air Inlet Pressure (kPa): 900
- Maximum Air Inlet Pressure (MPa): 0.9
- Maximum Air Inlet Pressure (psi): 130
- Maximum Air Pressure (bar): 9
- Maximum Air Pressure (kPa): 900
- Maximum Air Pressure (MPa): 0.9
- Maximum Air Pressure (psi): 130
- Maximum Flow Rate @ PSI (lb/min): 50
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Maximum Fluid Working Pressure (bar): 245
- Maximum Fluid Working Pressure (MPa): 24.5
- Maximum Fluid Working Pressure (psi): 3500
- Minimum Air Inlet Pressure (bar): 5.5
- Minimum Air Inlet Pressure (kPa): 550
- Minimum Air Inlet Pressure (MPa): 0.55
- Minimum Air Inlet Pressure (psi): 80
- Mix Chamber: 04 (.070)
- Overall Hei
$3,680.00
FUSION AP GUN, ROUND 00
GG 246100
GG 246100
FUSION AP GUN, ROUND 00
Graco 246100 Round Fusion Air-Purge Gun with 00 Mix Chamber and 0.029 in (0.74 mm) Orifice Size
With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.
Application: For high output spray polyurethane foam and polyurea applications.- Easy air-blast tip cleaning reduces build-up and tip clogging.
- Long-lasting side seals means less downtime for maintenance
- Quick-release fluid housing - lets you easily change the mix chambers without tools
- Ergonomic handle
- Model: Fusion AP
- Series: Round
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: NPT
- Applicator Type: Manual
- Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam
- Component A Inlet Size (cm): 1.27
- Component A Inlet Size (in): 1/2-20
- Component A Inlet Size (mm): 12.7
- Component A Inlet Thread Type: UNF
- Component B Inlet Size (cm): 1.42875
- Component B Inlet Size (in): 9/16-18
- Component B Inlet Size (mm): 14.2875
- Component B Inlet Thread Type: UNF
- Component Type: Plural-Component
- Fluid Orifice Size (cm): 0.074
- Fluid Orifice Size (in): 0.029
- Fluid Orifice Size (mm): 0.74
- For Use With: Non-Flammable Foam and Polyurea
- Gun Activation: Manual
- Gun Included: 1
- Gun Type: Air Purge Gun
- Gun Weight (g): 1130
- Gun Weight (kg): 1.1
- Gun Weight (lb): 2.5
- Gun Weight (oz): 40
- Impingement Port Size (in): 0.029
- Impingement Port Size (mm): 0.70
- Includes: AR2929 Mix Chamber Tip
- Maximum Air Inlet Pressure (bar): 9
- Maximum Air Inlet Pressure (kPa): 900
- Maximum Air Inlet Pressure (MPa): 0.9
- Maximum Air Inlet Pressure (psi): 130
- Maximum Air Pressure (bar): 9
- Maximum Air Pressure (kPa): 900
- Maximum Air Pressure (MPa): 0.9
- Maximum Air Pressure (psi): 130
- Maximum Flow Rate @ PSI (lb/min): 50
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Maximum Fluid Working Pressure (bar): 245
- Maximum Fluid Working Pressure (MPa): 24.5
- Maximum Fluid Working Pressure (psi): 3500
- Minimum Air Inlet Pressure (bar): 5.5
- Minimum Air Inlet Pressure (kPa): 550
- Minimum Air Inlet Pressure (MPa): 0.55
- Minimum Air Inlet Pressure (psi): 80
- Mix Chamber: 00 (.029)
- Overall He
$3,680.00
Gun, Silver
GG 246240
GG 246240
Gun, Silver
Silver Plus Airless Spray Gun, 2 Finger Trigger, RAC X 517 SwitchTip The Silver Plus Gun is known for its durability, long life, spraying performance and comfortable design. Rated at 5000 psi (345 bar, 34.5 MPa), this is the preferred gun for high-pressure applications. Includes a 2-finger trigger and a RAC X 517 SwitchTip and Guard. Rugged Design- Durable forged aluminum withstands harsh work environments
- Lighter weight than competitive guns Polished body is easy to clean
- Factory set needle needs no trigger adjustments
- Guaranteed for life against breakage
- Maximum performance and long life
- Fluid flows directly to the tip through the gun fluid tube
- Provides the ability to spray heavier materials
- Including high solid coatings and mastics
- Provides faster shut-off to reduce spitting of light viscosity material
- Included in Silver Plus Gun (Part No. 235462), or as an optional Needle Kit (Part No. 235475)
$548.00
REACTOR HEATED HOSE, 50', 1/4, W/O CABLE
GG 246074
GG 246074
REACTOR HEATED HOSE, 50', 1/4, W/O CABLE
50 ft x 1/4 in Heated Hose, 2000 psi, Without Cable, No Scuff, Reactor 1 & 2Graco’s heated hoses are designed specifically for use with Reactor Equipment. Hoses are a key component to the total system, making it important to achieve accurate and uniform heating for the best application possible.
For Reactor proportioners.New multi-strand copper heating element has greatly increased hose quality:
- Provides 10-times* the flex life compared to previous flat copper heating element
- Long-term, even heating without hot spots
- Backwards compatible with existing Reactor heated hoses
$1,840.00
FUSION AP GUN, ROUND 02
GG 246102
GG 246102
FUSION AP GUN, ROUND 02
Round Fusion Air-Purge Gun with 02 Mix Chamber and 0.052 in (1.3 mm) Orifice SizeWith long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.
For high output spray polyurethane foam and polyurea applications. Easy air-blast tip cleaning reduces build-up and tip clogging. Long-lasting side seals means less downtime for maintenance Quick-release fluid housing - lets you easily change the mix chambers without tools Hand-tightened front cap - no tools needed to clean and maintain seals and mix chamber Ergonomic handle
$3,680.00
Guard, RAC X
GG 246215
GG 246215
Guard, RAC X
Graco 246215 RAC X HandTite Tip Guard
The RAC X HandTite Tip Guard helps to eliminate paint build-up, dripping and spitting. It also helps to provide safer spraying at higher pressures. Its finger grip design makes it easy to attach or remove without the need for tools. For use with all RAC X SwitchTips.
- Model: RAC X
- Series: Tip Guard
- Compatible Tip Type: RAC X
- For Use With: Widerac RAC X Switchtip
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (kPa): 28000
- Maximum Working Pressure (psi): 4050
$43.60
REACTOR HEATED HOSE, 10', 3/8, 3500 PSI
GG 246056
GG 246056
REACTOR HEATED HOSE, 10', 3/8, 3500 PSI
Graco 246056 10 ft x 3/8 in Whip Hose, 3500 psi, Without Cable, Mesh Scuff, Reactor 1 & 2
Graco’s heated hoses are designed specifically for use with Reactor Equipment. Hoses are a key component to the total system, making it important to achieve accurate and uniform heating for the best application possible.
Application: For Reactor proportioners.- New multi-strand copper heating element has greatly increased hose quality:
- Copper-heated hoses are designed specifically for use with Graco proportioners
- Covered with proprietary butyl cover for protection against moisture sensitive isocyanate
- Different fitting sizes on the isocyanate and resin hoses prevent accidentally connecting the wrong hoses together
- Hoses use custom designed splice kit to electrically connect hoses without having to run copper under the fittings
- Helix-design whip hose uses braided copper wires for added flexibility and longer life
Provides 10-times* the flex life compared to previous flat copper heating element
Long-term, even heating without hot spots
Backwards compatible with existing Reactor heated hoses
- Model: Reactor 1
- Series: Mesh Scuff
- Compatible Sprayer: Reactor 1 & 2
- For Use With: Plural Component Proportioners
- Hose Heating Type: External Heated
- Hose Length (ft): 10
- Hose Length (m): 3
- Inside Diameter (in): 3/8
- Maximum Working Pressure (bar): 241
- Maximum Working Pressure (kPa): 24100
- Maximum Working Pressure (MPa): 24.1
- Maximum Working Pressure (psi): 3500
$1,465.00
FUSION AP GUN, ROUND 03
GG 246103
GG 246103
FUSION AP GUN, ROUND 03
Graco 246103 Round Fusion Air-Purge Gun with 03 Mix Chamber and 0.060 in (1.5 mm) Orifice Size
With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.
Application: For high output spray polyurethane foam and polyurea applications.- Easy air-blast tip cleaning reduces build-up and tip clogging.
- Long-lasting side seals means less downtime for maintenance
- Quick-release fluid housing - lets you easily change the mix chambers without tools
- Ergonomic handle
- Model: Fusion AP
- Series: Round
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: NPT
- Applicator Type: Manual
- Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam
- Component A Inlet Size (cm): 1.27
- Component A Inlet Size (in): 1/2-20
- Component A Inlet Size (mm): 12.7
- Component A Inlet Thread Type: UNF
- Component B Inlet Size (cm): 1.42875
- Component B Inlet Size (in): 9/16-18
- Component B Inlet Size (mm): 14.2875
- Component B Inlet Thread Type: UNF
- Component Type: Plural-Component
- Fluid Orifice Size (cm): 0.152
- Fluid Orifice Size (in): 0.060
- Fluid Orifice Size (mm): 1.52
- For Use With: Non-Flammable Foam and Polyurea
- Gun Activation: Manual
- Gun Included: 1
- Gun Type: Air Purge Gun
- Gun Weight (g): 1130
- Gun Weight (kg): 1.1
- Gun Weight (lb): 2.5
- Gun Weight (oz): 40
- Impingement Port Size (in): 0.060
- Impingement Port Size (mm): 1.50
- Includes: AR6060 Mix Chamber Tip
- Maximum Air Inlet Pressure (bar): 9
- Maximum Air Inlet Pressure (kPa): 900
- Maximum Air Inlet Pressure (MPa): 0.9
- Maximum Air Inlet Pressure (psi): 130
- Maximum Air Pressure (bar): 9
- Maximum Air Pressure (kPa): 900
- Maximum Air Pressure (MPa): 0.9
- Maximum Air Pressure (psi): 130
- Maximum Flow Rate @ PSI (lb/min): 50
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Maximum Fluid Working Pressure (bar): 245
- Maximum Fluid Working Pressure (MPa): 24.5
- Maximum Fluid Working Pressure (psi): 3500
- Minimum Air Inlet Pressure (bar): 5.5
- Minimum Air Inlet Pressure (kPa): 550
- Minimum Air Inlet Pressure (MPa): 0.55
- Minimum Air Inlet Pressure (psi): 80
- Mix Chamber: 03 (.060)
- Overall Hei
$3,680.00
HUSKY PUMP, 716 DRUM W/RISER
GG 246367
GG 246367
HUSKY PUMP, 716 DRUM W/RISER
Husky 716 Diaphragm Pump with Drum Riser TubeThe Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.
Center- and end-porting No mechanical seals which causes fluid leaks or failures Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks 3/4 in (19.05 mm) center- and end-porting No seals to leak or fail Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks
$1,685.00
HUSKY PUMP, 1050 W/RISER
GG 246368
GG 246368
HUSKY PUMP, 1050 W/RISER
Husky 1050 Diaphragm Pump with Drum Riser TubeThe Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.
Longer Diaphragm Life
- Up to 5x longer diaphragm life for less maintenance and downtime
Modular Air Valve
- Stall-free, low pulsation operation provides smooth and rapid changeover
One-Piece Center Section
- Eliminates air leaks for more efficient operation
Four Bolt Joint Design
- Bolted design provides even sealing pressure for leak-free operation
Multiple Ports
- Increased number of ports for installation flexibility
Optional Features
- DataTrak - Runaway protection and tracks material usage
- Pulse Output - Cycle count capability
$2,260.00
KIT, COMPL., H1050 (AIR/FLUID)
GG 246376
GG 246376
KIT, COMPL., H1050 (AIR/FLUID)
Graco 246376 Complete Husky 1050 Supply Pump System
The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.
- Benefits of the Husky 1050 Double Diaphragm Pump
- 30% more efficient than the market leader
- 20% increase in fluid flow compared to the Husky 1050
- Expanded material offering to handle endless applications
Up to 5 times longer diaphragm life compared to other air-operated diaphragm pumps in its class
Expanded material offering to handle endless applications
Spring loaded, externally serviceable pilot valves for faster change over and reduced pulsation.
Offered in ATEX configuration.
- Model: Husky
- Series: 1050
- Air Exhaust Port Size (in): 3/4
- Air Exhaust Port Thread Gender: Female
- Air Exhaust Port Thread Type: NPT
- Air Inlet Size (in): 1/2
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Compatible Material: Antifreeze, Detergent, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer
- Fluid Inlet Size (cm): 2.54
- Fluid Inlet Size (in): 1
- Fluid Inlet Size (mm): 25.4
- Fluid Outlet Size (cm): 2.54
- Fluid Outlet Size (in): 1
- Fluid Outlet Size (mm): 25.4
- Maximum Air Pressure (bar): 8.62
- Maximum Air Pressure (kPa): 862
- Maximum Air Pressure (MPa): 0.862
- Maximum Air Pressure (psi): 125
- Maximum Cycle Rate (CPM): 280
- Maximum Flow Rate (GPM): 50
- Maximum Flow Rate (L/min): 189
- Maximum Fluid Pressure (bar): 8
- Maximum Fluid Pressure (kPa): 80
- Maximum Fluid Pressure (MPa): 0.8
- Maximum Fluid Pressure (psi): 115
- Maximum Fluid Pressure (bar): 8
- Maximum Fluid Pressure (kPa): 80
- Maximum Fluid Pressure (MPa): 0.8
- Maximum Fluid Pressure (psi): 115
- Maximum Solid Size (cm): 0.3175
- Maximum Solid Size (in): 0.125
- Maximum Solid Size (mm): 3.175
- Power Source: Air
$4,950.00
KIT, REPAIR, FILTER, 100 MESH
GG 246382
GG 246382
KIT, REPAIR, FILTER, 100 MESH
Graco 246382 Easy Out Pump Manifold Filter, Short, 100 mesh
Using an Easy Out Pump Manifold Filter is the easiest way to maximize spray performance while also saving time and money by extending the life of your equipment and reducing down time. Use 100 mesh for materials such as lacquers and solvent-based enamels and paints.
- Model: Easy Out
- Series: Manifold Filter
- For Use With: ST, STX, 390, Ultra 395/495/595 Airless Sprayers
- Mesh Size: 100
- Number of Pieces: 1
$12.30
KIT, REPAIR, FILTER, 60 MESH
GG 246384
GG 246384
KIT, REPAIR, FILTER, 60 MESH
Easy Out Pump Manifold Filter, Short, 60 mesh Using an Easy Out Pump Manifold Filter is the easiest way to maximize spray performance while also saving time and money by extending the life of your equipment and reducing down time. Use 60 mesh for materials such as latex primers, latex, and latex enamels. Maximize spray performance with Easy Out manifold filter Save time and money by extending the life of your equipment and reducing down time Filter keeps dirt, debris and contaminants out of the spray system for smooth, professional quality finish Designed to filter the paint from the inside out for most effective filtering and easier clean up Use 60 mesh for materials such as latex primers, latex, and latex enamels
$12.30
KIT, REPAIR, STRAINER
GG 246385
GG 246385
KIT, REPAIR, STRAINER
Inlet Strainer, Nylon Cap, 7/8 in Using an Inlet Strainer is the easiest way to maximize spray performance while also saving time and money by extending the life of your equipment and reducing down time. Using an Inlet Strainer is the easiest way to maximize spray performance while also saving time and money by extending the life of your equipment and reducing down time Removes debris from the coating protecting the pump, reducing tip clogging and providing a better quality finish Provides first stage of filtration Designed for easy field replacement Connection is 7/8-in thread
$16.50
KIT, REPAIR, FILTER, 30 MESH
GG 246425
GG 246425
KIT, REPAIR, FILTER, 30 MESH
Graco 246425 Easy Out Pump Manifold Filter, Short, 30 mesh
Using an Easy Out Pump Manifold Filter is the easiest way to maximize spray performance while also saving time and money by extending the life of your equipment and reducing down time. Use 30 mesh for materials such as heavy latex, block filler, or elastomeric.
- Model: Easy Out
- Series: Manifold Filter
- For Use With: ST, STX, 390, Ultra 395/495/595 Airless Sprayers
- Mesh Size: 30
- Number of Pieces: 1
$12.30
KIT, REPAIR, PUMP, 021/023
GG 246428
GG 246428
KIT, REPAIR, PUMP, 021/023
Graco 246428 Endurance Chromex Piston Pump
Genuine Graco Endurance Pumps lead the industry in durability and ease of installation. Keep a spare on hand to minimize downtime in the field.
Application: Replacement pump for GMAX 3400 Standard Series sprayers model year 2005 and newer.- Lasts 2X Longer than competing pumps
- Chromex rod and hardened stainless steel cylinder
- Long Life V-Max Blue Packings
- Model: Endurance
- Series: Chromex
- Fluid Inlet Size (in): 1 1/4
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: UNF
- Fluid Outlet Size (in): 1/4
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- For Use With: GMAX 3400 Standard Series (2000 and newer)
- Maximum Working Pressure (psi): 3300
$405.00
GUARD, RAC X, 11/16"
GG 246437
GG 246437
GUARD, RAC X, 11/16"
RAC X HandTite Tip Guard, 11/16 in The RAC X HandTite Tip Guard helps to eliminate paint build-up, dripping and spitting. It also helps to provide safer spraying at higher pressures. Its finger grip design makes it easy to attach or remove without the need for tools. For use with all RAC X SwitchTips.
$43.60
Gasket RAC X, 5 Pack
GG 246453
GG 246453
Gasket RAC X, 5 Pack
RAC X One Seal, 5 pack Compatible with most materials. Easy installation withtools. Use only with RAC X SwitchTips and Guards.
$31.00
HUSKY PUMP, 515AC-PP01AAC3-2ACBNBNPT
GG 246484
GG 246484
HUSKY PUMP, 515AC-PP01AAC3-2ACBNBNPT
Husky 515 Diaphragm PumpThe Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.
The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.
Center and end porting options. No mechanical seals to cause fluid leaks or failures Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks Operates on as little as 20 psi (1.4 bar, 0.14 MPa) Split manifold option to pump multiple fluids without mixing Delivery up to 15 gpm (56.7 lpm) Easy-to-service air valve and ball checks Reliable air valve for years of dependable performance
$1,600.00
HUSKY PUMP, 716A-PP01AA1-4SSSSPTPT
GG 246485
GG 246485
HUSKY PUMP, 716A-PP01AA1-4SSSSPTPT
Graco 246485 Husky 716 Diaphragm Pump
The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.
- Center- and end-porting
- No mechanical seals which causes fluid leaks or failures
- Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
- 3/4 in (19.05 mm) center- and end-porting
- No seals to leak or fail
- Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
- Easy-to-service air valve and ball checks
- Model: Husky
- Series: 716
- Air Exhaust Port Size (in): 3/8
- Air Exhaust Port Thread Gender: Female
- Air Exhaust Port Thread Type: NPT
- Air Inlet Size (in): 1/4
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Compatible Material: Antifreeze, Detergent, Motor Oil, Gear Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Treatment, Water - Freshwater Treatment, Ink and Colorant
- Fluid Inlet Size (cm): 1.905
- Fluid Inlet Size (in): 3/4
- Fluid Inlet Size (mm): 19.05
- Fluid Inlet Thread Gender: Female
- Fluid Outlet Size (cm): 1.905
- Fluid Outlet Size (in): 3/4
- Fluid Outlet Size (mm): 19.05
- Fluid Outlet Thread Gender: Female
- Fluid Section Material: Carbon Steel
- Material: Carbon Steel
- Maximum Air Consumption (SCFM): 28
- Maximum Air Pressure (bar): 7
- Maximum Air Pressure (kPa): 700
- Maximum Air Pressure (MPa): 0.7
- Maximum Air Pressure (psi): 100
- Maximum Cycle Rate (CPM): 400
- Maximum Flow Rate (GPM): 16
- Maximum Flow Rate (L/min): 60.6
- Maximum Fluid Pressure (bar): 7
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Fluid Pressure (bar): 7
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Solid Size (cm): 0.2383
- Maximum Solid Size (in): 0.09375
- Maximum Solid Size (mm): 2.4
- Maximum Working Pressure (bar): 7
- Maximum Working Pressure (kPa): 70
- Maximum Working Pressure (MPa): 0.7
- Maximum Working Pressure (psi): 100
- Overall Height (in): 10.43
- Power Source: Air
$1,260.00
Kit, Repair, Gears
GG 246596
GG 246596
KIT,REPAIR, GEARS
KIT INCLUDES: SHAFT, SUB-ASSY, HELICAL GEAR [QTY. 1], SHAFT, SUB-ASSY, HELICAL GEAR [QTY. 1], O-RING, SEAL, HELICAL GEAR METER [QTY. 2], SPACER, SHAFT, GEAR [QTY. 1]
$2,490.00
