GG 246484
HUSKY PUMP, 515AC-PP01AAC3-2ACBNBNPT

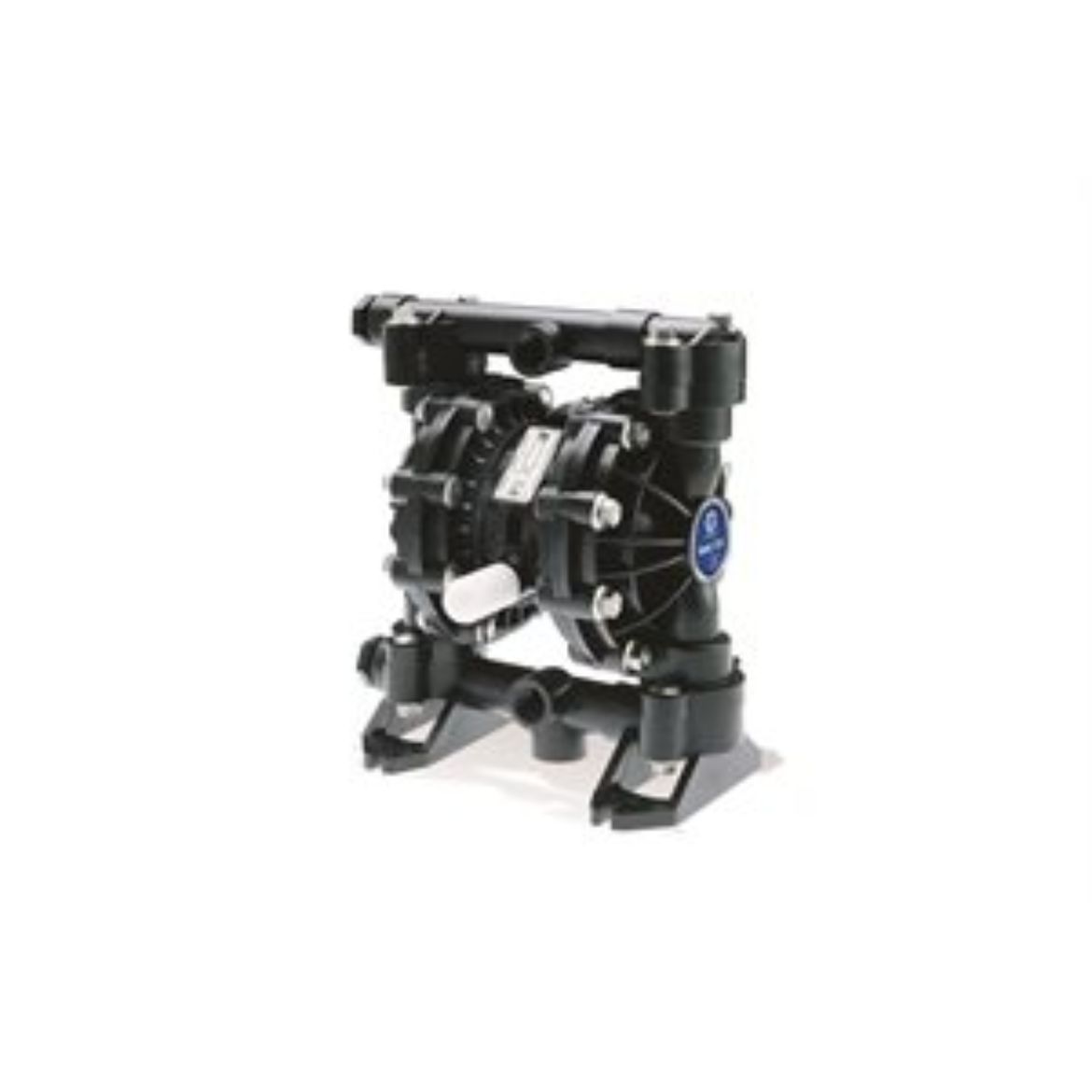

Graco 246484 Husky 515 Diaphragm Pump
The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.
The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.
- Center and end porting options.
- No mechanical seals to cause fluid leaks or failures
- Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
- Operates on as little as 20 psi (1.4 bar, 0.14 MPa)
- Split manifold option to pump multiple fluids without mixing
- Delivery up to 15 gpm (56.7 lpm)
- Easy-to-service air valve and ball checks
- Reliable air valve for years of dependable performance
- Air Exhaust Port Size (in): 3/8
- Air Exhaust Port Thread Gender: Female
- Air Exhaust Port Thread Type: NPT
- Air Inlet Size (in): 1/4
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Compatible Material: Antifreeze, Detergent, Resin, Polymer, Motor Oil, Gear Oil, Hydraulic Fluid, Automatic Transmission Fluid, Cutting Oil, Water - Wastewater Treatment, Ink and Colorant
- Fluid Section Material: Carbon Steel
- Maximum Air Consumption (SCFM): 28
- Maximum Air Pressure (bar): 7
- Maximum Air Pressure (kPa): 700
- Maximum Air Pressure (MPa): 0.7
- Maximum Air Pressure (psi): 100
- Maximum Cycle Rate (CPM): 400
- Maximum Flow Rate (GPM): 15
- Maximum Flow Rate (L/min): 56.8
- Maximum Fluid Pressure (bar): 7
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Fluid Pressure (bar): 7
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Solid Size (cm): 0.2383
- Maximum Solid Size (in): 0.09375
- Maximum Solid Size (mm): 2.4
- Maximum Working Pressure (bar): 7
- Maximum Working Pressure (kPa): 70
- Maximum Working Pressure (MPa): 0.7
- Maximum Working Pressure (psi): 100
- Overall Height (in): 10.63
