GG 244909
ENDURE VALVE, HTD, 240V, 400 DG F

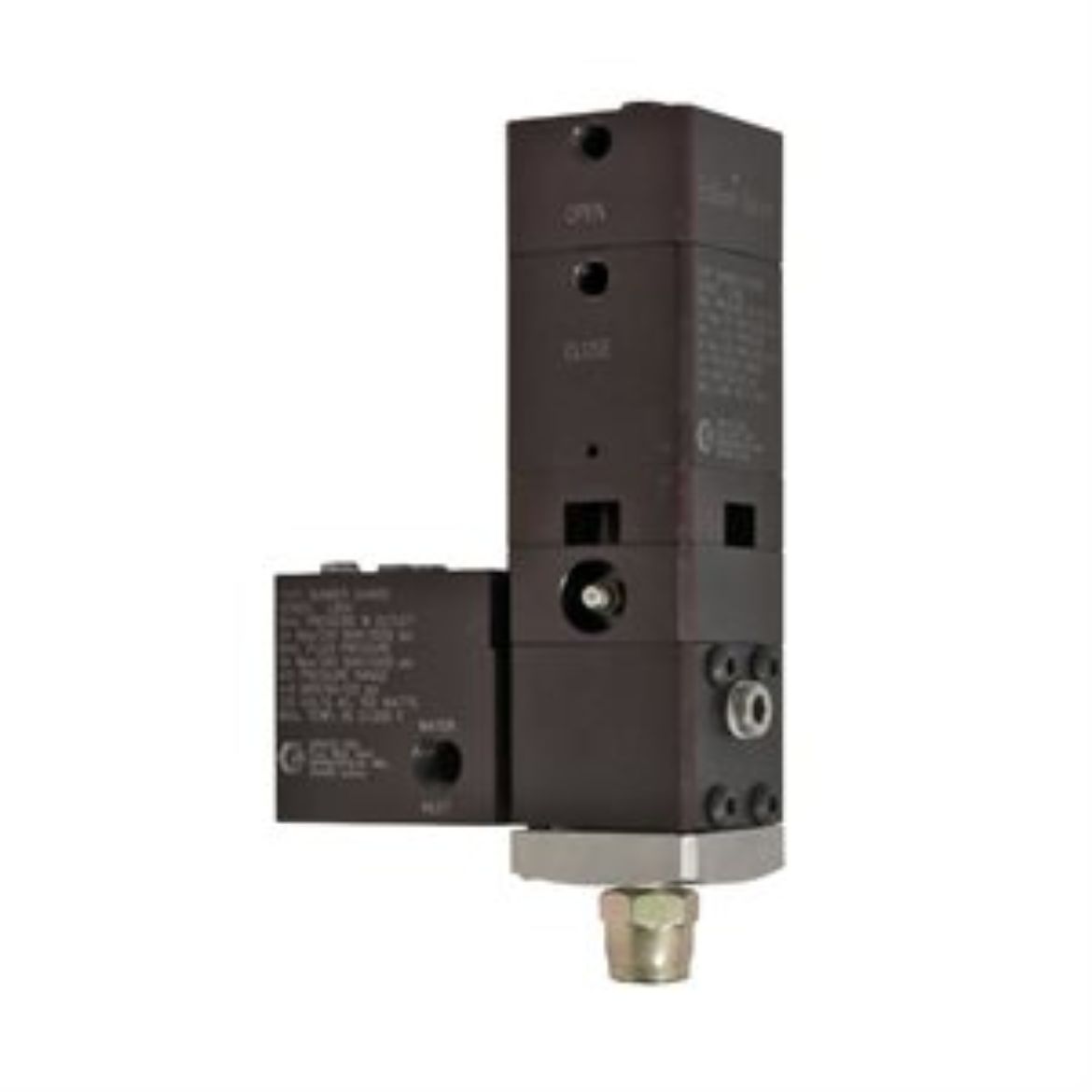

Graco 244909 Endure Valve, 240V Electric Heat Model, temperatures to 400ºF (204ºC)
The EnDure Valve offers high reliability for high pressure, high flow sealant and adhesive dispensing applications.
- Dual seal design
- Air operated with spring-assisted closing
- Used in heat-only applications
- Replaces 243694, 243696 hot melt valves where operating temperature is between 200º and 400ºF (95ºC and 204ºC)
- Air Inlet Size (in): 1/8
- Air Inlet Thread Type: NPT
- Ambient/Warm Melt/Hot Melt: Ambient, Warm Melt, Hot Melt
- Application: Bonding, Sealing, Gasketing
- Compatible Material: Sealants, Adhesives
- Component Type: Single Component
- Fluid Inlet Size (cm): 1.27
- Fluid Inlet Size (in): 1/2
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (in): 5/8
- Fluid Outlet Thread Gender: Male
- Gun Activation: Automatic
- Includes: Heater Cartridge
- Maximum Working Pressure (bar): 241
- Maximum Working Pressure (kg/cm²): 246.1
- Maximum Working Pressure (kPa): 24100
- Maximum Working Pressure (psi): 3500
- Metering Valve Orifice Size (in): 1/8
- Mount Hole Size (mm): M6 x 1
- Orifice Diameter (in): 0.03
